Description

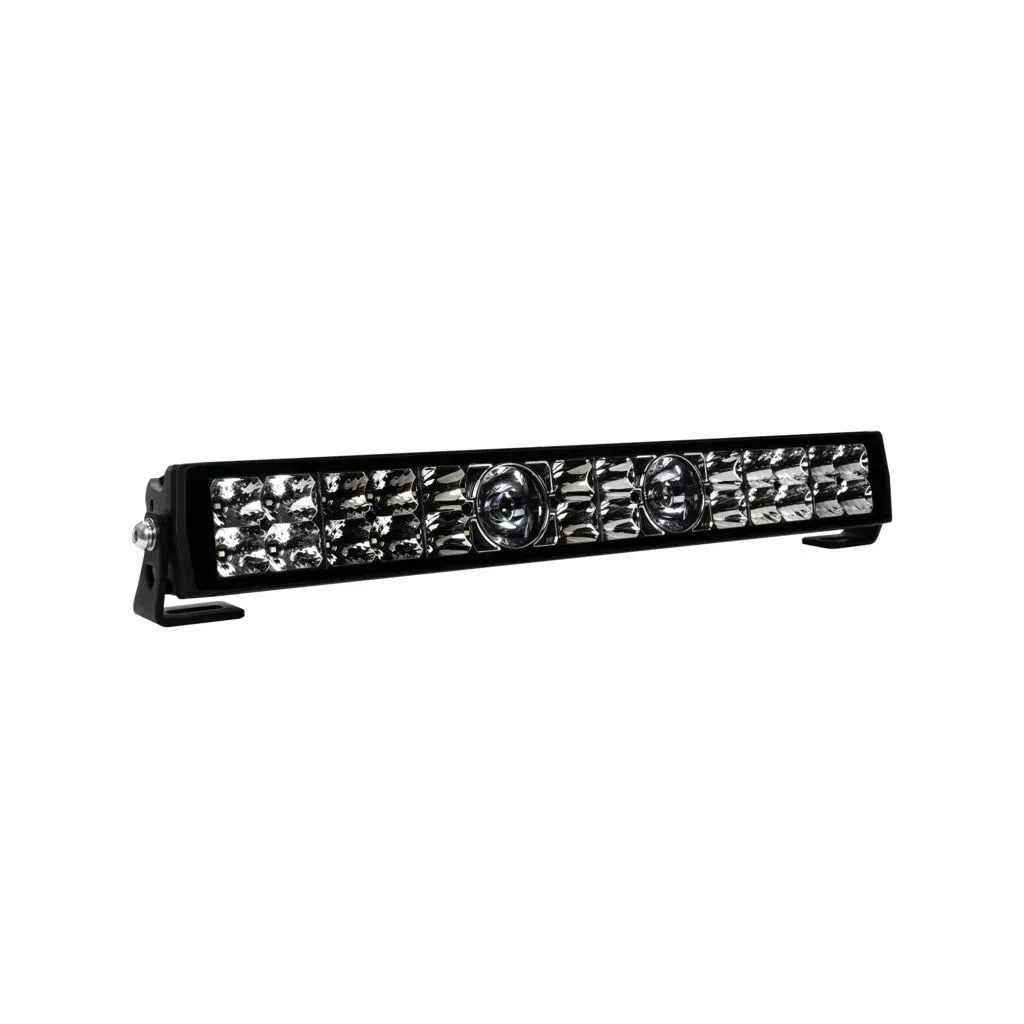

Ignite 20" Dual Row Laser LED Driving Lamp Lightbar 9 - 36 Volt 136 Watt
  • Polycarbonate Side Reflector Focusing Optic Drive Technology with Lexan Polycarbonate Lens
  • Light Transmittance >95%
  • Integrated Electronic Thermal Management (ETM)
  • Black Anodized Polyester Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink
  • and Pressure Equalising Vent
  • Dual Mounting Systems; 6063 Aluminium Bottom Mount Brackets and SUS201 Stainless Steel Side Mount Brackets
  • Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
  • Combined Laser and LED Illumination Technology
  • 500mm Lead with 2 Pin Deutsch Plug
  • Over and Under Voltage Protection
  • Reverse Polarity Protection
  • UV, Water and Shock resistant to 15G
  • Anti Rust, corrosion and freezing resistance
  • 50,000 Hours LED Lifespan
  • ECE R112, R10 and CE Approved
  • IP68 and IP69K Rating
  • Environment Temperature: -40°C ~ +60°C
  • 5 Year Warranty

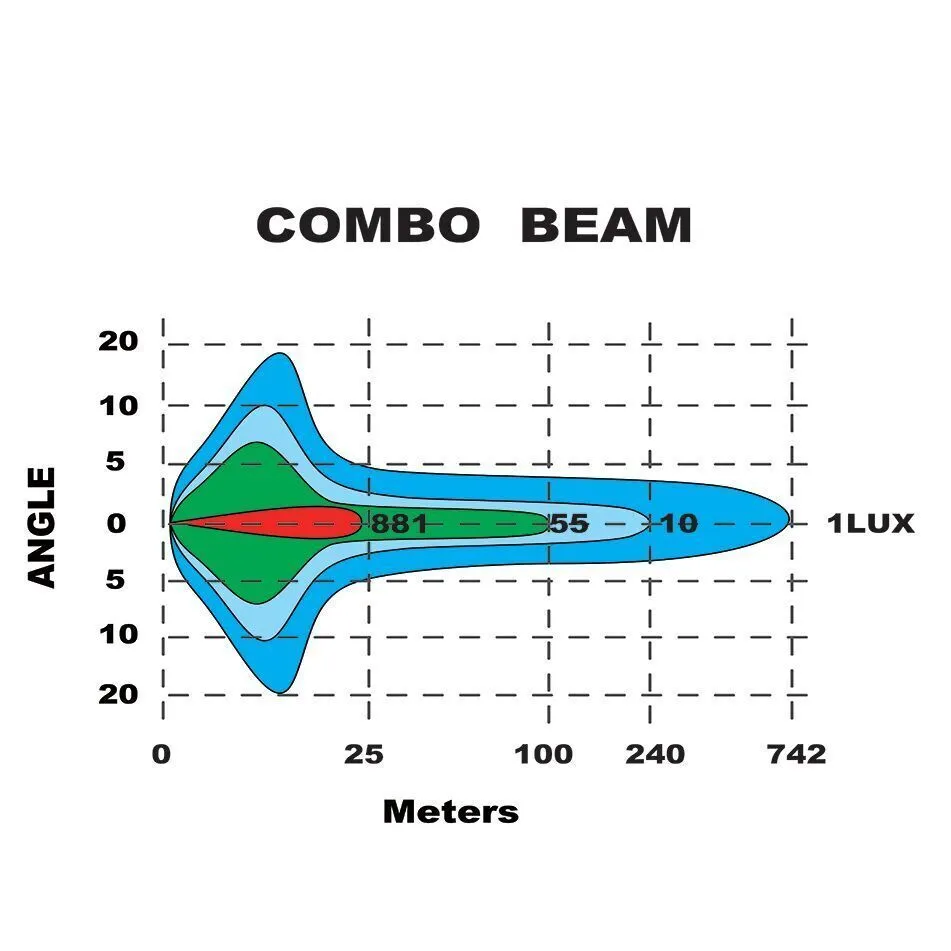

  • 8° Laser Pencil Beam and 20° LED Flood Beam providing a combined Combo Beam pattern
  • Weight: _ _ _g
  • 24 x 4 Watt High Intensity LP LED's and 2 x 20 Watt High Intensity Osram Laser LED's
  • 11,500 Raw and 9,800 Effective Lumens and 6,000K
  • 1 Lux @ 742m and 551,000 cd Peak Beam Intensity
  • Current Draw: 9.8amp @ 12 Volt and 4.8amp @ 24 Volt

Specifications

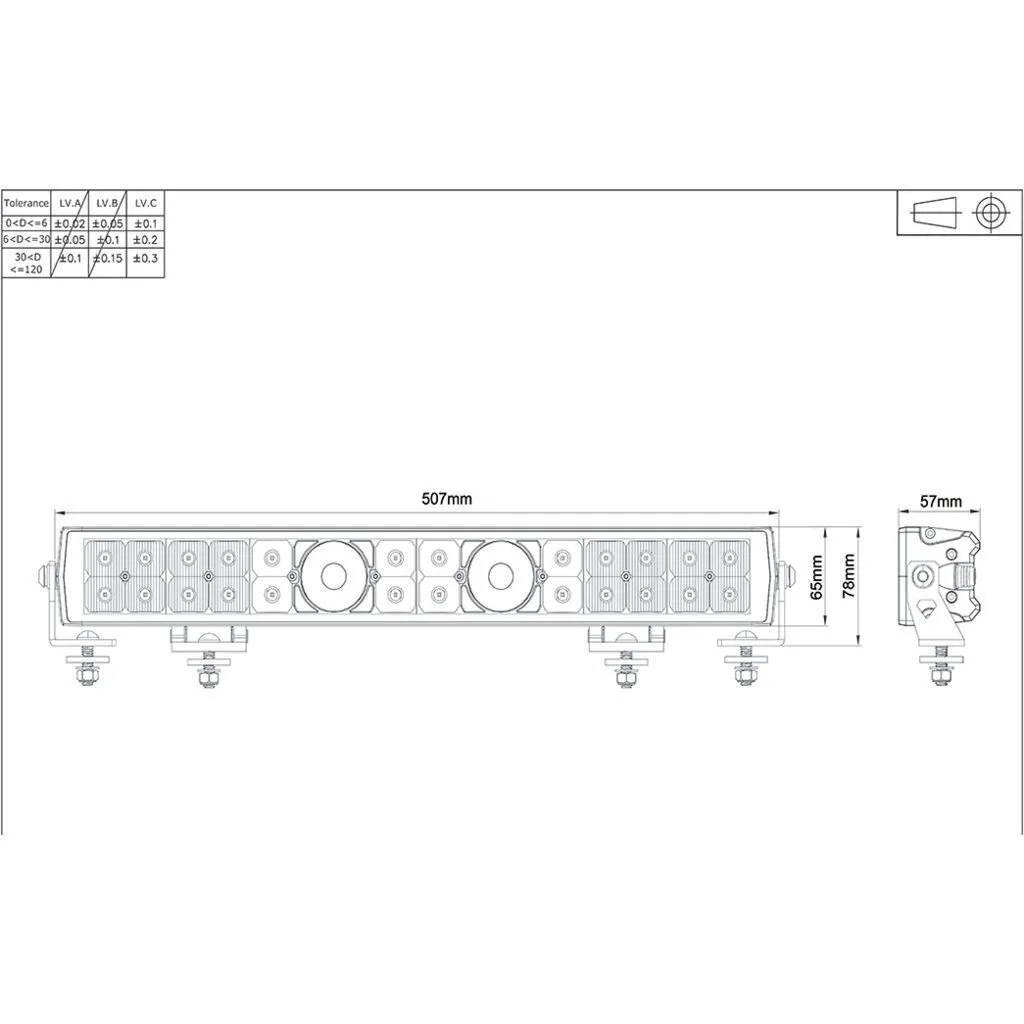

Beam Type Combined
Depth (mm) 57
Height (mm) 65
Rows Double
Mount Other
No. of LED 24
Series Other
Type LED
Voltage Multivolt
Watts Other
Width (mm) 507
SKU ILLB2404
Barcode # 9323327947034
Brand Ignite

Compatibility

  • Universal Part
Ignite 20" Dual Row Laser LED Driving Lamp Lightbar 9 - 36 Volt 136 Watt
  • Polycarbonate Side Reflector Focusing Optic Drive Technology with Lexan Polycarbonate Lens
  • Light Transmittance >95%
  • Integrated Electronic Thermal Management (ETM)
  • Black Anodized Polyester Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink
  • and Pressure Equalising Vent
  • Dual Mounting Systems; 6063 Aluminium Bottom Mount Brackets and SUS201 Stainless Steel Side Mount Brackets
  • Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
  • Combined Laser and LED Illumination Technology
  • 500mm Lead with 2 Pin Deutsch Plug
  • Over and Under Voltage Protection
  • Reverse Polarity Protection
  • UV, Water and Shock resistant to 15G
  • Anti Rust, corrosion and freezing resistance
  • 50,000 Hours LED Lifespan
  • ECE R112, R10 and CE Approved
  • IP68 and IP69K Rating
  • Environment Temperature: -40°C ~ +60°C
  • 5 Year Warranty
  • 8° Laser Pencil Beam and 20° LED Flood Beam providing a combined Combo Beam pattern
  • Weight: _ _ _g
  • 24 x 4 Watt High Intensity LP LED's and 2 x 20 Watt High Intensity Osram Laser LED's
  • 11,500 Raw and 9,800 Effective Lumens and 6,000K
  • 1 Lux @ 742m and 551,000 cd Peak Beam Intensity
  • Current Draw: 9.8amp @ 12 Volt and 4.8amp @ 24 Volt
Beam Type Combined
Depth (mm) 57
Height (mm) 65
Rows Double
Mount Other
No. of LED 24
Series Other
Type LED
Voltage Multivolt
Watts Other
Width (mm) 507
SKU ILLB2404
Barcode # 9323327947034
Brand Ignite
  • Universal Part
