Description

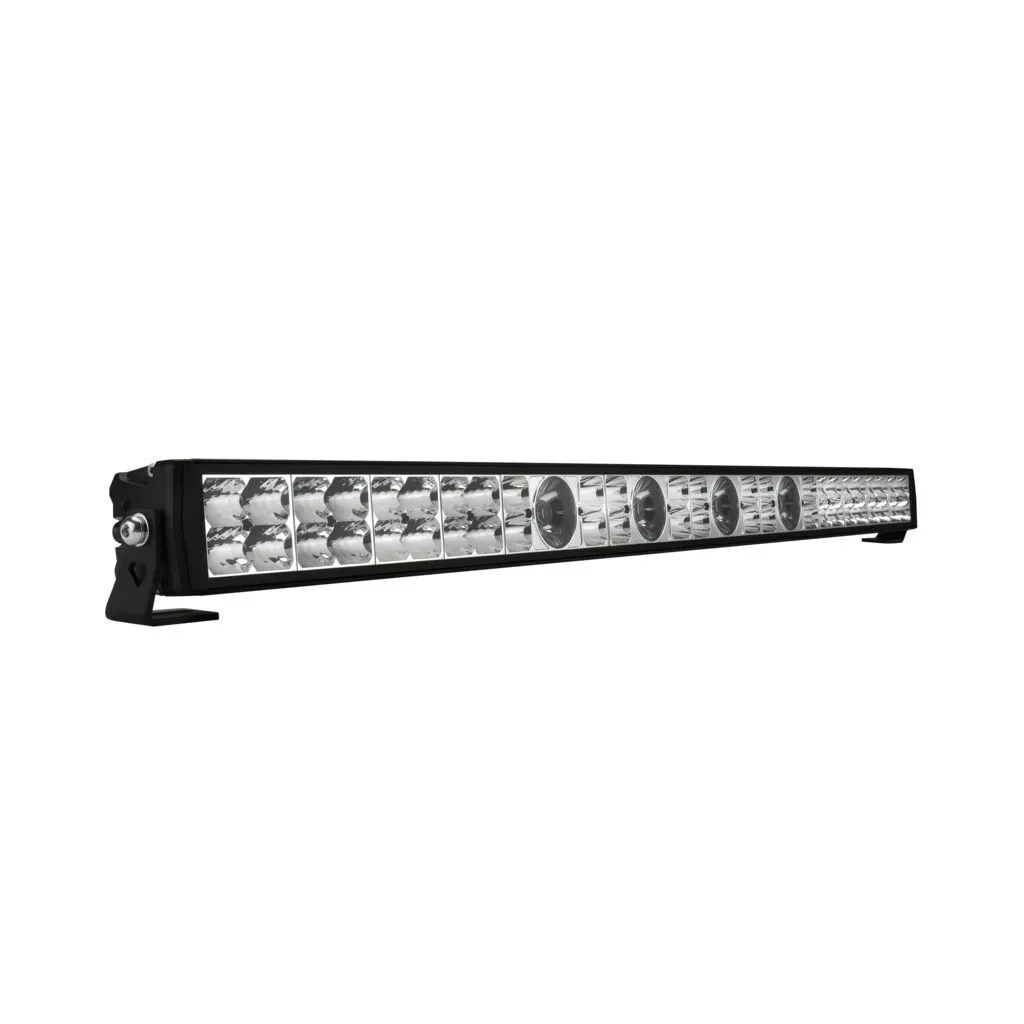

Ignite 40" Dual Row Laser LED Driving Lamp Lightbar 9 - 36 Volt 272 Watt
  • Polycarbonate Side Reflector Focusing Optic Drive Technology and Laser LED Drive Technology
  • with Lexan Polycarbonate Lens
  • Light Transmittance >95%
  • Integrated Electronic Thermal Management (ETM)
  • Black Anodized Polyester Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink
  • and Pressure Equalising Vent

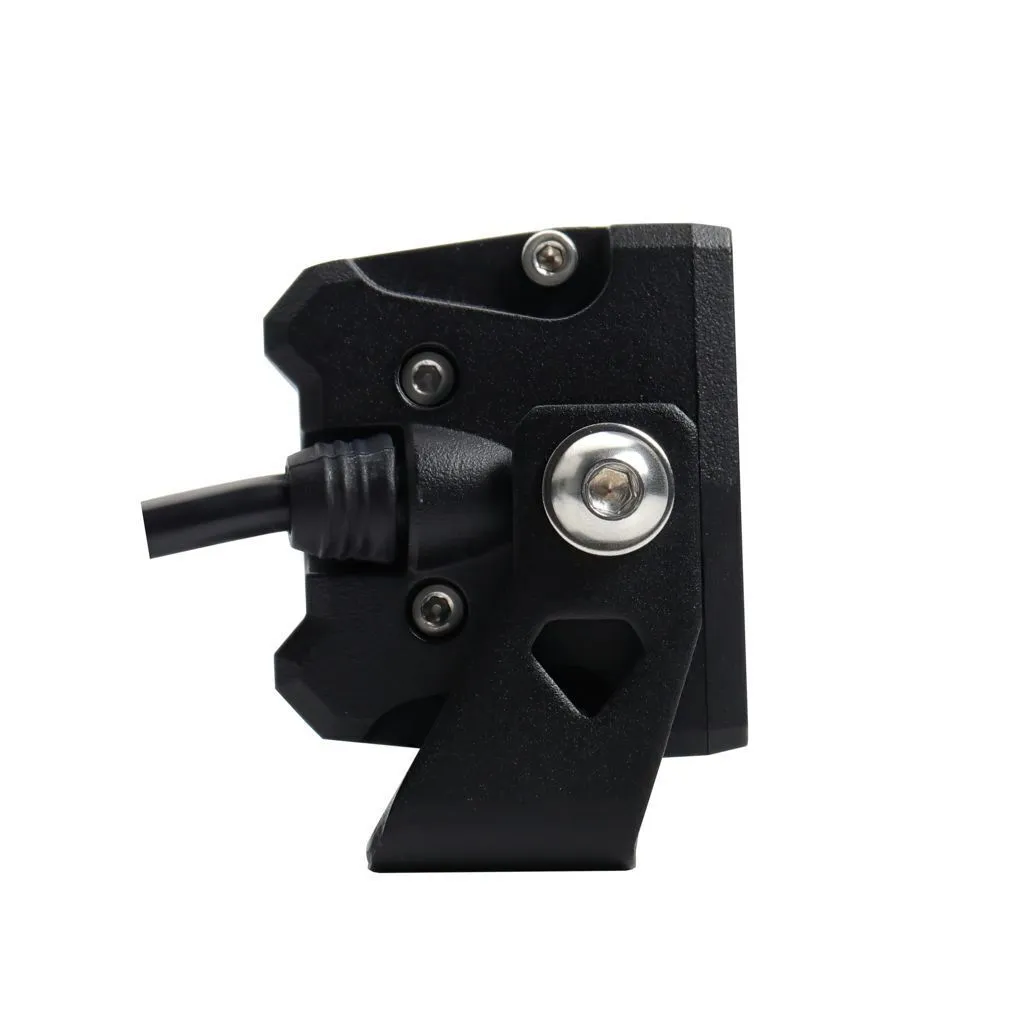

  • Dual Mounting Systems; 6063 Aluminium Bottom Mount Brackets and SUS201 Stainless Steel Side Mount Brackets
  • Combined Laser and LED Illumination Technology
  • Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
  • 500mm Lead with 2 Pin Deutsch Plug
  • Over and Under Voltage Protection
  • Reverse Polarity Protection
  • UV, Water and Shock resistant to 15G
  • Anti Rust, corrosion and freezing resistance
  • 50,000 Hours LED Lifespan
  • ECE R10 and CE Approved
  • IP68 and IP69K Rating
  • Environment Temperature: -40°C ~ +60°C

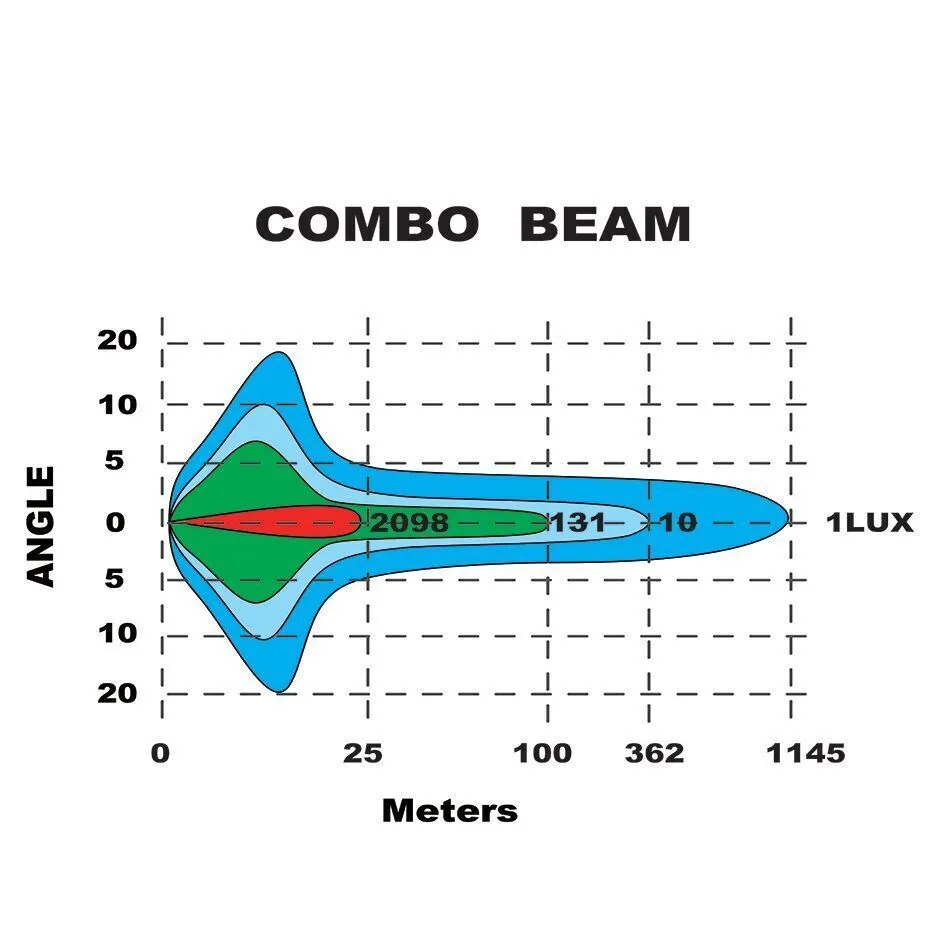

  • 8° Laser Pencil Beam and 20° LED Flood Beam providing a combined Combo Beam pattern
  • 5 Year Warranty
  • Weight: _ _ _g
  • 48 x 4 Watt High Intensity LP LED's and 4 x 20 Watt High Intensity Osram Laser LED's
  • 20,000 Raw and 17,000 Effective Lumens and 6,000K
  • 1 Lux @ 1,145m and 1,312,000cd Peak Beam Intensity
  • Current Draw: 15.2amp @ 12 Volt and 7.5amp @ 24 Volt

Specifications

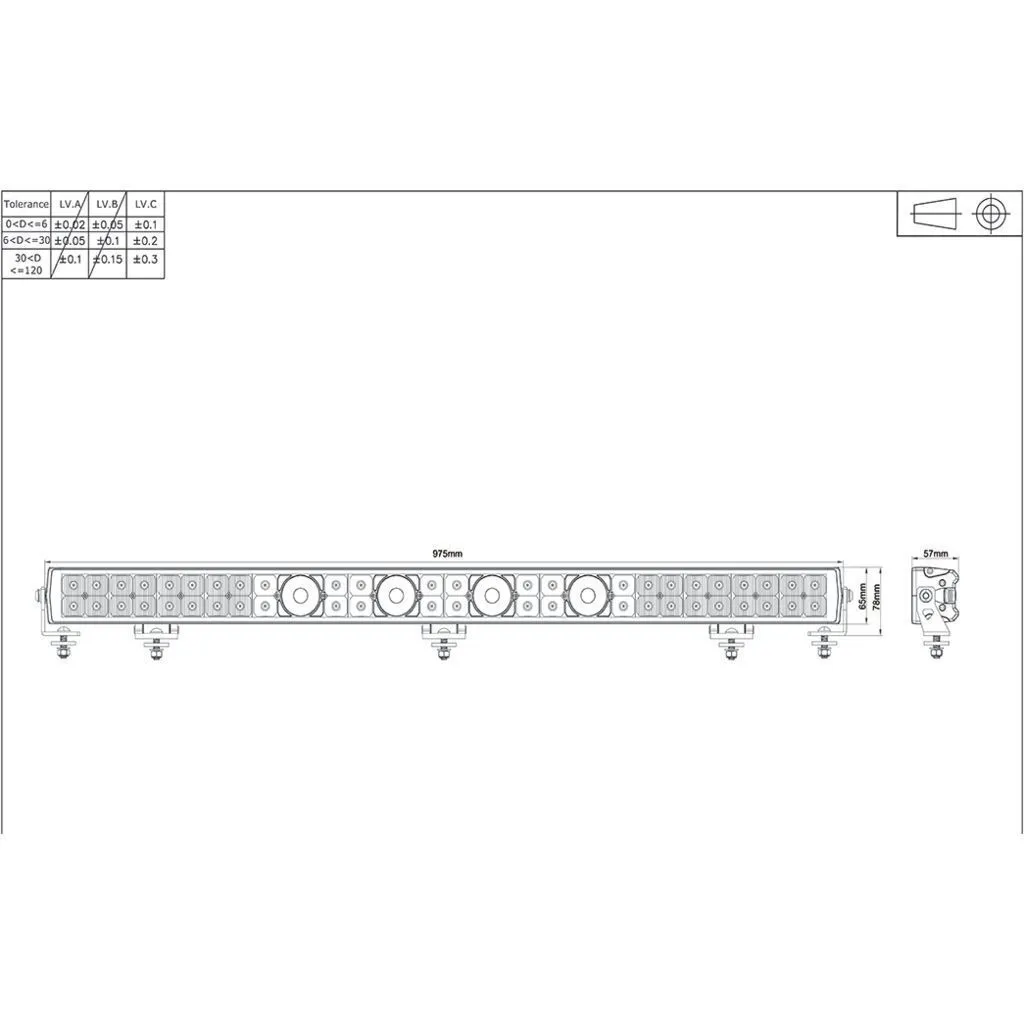

Beam Type Combined
Depth (mm) 57
Height (mm) 65
Rows Double
Mount Other
No. of LED 48
Series Other
Type LED
Voltage Multivolt
Watts Other
Width (mm) 975
SKU ILLB4804
Barcode # 9323327947058
Brand Ignite

Compatibility

  • Universal Part
Ignite 40" Dual Row Laser LED Driving Lamp Lightbar 9 - 36 Volt 272 Watt
  • Polycarbonate Side Reflector Focusing Optic Drive Technology and Laser LED Drive Technology
  • with Lexan Polycarbonate Lens
  • Light Transmittance >95%
  • Integrated Electronic Thermal Management (ETM)
  • Black Anodized Polyester Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink
  • and Pressure Equalising Vent
  • Dual Mounting Systems; 6063 Aluminium Bottom Mount Brackets and SUS201 Stainless Steel Side Mount Brackets
  • Combined Laser and LED Illumination Technology
  • Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
  • 500mm Lead with 2 Pin Deutsch Plug
  • Over and Under Voltage Protection
  • Reverse Polarity Protection
  • UV, Water and Shock resistant to 15G
  • Anti Rust, corrosion and freezing resistance
  • 50,000 Hours LED Lifespan
  • ECE R10 and CE Approved
  • IP68 and IP69K Rating
  • Environment Temperature: -40°C ~ +60°C
  • 8° Laser Pencil Beam and 20° LED Flood Beam providing a combined Combo Beam pattern
  • 5 Year Warranty
  • Weight: _ _ _g
  • 48 x 4 Watt High Intensity LP LED's and 4 x 20 Watt High Intensity Osram Laser LED's
  • 20,000 Raw and 17,000 Effective Lumens and 6,000K
  • 1 Lux @ 1,145m and 1,312,000cd Peak Beam Intensity
  • Current Draw: 15.2amp @ 12 Volt and 7.5amp @ 24 Volt
Beam Type Combined
Depth (mm) 57
Height (mm) 65
Rows Double
Mount Other
No. of LED 48
Series Other
Type LED
Voltage Multivolt
Watts Other
Width (mm) 975
SKU ILLB4804
Barcode # 9323327947058
Brand Ignite
  • Universal Part
