Description

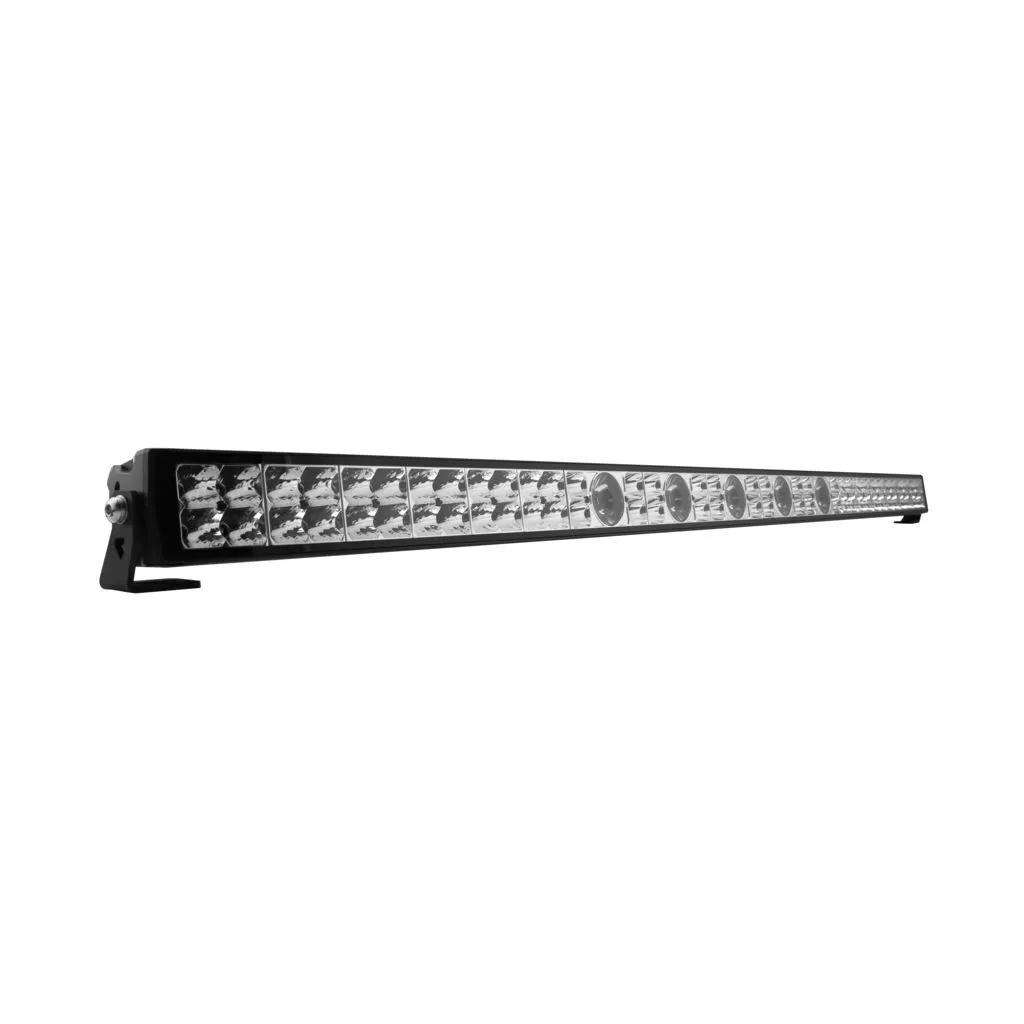

Ignite 50" Dual Row Laser LED Driving Lamp Lightbar 9 - 36 Volt 372 Watt
  • Polycarbonate Side Reflector Focusing Optic Drive Technology with Lexan Polycarbonate Lens
  • Light Transmittance >95%
  • Integrated Electronic Thermal Management (ETM)
  • Black Anodized Polyester Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink
  • and Pressure Equalising Vent
  • Dual Mounting Systems; 6063 Aluminium Bottom Mount Brackets and SUS201 Stainless Steel Side Mount Brackets
  • Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
  • Combined Laser and LED Illumination Technology
  • 500mm Lead with 2 Pin Deutsch Plug
  • Over and Under Voltage Protection
  • Reverse Polarity Protection
  • UV, Water and Shock resistant to 15G
  • Anti Rust, corrosion and freezing resistance
  • 50,000 Hours LED Lifespan
  • ECE R10 and CE Approved
  • IP68 and IP69K Rating
  • Environment Temperature: -40°C ~ +60°C
  • 5 Year Warranty
  • 8° Laser Pencil Beam and 20° LED Flood Beam providing a combined Combo Beam pattern
  • Weight: _ _ _g
  • 68 x 4 Watt High Intensity LP LED's and 5 x 20 Watt High Intensity Osram Laser LED's
  • 28,000 Raw and 23,800 Effective Lumens and 6,000K
  • 1 Lux @ 1,298m and 1,683,000cd Peak Beam Intensity
  • Current Draw: 23.5amp @ 12 Volt and 10.1amp @ 24 Volt

Specifications

Type LED
Beam Type Combined Flood/Spot
Mount Dual Bottom & Side Mounts
Voltage Multivolt (9 - 36V)
Power 372W
No. of LED's

68 x 4W High Intensity LP LEDs and 5 x 20W High Intensity Osram Laser LEDs

Effective Lumens 23,800
Raw Lumens 28,000
Colour Temp 6,000K
Current Draw 23.5A @ 12V, 10.1A @ 24V

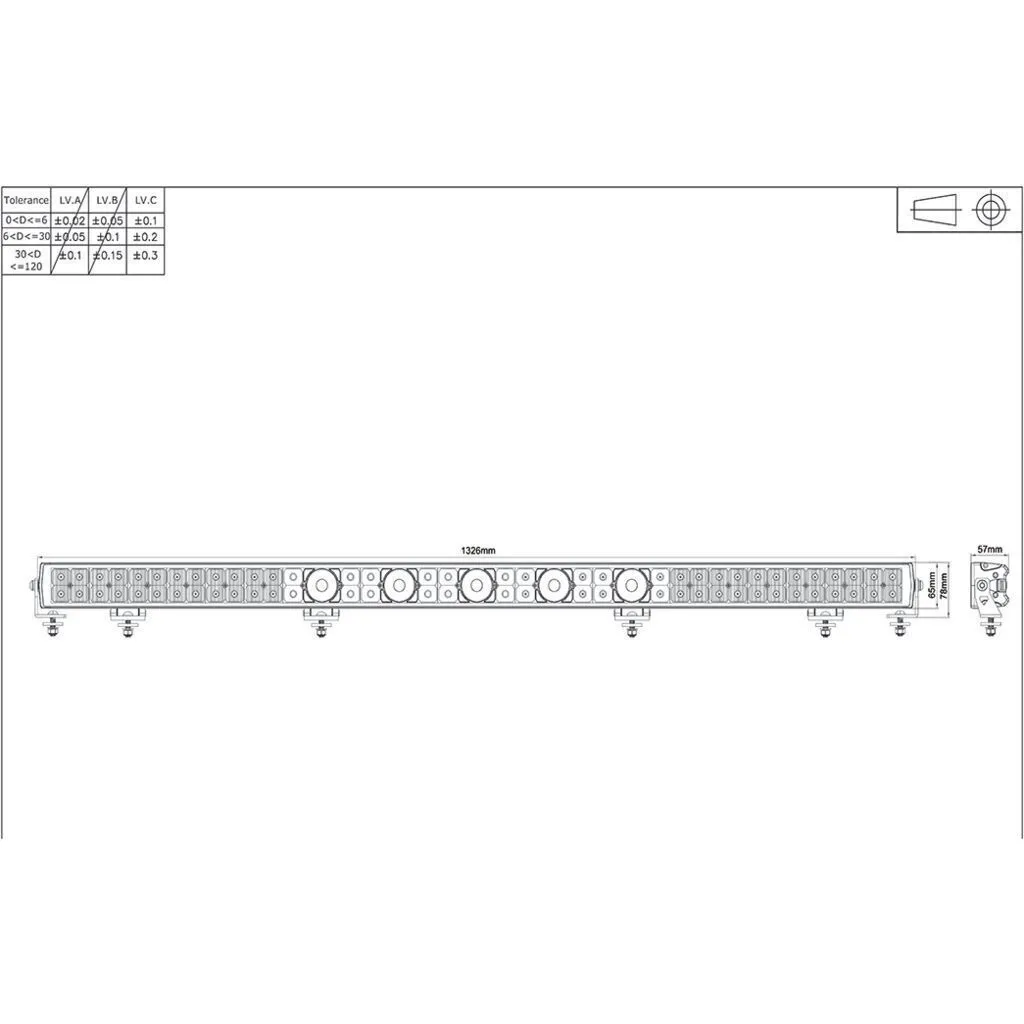

Height 65mm
Width 1326mm
Depth 57mm
SKU ILLB6804
Barcode # 9323327947065
Brand Ignite

Compatibility

  • Universal Part
