Description

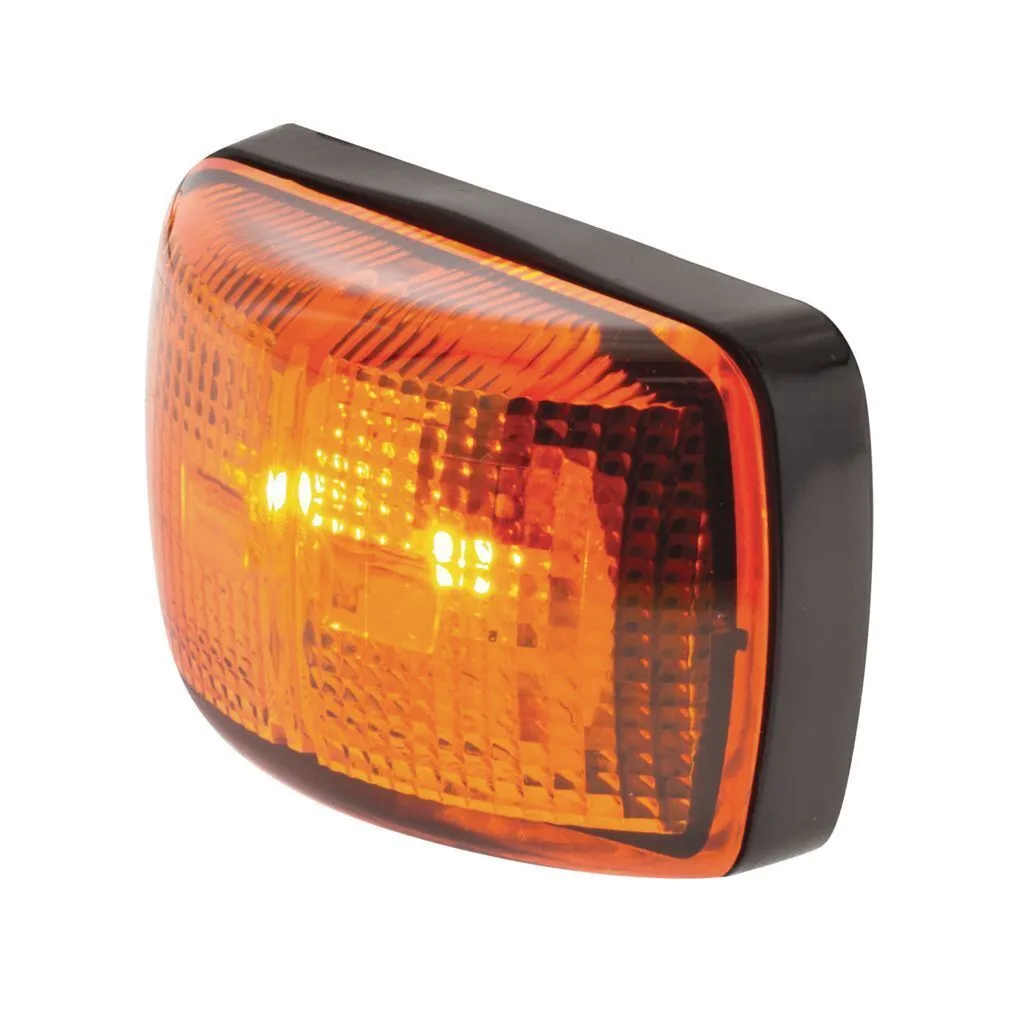

Ignite LED Amber Supplementary Side Marker Lamp 10 - 30 Volt
  • Pre-wired Sheathed 2 Wire 550mm Lead
  • 10,000 Hours LED Lifespan
  • Fully encapsulated circuitry
  • Reverse Polarity Protection
  • Sealed against Dust and Moisture
  • UV, Water and Shock resistant
  • ECE R10, CE Approved and EMC Compliant
  • Amber Illumination
  • ECE R91 and ADR 74/00 Side Marker Lamp specifications approved
  • Refer to ADR 13/00 for mounting instructions
  • IP67 Rating
  • Environment Temperature: -40°C ~ +65°C
  • Blister Qty: 1
  • 2 Year Warranty
  • Suitable for OEM, Trucks, Rigid Bodies, Buses, Trailers and Custom Build applications
  • The Smart Clip mounting base is invisible when the lamp is installed which makes a perfect lamp to vehicle match and professional finish
  • Note: ISL431AR is the matching Amber/Red Side Marker Lamp, ISL431W is the matching Front End
  • 2 x High Intensity Amber SMD LED's
  • Position Marker Lamp and ISL431R is the matching Rear End Position Marker Lamp
  • Current Draw: 0.03amp at 12 Volt, 0.03amp at 24 Volt
  • Amber Optical PMMA Polycarbonate Lens
  • Black ABS Plastic Housing with mounting screws included
  • Surface Mount with Invisible Smart Clip in, low mounting depth for easy installation

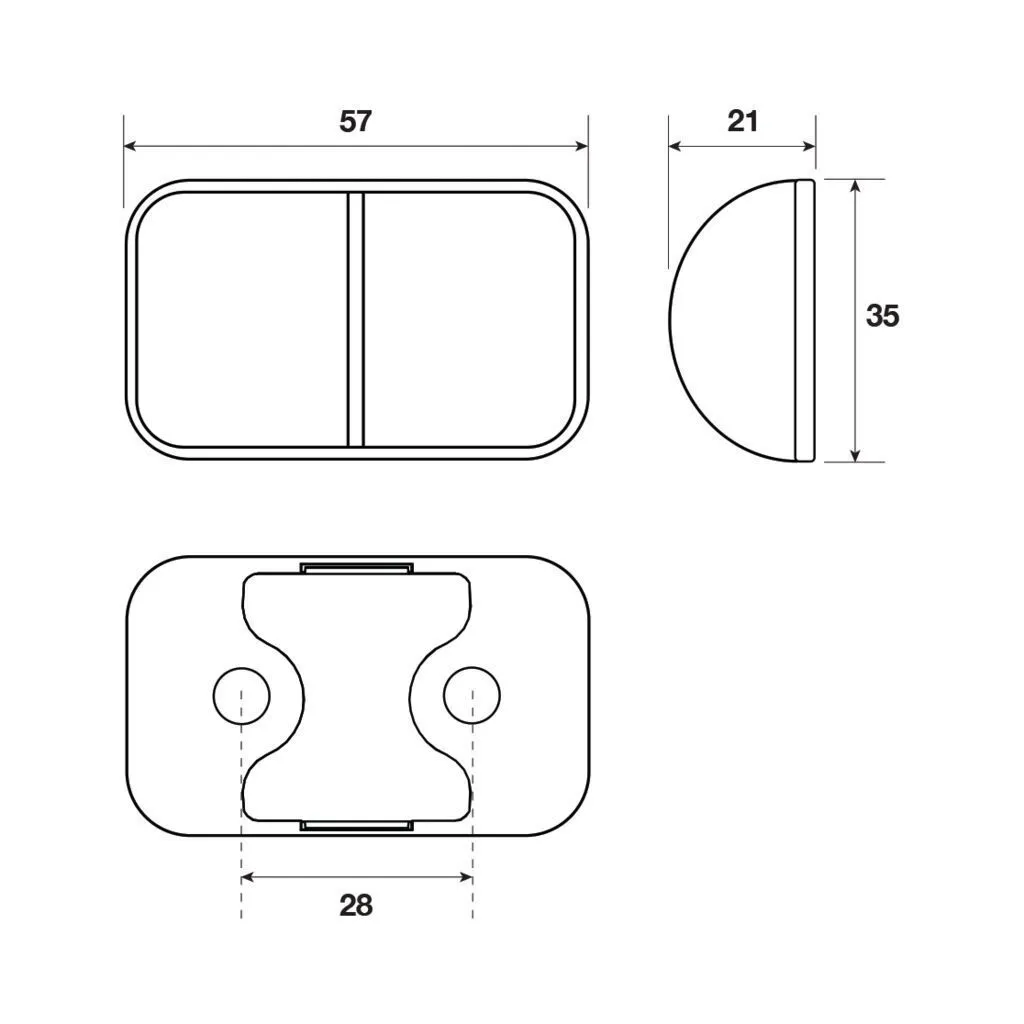

Specifications

Colour Amber
Depth (mm) 21
Height (mm) 35
Mount Surface
Shape Rectangular
Type LED
Voltage Multivolt
Width (mm) 57
SKU ISL431A
Barcode # 9323327945283
Brand Ignite

Compatibility

  • Universal Part
Ignite LED Amber Supplementary Side Marker Lamp 10 - 30 Volt
  • Pre-wired Sheathed 2 Wire 550mm Lead
  • 10,000 Hours LED Lifespan
  • Fully encapsulated circuitry
  • Reverse Polarity Protection
  • Sealed against Dust and Moisture
  • UV, Water and Shock resistant
  • ECE R10, CE Approved and EMC Compliant
  • Amber Illumination
  • ECE R91 and ADR 74/00 Side Marker Lamp specifications approved
  • Refer to ADR 13/00 for mounting instructions
  • IP67 Rating
  • Environment Temperature: -40°C ~ +65°C
  • Blister Qty: 1
  • 2 Year Warranty
  • Suitable for OEM, Trucks, Rigid Bodies, Buses, Trailers and Custom Build applications
  • The Smart Clip mounting base is invisible when the lamp is installed which makes a perfect lamp to vehicle match and professional finish
  • Note: ISL431AR is the matching Amber/Red Side Marker Lamp, ISL431W is the matching Front End
  • 2 x High Intensity Amber SMD LED's
  • Position Marker Lamp and ISL431R is the matching Rear End Position Marker Lamp
  • Current Draw: 0.03amp at 12 Volt, 0.03amp at 24 Volt
  • Amber Optical PMMA Polycarbonate Lens
  • Black ABS Plastic Housing with mounting screws included
  • Surface Mount with Invisible Smart Clip in, low mounting depth for easy installation
Colour Amber
Depth (mm) 21
Height (mm) 35
Mount Surface
Shape Rectangular
Type LED
Voltage Multivolt
Width (mm) 57
SKU ISL431A
Barcode # 9323327945283
Brand Ignite
  • Universal Part
