Description

Ignite LED Rear End Position Outline Marker Lamp 10 - 30 Volt
  • Pre-wired Sheathed 2 Wire 550mm Lead
  • 10,000 Hours LED Lifespan
  • Fully encapsulated circuitry
  • Reverse Polarity Protection
  • Sealed against Dust and Moisture
  • UV, Water and Shock resistant
  • ECE R10, CE Approved and EMC Compliant
  • Red Illumination
  • ECE R7 and ADR 49/00 Rear Position Lamp specifications approved
  • Refer to ADR 13/00 for mounting instructions
  • IP67 Rating
  • Environment Temperature: -40°C ~ +65°C
  • Blister Qty: 1
  • 2 Year Warranty
  • Suitable for OEM, Trucks, Rigid Bodies, Buses, Trailers and Custom Build applications
  • The Smart Clip mounting base is invisible when the lamp is installed which makes a perfect lamp to vehicle match and professional finish
  • Note: ISL431AR is the matching Amber/Red Side Marker Lamp, ISL431W is the matching Front End
  • 2 x High Intensity Red SMD LED's
  • Position Marker Lamp and ISL430A is the matching Side Position Marker Lamp
  • Current Draw: 0.03amp at 12 Volt, 0.03amp at 24 Volt
  • Red Optical PMMA Polycarbonate Lens
  • Black ABS Plastic Housing with mounting screws included
  • Surface Mount with Invisible Smart Clip in, low mounting depth for easy installation

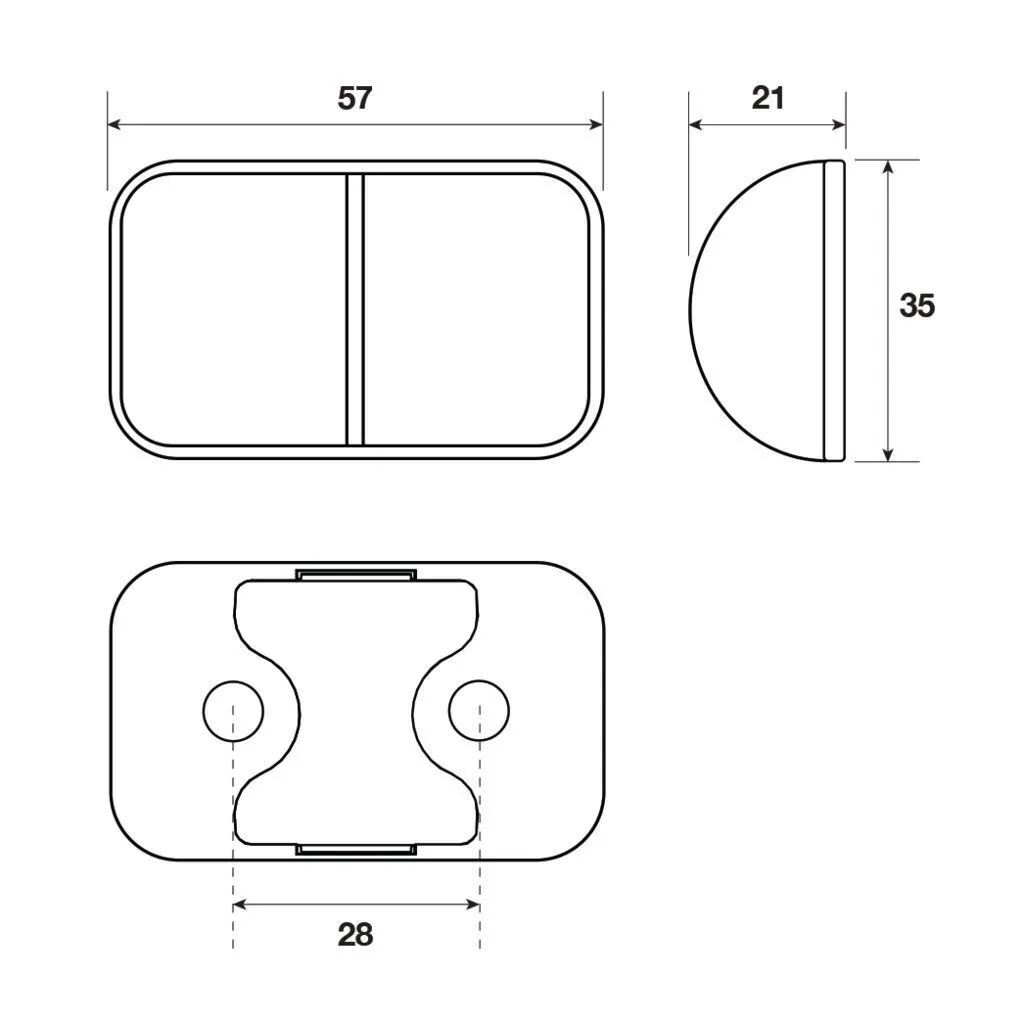

Specifications

Colour Red
Depth (mm) 21
Height (mm) 35
Mount Surface
No. of LED 2
Shape Rectangular
Type LED
Voltage Multivolt
Width (mm) 57
SKU ISL431R
Barcode # 9323327945290
Brand Ignite

Compatibility

  • Universal Part
Ignite LED Rear End Position Outline Marker Lamp 10 - 30 Volt
  • Pre-wired Sheathed 2 Wire 550mm Lead
  • 10,000 Hours LED Lifespan
  • Fully encapsulated circuitry
  • Reverse Polarity Protection
  • Sealed against Dust and Moisture
  • UV, Water and Shock resistant
  • ECE R10, CE Approved and EMC Compliant
  • Red Illumination
  • ECE R7 and ADR 49/00 Rear Position Lamp specifications approved
  • Refer to ADR 13/00 for mounting instructions
  • IP67 Rating
  • Environment Temperature: -40°C ~ +65°C
  • Blister Qty: 1
  • 2 Year Warranty
  • Suitable for OEM, Trucks, Rigid Bodies, Buses, Trailers and Custom Build applications
  • The Smart Clip mounting base is invisible when the lamp is installed which makes a perfect lamp to vehicle match and professional finish
  • Note: ISL431AR is the matching Amber/Red Side Marker Lamp, ISL431W is the matching Front End
  • 2 x High Intensity Red SMD LED's
  • Position Marker Lamp and ISL430A is the matching Side Position Marker Lamp
  • Current Draw: 0.03amp at 12 Volt, 0.03amp at 24 Volt
  • Red Optical PMMA Polycarbonate Lens
  • Black ABS Plastic Housing with mounting screws included
  • Surface Mount with Invisible Smart Clip in, low mounting depth for easy installation
Colour Red
Depth (mm) 21
Height (mm) 35
Mount Surface
No. of LED 2
Shape Rectangular
Type LED
Voltage Multivolt
Width (mm) 57
SKU ISL431R
Barcode # 9323327945290
Brand Ignite
  • Universal Part
