Description

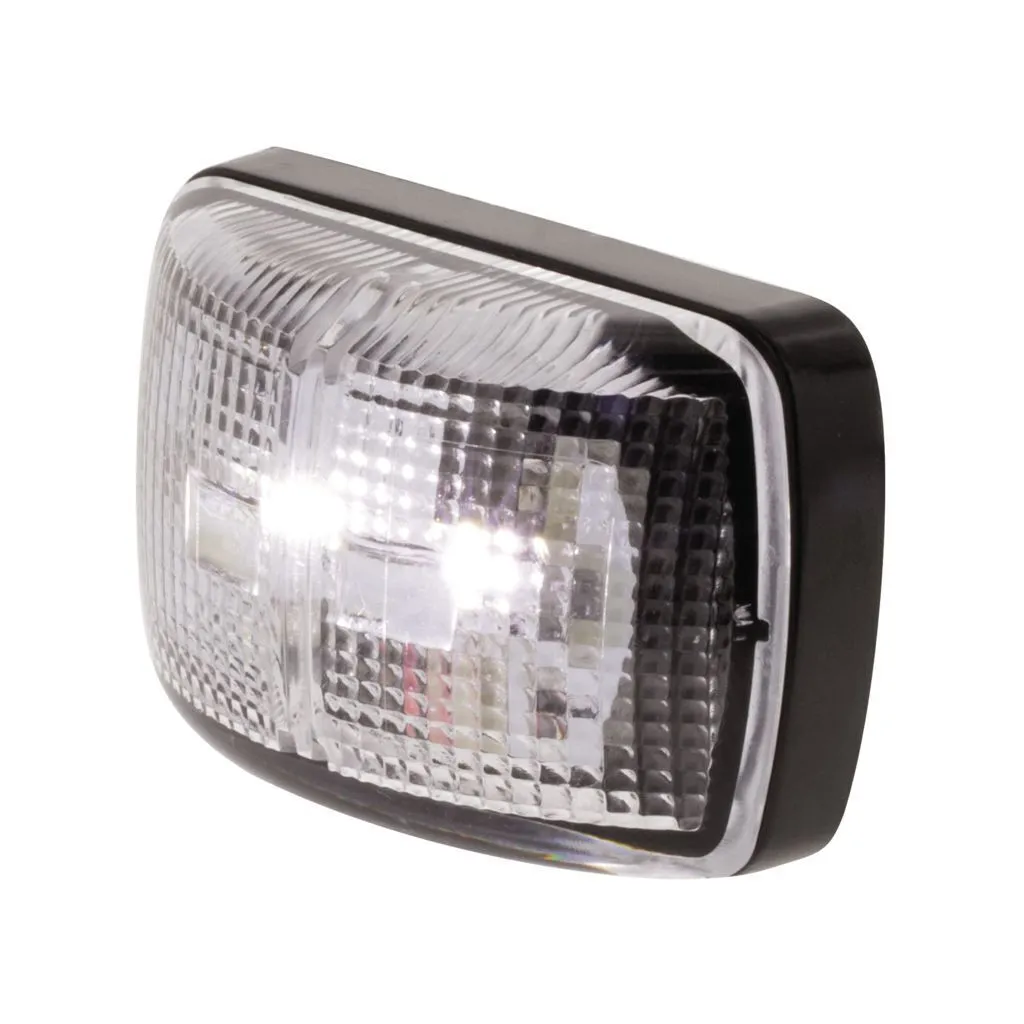

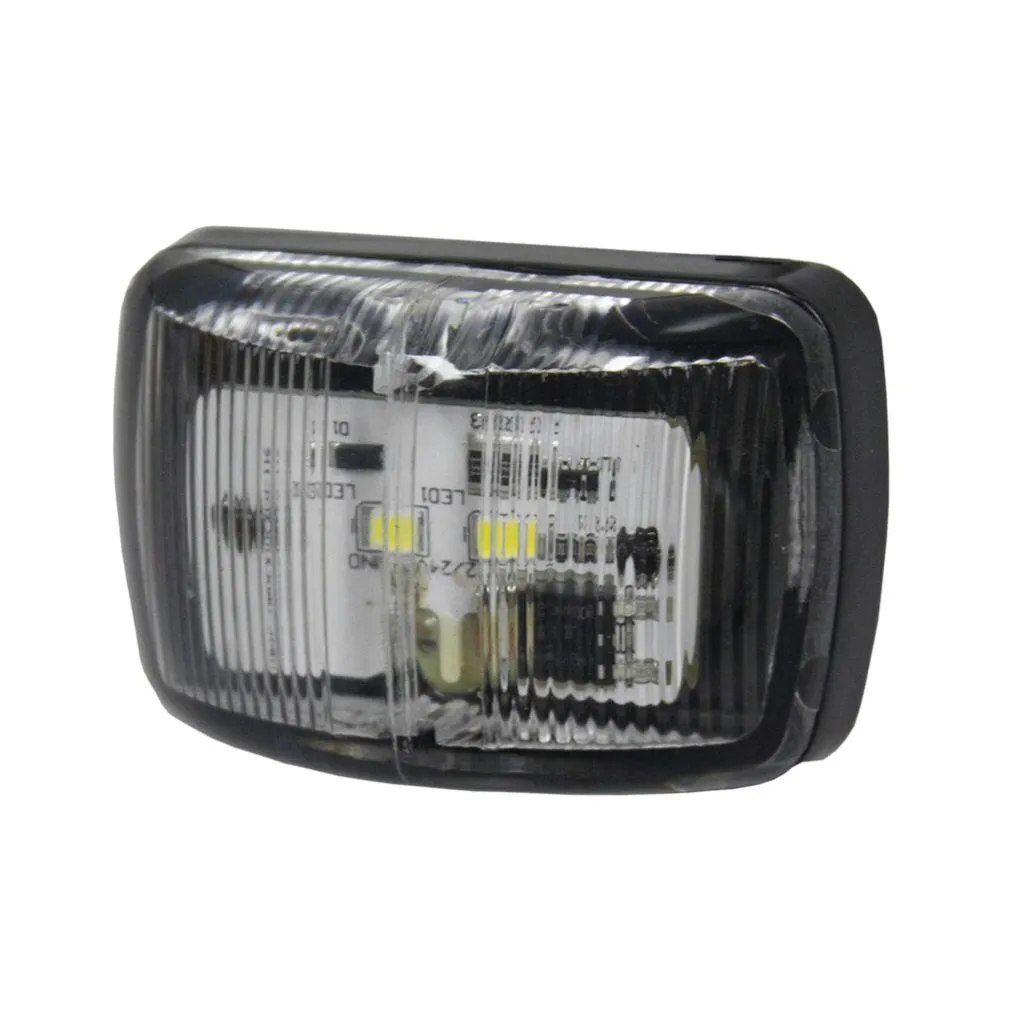

Ignite LED Front End Position Outline Marker Lamp 10 - 30 Volt
  • Pre-wired Sheathed 2 Wire 550mm Lead
  • 10,000 Hours LED Lifespan
  • Fully encapsulated circuitry
  • Reverse Polarity Protection
  • Sealed against Dust and Moisture
  • UV, Water and Shock resistant
  • ECE R10, CE Approved and EMC Compliant
  • White Illumination
  • ECE R7 and ADR 49/00 Front Position Lamp specifications approved
  • Refer to ADR 13/00 for mounting instructions
  • IP67 Rating
  • Environment Temperature: -40°C ~ +65°C
  • Blister Qty: 1
  • 2 Year Warranty
  • Suitable for OEM, Trucks, Rigid Bodies, Buses, Trailers and Custom Build applications
  • The Smart Clip mounting base is invisible when the lamp is installed which makes a perfect lamp to vehicle match and professional finish
  • Note: ISL431AR is the matching Amber/Red Side Marker Lamp, ISL431A is the matching Amber
  • 2 x High Intensity White LED's
  • Side Marker Lamp and ISL431R is the matching Rear End Position Marker Lamp
  • Current Draw: 0.03amp at 12 Volt, 0.03amp at 24 Volt
  • Clear Optical PMMA Polycarbonate Lens
  • Black ABS Plastic Housing with mounting screws included
  • Surface Mount with Invisible Smart Clip in, low mounting depth for easy installation

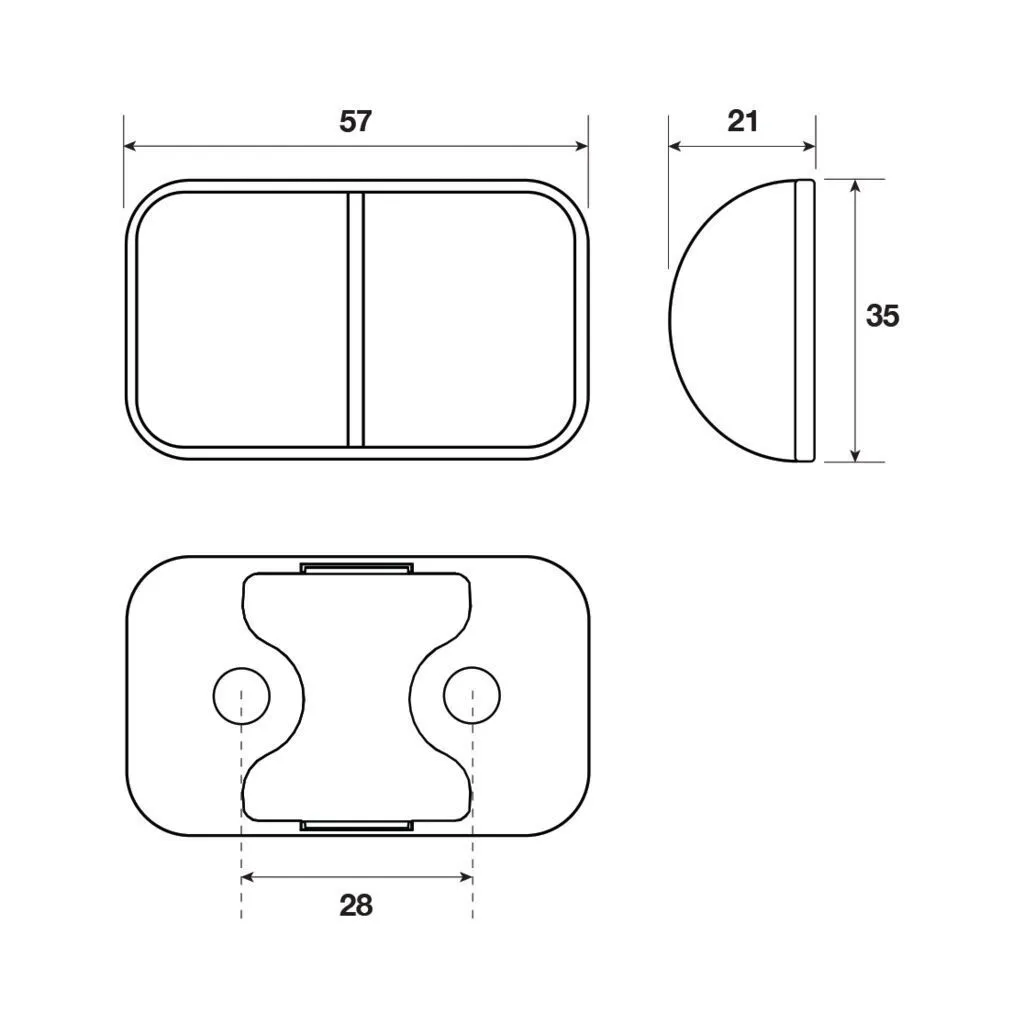

Specifications

Colour White
Depth (mm) 21
Height (mm) 35
Mount Surface
Shape Rectangular
Type LED
Voltage Multivolt
Width (mm) 57
SKU ISL431W
Barcode # 9323327945306
Brand Ignite

Compatibility

  • Universal Part
Ignite LED Front End Position Outline Marker Lamp 10 - 30 Volt
  • Pre-wired Sheathed 2 Wire 550mm Lead
  • 10,000 Hours LED Lifespan
  • Fully encapsulated circuitry
  • Reverse Polarity Protection
  • Sealed against Dust and Moisture
  • UV, Water and Shock resistant
  • ECE R10, CE Approved and EMC Compliant
  • White Illumination
  • ECE R7 and ADR 49/00 Front Position Lamp specifications approved
  • Refer to ADR 13/00 for mounting instructions
  • IP67 Rating
  • Environment Temperature: -40°C ~ +65°C
  • Blister Qty: 1
  • 2 Year Warranty
  • Suitable for OEM, Trucks, Rigid Bodies, Buses, Trailers and Custom Build applications
  • The Smart Clip mounting base is invisible when the lamp is installed which makes a perfect lamp to vehicle match and professional finish
  • Note: ISL431AR is the matching Amber/Red Side Marker Lamp, ISL431A is the matching Amber
  • 2 x High Intensity White LED's
  • Side Marker Lamp and ISL431R is the matching Rear End Position Marker Lamp
  • Current Draw: 0.03amp at 12 Volt, 0.03amp at 24 Volt
  • Clear Optical PMMA Polycarbonate Lens
  • Black ABS Plastic Housing with mounting screws included
  • Surface Mount with Invisible Smart Clip in, low mounting depth for easy installation
Colour White
Depth (mm) 21
Height (mm) 35
Mount Surface
Shape Rectangular
Type LED
Voltage Multivolt
Width (mm) 57
SKU ISL431W
Barcode # 9323327945306
Brand Ignite
  • Universal Part
