Description

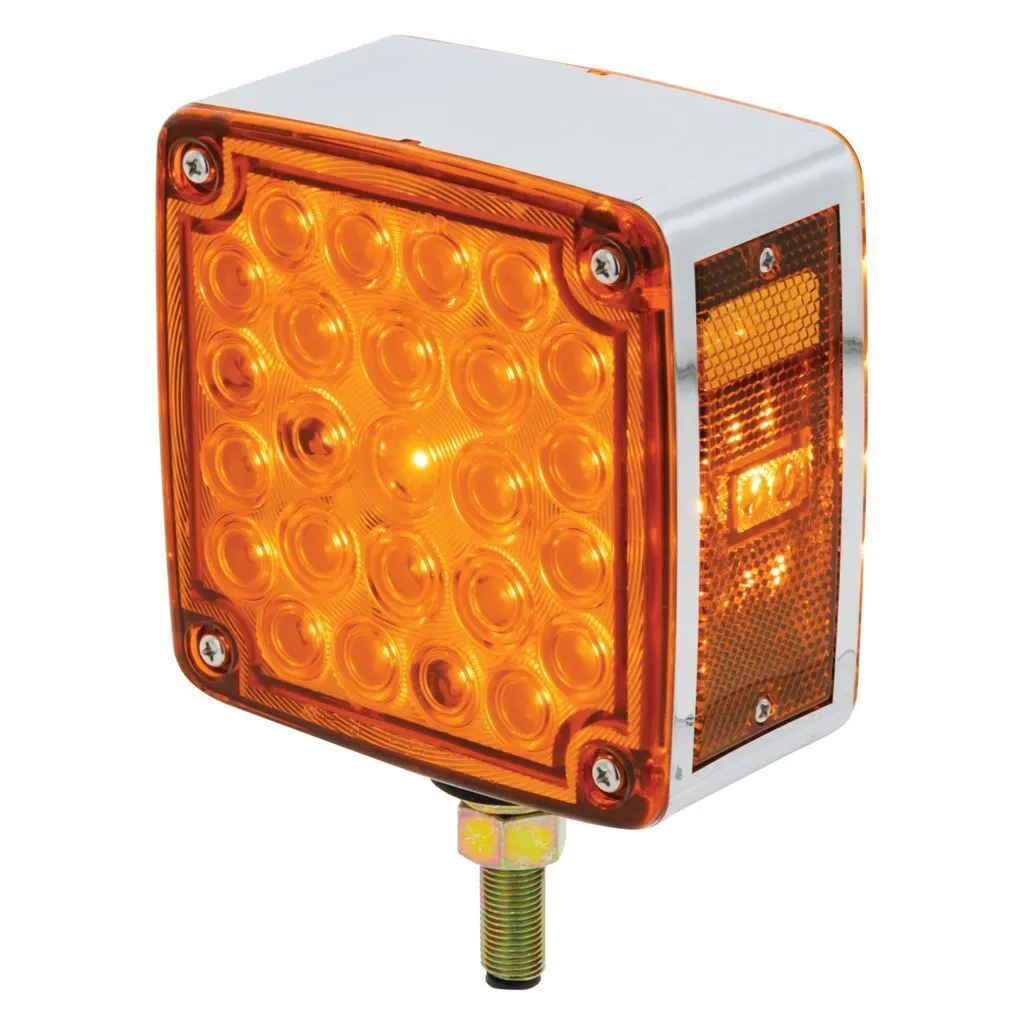

Ignite Combined Amber LED Front and Side Indicator Lamp 12 Volt
  • Mudgaurd Single Bolt Surface Mount, low mounting depth for easy installation
  • 300mm Sheathed with 2 wires
  • 10,000 Hours LED Lifespan
  • Fully encapsulated circuitry
  • Sealed against Dust and Moisture
  • ADR 6/00 Category 1 Front Direction Indicator Lamp specifications approved
  • ADR 6/00 Category 5 Side Direction Indicator Lamp specifications approved
  • Amber Illumination
  • ADR 74/00 Side Marker Lamp specifications approved
  • Refer to ADR 13/00 for mounting instructions
  • IP67 Rating

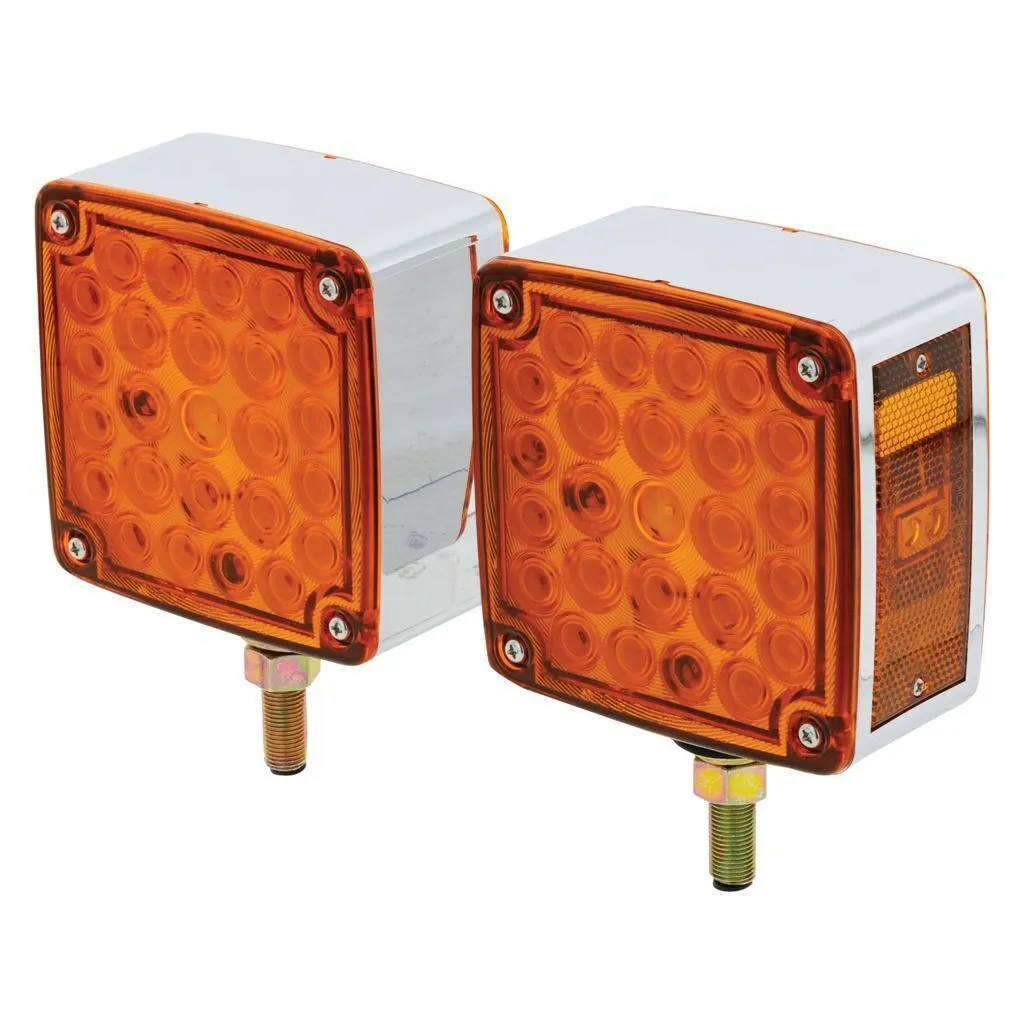

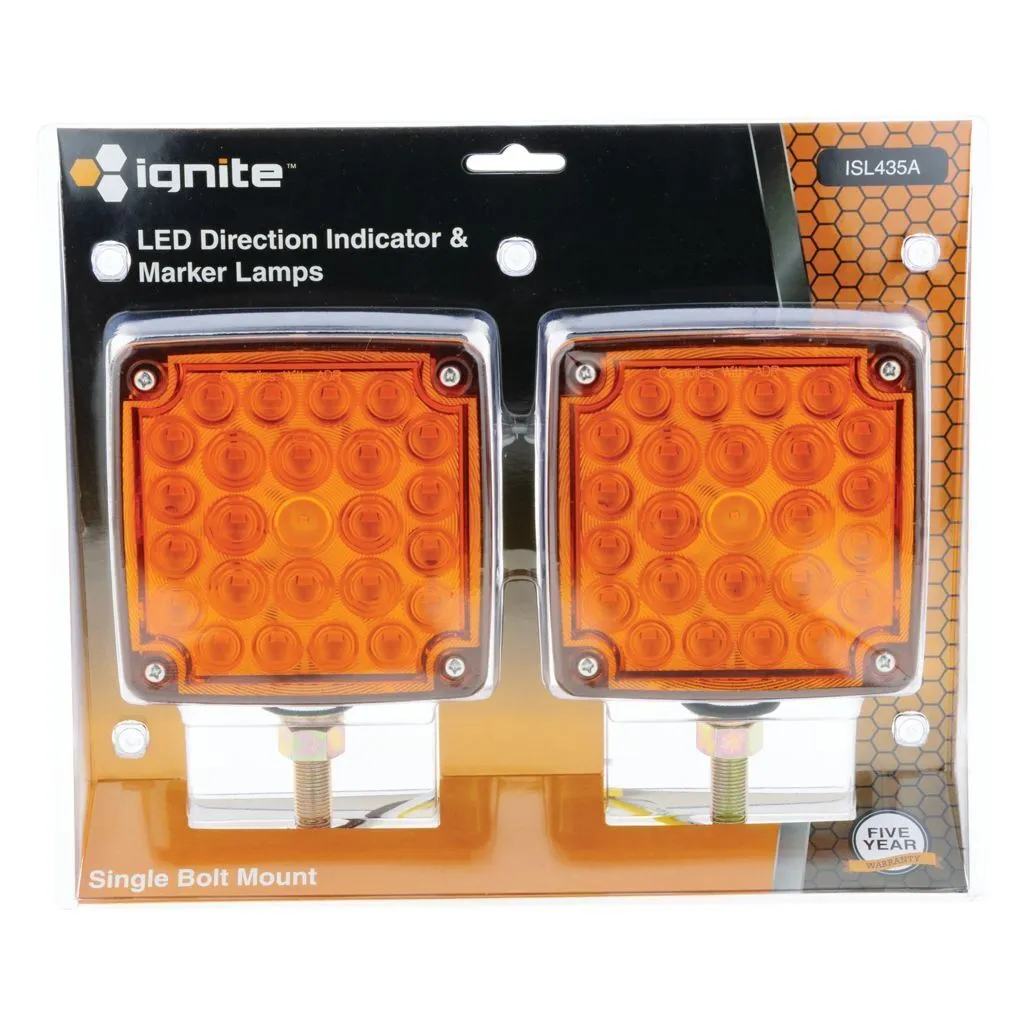

  • Blister Qty: 2 - Both LHS and RHS Lamps included
  • 5 Year Warranty
  • ISL436A is the matching Double Bolt version Lamp
  • Stylish LED updrade that Retro fits existing standard incandescent lamps
  • Combined Front and Side Indicator Lamp with Side Marker Lamp function as well
  • 22 x High Intensity White LED's in each Lamp
  • Current Draw: 0.02amp at 12 Volt, 0.01amp at 24 Volt for Indicator Lamp
  • Current Draw: 0.01amp at 12 Volt, 0.01amp at 24 Volt for Side Marker Lamp
  • Amber Hardened Acrylic Lens
  • Polished Chrome ABS Plastic Housing with mounting bolts (40mm) included

Specifications

Colour Amber
Depth (mm) 60
Height (mm) 128
Mount Single Bolt
Shape Square
Type LED
Voltage 12V
Width (mm) 119
SKU ISL435A
Barcode # 9323327946341
Brand Ignite

Compatibility

  • Universal Part
Ignite Combined Amber LED Front and Side Indicator Lamp 12 Volt
  • Mudgaurd Single Bolt Surface Mount, low mounting depth for easy installation
  • 300mm Sheathed with 2 wires
  • 10,000 Hours LED Lifespan
  • Fully encapsulated circuitry
  • Sealed against Dust and Moisture
  • ADR 6/00 Category 1 Front Direction Indicator Lamp specifications approved
  • ADR 6/00 Category 5 Side Direction Indicator Lamp specifications approved
  • Amber Illumination
  • ADR 74/00 Side Marker Lamp specifications approved
  • Refer to ADR 13/00 for mounting instructions
  • IP67 Rating
  • Blister Qty: 2 - Both LHS and RHS Lamps included
  • 5 Year Warranty
  • ISL436A is the matching Double Bolt version Lamp
  • Stylish LED updrade that Retro fits existing standard incandescent lamps
  • Combined Front and Side Indicator Lamp with Side Marker Lamp function as well
  • 22 x High Intensity White LED's in each Lamp
  • Current Draw: 0.02amp at 12 Volt, 0.01amp at 24 Volt for Indicator Lamp
  • Current Draw: 0.01amp at 12 Volt, 0.01amp at 24 Volt for Side Marker Lamp
  • Amber Hardened Acrylic Lens
  • Polished Chrome ABS Plastic Housing with mounting bolts (40mm) included
Colour Amber
Depth (mm) 60
Height (mm) 128
Mount Single Bolt
Shape Square
Type LED
Voltage 12V
Width (mm) 119
SKU ISL435A
Barcode # 9323327946341
Brand Ignite
  • Universal Part
