Description

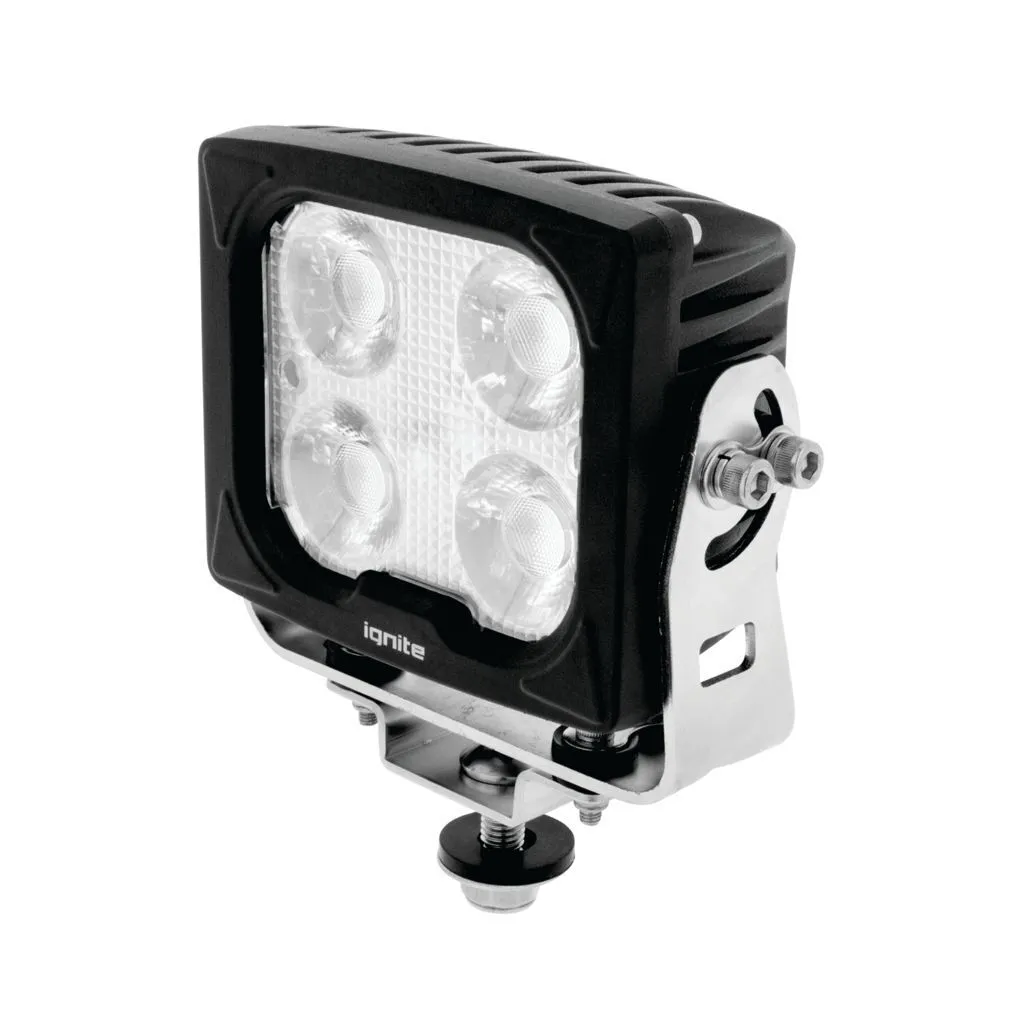

Ignite 4.9" Square LED Worklamp 9 - 36 Volt 43.2 Watt
Integrated Electronic Thermal Management (ETM)
Black Anondised Polyester Powder Coated Die-Cast Aluminium Alloy Housing with integrated
6063 Extruded Aluminium Heat-Sink
Stainless Steel Single Bolt Rubber dampened Mounting Bracket and Stainless Steel Mounting Hardware
In-Built 2 Pin Deutsch Plug in back of housing
Over and Under Voltage Protection
Reverse Polarity Protection
50° Flood (Spread) Beam Pattern
UV, Water and Shock resistant
50,000 Hours LED Lifespan
ECE R10, CE Approved and EMC Compliant, CISPR 25 Class 5 Certified
IP68 and IP69K Rating
Environment Temperature: -40°C ~ +60°C
5 Year Warranty
4,150 Effective Lumens, 5,400 Raw Lumens and 6,500K
36 x 1.2 Watt High Intensity Lumileds LED's
3.6amps @ 12 Volt and 1.6amps @ 24 Volt Current Draw
Patented Multi-Surface Polycarbonate TIR Optical System Reflector Technology with Polycarbonate Lens
Light Transmittance >95%

Specifications

Beam Type Flood
Depth (mm) 65
Height (mm) 143
Mount Single Bolt
No. of LED 36
Series Other
Shape Square
Type LED
Voltage Multivolt
Watts Other
Width (mm) 122
SKU IWL410F2
Barcode # 9323327943227
Brand Ignite

Compatibility

  • Universal Part

Ignite 4.9" Square LED Worklamp 9 - 36 Volt 43.2 Watt
Integrated Electronic Thermal Management (ETM)
Black Anondised Polyester Powder Coated Die-Cast Aluminium Alloy Housing with integrated
6063 Extruded Aluminium Heat-Sink
Stainless Steel Single Bolt Rubber dampened Mounting Bracket and Stainless Steel Mounting Hardware
In-Built 2 Pin Deutsch Plug in back of housing
Over and Under Voltage Protection
Reverse Polarity Protection
50° Flood (Spread) Beam Pattern
UV, Water and Shock resistant
50,000 Hours LED Lifespan
ECE R10, CE Approved and EMC Compliant, CISPR 25 Class 5 Certified
IP68 and IP69K Rating
Environment Temperature: -40°C ~ +60°C
5 Year Warranty
4,150 Effective Lumens, 5,400 Raw Lumens and 6,500K
36 x 1.2 Watt High Intensity Lumileds LED's
3.6amps @ 12 Volt and 1.6amps @ 24 Volt Current Draw
Patented Multi-Surface Polycarbonate TIR Optical System Reflector Technology with Polycarbonate Lens
Light Transmittance >95%

Beam Type Flood
Depth (mm) 65
Height (mm) 143
Mount Single Bolt
No. of LED 36
Series Other
Shape Square
Type LED
Voltage Multivolt
Watts Other
Width (mm) 122
SKU IWL410F2
Barcode # 9323327943227
Brand Ignite
  • Universal Part
