Description

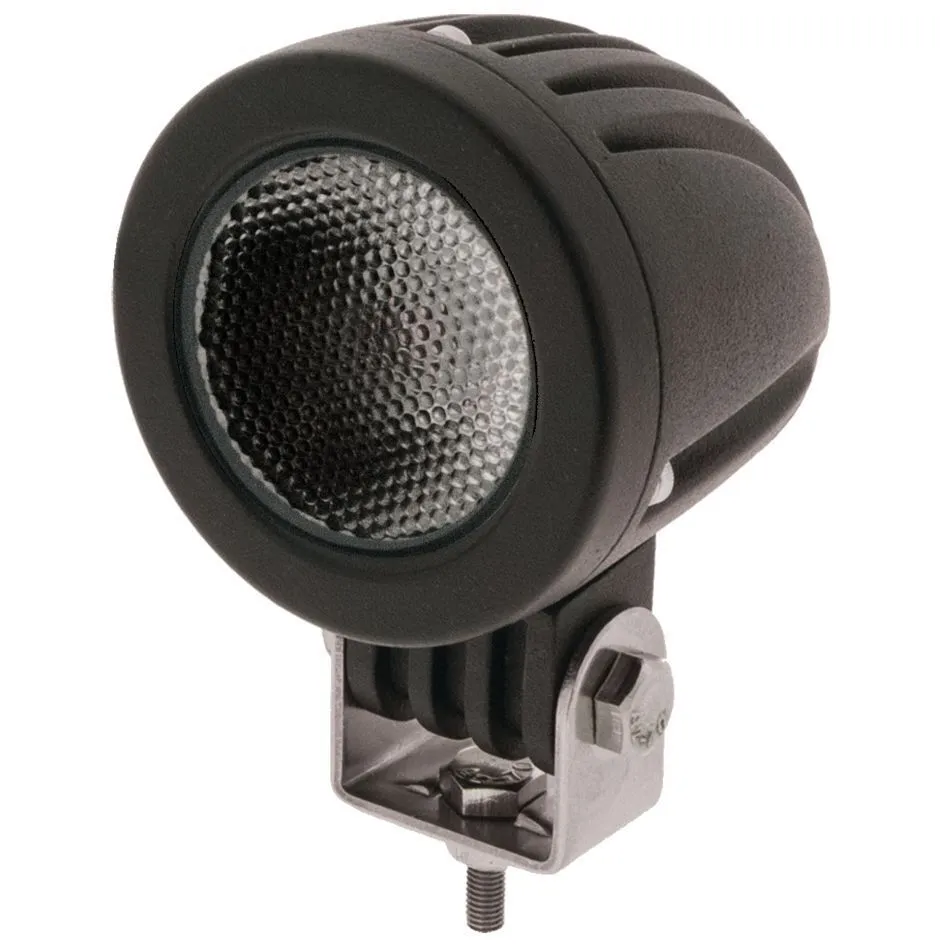

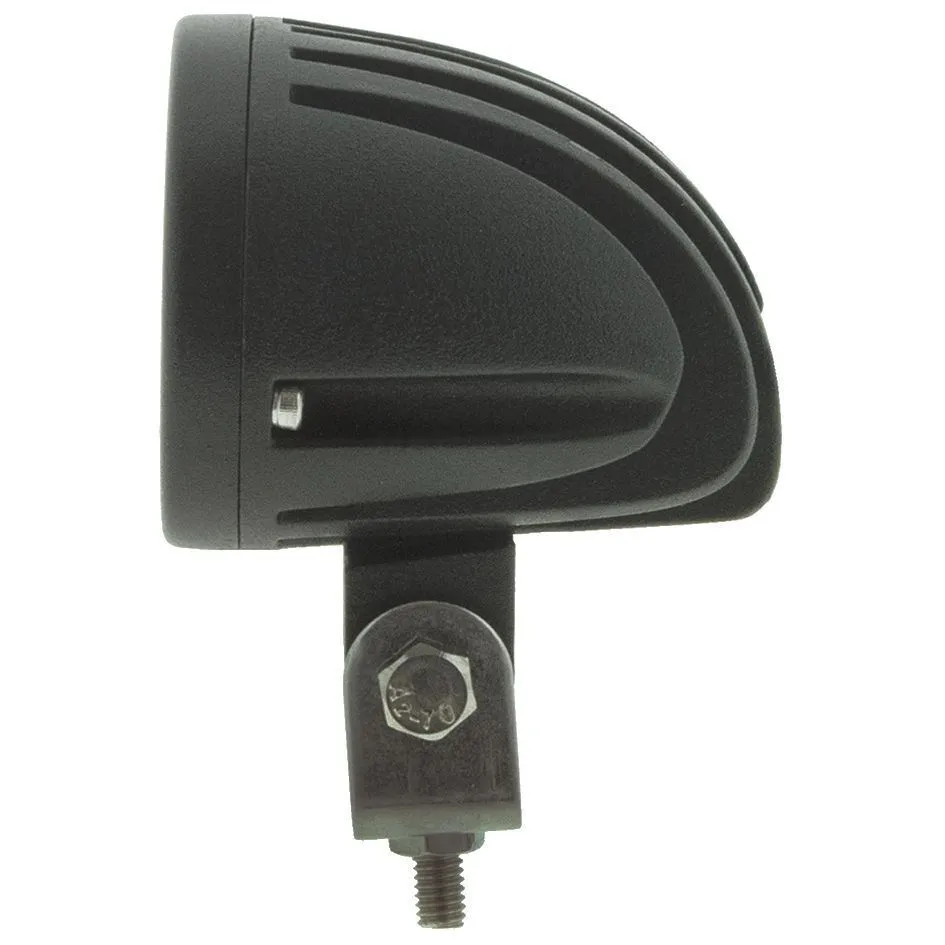

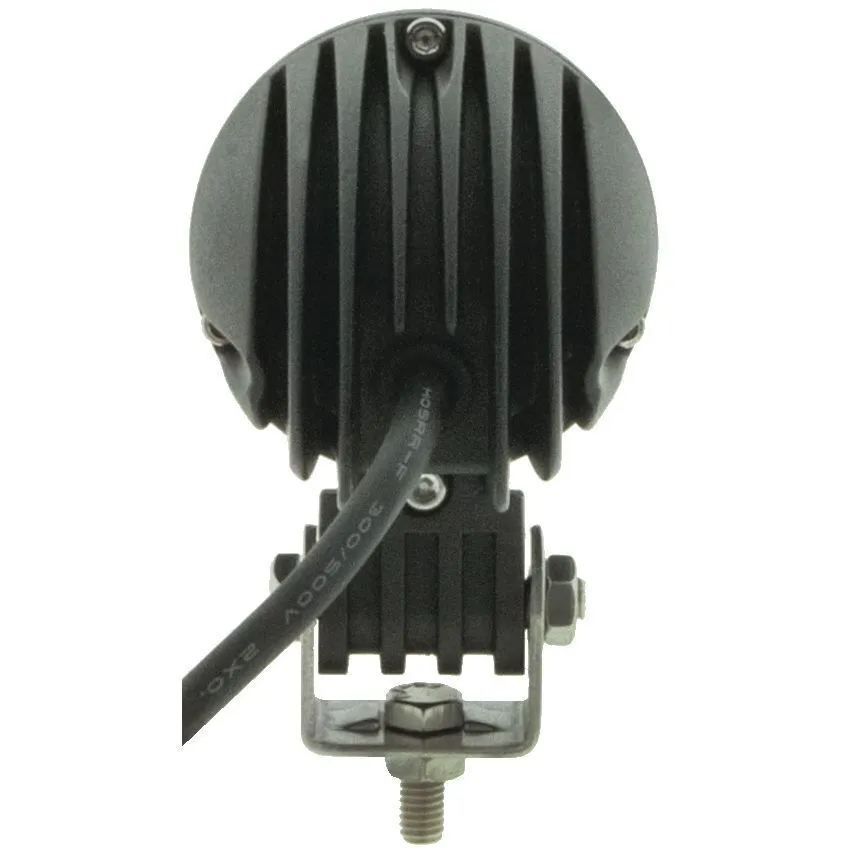

Ignite 2" Round LED Worklamp 9 - 36 Volt 10 Watt
6063 Extruded Aluminium Heat-Sink
Stainless Steel (SUS304) Single Bolt Mount Bracket and Hardware
230mm Lead with 2 Pin Deutsch Plug
Over and Under Voltage Protection
Reverse Polarity Protection
UV, Water and Shock resistant
50,000 Hours LED Lifespan
40° Flood (Spread) Beam Pattern
ECE R112, R7 CE Approved and EMC Compliant, CISPR 25 Class 4 Certified
IP68 Rating
Environment Temperature: -40°C ~ +60°C
5 Year Warranty
1 x 10 Watt High Intensity CREE LED's
710 Effective Lumens, 1,000 Raw Lumens and 6,500K
0.6amps @ 12 Volt and 0.3amps @ 24 Volt Current Draw
Optically pure Acrylic Reflectors and PMMA Polycarbonate Lens
Black Anondised Polyester Powder Coated Die-Cast Aluminium Alloy (ADC12) Housing with integrated

Specifications

Beam Type Flood
Depth (mm) 65
Height (mm) 86
Mount Single Bolt
No. of LED 1
Series Other
Shape Round
Type LED
Voltage Multivolt
Watts 10W
Width (mm) 57
SKU IWL601RF
Barcode # 9323327941742
Brand Ignite

Compatibility

  • Universal Part

Ignite 2" Round LED Worklamp 9 - 36 Volt 10 Watt
6063 Extruded Aluminium Heat-Sink
Stainless Steel (SUS304) Single Bolt Mount Bracket and Hardware
230mm Lead with 2 Pin Deutsch Plug
Over and Under Voltage Protection
Reverse Polarity Protection
UV, Water and Shock resistant
50,000 Hours LED Lifespan
40° Flood (Spread) Beam Pattern
ECE R112, R7 CE Approved and EMC Compliant, CISPR 25 Class 4 Certified
IP68 Rating
Environment Temperature: -40°C ~ +60°C
5 Year Warranty
1 x 10 Watt High Intensity CREE LED's
710 Effective Lumens, 1,000 Raw Lumens and 6,500K
0.6amps @ 12 Volt and 0.3amps @ 24 Volt Current Draw
Optically pure Acrylic Reflectors and PMMA Polycarbonate Lens
Black Anondised Polyester Powder Coated Die-Cast Aluminium Alloy (ADC12) Housing with integrated

Beam Type Flood
Depth (mm) 65
Height (mm) 86
Mount Single Bolt
No. of LED 1
Series Other
Shape Round
Type LED
Voltage Multivolt
Watts 10W
Width (mm) 57
SKU IWL601RF
Barcode # 9323327941742
Brand Ignite
  • Universal Part
