Description

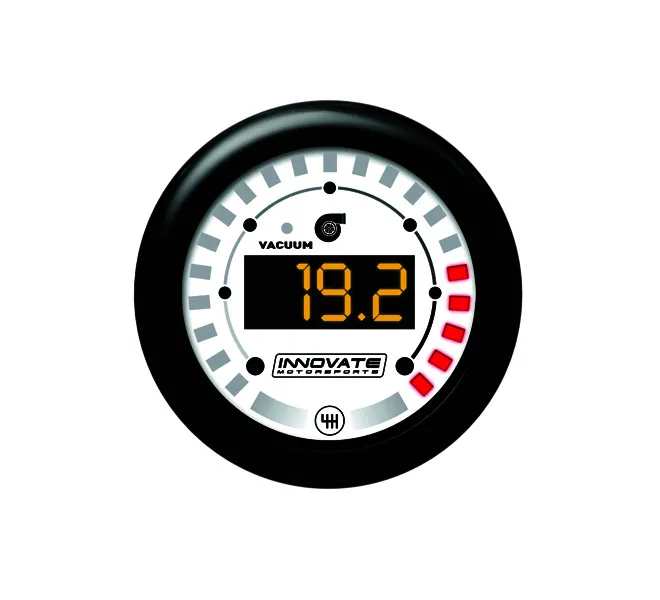

MTX Digital Series “Dual Function” Vacuum/Boost & Shift Light (RPM.) One gauge with TWO functions! That’s the perfect solution to help maximize limited space on your dash! The 2 1/16” (52mm) gauge features a water resistant casing, interchangeable faceplates and bezels, locking connectors for simplified installation, and MTS serial connections used to connect with other Innovate devices for logging.



KEY FEATURES

  • Display as either inHG/PSI or BAR (seven-segment)
  • Over Boost Warning (seven-segment)
  • Progressive Shift Light or Single Stage Shift Light (outer LEDs)

Specifications

  • Series: MTX-D
  • Gauge Backlight Colour: Amber LED
  • Gauge Face Colour: White or Black
  • Gauge Needle Colour: Multi Colour Sweeping LED
  • Gauge Range Centre: -29inHG - 43.5psi (-1bar - 3bar)
  • Gauge Range LEDs: 0-20460RPM
  • Gauge Sending Unit: Electrical
  • Gauge Size (mm): 52mm
  • Gauge Type: Boost / Shift Light
  • Requires Control Unit: No

What's Included

  • Gauge (Black Faceplate, Black Bezel)
  • Silver Bezel & White Faceplate
  • Program Cable (Serial)
  • 4-Bar MAP Sensor
  • MAP Accessory Kit, T Fitting, Vacuum Hose, and Zip Ties
  • RPM Harness (6 inch)
  • Quick Start Installation Guide (Full manual on CD)
  • Software CD (LogWorks & LM Programmer)

Compatibility

  • Universal Part

MTX Digital Series “Dual Function” Vacuum/Boost & Shift Light (RPM.) One gauge with TWO functions! That’s the perfect solution to help maximize limited space on your dash! The 2 1/16” (52mm) gauge features a water resistant casing, interchangeable faceplates and bezels, locking connectors for simplified installation, and MTS serial connections used to connect with other Innovate devices for logging.



KEY FEATURES

  • Display as either inHG/PSI or BAR (seven-segment)
  • Over Boost Warning (seven-segment)
  • Progressive Shift Light or Single Stage Shift Light (outer LEDs)
  • Series: MTX-D
  • Gauge Backlight Colour: Amber LED
  • Gauge Face Colour: White or Black
  • Gauge Needle Colour: Multi Colour Sweeping LED
  • Gauge Range Centre: -29inHG - 43.5psi (-1bar - 3bar)
  • Gauge Range LEDs: 0-20460RPM
  • Gauge Sending Unit: Electrical
  • Gauge Size (mm): 52mm
  • Gauge Type: Boost / Shift Light
  • Requires Control Unit: No
  • Gauge (Black Faceplate, Black Bezel)
  • Silver Bezel & White Faceplate
  • Program Cable (Serial)
  • 4-Bar MAP Sensor
  • MAP Accessory Kit, T Fitting, Vacuum Hose, and Zip Ties
  • RPM Harness (6 inch)
  • Quick Start Installation Guide (Full manual on CD)
  • Software CD (LogWorks & LM Programmer)
  • Universal Part
