Description

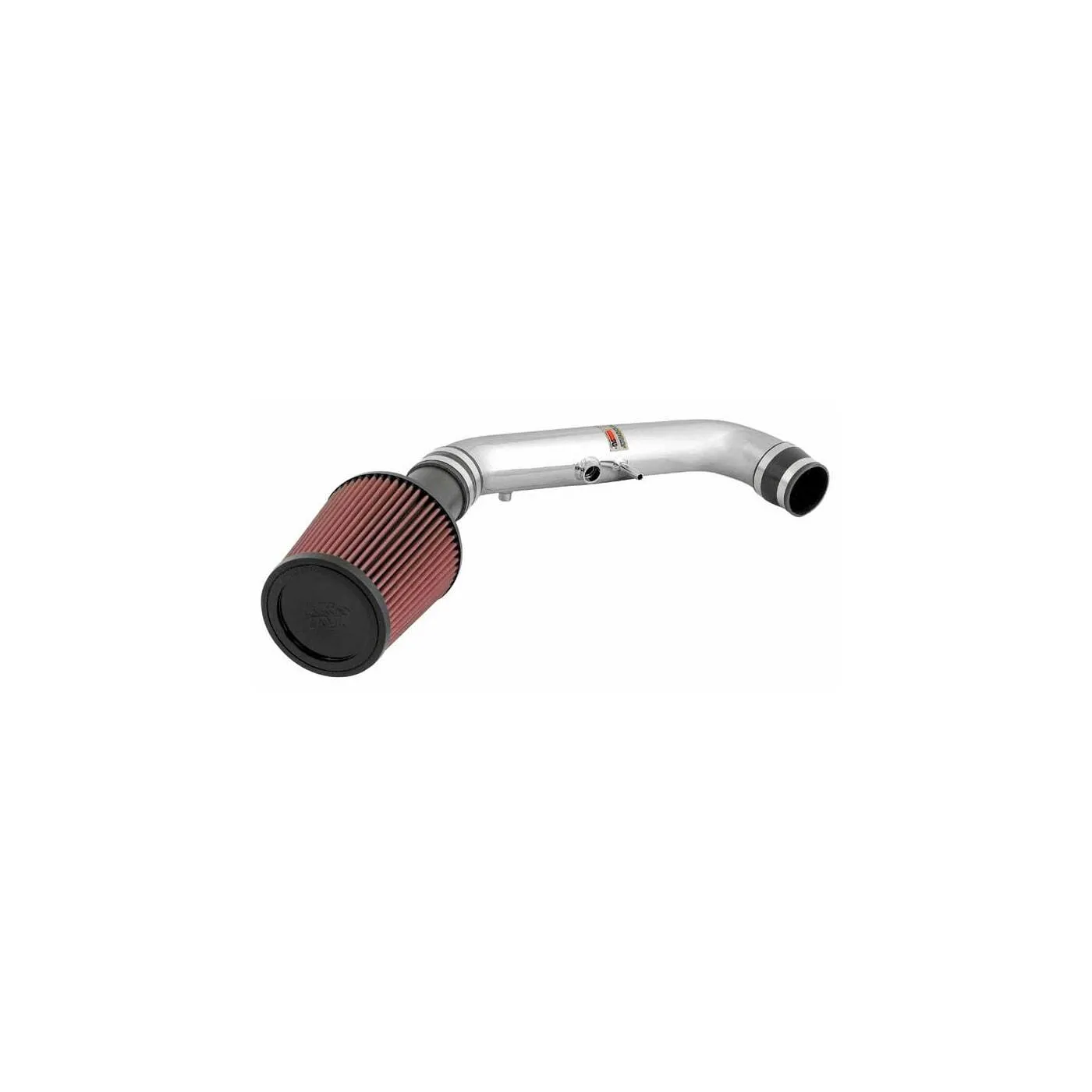

The K&N 69-6000TP Typhoon air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Mazda Miata and MX-5 models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon air intake which is designed to dramatically reduce air flow restriction as it smoothes and straightens air flow. This allows your engine to inhale a larger amount of air than the factory air intake. More air means more usable power and acceleration throughout the engine’s RPM range. The 69-6000TP air intake comes with a black rubber topped K&N high-flow air filter that installs into the previous air box space. Air is directed through the intake tube into the engine’s throttle body for a guaranteed power gain. The intake tube has an attractive chrome-like finish that's made to last and it accommodates the factory mass air sensor, air temperature sensor and crank case vent hose. The oversized cone shaped air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install usually in 90 minutes or less using existing factory mounting points. Some Typhoon air intakes are not legal for sale or use in California and other states adopting California emission standards while others are CARB exempt and 50 state legal. Check the K&N catalog or website for vehicle applications and specific CARB status for each vehicle and air intake.

  • Guaranteed to increase horsepower
  • Designed to improve throttle response and engine sound
  • Free-flowing aluminum tube
  • Easy to install, usually in 90 minutes or less
  • Lasts up to 100,000 miles before service is required (depending on driving conditions)
  • Replaces entire factory air intake system
  • Washable and reusable lifetime air filter
  • K&N Million Mile Limited Warranty

Specifications

  • Installation Time : 60-90 Minutes
  • Tools Needed : Wrench, Extension, Flat Blade Screwdriver, Allen Wrench
  • Estimated Horsepower Gain : 3.58 HP @ 6499 RPM
  • Replacement Filter : RU-4870
  • Air Filter Color : Red
  • Filter Material : Cotton Gauze
  • Air Filter Outlet Shape : Round
  • Clamps Included : 5
  • Clamp Material : Stainless Steel
  • Clamp Style : Regular
  • Couplers Included : 3
  • System Type : Short-Ram Intake System
  • Product Style : 69 Series Typhoon Kits
  • Air Filter Height : 6.5 in (165 mm)
  • Intake Pipe Color / Finish : Polished
  • Intake Pipe Material : Aluminum
  • CARB EO Number : D-269-37
  • Street Legal In All US States : See Vehicle Applications
  • TUV Approved (Europe) : No
  • Flange Inside Diameter : 2.75 in (70 mm)
  • Flange Length : 2 in (51 mm)
  • Flange Type : Centered
  • Height : 6.5 in (165 mm)
  • Base Outside Diameter : 6 in (152 mm)
  • Top Outside Diameter : 5 in (127 mm)
  • Top Style : X-Stream
  • Top Material : None
  • Weight : 6.9 lb (3.1 kg)
  • Air Filter Large End Diameter : 6 in (152 mm)
  • Product Box Height : 8.5 in (216 mm)
  • Product Box Length : 18.25 in (464 mm)
  • Product Box Width : 14.5 in (368 mm)
  • Mounting Hardware Included : Yes
  • Warranty : 1,000,000 Miles/10 Year

Compatibility

  • 1998-2005 Mazda MX-5 II 1.8L L4 Gas All Models

The K&N 69-6000TP Typhoon air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Mazda Miata and MX-5 models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon air intake which is designed to dramatically reduce air flow restriction as it smoothes and straightens air flow. This allows your engine to inhale a larger amount of air than the factory air intake. More air means more usable power and acceleration throughout the engine’s RPM range. The 69-6000TP air intake comes with a black rubber topped K&N high-flow air filter that installs into the previous air box space. Air is directed through the intake tube into the engine’s throttle body for a guaranteed power gain. The intake tube has an attractive chrome-like finish that's made to last and it accommodates the factory mass air sensor, air temperature sensor and crank case vent hose. The oversized cone shaped air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install usually in 90 minutes or less using existing factory mounting points. Some Typhoon air intakes are not legal for sale or use in California and other states adopting California emission standards while others are CARB exempt and 50 state legal. Check the K&N catalog or website for vehicle applications and specific CARB status for each vehicle and air intake.

  • Guaranteed to increase horsepower
  • Designed to improve throttle response and engine sound
  • Free-flowing aluminum tube
  • Easy to install, usually in 90 minutes or less
  • Lasts up to 100,000 miles before service is required (depending on driving conditions)
  • Replaces entire factory air intake system
  • Washable and reusable lifetime air filter
  • K&N Million Mile Limited Warranty
  • Installation Time : 60-90 Minutes
  • Tools Needed : Wrench, Extension, Flat Blade Screwdriver, Allen Wrench
  • Estimated Horsepower Gain : 3.58 HP @ 6499 RPM
  • Replacement Filter : RU-4870
  • Air Filter Color : Red
  • Filter Material : Cotton Gauze
  • Air Filter Outlet Shape : Round
  • Clamps Included : 5
  • Clamp Material : Stainless Steel
  • Clamp Style : Regular
  • Couplers Included : 3
  • System Type : Short-Ram Intake System
  • Product Style : 69 Series Typhoon Kits
  • Air Filter Height : 6.5 in (165 mm)
  • Intake Pipe Color / Finish : Polished
  • Intake Pipe Material : Aluminum
  • CARB EO Number : D-269-37
  • Street Legal In All US States : See Vehicle Applications
  • TUV Approved (Europe) : No
  • Flange Inside Diameter : 2.75 in (70 mm)
  • Flange Length : 2 in (51 mm)
  • Flange Type : Centered
  • Height : 6.5 in (165 mm)
  • Base Outside Diameter : 6 in (152 mm)
  • Top Outside Diameter : 5 in (127 mm)
  • Top Style : X-Stream
  • Top Material : None
  • Weight : 6.9 lb (3.1 kg)
  • Air Filter Large End Diameter : 6 in (152 mm)
  • Product Box Height : 8.5 in (216 mm)
  • Product Box Length : 18.25 in (464 mm)
  • Product Box Width : 14.5 in (368 mm)
  • Mounting Hardware Included : Yes
  • Warranty : 1,000,000 Miles/10 Year
  • 1998-2005 Mazda MX-5 II 1.8L L4 Gas All Models
