Description

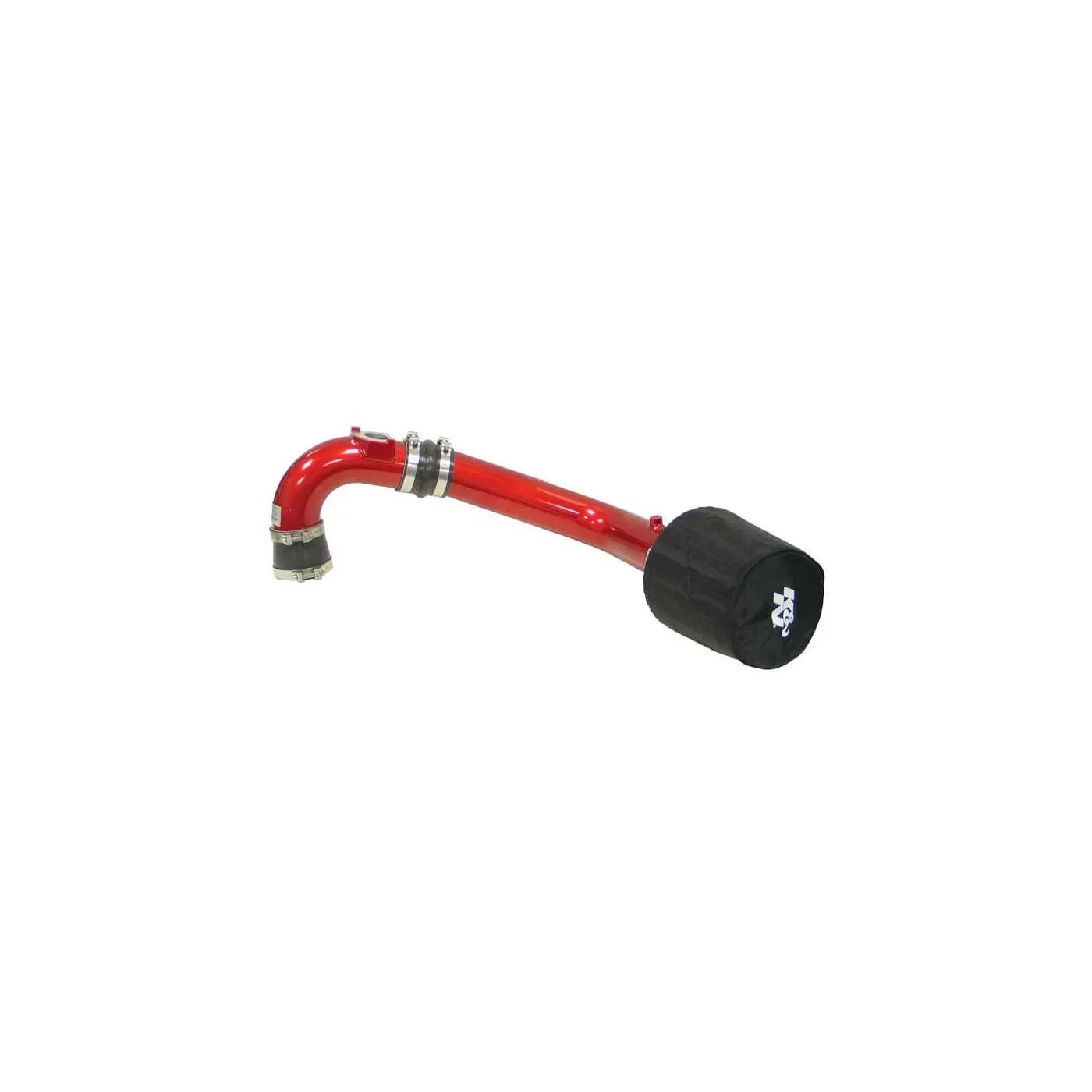

The K&N 69-6010TR Typhoon cold-air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Mazda 3 and Mazda 5 models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon cold-air intake which is designed to pull in relatively cooler air and dramatically reduce air flow restriction by smoothing and straightening air flow. This allows your engine to inhale a larger amount of denser air than the factory air intake. More air means more usable power and acceleration throughout the engine’s RPM range. The 69-6010TR cold-air intake consists of a black rubber topped K&N high-flow air filter that directs cooler outside air through free-flowing aluminum tubing into a short ram induction tube that delivers high volumes of clean, colder air into the engine’s throttle body for a guaranteed power gain. The oversized cone shaped air filter comes with a water repellent DryCharger filter wrap to protect the filter from moisture. The air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install usually in 90 minutes or less. Some Typhoon air intakes are not legal for sale or use in California and other states adopting California emission standards while others are CARB exempt and 50 state legal. Check the K&N catalog or website for vehicle applications and specific CARB status for each vehicle and air intake.

  • Guaranteed to increase horsepower
  • Designed to improve throttle response and engine sound
  • Free-flowing aluminum tube
  • Easy to install, usually in 90 minutes or less
  • Lasts up to 100,000 miles before service is required (depending on driving conditions)
  • Replaces entire factory air intake system
  • Washable and reusable lifetime air filter
  • K&N Million Mile Limited Warranty

Specifications

  • Installation Time : 60-90 Minutes
  • Tools Needed : Wrench, Extension, Flat Blade Screwdriver, Allen Wrench
  • Estimated Horsepower Gain : 5.74 HP @ 4764 RPM
  • Replacement Filter : RU-4950
  • Air Filter Color : Red
  • Filter Material : Cotton Gauze
  • Air Filter Outlet Shape : Round
  • Clamps Included : 5
  • Clamp Material : Stainless Steel
  • Clamp Style : Regular
  • Couplers Included : 2
  • System Type : Complete Cold-Intake System
  • Product Style : 69 Series Typhoon Kits
  • Air Filter Height : 5.5 in (140 mm)
  • Intake Pipe Color / Finish : Red
  • Intake Pipe Material : Aluminum
  • CARB EO Number : D-269-37
  • Street Legal In All US States : See Vehicle Applications
  • TUV Approved (Europe) : No
  • Weight : 5.9 lb (2.7 kg)
  • Air Filter Large End Diameter : 6 in (152 mm)
  • Product Box Height : 8.5 in (216 mm)
  • Product Box Length : 18.25 in (464 mm)
  • Product Box Width : 14.5 in (368 mm)
  • Mounting Hardware Included : Yes
  • Warranty : 1,000,000 Miles/10 Year

Compatibility

  • 2003 Mazda 3 2.0L L4 Gas All Models
  • 2004 Mazda 3 2.0L L4 Gas Non-US Models
  • 2009 Mazda 3 2.3L L4 Gas Except Turbo
  • 2004-2008 Mazda 3 2.3L L4 Gas All Models
  • 2005-2009 Mazda 3 2.0L L4 Gas All Models
  • 2006-2007 Mazda 5 2.3L L4 Gas All Models

The K&N 69-6010TR Typhoon cold-air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Mazda 3 and Mazda 5 models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon cold-air intake which is designed to pull in relatively cooler air and dramatically reduce air flow restriction by smoothing and straightening air flow. This allows your engine to inhale a larger amount of denser air than the factory air intake. More air means more usable power and acceleration throughout the engine’s RPM range. The 69-6010TR cold-air intake consists of a black rubber topped K&N high-flow air filter that directs cooler outside air through free-flowing aluminum tubing into a short ram induction tube that delivers high volumes of clean, colder air into the engine’s throttle body for a guaranteed power gain. The oversized cone shaped air filter comes with a water repellent DryCharger filter wrap to protect the filter from moisture. The air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install usually in 90 minutes or less. Some Typhoon air intakes are not legal for sale or use in California and other states adopting California emission standards while others are CARB exempt and 50 state legal. Check the K&N catalog or website for vehicle applications and specific CARB status for each vehicle and air intake.

  • Guaranteed to increase horsepower
  • Designed to improve throttle response and engine sound
  • Free-flowing aluminum tube
  • Easy to install, usually in 90 minutes or less
  • Lasts up to 100,000 miles before service is required (depending on driving conditions)
  • Replaces entire factory air intake system
  • Washable and reusable lifetime air filter
  • K&N Million Mile Limited Warranty
  • Installation Time : 60-90 Minutes
  • Tools Needed : Wrench, Extension, Flat Blade Screwdriver, Allen Wrench
  • Estimated Horsepower Gain : 5.74 HP @ 4764 RPM
  • Replacement Filter : RU-4950
  • Air Filter Color : Red
  • Filter Material : Cotton Gauze
  • Air Filter Outlet Shape : Round
  • Clamps Included : 5
  • Clamp Material : Stainless Steel
  • Clamp Style : Regular
  • Couplers Included : 2
  • System Type : Complete Cold-Intake System
  • Product Style : 69 Series Typhoon Kits
  • Air Filter Height : 5.5 in (140 mm)
  • Intake Pipe Color / Finish : Red
  • Intake Pipe Material : Aluminum
  • CARB EO Number : D-269-37
  • Street Legal In All US States : See Vehicle Applications
  • TUV Approved (Europe) : No
  • Weight : 5.9 lb (2.7 kg)
  • Air Filter Large End Diameter : 6 in (152 mm)
  • Product Box Height : 8.5 in (216 mm)
  • Product Box Length : 18.25 in (464 mm)
  • Product Box Width : 14.5 in (368 mm)
  • Mounting Hardware Included : Yes
  • Warranty : 1,000,000 Miles/10 Year
  • 2003 Mazda 3 2.0L L4 Gas All Models
  • 2004 Mazda 3 2.0L L4 Gas Non-US Models
  • 2009 Mazda 3 2.3L L4 Gas Except Turbo
  • 2004-2008 Mazda 3 2.3L L4 Gas All Models
  • 2005-2009 Mazda 3 2.0L L4 Gas All Models
  • 2006-2007 Mazda 5 2.3L L4 Gas All Models
