Description

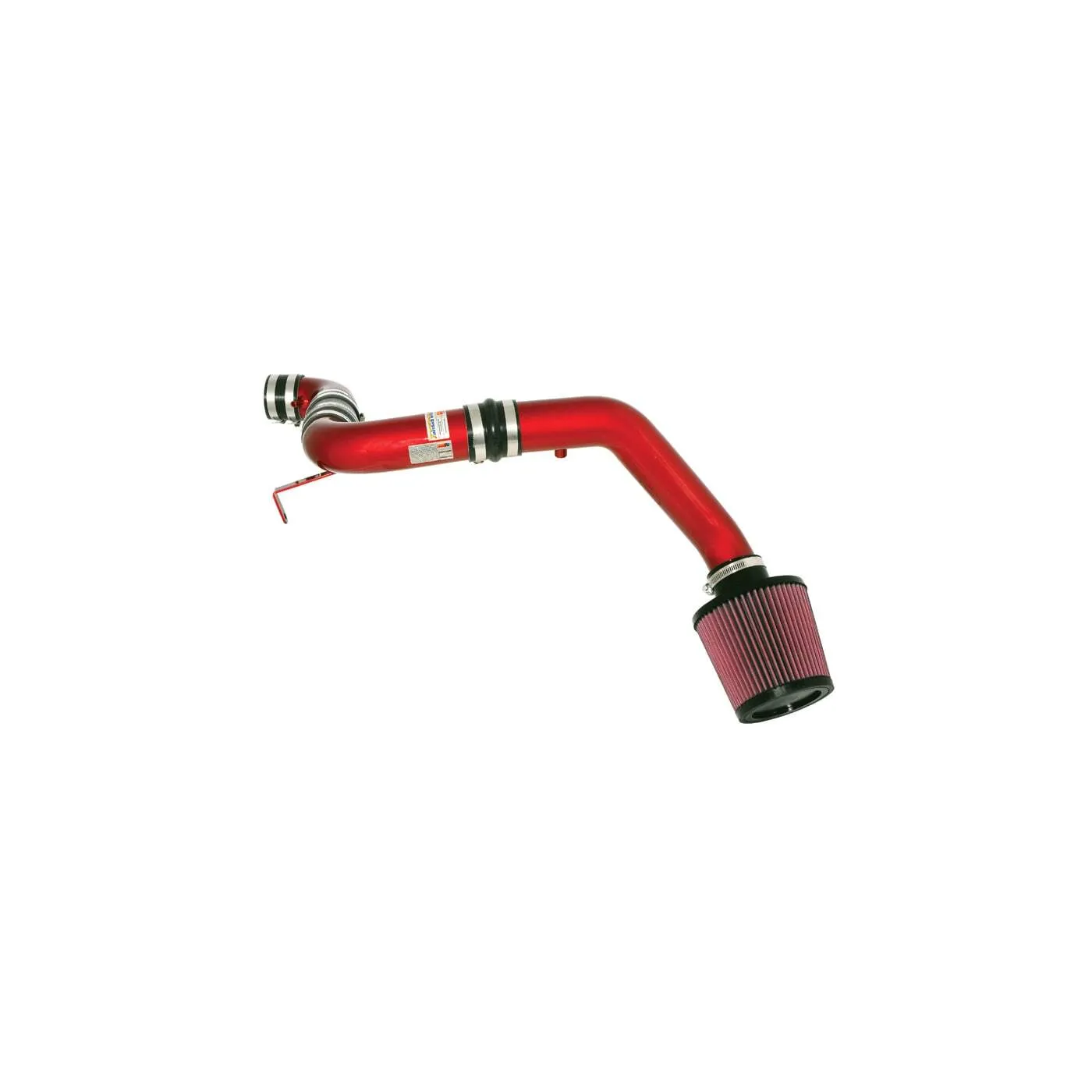

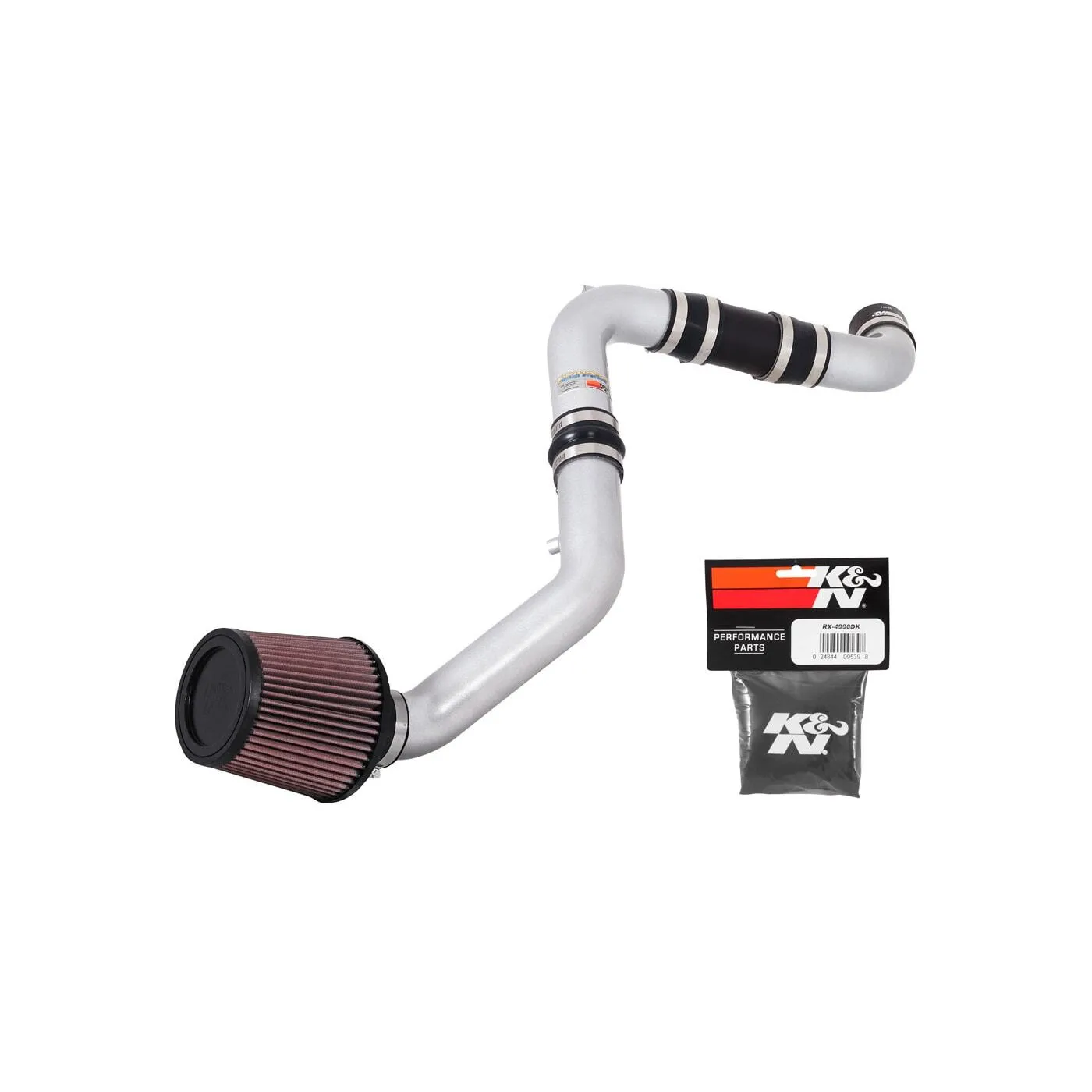

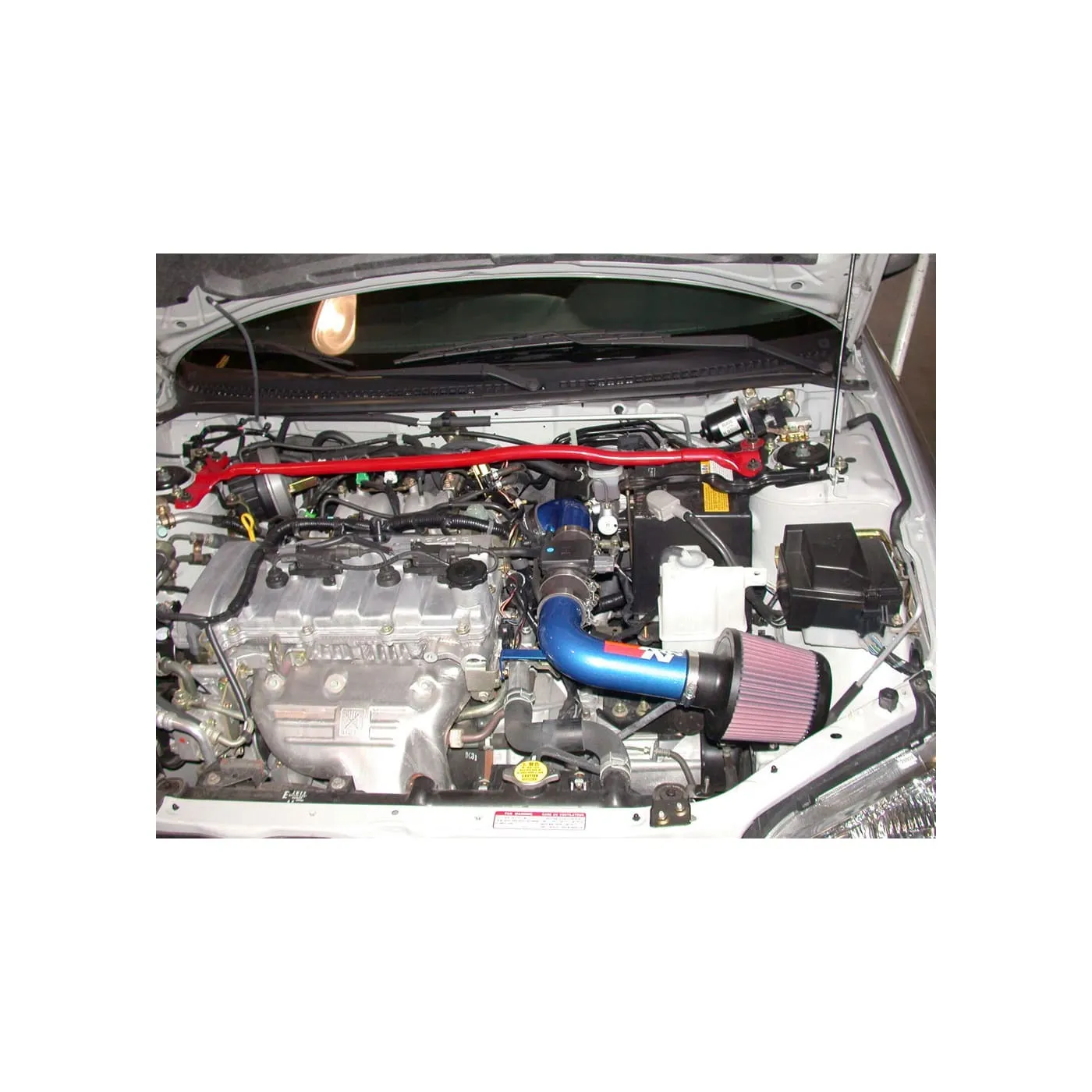

The K&N 69-6020TR Typhoon cold-air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Mazda Protege, Protege5 and MP3 models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon cold-air intake which is designed to pull in outside air and dramatically reduce air flow restriction by smoothing and straightening air flow. This allows your engine to inhale a larger amount of air than the factory air intake. More air means more usable power and acceleration throughout the engine’s RPM range. The 69-6020TR cold-air intake consists of a black rubber topped K&N high-flow air filter that mounts near the driver side wheel well directing outside air through free-flowing aluminum tubing into a short ram induction tube that delivers high volumes of clean air into the engine’s throttle body for a guaranteed power gain. The oversized cone shaped air filter comes with a water repellent DryCharger filter wrap to protect the filter from moisture. The air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This cold air intake is relatively easy to install usually in 90 minutes or less. Some Typhoon air intakes are not legal for sale or use in California and other states adopting California emission standards while others are CARB exempt and 50 state legal. Check the vehicle applications and specific CARB status for each vehicle and air intake.

  • Guaranteed to increase horsepower
  • Designed to improve throttle response and engine sound
  • Free-flowing aluminum tubes
  • Easy to install, usually in 90 minutes or less
  • Lasts up to 100,000 miles before service is required (depending on driving conditions)
  • Replaces entire factory air intake system
  • Washable and reusable lifetime air filter
  • K&N Million Mile Limited Warranty

Specifications

  • Installation Time : 60-90 Minutes
  • Tools Needed : Wrench, Extension, Flat Blade Screwdriver, Allen Wrench
  • Estimated Horsepower Gain : 5 HP @ 3568 RPM
  • Replacement Filter : RU-4950
  • Air Filter Color : Red
  • Filter Material : Cotton Gauze
  • Air Filter Outlet Shape : Round
  • Clamps Included : 9
  • Clamp Material : Stainless Steel
  • Clamp Style : Regular
  • Couplers Included : 4
  • System Type : Complete Cold-Intake System
  • Product Style : 69 Series Typhoon Kits
  • Air Filter Height : 5.5 in (140 mm)
  • Intake Pipe Color / Finish : Red
  • Intake Pipe Material : Aluminum
  • CARB EO Number : D-269-24
  • Street Legal In All US States : Yes
  • TUV Approved (Europe) : No
  • Flange Inside Diameter : 2.5 in (64 mm)
  • Flange Length : 2 in (51 mm)
  • Flange Type : Centered
  • Height : 5.5 in (140 mm)
  • Base Outside Diameter : 6 in (152 mm)
  • Top Outside Diameter : 5 in (127 mm)
  • Top Style : X-Stream
  • Top Material : None
  • Weight : 9.3 lb (4.2 kg)
  • Air Filter Large End Diameter : 6 in (152 mm)
  • Product Box Height : 12.25 in (311 mm)
  • Product Box Length : 20.25 in (514 mm)
  • Product Box Width : 12.25 in (311 mm)
  • Footnote 1 : 1/4-20 Jack Nut Into Top
  • Mounting Hardware Included : Yes
  • Warranty : 1,000,000 Miles/10 Year

Compatibility

  • 2002 Mazda MP3 2.0L L4 Gas All Models
  • 2002-2003 Mazda Protege 2.0L L4 Gas All Models
  • 2002-2003 Mazda Protege5 2.0L L4 Gas All Models

The K&N 69-6020TR Typhoon cold-air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Mazda Protege, Protege5 and MP3 models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon cold-air intake which is designed to pull in outside air and dramatically reduce air flow restriction by smoothing and straightening air flow. This allows your engine to inhale a larger amount of air than the factory air intake. More air means more usable power and acceleration throughout the engine’s RPM range. The 69-6020TR cold-air intake consists of a black rubber topped K&N high-flow air filter that mounts near the driver side wheel well directing outside air through free-flowing aluminum tubing into a short ram induction tube that delivers high volumes of clean air into the engine’s throttle body for a guaranteed power gain. The oversized cone shaped air filter comes with a water repellent DryCharger filter wrap to protect the filter from moisture. The air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This cold air intake is relatively easy to install usually in 90 minutes or less. Some Typhoon air intakes are not legal for sale or use in California and other states adopting California emission standards while others are CARB exempt and 50 state legal. Check the vehicle applications and specific CARB status for each vehicle and air intake.

  • Guaranteed to increase horsepower
  • Designed to improve throttle response and engine sound
  • Free-flowing aluminum tubes
  • Easy to install, usually in 90 minutes or less
  • Lasts up to 100,000 miles before service is required (depending on driving conditions)
  • Replaces entire factory air intake system
  • Washable and reusable lifetime air filter
  • K&N Million Mile Limited Warranty
  • Installation Time : 60-90 Minutes
  • Tools Needed : Wrench, Extension, Flat Blade Screwdriver, Allen Wrench
  • Estimated Horsepower Gain : 5 HP @ 3568 RPM
  • Replacement Filter : RU-4950
  • Air Filter Color : Red
  • Filter Material : Cotton Gauze
  • Air Filter Outlet Shape : Round
  • Clamps Included : 9
  • Clamp Material : Stainless Steel
  • Clamp Style : Regular
  • Couplers Included : 4
  • System Type : Complete Cold-Intake System
  • Product Style : 69 Series Typhoon Kits
  • Air Filter Height : 5.5 in (140 mm)
  • Intake Pipe Color / Finish : Red
  • Intake Pipe Material : Aluminum
  • CARB EO Number : D-269-24
  • Street Legal In All US States : Yes
  • TUV Approved (Europe) : No
  • Flange Inside Diameter : 2.5 in (64 mm)
  • Flange Length : 2 in (51 mm)
  • Flange Type : Centered
  • Height : 5.5 in (140 mm)
  • Base Outside Diameter : 6 in (152 mm)
  • Top Outside Diameter : 5 in (127 mm)
  • Top Style : X-Stream
  • Top Material : None
  • Weight : 9.3 lb (4.2 kg)
  • Air Filter Large End Diameter : 6 in (152 mm)
  • Product Box Height : 12.25 in (311 mm)
  • Product Box Length : 20.25 in (514 mm)
  • Product Box Width : 12.25 in (311 mm)
  • Footnote 1 : 1/4-20 Jack Nut Into Top
  • Mounting Hardware Included : Yes
  • Warranty : 1,000,000 Miles/10 Year
  • 2002 Mazda MP3 2.0L L4 Gas All Models
  • 2002-2003 Mazda Protege 2.0L L4 Gas All Models
  • 2002-2003 Mazda Protege5 2.0L L4 Gas All Models
