Description

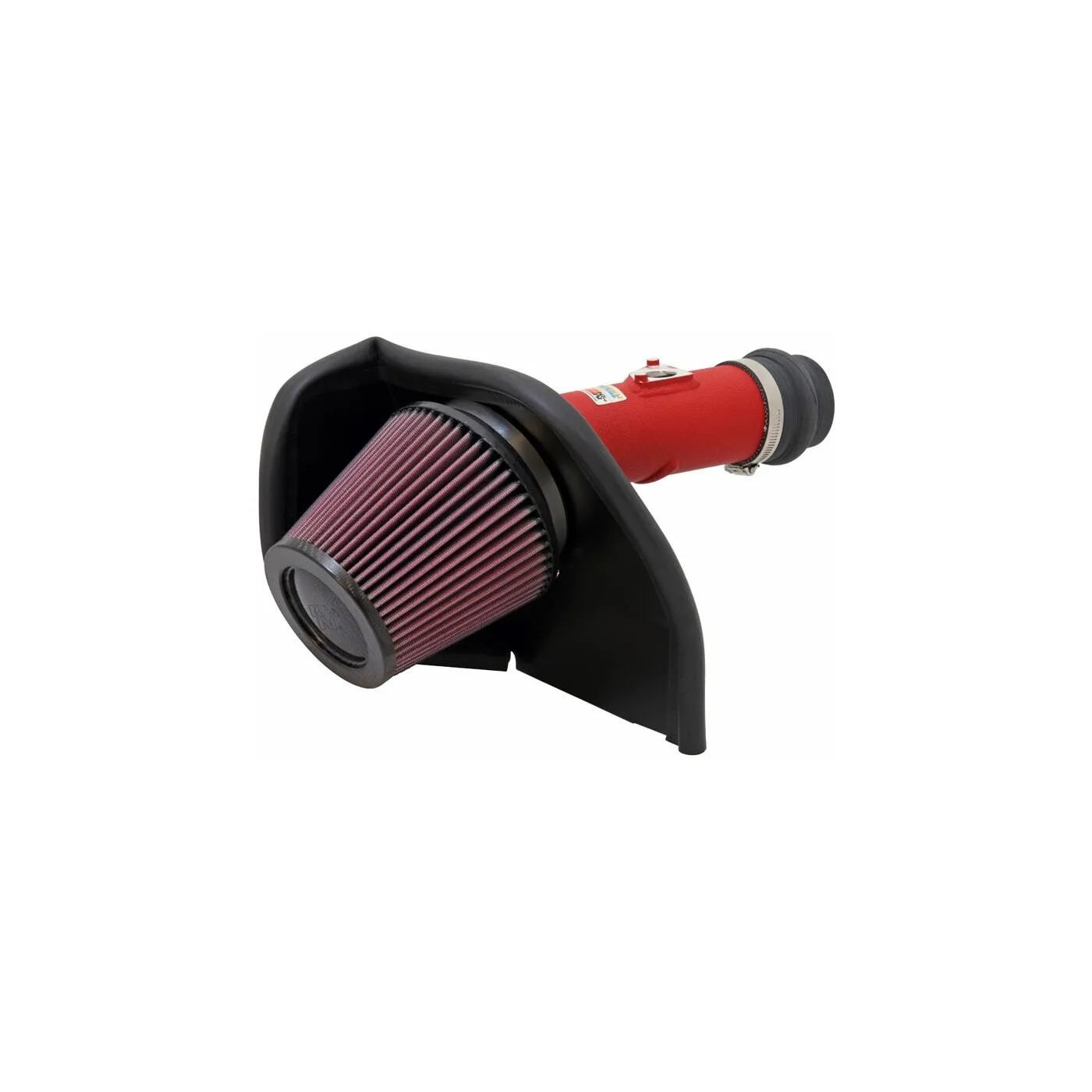

Built for performance and show, the 69 Series Typhoon™ Air Intake System is a free-flowing mandrel-bent aluminum tube induction system designed to fit many sport compact performance vehicles. Typhoon intake tubes have a high quality finish that's made to last. K&N intake systems replace your vehicle's restrictive factory air filter and air intake housing. K&N intakes are designed to dramatically reduce intake restriction resulting in additional power and torque. All of them come with K&N's Million Mile Limited Warranty and are guaranteed to increase horsepower. Some Typhoon Air Intakes are not legal for use in California and other states adopting California emission standards while others are CARB exempt and 50 state legal. Check the K&N catalog or website vehicle parts search for specific CARB status.



  • Will boost horsepower
  • Designed to improve throttle response and engine sound
  • Free-flowing aluminum tube
  • Replaces entire factory air intake system
  • Lasts up to 100,000 miles before service is required (depending on driving conditions)
  • Easy to install, usually in 90 minutes or less
  • Washable and reusable lifetime air filter
  • K&N Million Mile Limited Warranty®

Specifications

  • Product Style: 69 Series Typhoon Kits
  • Estimated Horsepower Gain: 17.52 HP @ 5260 RPM
  • Replacement Filter: RP-5113
  • Air Filter Color: Red
  • Air Filter Outlet Shape: Round
  • Street Legal In All US States: See Application Link Below
  • Air Filter Height: 5.625 in (143 mm)
  • TUV Approved (Europe): No
  • Air Filter Material: Cotton Gauze
  • Clamps Included: 3
  • Clamp Material: Stainless Steel
  • Clamp Style: Regular
  • Couplers Included: 1
  • System Type: Cold-Air Intake System
  • Mass Air Flow Sensor Adapter Included: Mass Air Flow Sensor Adapter Included When Required
  • Intake Pipe Color / Finish: Wrinkle Red
  • Intake Pipe Ports: All intake tube ports needed for the specified applications are included
  • Vacuum Tubing Included: No
  • Air Filter Large End Diameter: 6.5 in (165 mm)
  • Weight: 7.5 lb (3.4 kg)
  • Product Box Length: 18.25 in (464 mm)
  • Product Box Width: 14.5 in (368 mm)
  • Product Box Height: 8.5 in (216 mm)

What's Included

  • (1) Hose Clamp #44 - 08560
  • (1) Hose; 3” TO 2-3/4” X 3” L Hump - 08421
  • (1) Hose Clamp #48 - 08601
  • (1) Intake Tube - 27554
  • (2) Bolt; M4 - 0.07 8MM, A/H CAP, SS - 07733
  • (7) Nut; 6MM Nylock, Hexhead, SS - 07512
  • (8) Washer; 6MM Flat, SS
  • (4) Stud; 6MM-1.00 X 35MM L, SS - 08220
  • (2) Gasket; 1/16” Neoprene - 09202
  • (1) Heat Shield - 074047
  • (1) Bolt; M6 X 1.00 X 16MM , SS - 07730
  • (2) Stud; M6-1.00 M/M, Mntd - 07027
  • (1) Washer; 1/4” Lock, ZN - 08198
  • (1) Edge Trim (35”) - 102471
  • (1) Stud; Mount, M6 X 1, 1” T, M/F - 02033
  • (1) Bracket; SM. Mild STL, FB/PC - 07139
  • (1) Adaptor; #350 - 21510
  • (1) Hose Clamp #80 - 08694
  • (1) Air Filter - RP-5113

Compatibility

  • 2008-2014 Subaru STi

Built for performance and show, the 69 Series Typhoon™ Air Intake System is a free-flowing mandrel-bent aluminum tube induction system designed to fit many sport compact performance vehicles. Typhoon intake tubes have a high quality finish that's made to last. K&N intake systems replace your vehicle's restrictive factory air filter and air intake housing. K&N intakes are designed to dramatically reduce intake restriction resulting in additional power and torque. All of them come with K&N's Million Mile Limited Warranty and are guaranteed to increase horsepower. Some Typhoon Air Intakes are not legal for use in California and other states adopting California emission standards while others are CARB exempt and 50 state legal. Check the K&N catalog or website vehicle parts search for specific CARB status.



  • Will boost horsepower
  • Designed to improve throttle response and engine sound
  • Free-flowing aluminum tube
  • Replaces entire factory air intake system
  • Lasts up to 100,000 miles before service is required (depending on driving conditions)
  • Easy to install, usually in 90 minutes or less
  • Washable and reusable lifetime air filter
  • K&N Million Mile Limited Warranty®
  • Product Style: 69 Series Typhoon Kits
  • Estimated Horsepower Gain: 17.52 HP @ 5260 RPM
  • Replacement Filter: RP-5113
  • Air Filter Color: Red
  • Air Filter Outlet Shape: Round
  • Street Legal In All US States: See Application Link Below
  • Air Filter Height: 5.625 in (143 mm)
  • TUV Approved (Europe): No
  • Air Filter Material: Cotton Gauze
  • Clamps Included: 3
  • Clamp Material: Stainless Steel
  • Clamp Style: Regular
  • Couplers Included: 1
  • System Type: Cold-Air Intake System
  • Mass Air Flow Sensor Adapter Included: Mass Air Flow Sensor Adapter Included When Required
  • Intake Pipe Color / Finish: Wrinkle Red
  • Intake Pipe Ports: All intake tube ports needed for the specified applications are included
  • Vacuum Tubing Included: No
  • Air Filter Large End Diameter: 6.5 in (165 mm)
  • Weight: 7.5 lb (3.4 kg)
  • Product Box Length: 18.25 in (464 mm)
  • Product Box Width: 14.5 in (368 mm)
  • Product Box Height: 8.5 in (216 mm)
  • (1) Hose Clamp #44 - 08560
  • (1) Hose; 3” TO 2-3/4” X 3” L Hump - 08421
  • (1) Hose Clamp #48 - 08601
  • (1) Intake Tube - 27554
  • (2) Bolt; M4 - 0.07 8MM, A/H CAP, SS - 07733
  • (7) Nut; 6MM Nylock, Hexhead, SS - 07512
  • (8) Washer; 6MM Flat, SS
  • (4) Stud; 6MM-1.00 X 35MM L, SS - 08220
  • (2) Gasket; 1/16” Neoprene - 09202
  • (1) Heat Shield - 074047
  • (1) Bolt; M6 X 1.00 X 16MM , SS - 07730
  • (2) Stud; M6-1.00 M/M, Mntd - 07027
  • (1) Washer; 1/4” Lock, ZN - 08198
  • (1) Edge Trim (35”) - 102471
  • (1) Stud; Mount, M6 X 1, 1” T, M/F - 02033
  • (1) Bracket; SM. Mild STL, FB/PC - 07139
  • (1) Adaptor; #350 - 21510
  • (1) Hose Clamp #80 - 08694
  • (1) Air Filter - RP-5113
  • 2008-2014 Subaru STi
