K&N Filters 69 Series Typhoon Performance Air Intake System (Corolla 1.8L 2002) - Red
SKU: 69-8600TR
Can't Find What You're Looking For?
If you're looking for something in particular, we can help. Drop us a line using the button below.
Submit A RequestWhy Buy From Us?
- Australian Owned
- 100% Fitment Guarantee
- Genuine Quality Brands
Shop now. Pay Later. Interest Free.
Make 4 interest-free payments of $157.50 fortnightly and receive your order now. More info
Enjoy Now, Pay Later
Description

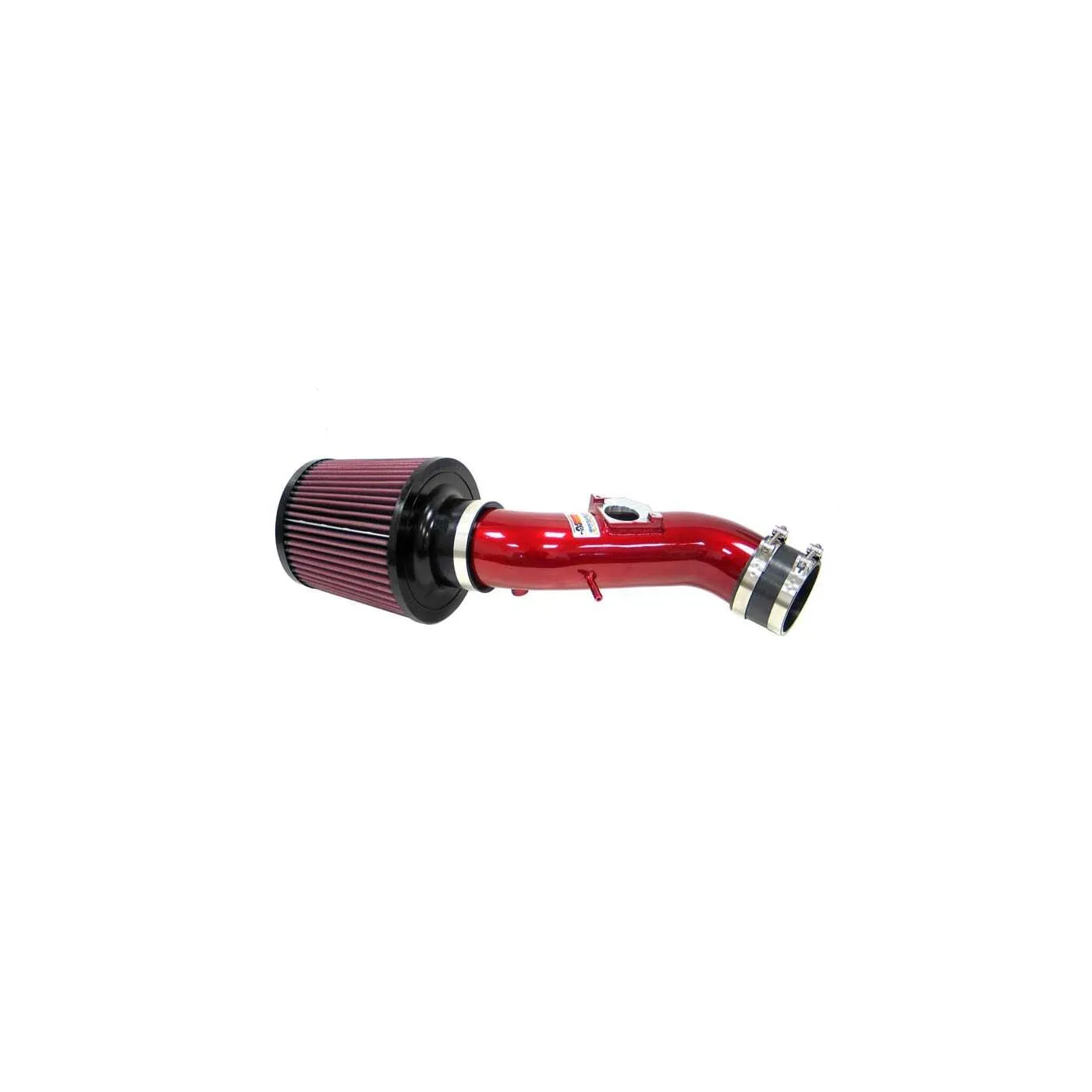

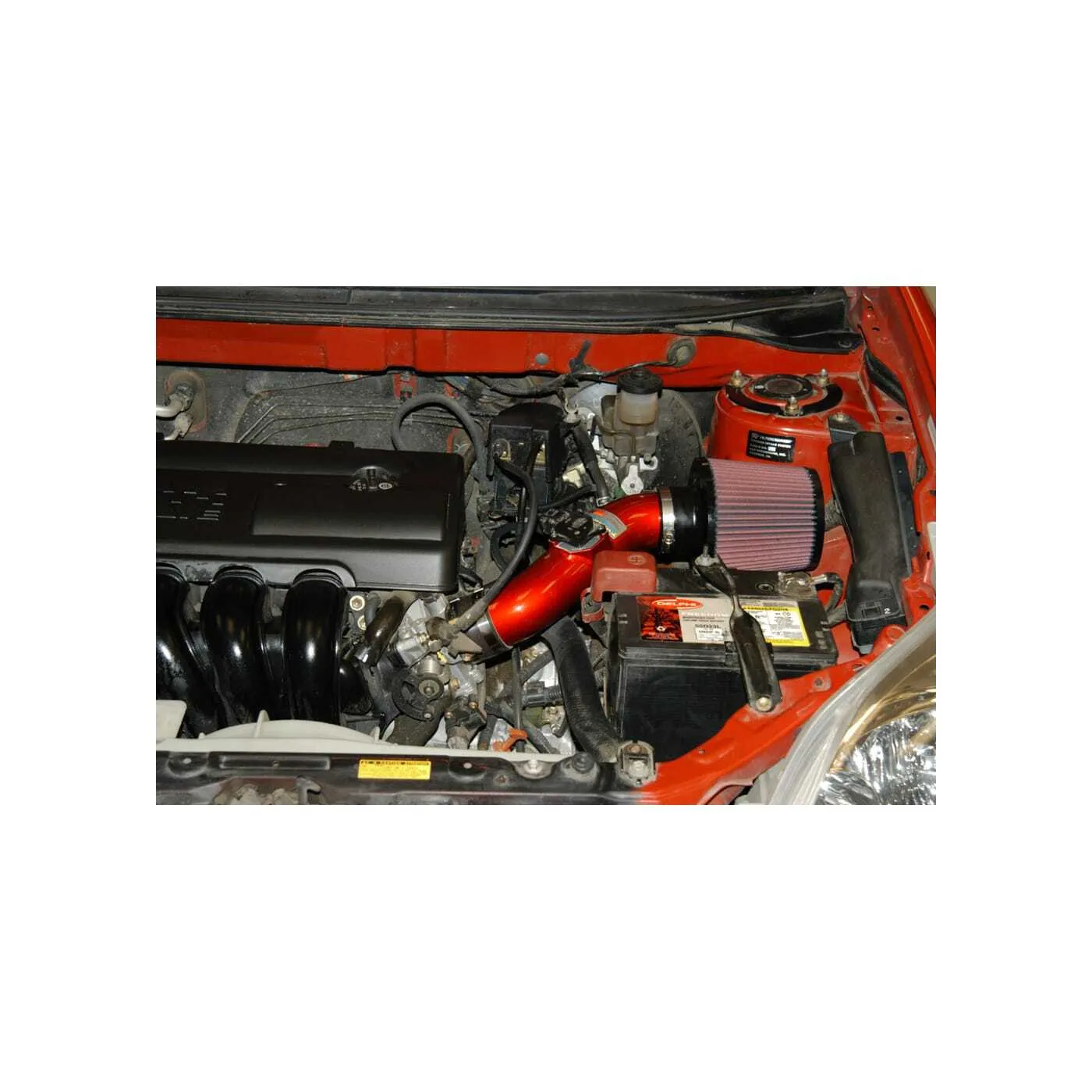

The K&N 69-8600TR Typhoon air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Toyota Corolla, Toyota Matrix XR and Pontiac Vibe models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon air intake which is designed to dramatically reduce air flow restriction as it smoothes and straightens air flow. This allows your engine to inhale a larger amount of air than the factory air intake. More air means more usable power and acceleration throughout the engine’s RPM range. The 69-8600TR air intake comes with a black rubber topped K&N high-flow air filter that installs into the previous air box space. Air is directed through the intake tube into the engine’s throttle body for a guaranteed power gain. The oversized cone shaped air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install usually in 90 minutes or less using existing factory mounting points. The tools needed are a screwdriver, pliers, ratchet set and an Allen wrench. Some Typhoon air intakes are not legal for sale or use in California and other states adopting California emission standards while others are CARB exempt and 50 state legal. Check the K&N catalog or website for vehicle applications and specific CARB status for each vehicle and air intake.
- Guaranteed to increase horsepower
- Designed to improve throttle response and engine sound
- Free-flowing aluminum tube
- Easy to install, usually in 90 minutes or less
- Filter lasts up to 100,000 miles before service is required
- Replaces entire factory air intake system
- Washable and reusable lifetime air filter
- K&N Million Mile Limited Warranty
Specifications
- Installation Time : 60-90 Minutes
- Tools Needed : Wrench, Extension, Flat Blade Screwdriver, Allen Wrench
- Estimated Horsepower Gain : 8.74 HP @ 6250 RPM
- Replacement Filter : RU-4960
- Air Filter Color : Red
- Filter Material : Cotton Gauze
- Air Filter Outlet Shape : Round
- Clamps Included : 3
- Clamp Material : Stainless Steel
- Clamp Style : Regular
- Couplers Included : 2
- System Type : Short-Ram Intake System
- Product Style : 69 Series Typhoon Kits
- Air Filter Height : 5.5 in (140 mm)
- Intake Pipe Color / Finish : Red
- Intake Pipe Material : Aluminum
- CARB EO Number : D-269-30
- Street Legal In All US States : Yes
- TUV Approved (Europe) : No
- Weight : 5.9 lb (2.7 kg)
- Air Filter Large End Diameter : 6 in (152 mm)
- Product Box Height : 8.5 in (216 mm)
- Product Box Length : 18.25 in (464 mm)
- Product Box Width : 14.5 in (368 mm)
- Mounting Hardware Included : Yes
- Warranty : 1,000,000 Miles/10 Year
Compatibility
- 2002 Toyota Corolla 1.8L L4 Gas All Models
- 2003-2004 Pontiac Vibe 1.8L L4 Gas All Models
- 2003-2004 Toyota Corolla 1.8L L4 Gas US Models
