Description

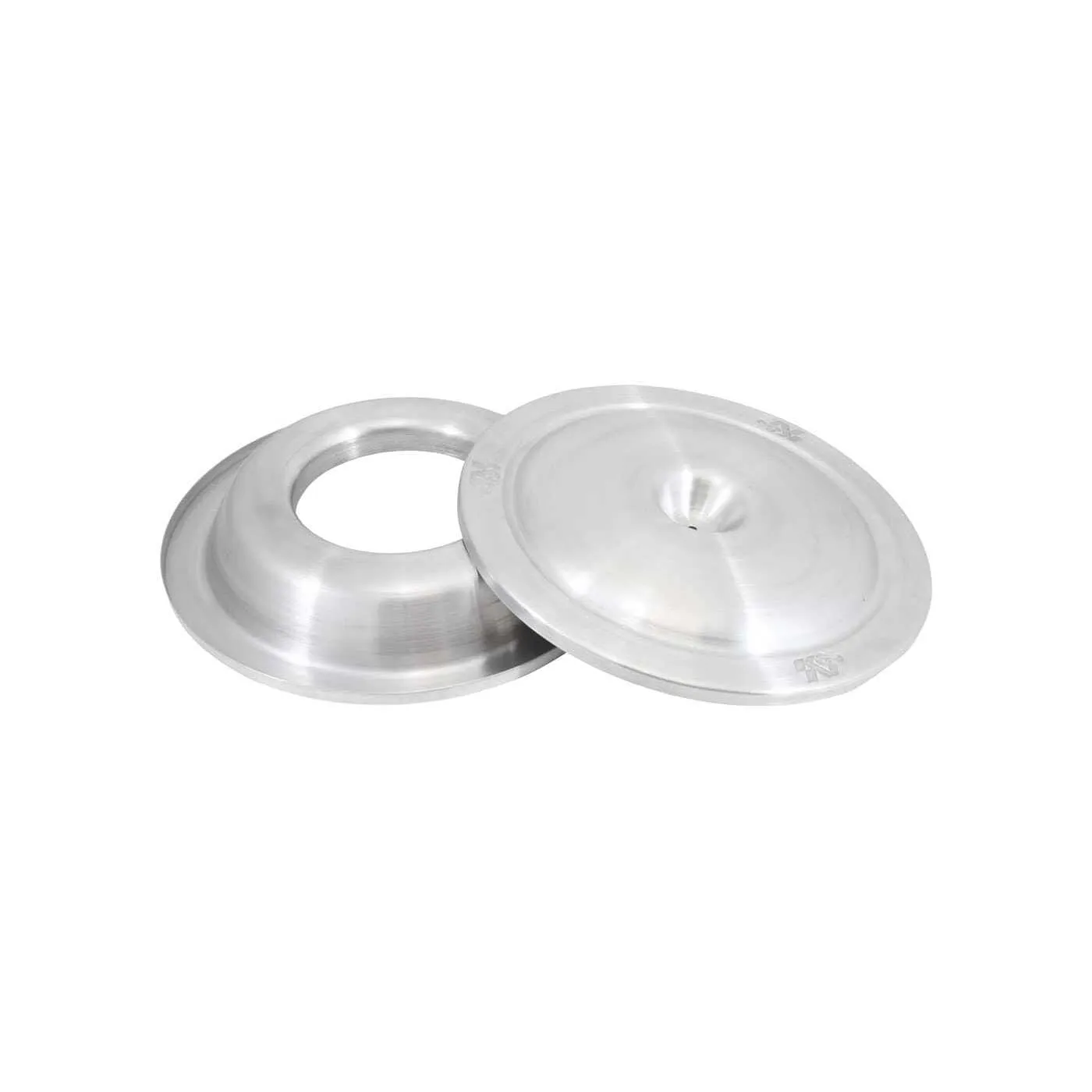

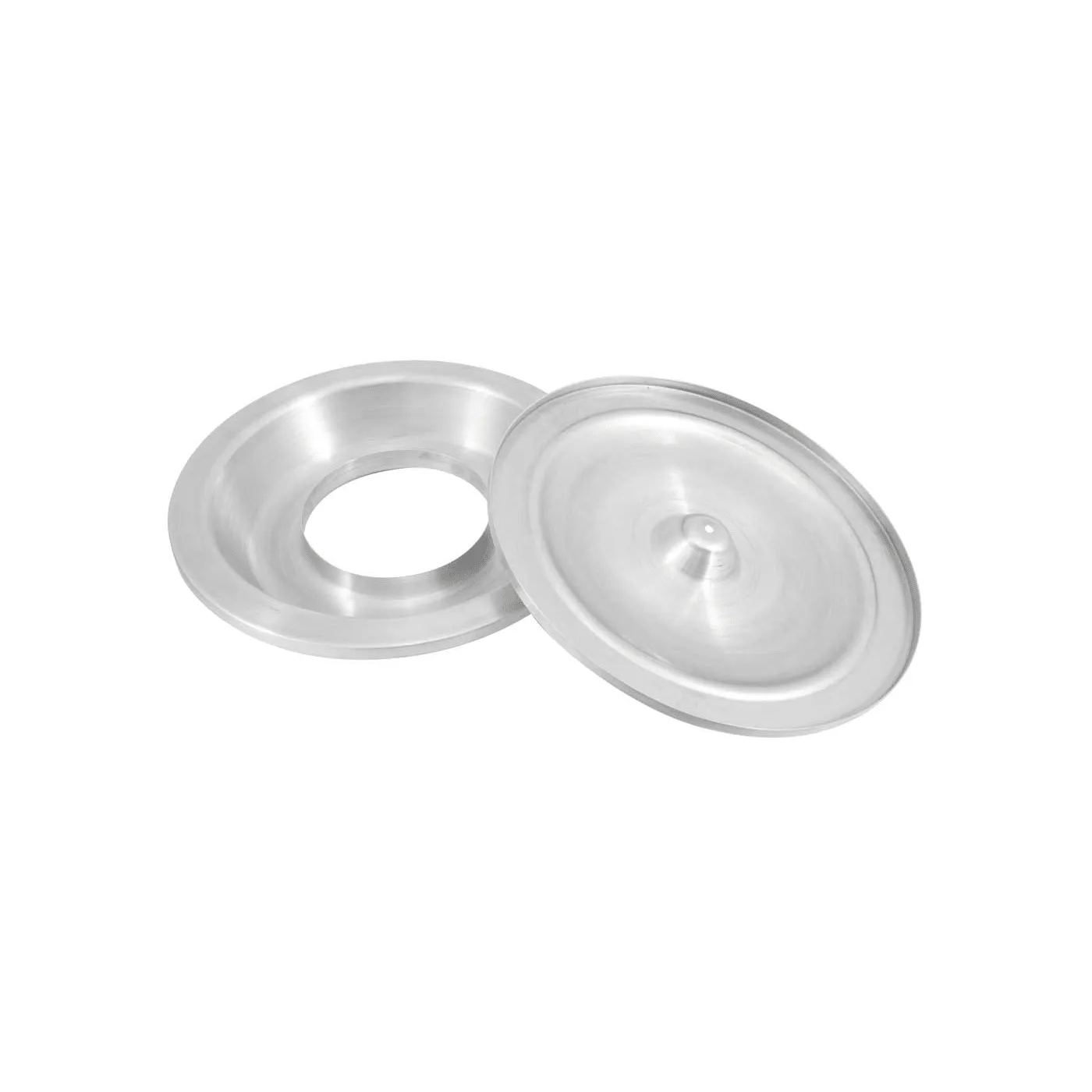

The oversized K&N 16 inch air filter top and base plates can be paired with a variety of 16 inch K&N air filters for boosting the performance in carbureted race cars. The plates are made from lightweight aluminum with a spun aluminum finish featuring K&N logos embossed on the outer edge of the top plate. The base plate fits carburetors with a 7-5/16 inch air horn flange and drops the filter 1-1/2 inches below the carb flange. The drop base design helps to maximize air filter height while still clearing the hood in many custom racing applications. These K&N 16 inch top and base plates will work with various heights of 16 inch diameter K&N high-flow air filters such as the 3 inch tall air filter E-3022R, 3-1/4 inch tall air filter E-3023R, 3-1/2 inch tall air filter E-3024R, 3-3/4 inch tall air filter E-3025R, 4 inch tall air filter E-3026R and several other variations meant for off-road racing use.

  • Made from lightweight spun aluminum
  • Fits carburetors with 7-5/16 inch flange
  • Drops base of filter 1-1/2 inches below carb flange
  • Fits K&N 16 inch diameter racing air filters: E-3022R, E-3023R, E-3024R, E-3025R and other variants

Specifications

  • Product Style : Accessories
  • Height : 1.5 in (38 mm)
  • Top Style : Metal
  • Outside Diameter : 16 in (406 mm)
  • Package Contents : 1 Top Plate, 1 Base Plate
  • Weight : 2.2 lb (1 kg)
  • Product Box Height : 4.75 in (121 mm)
  • Product Box Length : 18.38 in (467 mm)
  • Product Box Width : 18.38 in (467 mm)
  • Finish : None
  • Neck Flange : 7.313 in (186 mm)
  • Style : 1-1/2" Drop : Base
  • Warranty : 1 Year Limited

Compatibility

  • Universal Part

The oversized K&N 16 inch air filter top and base plates can be paired with a variety of 16 inch K&N air filters for boosting the performance in carbureted race cars. The plates are made from lightweight aluminum with a spun aluminum finish featuring K&N logos embossed on the outer edge of the top plate. The base plate fits carburetors with a 7-5/16 inch air horn flange and drops the filter 1-1/2 inches below the carb flange. The drop base design helps to maximize air filter height while still clearing the hood in many custom racing applications. These K&N 16 inch top and base plates will work with various heights of 16 inch diameter K&N high-flow air filters such as the 3 inch tall air filter E-3022R, 3-1/4 inch tall air filter E-3023R, 3-1/2 inch tall air filter E-3024R, 3-3/4 inch tall air filter E-3025R, 4 inch tall air filter E-3026R and several other variations meant for off-road racing use.

  • Made from lightweight spun aluminum
  • Fits carburetors with 7-5/16 inch flange
  • Drops base of filter 1-1/2 inches below carb flange
  • Fits K&N 16 inch diameter racing air filters: E-3022R, E-3023R, E-3024R, E-3025R and other variants
  • Product Style : Accessories
  • Height : 1.5 in (38 mm)
  • Top Style : Metal
  • Outside Diameter : 16 in (406 mm)
  • Package Contents : 1 Top Plate, 1 Base Plate
  • Weight : 2.2 lb (1 kg)
  • Product Box Height : 4.75 in (121 mm)
  • Product Box Length : 18.38 in (467 mm)
  • Product Box Width : 18.38 in (467 mm)
  • Finish : None
  • Neck Flange : 7.313 in (186 mm)
  • Style : 1-1/2" Drop : Base
  • Warranty : 1 Year Limited
  • Universal Part
