Description

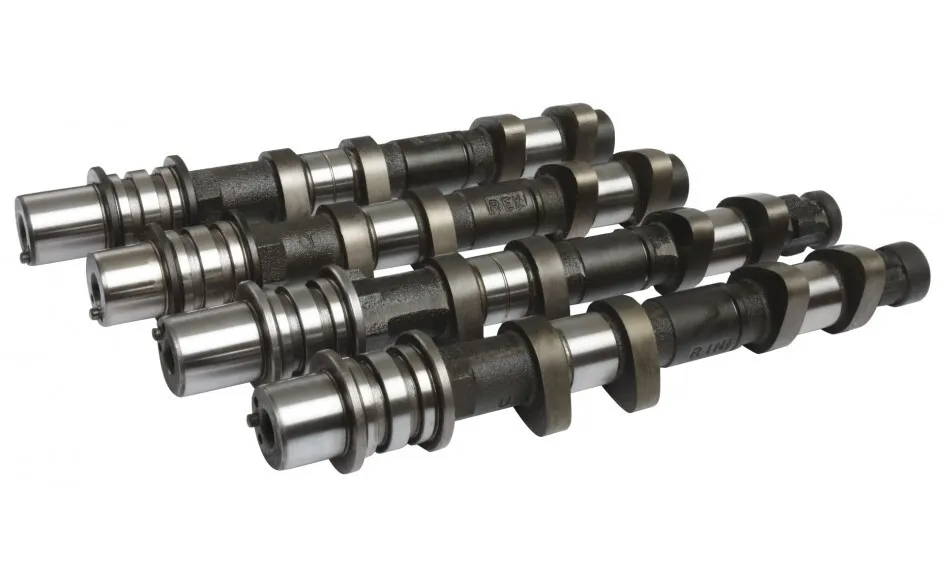

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 256&252/264 Degrees advertised duration. 9.35mm&9.35mm/9.35mm lift
  • High torque cams to suit near stock engines. Ideal in 36mm restrictor classes.

Specifications

Engine Make: Engine Model: Part Number:
SUBARU EJ20 WRX Version 5-6 non AVCS 199-B
Valve Clearance: Intake: 0.20mm Set COLD at the CAM
  Exhaust: 0.25mm Set COLD at the CAM

Cam Lift:   Intake: 9.55mm Exhaust: 9.60mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 9.35mm Exhaust: 9.35mm
Advertised Duration @ 0.25mm Intake: 256 Exhaust: 264
Duration @ 1.00mm VALVE LIFT Intake: 218 Exhaust: 222
Timing @ 1.00mm VALVE LIFT IVO: 1 ATDC EVO: 43 BBDC
    IVC: 39 ABDC EVC: 1 BTDC
Suggested Centre Lines:   Intake: 110 Exhaust: 112
VALVE Lift @ TDC Intake: 0.91mm Exhaust: 0.92



Compatibility

  • 1998-2000 Subaru WRX/Sti

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 256&252/264 Degrees advertised duration. 9.35mm&9.35mm/9.35mm lift
  • High torque cams to suit near stock engines. Ideal in 36mm restrictor classes.
Engine Make: Engine Model: Part Number:
SUBARU EJ20 WRX Version 5-6 non AVCS 199-B
Valve Clearance: Intake: 0.20mm Set COLD at the CAM
  Exhaust: 0.25mm Set COLD at the CAM

Cam Lift:   Intake: 9.55mm Exhaust: 9.60mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 9.35mm Exhaust: 9.35mm
Advertised Duration @ 0.25mm Intake: 256 Exhaust: 264
Duration @ 1.00mm VALVE LIFT Intake: 218 Exhaust: 222
Timing @ 1.00mm VALVE LIFT IVO: 1 ATDC EVO: 43 BBDC
    IVC: 39 ABDC EVC: 1 BTDC
Suggested Centre Lines:   Intake: 110 Exhaust: 112
VALVE Lift @ TDC Intake: 0.91mm Exhaust: 0.92



  • 1998-2000 Subaru WRX/Sti
