Description

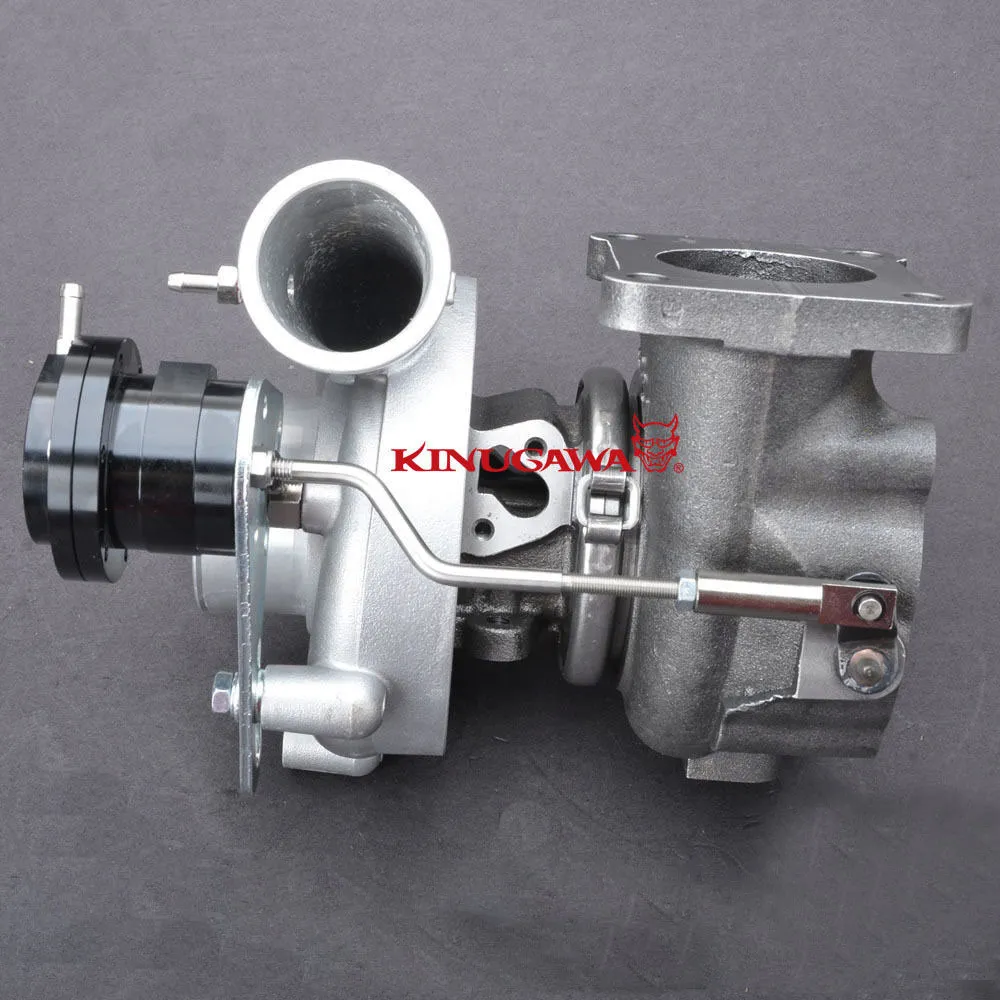

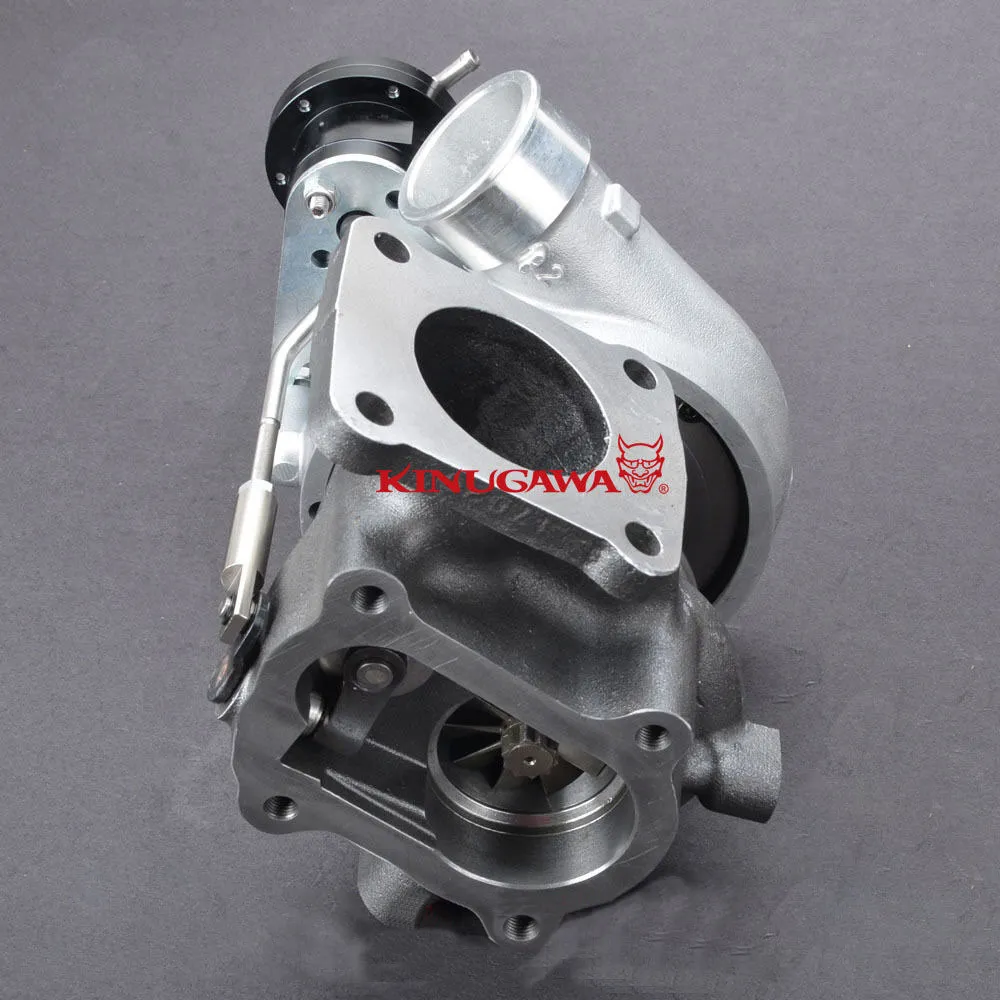

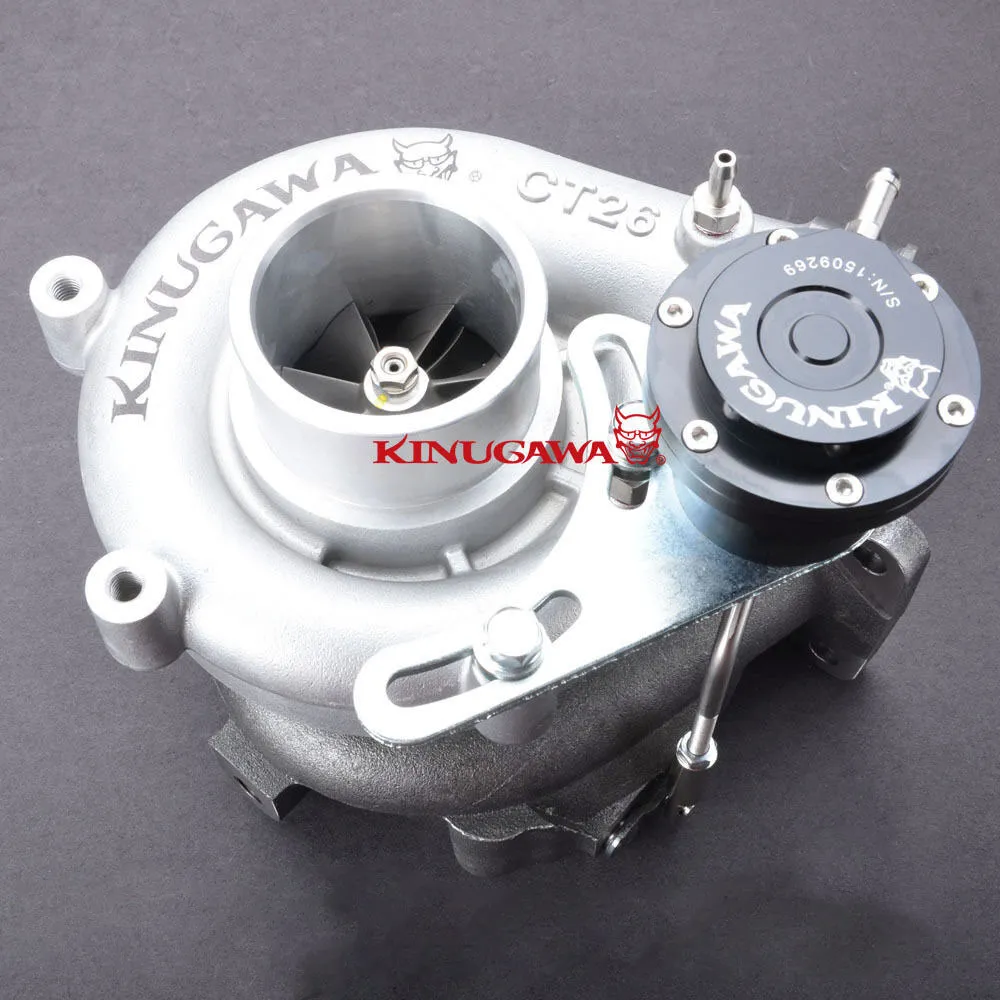

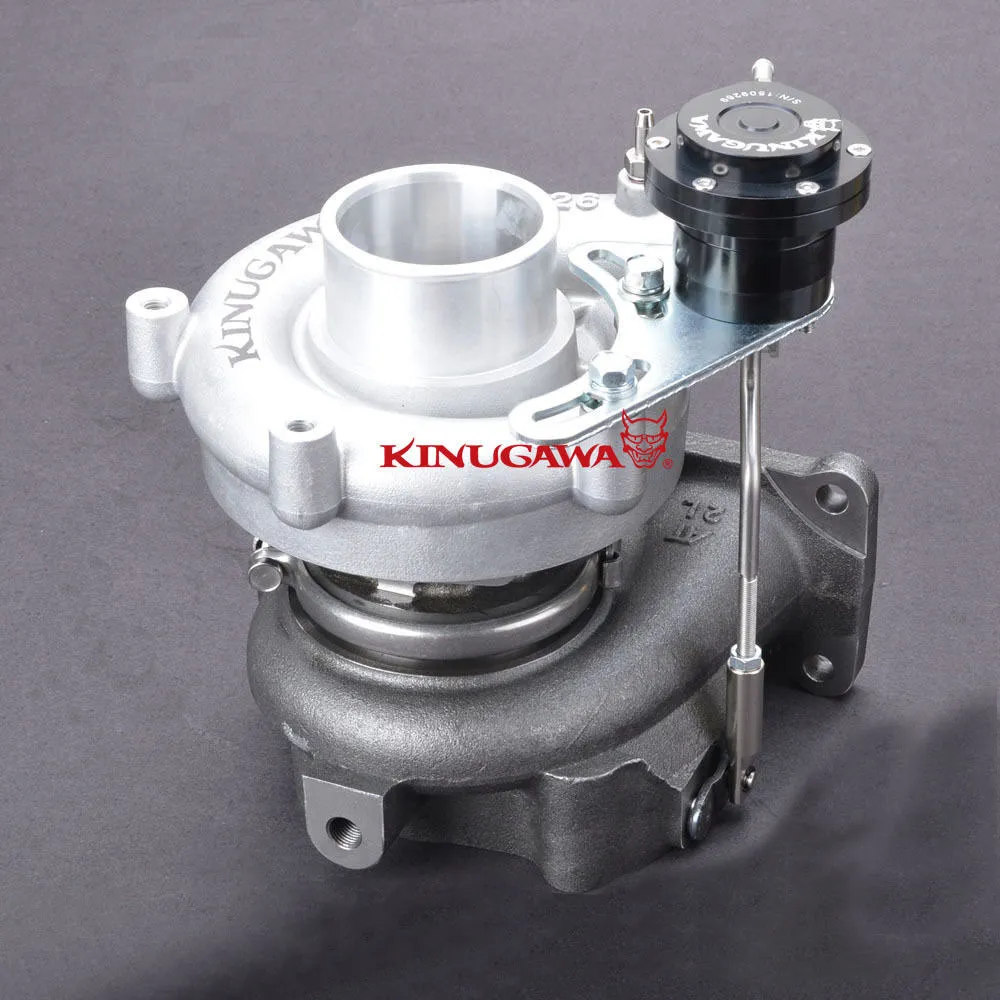

Kinugawa upgrade turbocharger perfectly replaces the factory turbo and includes all replacement gaskets. Fitted with Garrett 60-1 Compressor wheel for more top end power and slightly faster spool up. 60-1 wheel will offer extra 50% airflow than stock CT26 compressor wheel and produce extra 50% torque and hp than stock CT26 turbocharger. Tuning is required after installation

Replacement for stock 17201-68010 DYNA turbocharger

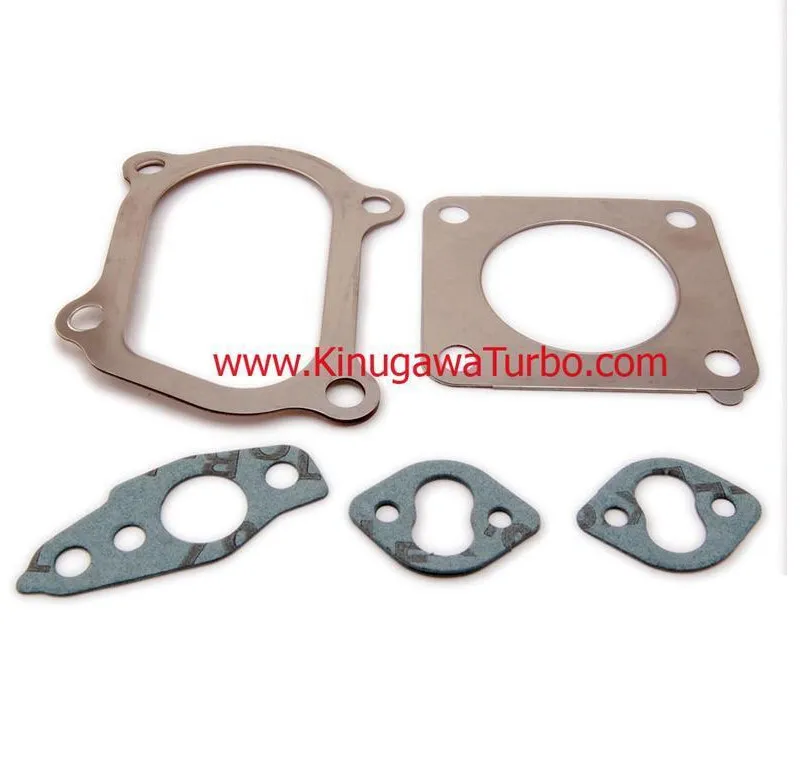

Kit includes:

  • 1 x Oil Feed and oil return gasket.
  • 1 x Water feed and water return gasket.
  • 1 x Turbine Inlet Gasket
  • 1 x Turbine Outlet gasket
  • (Everything shown on picture is included)

Specifications

  • Compressor wheel:     60 / 76 mm (Garrett 60-1 Wheel)
  • Turbine Wheel:     51.9 / 67.9 mm ( Stock Turbine Wheel)
  • Bearing Type:     Journal Bearing / Performance Thrust Bearing Kit with larger thrust ring and flinger.
  • Cooling System:     Water cooled
  • Actuator:     1.0 Bar / 15 psi (0.5Bar, 0.8 Bar, 1 Bar, 1.2 Bar, 1.5 bar actuators are available, please contact us if you need it.)
  • Condition:     Brand New
  • Warranty:     1 year

Compatibility

  • 1985-1989 Toyota Landcruiser 60 Series 4.0L 12H-T

Kinugawa upgrade turbocharger perfectly replaces the factory turbo and includes all replacement gaskets. Fitted with Garrett 60-1 Compressor wheel for more top end power and slightly faster spool up. 60-1 wheel will offer extra 50% airflow than stock CT26 compressor wheel and produce extra 50% torque and hp than stock CT26 turbocharger. Tuning is required after installation

Replacement for stock 17201-68010 DYNA turbocharger

Kit includes:

  • 1 x Oil Feed and oil return gasket.
  • 1 x Water feed and water return gasket.
  • 1 x Turbine Inlet Gasket
  • 1 x Turbine Outlet gasket
  • (Everything shown on picture is included)
  • Compressor wheel:     60 / 76 mm (Garrett 60-1 Wheel)
  • Turbine Wheel:     51.9 / 67.9 mm ( Stock Turbine Wheel)
  • Bearing Type:     Journal Bearing / Performance Thrust Bearing Kit with larger thrust ring and flinger.
  • Cooling System:     Water cooled
  • Actuator:     1.0 Bar / 15 psi (0.5Bar, 0.8 Bar, 1 Bar, 1.2 Bar, 1.5 bar actuators are available, please contact us if you need it.)
  • Condition:     Brand New
  • Warranty:     1 year
  • 1985-1989 Toyota Landcruiser 60 Series 4.0L 12H-T
