Description

Required to add CAN communication to WireIn ECU's which have CAN accessible via the Header.

Compatible ECU's:
G4X/G4+ Atom (CAN1)
G4X/G4+ Monsoon (CAN1)
G4X/G4+ Storm (CAN2)
G4X/G4+ Xtreme (CAN2)
G4X/G4+ Fury (CAN2)
G4+ Force (CAN2)
G4+ Thunder (CAN2)

Specs

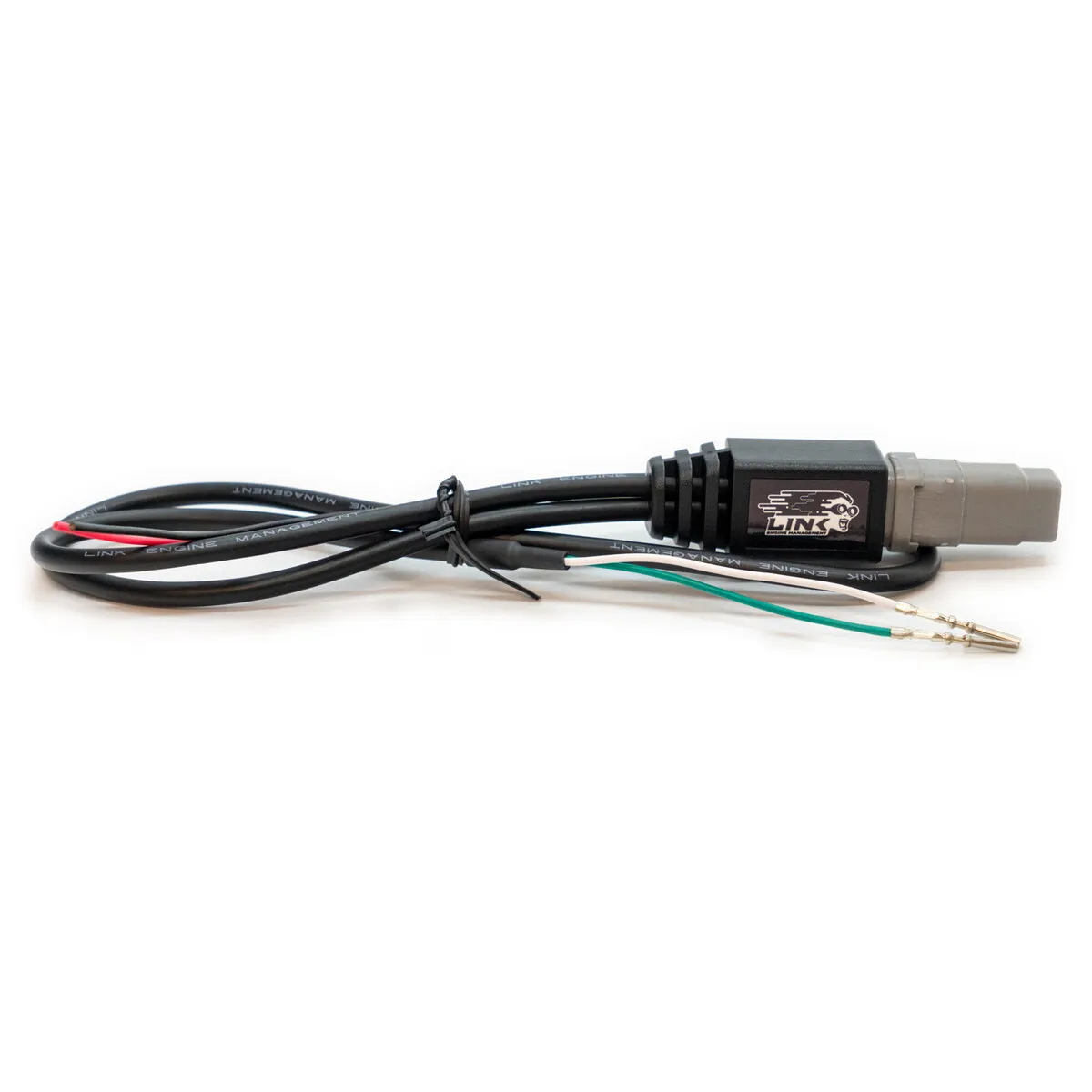

DTM4 Male to Flying leads. CAN H & L crimped with Superseal terminals. 12V & GND Flying Leads. Length: CAN Loom length 300mm (Flying leads 500mm long)

DTM4 Pin Out
Pin 4: CAN H
Pin 3: CAN L
Pin 2: Ground
Pin 1: 12V

Specifications

SKU:  link-CANSS-101-0210

Brand:  LINK

Compatibility

  • Universal Part

Required to add CAN communication to WireIn ECU's which have CAN accessible via the Header.

Compatible ECU's:
G4X/G4+ Atom (CAN1)
G4X/G4+ Monsoon (CAN1)
G4X/G4+ Storm (CAN2)
G4X/G4+ Xtreme (CAN2)
G4X/G4+ Fury (CAN2)
G4+ Force (CAN2)
G4+ Thunder (CAN2)

Specs
DTM4 Male to Flying leads. CAN H & L crimped with Superseal terminals. 12V & GND Flying Leads. Length: CAN Loom length 300mm (Flying leads 500mm long)

DTM4 Pin Out
Pin 4: CAN H
Pin 3: CAN L
Pin 2: Ground
Pin 1: 12V

SKU:  link-CANSS-101-0210

Brand:  LINK

  • Universal Part
