Description

Hall effect sensor designed for use in applications where ferrous edge detection/near zero speed sensing is needed. They provide a sinking current output.

Typical automotive applications include:
  • Crank & Cam Signals
  • Speedometers
  • Anti-lock braking systems
  • Specifications


    Thread = M12x1.0
    Lead Length = 1m (20 AWG) Pin Out: Brown = Supply VCC Blue = Ground Black = Output V Voltage = 5v - 24v
    Max Current Draw = 6 mA
    Maximum Speed Detection = 15 kHz
    Maximum Installation Torque Limit = 5.65 Nm (50 in lb) on thread Recommended
    External Pull-Up Resistor:
    5 Volts DC = 1k Ohms
    9 Volts DC = 1.8k Ohms
    12 Volts DC = 2.4k Ohms
    15 Volts DC = 3k Ohms
    24 Volts DC = 3k Ohms
    Operating Supply Voltage = 5 to 24 VDC
    Maximum Input Voltage = 30 VDC
    Maximum Reverse Voltage = 24 VDC
    Supply Current = 3 mA typ., 6 mA max
    Output Sink Current = 20 mA max
    Housing Material = Anodized Aluminum
    Operating Temperature = -40 °C to 125 ?C
    Ingress Protection = IP67
    Sensor Length = 65.5mm (2.58 inches)

    For best results, we recommend targets made from low carbon cold rolled steel. Other factors that influence sensor performance include gear tooth height and width, space between the teeth, shape of the teeth and thickness of the target. As a general guideline, consider a target with minimum parameters as shown below. Note that smaller dimensions may work, but testing for the application is required.
    Distance between Teeth - 10 mm (.400")
    Target Thickness - 6.35 mm (.250")

    What's Included

    Box Contents

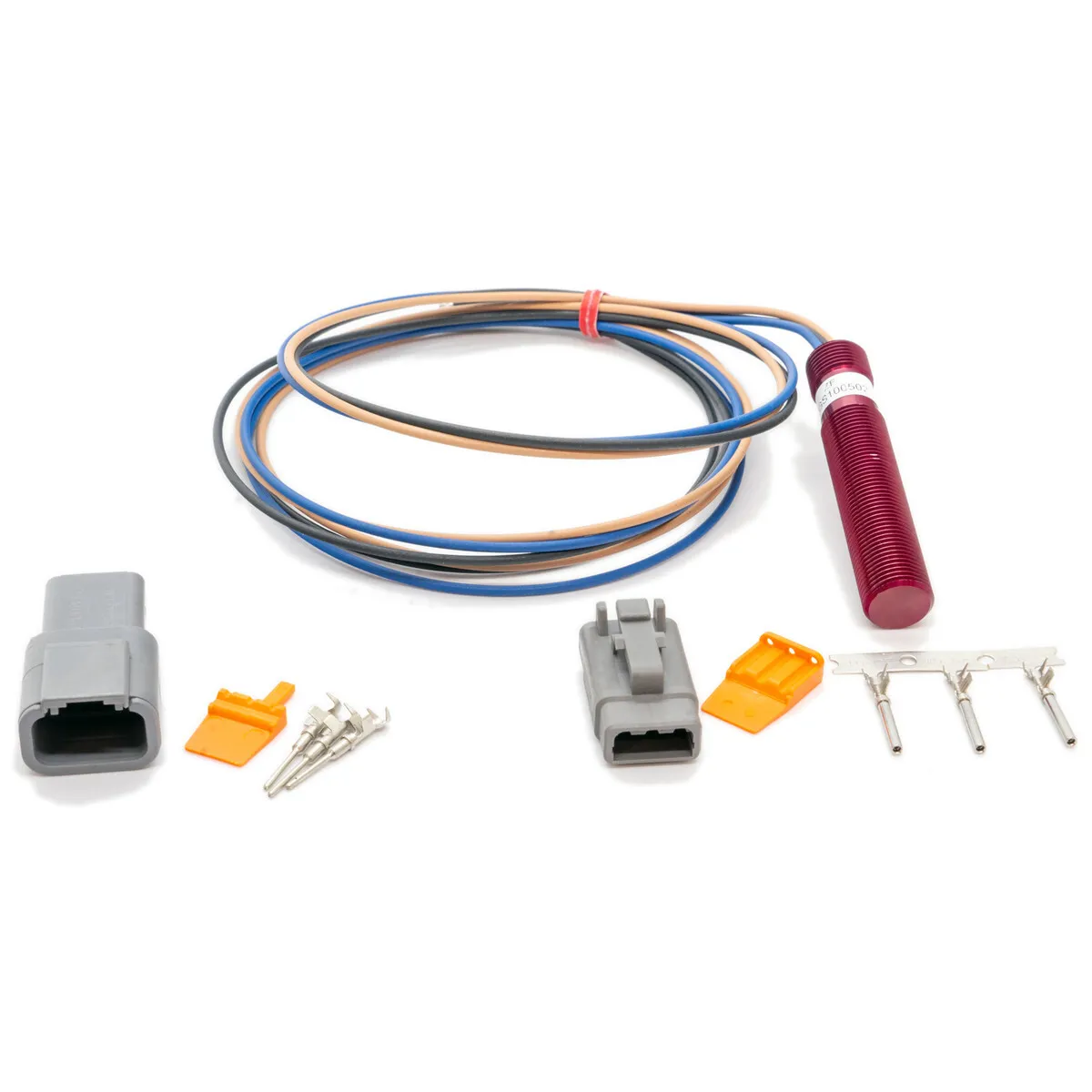

    1 x Hall Effect Sensor

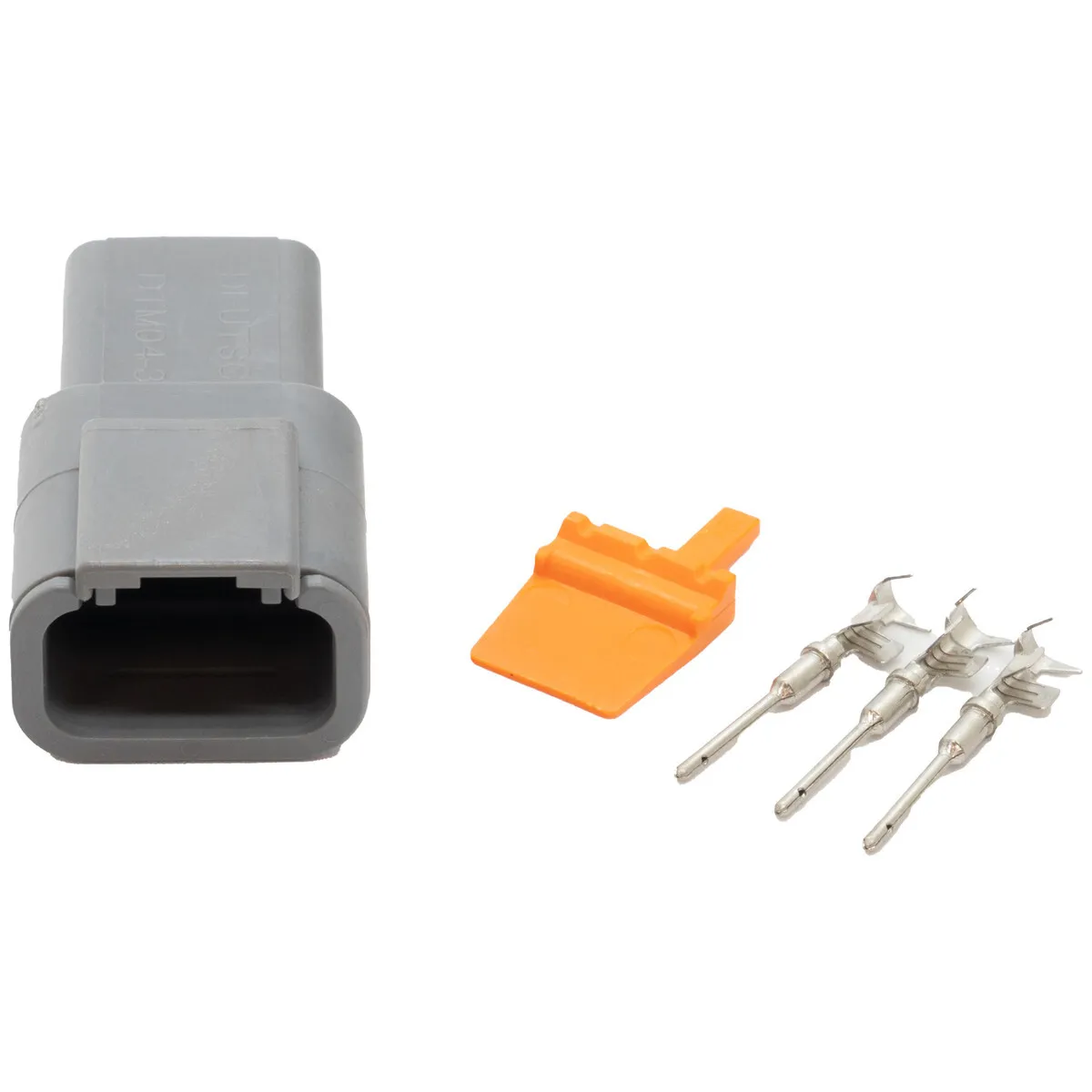

    1 x DTM3 Connector Kit Set (Matching set, Male & Female connectors, pins & wedges)

    Compatibility

    • Universal Part
