Description

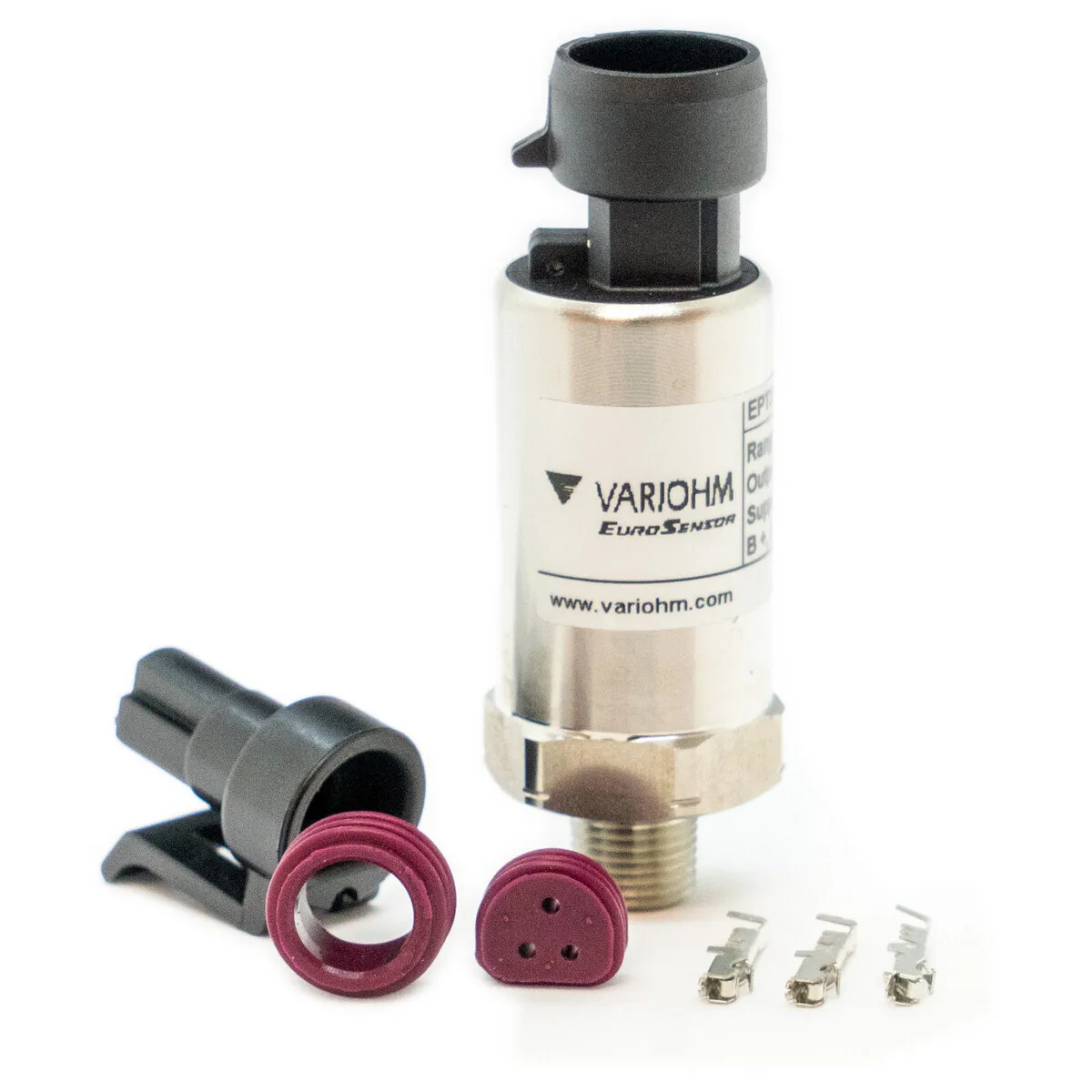

The 8 Bar MAP Variohm Eurosensor reads up to 7 Bar absolute pressure. This means that it is suitable for turbo or supercharged applications running up to 7 Bar (or 101psi) of boost pressure.

  • Includes Plug and Pins
  • Push wire through connector; crimp on terminal; pull wire/terminal back into connector
  • Using Link G4/G4+/G4X ECU’s select the MAP sensor type in PC Link as ‘Variohm 8 Bar’
Calibration - 0kpa = 0.5v, 800kpa = 4.5v
PIN A = 0v
PIN B = 5v
PIN C = Signal

Specifications

SKU:  link-MAP8EU-101-0298

Brand:  LINK

Compatibility

  • Universal Part

The 8 Bar MAP Variohm Eurosensor reads up to 7 Bar absolute pressure. This means that it is suitable for turbo or supercharged applications running up to 7 Bar (or 101psi) of boost pressure.

  • Includes Plug and Pins
  • Push wire through connector; crimp on terminal; pull wire/terminal back into connector
  • Using Link G4/G4+/G4X ECU’s select the MAP sensor type in PC Link as ‘Variohm 8 Bar’
Calibration - 0kpa = 0.5v, 800kpa = 4.5v
PIN A = 0v
PIN B = 5v
PIN C = Signal

SKU:  link-MAP8EU-101-0298

Brand:  LINK

  • Universal Part
