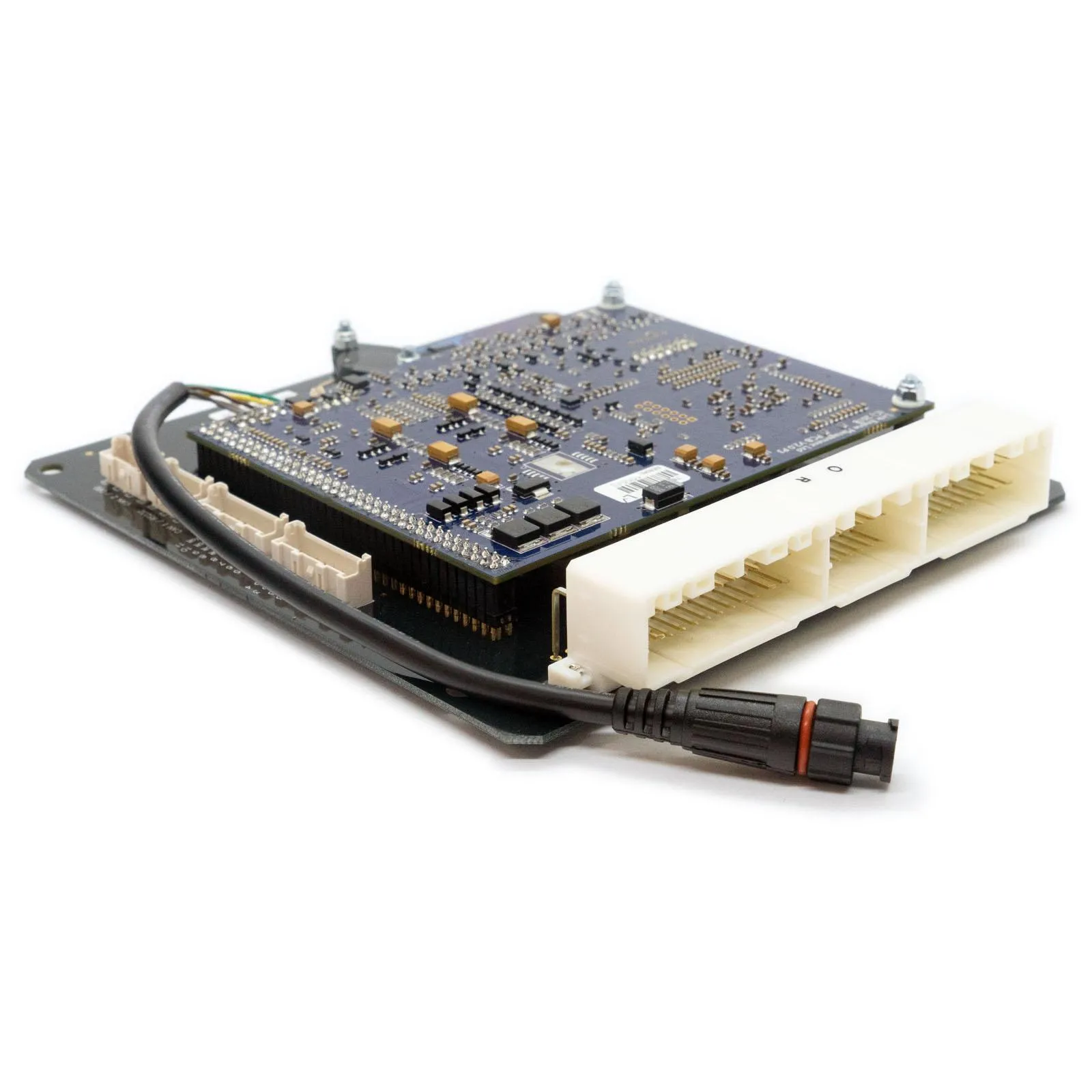

Link 202-4000 EVOLink Plug-In ECU (EVO 1-3)

Parts Experts
Fast Shipping
Aussie Owned
Best Prices

Choose Your Car

Your Car

Find Your Part Clear Vehicle

Filter Search Results

Filter by Categories

Filter by Brand

Filter by Price

Description

Easy to install. Affordable. Reliable.
G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.
This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

This ECU is designed for the EVO 1-3 4G63 engine.

Specifications

Up to 6D fuel and ignition mapping
Precision closed loop cam control (four cam, independent control)
Sequential fuel delivery
Digital triggering, all OEM patterns
OEM idle hardware supported
5D boost control with three switchable tables
Motorsport features - antilag, launch, flat shift
Continuous barometric correction (on board)
CAN port
QuickTune - automated fuel tuning
Individual cylinder correction
USB tuning cable included
Stats recording into on-board memory
Gear compensations for spark, boost and fuel
Real time selectable dual fuel, ignition and boost maps
Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
Boost control referenced to gear, speed or throttle position
512 mega bytes data logging memory
Staged injection
Knock with "windowing"

I/O Expansion Options:
The following expansion connector inputs/outputs are provided:

Gnd: Sensor Ground Only
+5V Out: Low Current +5V Supply
Gnd : Sensor Ground Only
+5V : Low Current +5V Supply
DI 9 : Digital Input
DI 8 : Digital Input
Volt 5 : Analog 0-5V input
Volt 6 : Analog 0-5V input
Temp 3 : Temperature sensor input
Temp 4 : Temperature sensor input

Ign 5 : Ignition 5 Auxiliary Output
Ign 6 : Ignition 6 Auxiliary Output
Ign 7 : Ignition 7 Auxiliary Output
Ign 8 : Ignition 8 Auxiliary Output
Volt 8 : Analog 0-5V input
Volt 9 : Analog 0-5V input
Volt 10 : Analog 0-5V input
Volt 11 : Analog 0-5V input

Compatibility

Mitsubishi EVO 1 1992-1994
Mitsubishi EVO 2 1994-1995
Mitsubishi EVO 3 1995-1996
Mitsubishi GSR 1.8L 4G62

Description
Specifications

Up to 6D fuel and ignition mapping
Precision closed loop cam control (four cam, independent control)
Sequential fuel delivery
Digital triggering, all OEM patterns
OEM idle hardware supported
5D boost control with three switchable tables
Motorsport features - antilag, launch, flat shift
Continuous barometric correction (on board)
CAN port
QuickTune - automated fuel tuning
Individual cylinder correction
USB tuning cable included
Stats recording into on-board memory
Gear compensations for spark, boost and fuel
Real time selectable dual fuel, ignition and boost maps
Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
Boost control referenced to gear, speed or throttle position
512 mega bytes data logging memory
Staged injection
Knock with "windowing"

I/O Expansion Options:
The following expansion connector inputs/outputs are provided:

Gnd: Sensor Ground Only
+5V Out: Low Current +5V Supply
Gnd : Sensor Ground Only
+5V : Low Current +5V Supply
DI 9 : Digital Input
DI 8 : Digital Input
Volt 5 : Analog 0-5V input
Volt 6 : Analog 0-5V input
Temp 3 : Temperature sensor input
Temp 4 : Temperature sensor input

Ign 5 : Ignition 5 Auxiliary Output
Ign 6 : Ignition 6 Auxiliary Output
Ign 7 : Ignition 7 Auxiliary Output
Ign 8 : Ignition 8 Auxiliary Output
Volt 8 : Analog 0-5V input
Volt 9 : Analog 0-5V input
Volt 10 : Analog 0-5V input
Volt 11 : Analog 0-5V input

Mitsubishi EVO 1 1992-1994
Mitsubishi EVO 2 1994-1995
Mitsubishi EVO 3 1995-1996
Mitsubishi GSR 1.8L 4G62
