Description

Easy to install. Affordable. Reliable.

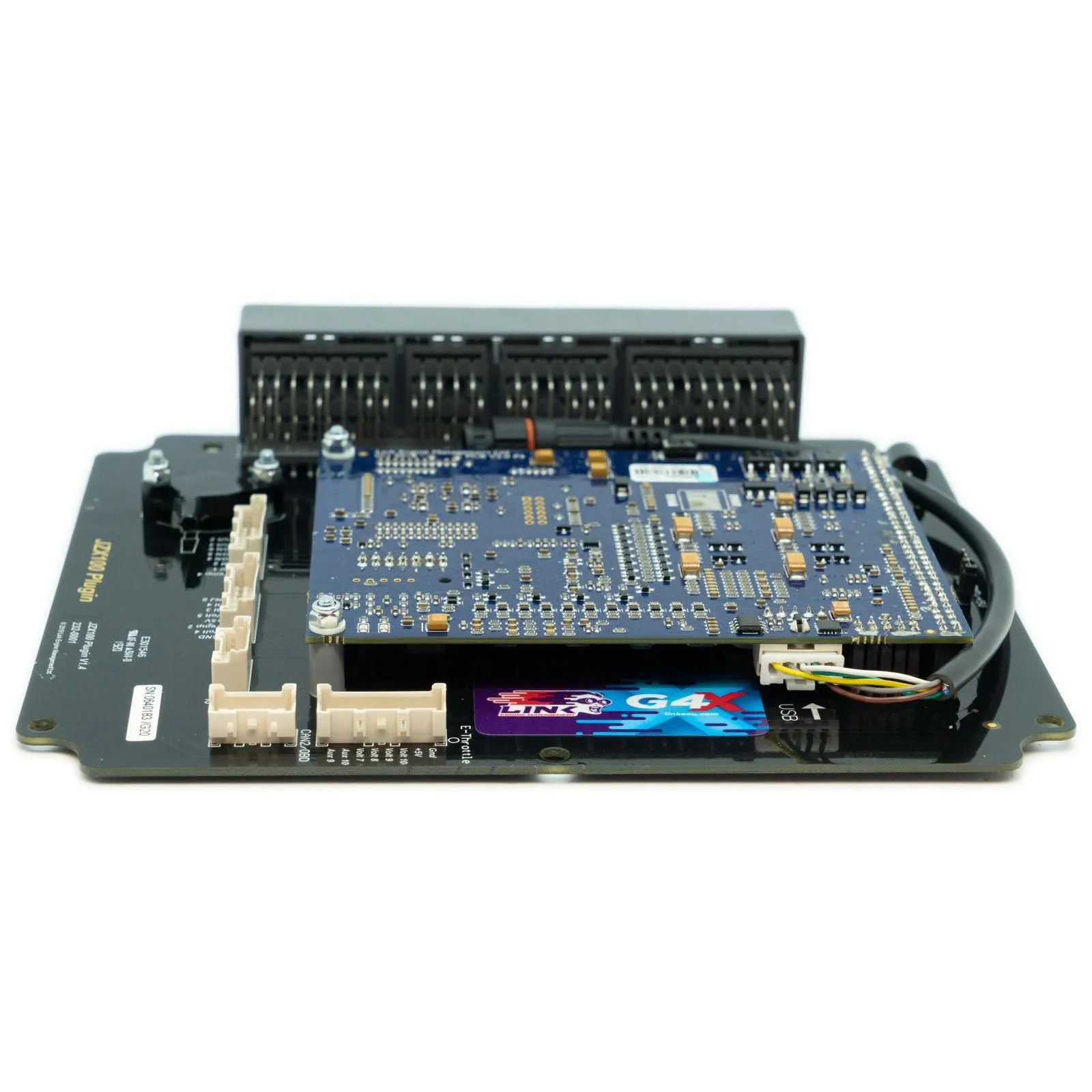

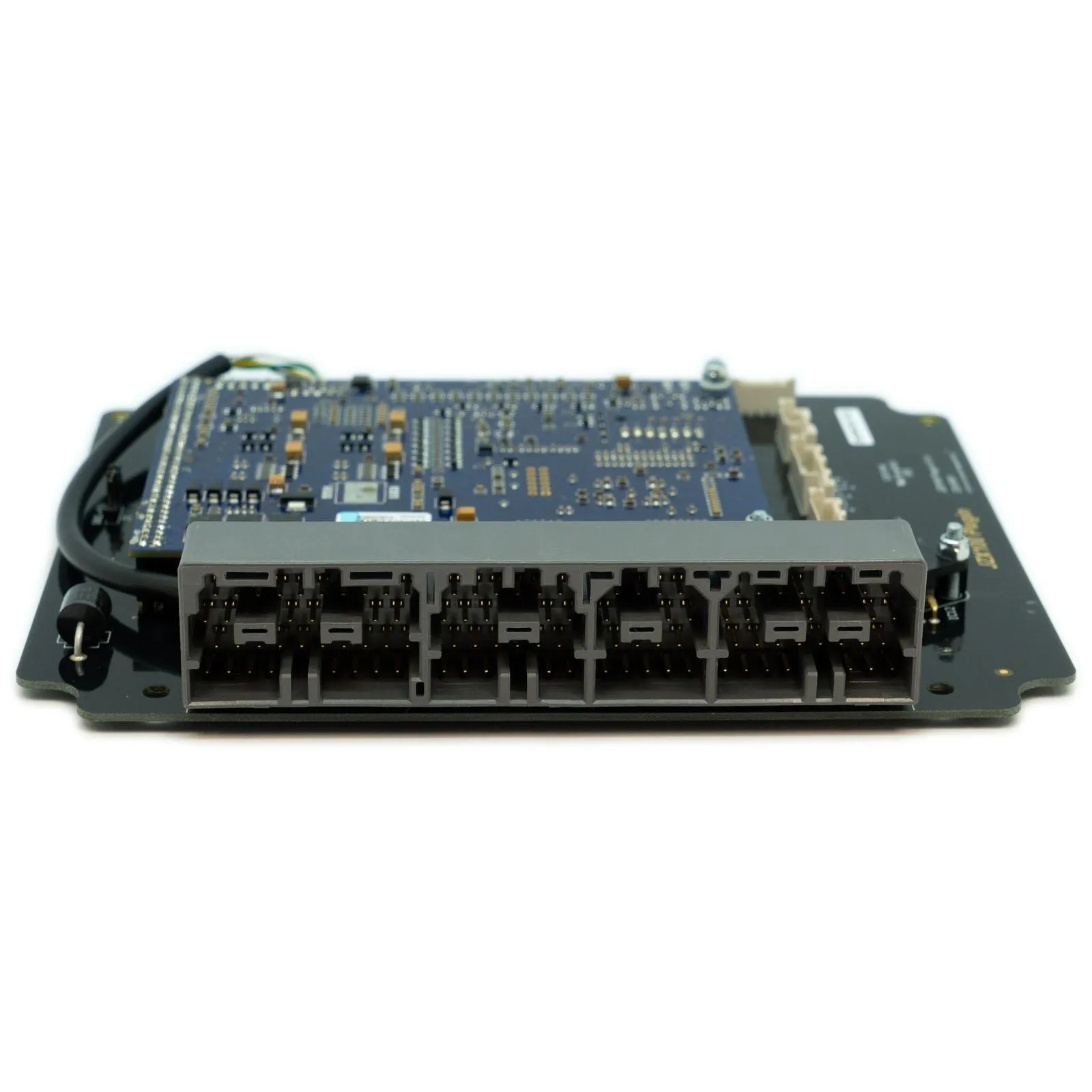

G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.
This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

Designed for the 1JZ VVTi engine.

Specifications

  • Up to 6D fuel and ignition mapping
  • Precision closed loop cam control (four cam, independent control)
  • Sequential fuel delivery
  • Digital triggering, all OEM patterns
  • OEM idle hardware supported
  • 5D boost control with three switchable tables
  • Motorsport features - antilag, launch, flat shift
  • Continuous barometric correction (on board)
  • CAN port
  • QuickTune - automated fuel tuning
  • Individual cylinder correction
  • USB tuning cable included
  • Stats recording into on-board memory
  • Gear compensations for spark, boost and fuel
  • Real time selectable dual fuel, ignition and boost maps
  • Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
  • Boost control referenced to gear, speed or throttle position
  • 512 mega bytes data logging memory
  • Staged injection
  • Knock with "windowing"
I/O Expansion Options:
The following expansion connector inputs/outputs are provided:
    Expansion connector 1 : (Con5)
  • Gnd - Sensor Ground Only
  • An Volt 4
  • An Temp 2
  • +5V Out - Low Current +5V Supply
  • An Volt 5
  • DI 3
  • DI 4
  • Aux Inj 8
    Expansion Connector 2 : (Con6)
  • An Temp 4
  • DI 1
  • DI 2
  • Aux Ign 4
  • Aux Ign 5
  • Aux Ign 6
  • An Volt 1
  • An Volt 2
    Ethrottle Connector:
  • Ethrottle 1 Ground (Signal)
  • Ethrottle 2 +5v out
  • Ethrottle 3 An Volt 10
  • Ethrottle 4 An Volt 9
  • Ethrottle 5 An Volt 8
  • Ethrottle 6 An Volt 7
  • Ethrottle 7 Aux 10
  • Ethrottle 8 Aux 9

What's Included

  • Integrated 4 Bar MAP Sensor.

Compatibility

  • JZX100 with 1JZ VVTi engine
