Description

Mantic Stage 4 Clutch Kit

Mantic Stage 4 clutch kits are designed specifically for the street performance market, offering a significant torque increase over Original Equipment (OE) capacity. Manufactured from Spheroidal Graphite casting and tested rigorously, the system has a yield strength up to 300% higher than standard castings which results in improved heat dissipation.

Because the Mantic Stage 4 greatly exceeds its Stage 2 counterpart in torque capacity and features more sudden engagement than the Stage 3, it is best suited to performance applications like rally or drift driving and is less suitable for street driving. Alongside the increase in torque capacity it also reduces street driveability due to the more sudden clutch engagement. Mantic Stage 4 Clutch Kits feature a cerametallic friction coating on both sides of the clutch plate with no segment cushioning.

In order to maintain the highest possible performance standards, all Mantic cover assemblies are subjected to a 2-stage balancing process.

Specifications

  • High clamp load
  • ER2 pressure plate (cover assembly)
  • Significant increase in torque over OE systems
  • Spheroidal Graphite castings for improved heat dissipation
  • Cerametallic friction material on both sides of clutch plate
  • Suitable for rally or drift driving, less so for street driving
Clutch Plate Dimensions: 240 x 24T x 25.5
Torque Capacity Peak: 958Nm, Rated: 766Nm

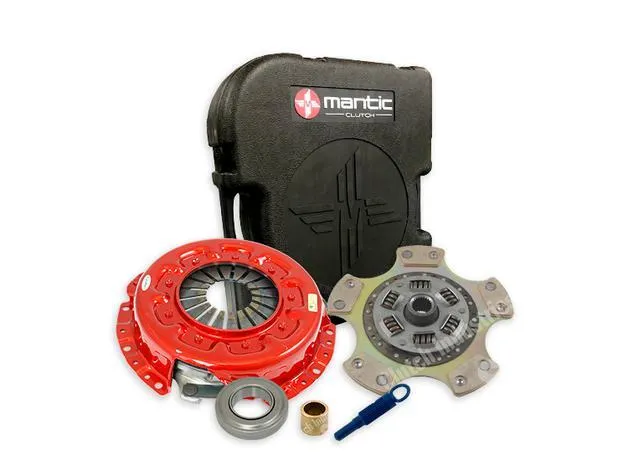

What's Included

  • Mantic Heavy Duty Cover Assembly
  • Full Cerametallic

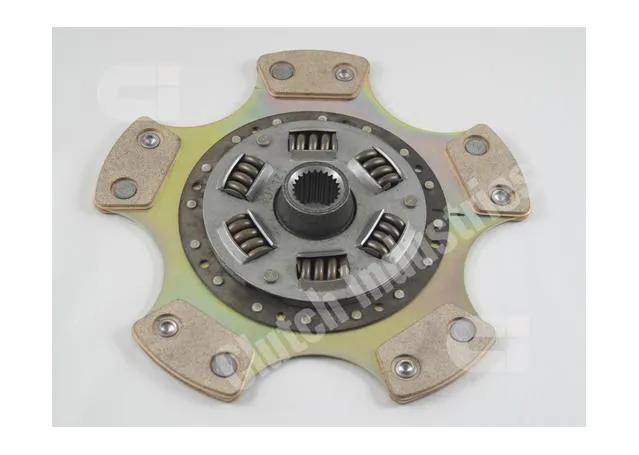

  • No Cushion (SSC) Clutch Plate For Increased Torque Capacity
  • Reduced Daily Driveability

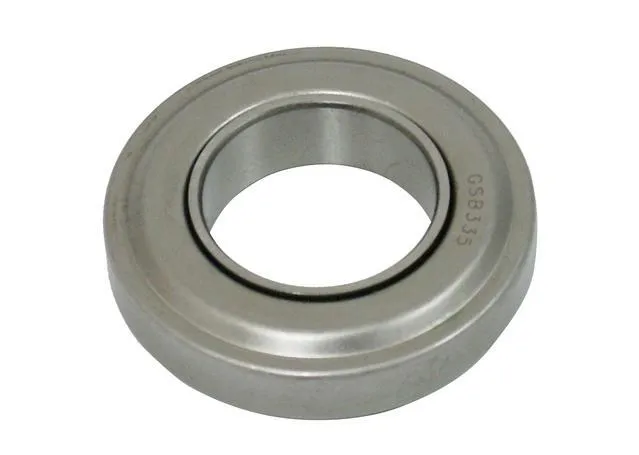

  • Release bearing
  • Clutch Alignment Tool

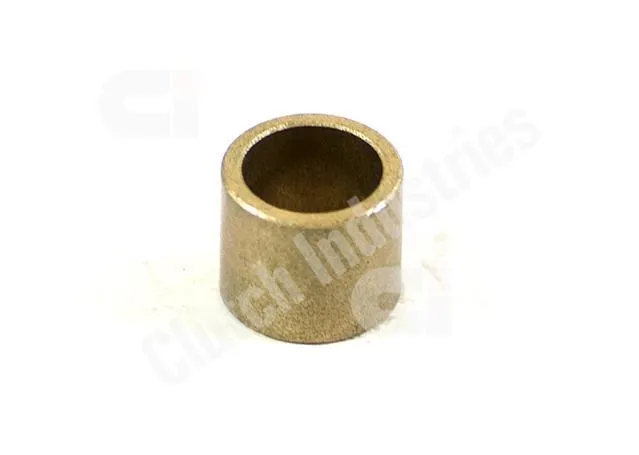

  • Spigot Bearing

Compatibility

  • 1989 - 1993 Nissan Skyline 2.0 (R32) 114 kW Coupe
  • 1989 - 1993 Nissan Skyline 2.0 Turbo (R32) 158 kW Coupe
  • 1989 - 1993 Nissan Skyline 2.0 Turbo (R32) 158 kW Sedan Notes: GTR Models
  • 1989 - 1993 Nissan Skyline 2.6 GTR Twin Turbo AWD (R32) Coupe
  • 1994 - 1999 Nissan Skyline 2.6 GTR Twin Turbo AWD (R33) Coupe Notes: Stage 4 Clutch With Button Type Clutch Plate
  • 1999 - 2008 Nissan Skyline 2.6 GTR Twin Turbo AWD (R34) Coupe Notes: Stage 4 Clutch With Button Type Clutch Plate

Mantic Stage 4 Clutch Kit

Mantic Stage 4 clutch kits are designed specifically for the street performance market, offering a significant torque increase over Original Equipment (OE) capacity. Manufactured from Spheroidal Graphite casting and tested rigorously, the system has a yield strength up to 300% higher than standard castings which results in improved heat dissipation.

Because the Mantic Stage 4 greatly exceeds its Stage 2 counterpart in torque capacity and features more sudden engagement than the Stage 3, it is best suited to performance applications like rally or drift driving and is less suitable for street driving. Alongside the increase in torque capacity it also reduces street driveability due to the more sudden clutch engagement. Mantic Stage 4 Clutch Kits feature a cerametallic friction coating on both sides of the clutch plate with no segment cushioning.

In order to maintain the highest possible performance standards, all Mantic cover assemblies are subjected to a 2-stage balancing process.

  • High clamp load
  • ER2 pressure plate (cover assembly)
  • Significant increase in torque over OE systems
  • Spheroidal Graphite castings for improved heat dissipation
  • Cerametallic friction material on both sides of clutch plate
  • Suitable for rally or drift driving, less so for street driving
Clutch Plate Dimensions: 240 x 24T x 25.5
Torque Capacity Peak: 958Nm, Rated: 766Nm
  • Mantic Heavy Duty Cover Assembly
  • Full Cerametallic
  • No Cushion (SSC) Clutch Plate For Increased Torque Capacity
  • Reduced Daily Driveability
  • Release bearing
  • Clutch Alignment Tool
  • Spigot Bearing
  • 1989 - 1993 Nissan Skyline 2.0 (R32) 114 kW Coupe
  • 1989 - 1993 Nissan Skyline 2.0 Turbo (R32) 158 kW Coupe
  • 1989 - 1993 Nissan Skyline 2.0 Turbo (R32) 158 kW Sedan Notes: GTR Models
  • 1989 - 1993 Nissan Skyline 2.6 GTR Twin Turbo AWD (R32) Coupe
  • 1994 - 1999 Nissan Skyline 2.6 GTR Twin Turbo AWD (R33) Coupe Notes: Stage 4 Clutch With Button Type Clutch Plate
  • 1999 - 2008 Nissan Skyline 2.6 GTR Twin Turbo AWD (R34) Coupe Notes: Stage 4 Clutch With Button Type Clutch Plate
