Description

We here at Mishimoto are very excited to see the first turbocharged Honda engine in the US domestic market. It may be small, but it still packs a punch for having a displacement of only 1.5L. The Mishimoto Civic catch can will make sure that your 1.5L turbocharged engine keeps running like it just rolled off the assembly line. The 2-port baffled catch can mounts in the back of the engine bay by means of the included application-specific bracket. The 50 micron bronze filter keeps blow-by from making a mess of your intake tract. This 2016 Civic catch can kit includes direct-fit silicone hoses to make for an easy 30 minute installation. The included Mishimoto Lifetime Warranty ensures that your Civic will always have the protection it needs!

  • Direct fit for 2016+ Honda Civic 1.5 Turbo
  • Mishimoto Lifetime Warranty
  • Single can mounts in line with the PCV system to separate oil from air using a 50 micron bronze filter
  • Installs in under 30 minutes
  • Application-specific bracket mounts the can in a serviceable location
  • Billet 6061 aluminum sealed can

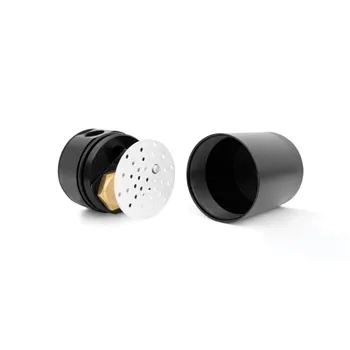

  • Internal air diverter turbulates air longer to improve oil separation
  • Defends intercooler, intake system, and essential components from oil blow-by
  • Helps maintain proper octane levels to reduce potential detonation



Specifications

  • Overall Height: 96.5 mm
  • Inlet: 1/2"
  • Outlet: 1/2"
  • Drain Plug Thread Size: 3/8" NPT
  • Capacity: 88 ml
  • Material:6061 Aluminum
  • Baffled: True
  • Install Torque Specs: 22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).

Notes:

  • After installation, Mishimoto recommends checking the contents of the Mishimoto baffled catch can every 1,000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle

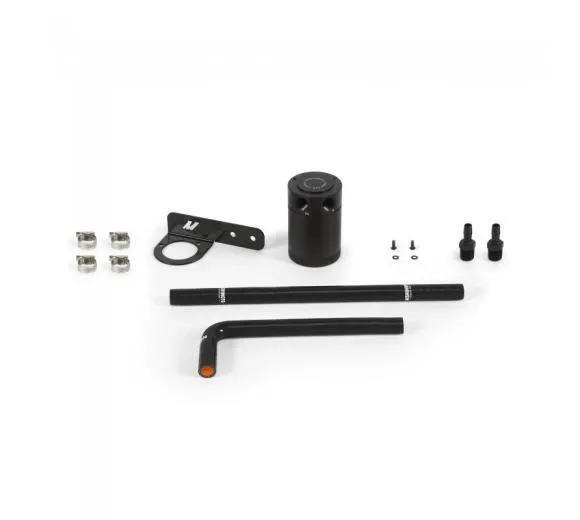

What's Included

  • (1) Application-Specific Mounting Bracket
  • (1) Black, Anodized 6061 Aluminum Catch Can
  • (2) Direct-Fit Silicone Hoses
  • (2) Plastic Barbed Fittings
  • (2) Worm-Gear Clamps
  • (1) Air Diverter
  • (1) Internal Baffle & Rod
  • (1) 3/8" NPT Plug
  • (1) Large O-Ring
  • Mounting Hardware
  • Mishimoto Lifetime Warranty

Compatibility

  • Fits - 2016+ Honda Civic 1.5L
  • Turbo Engine Codes - L15B7
  • Chassis Codes - FC1
