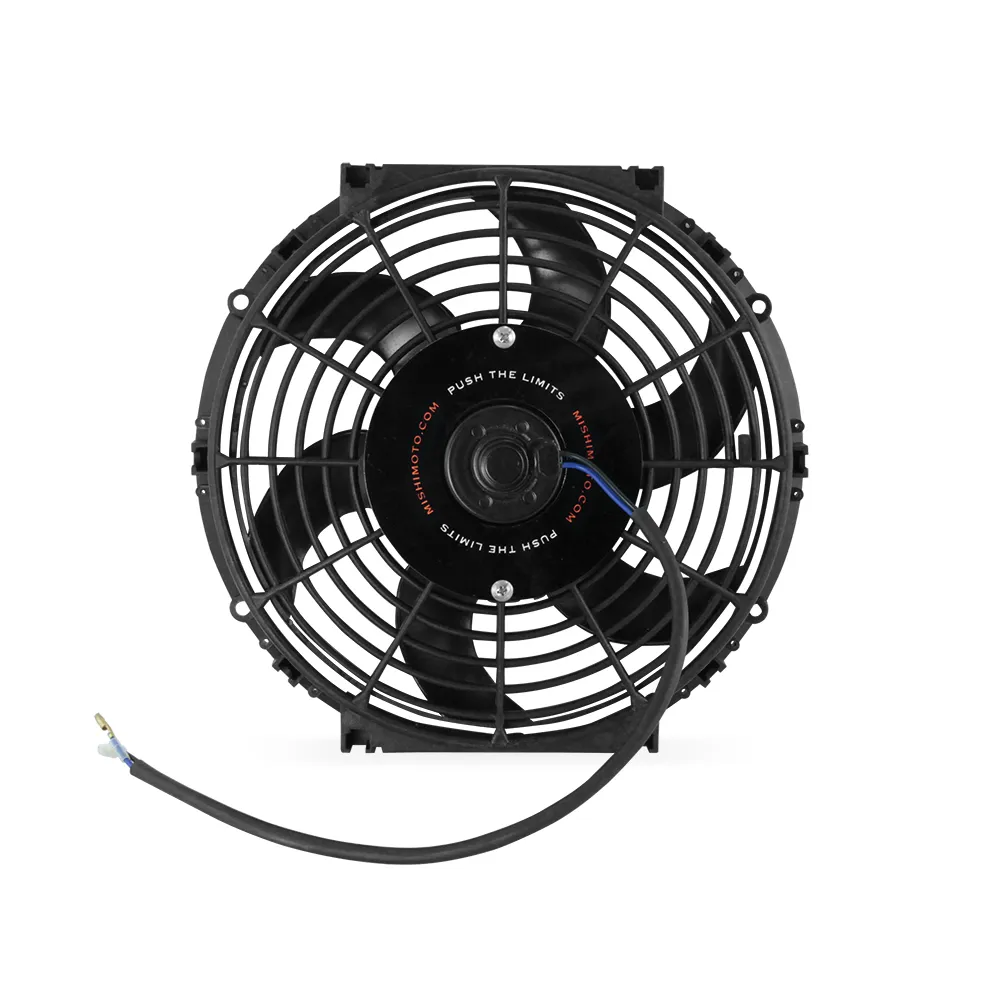

Description

This curved blade fan can be used as an upgrade to the OEM fan for more efficient cooling or fitment issues with aftermarket products. With its slim design, the fan can easily be installed flush against a radiator. For universal installation, use Mishimoto universal fan mount kit. (P/N: MMFAN-MOUNT)

Product Features

  • High-flow curved blade fan provides 950 CFM of airflow
  • Universal fitment
  • Compact design with a diameter of 254mm and an overall thickness of only 60mm" provides increased engine bay space
  • Easily reversible for use as a pusher or puller fan
  • Mishimoto Lifetime Warranty

Specifications

  • Type of Ends: Female Snap-Plug Terminal
  • Material: Plastic
  • Air Temp While Tested: 72°F
  • Normal Current (amps): 6.8
  • Volts: 12
  • Housing Diameter: 11.5
  • Blade Diameter: 256
  • Overall Thickness: 2.36"
  • Reverse: True
  • Blade Style" Curved
  • Inrush Current (Amps): 13.08
  • Fan RPM: 2300
  • Fan Diameter: 254mm
  • Overall Depth: 60mm
  • CFM: 950

Compatibility

  • Universal Part

This curved blade fan can be used as an upgrade to the OEM fan for more efficient cooling or fitment issues with aftermarket products. With its slim design, the fan can easily be installed flush against a radiator. For universal installation, use Mishimoto universal fan mount kit. (P/N: MMFAN-MOUNT)

Product Features

  • High-flow curved blade fan provides 950 CFM of airflow
  • Universal fitment
  • Compact design with a diameter of 254mm and an overall thickness of only 60mm" provides increased engine bay space
  • Easily reversible for use as a pusher or puller fan
  • Mishimoto Lifetime Warranty
  • Type of Ends: Female Snap-Plug Terminal
  • Material: Plastic
  • Air Temp While Tested: 72°F
  • Normal Current (amps): 6.8
  • Volts: 12
  • Housing Diameter: 11.5
  • Blade Diameter: 256
  • Overall Thickness: 2.36"
  • Reverse: True
  • Blade Style" Curved
  • Inrush Current (Amps): 13.08
  • Fan RPM: 2300
  • Fan Diameter: 254mm
  • Overall Depth: 60mm
  • CFM: 950
  • Universal Part
