Description

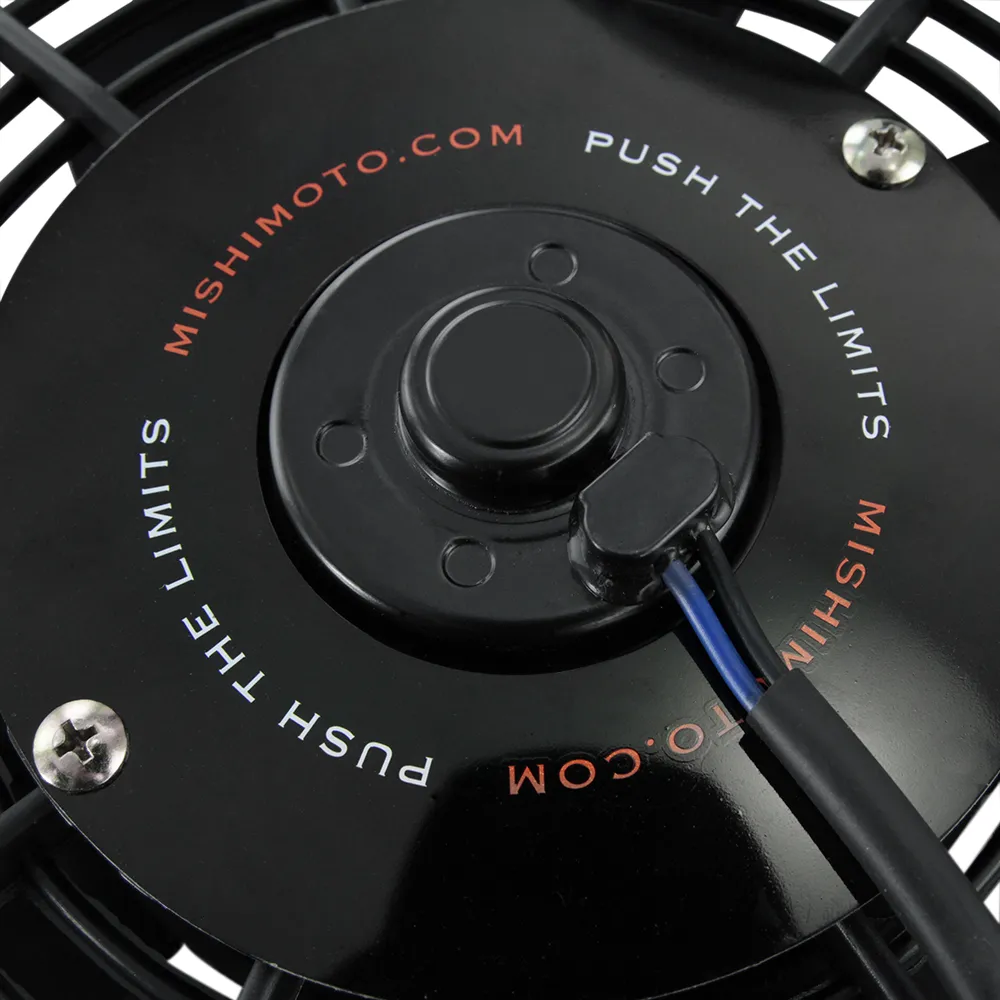

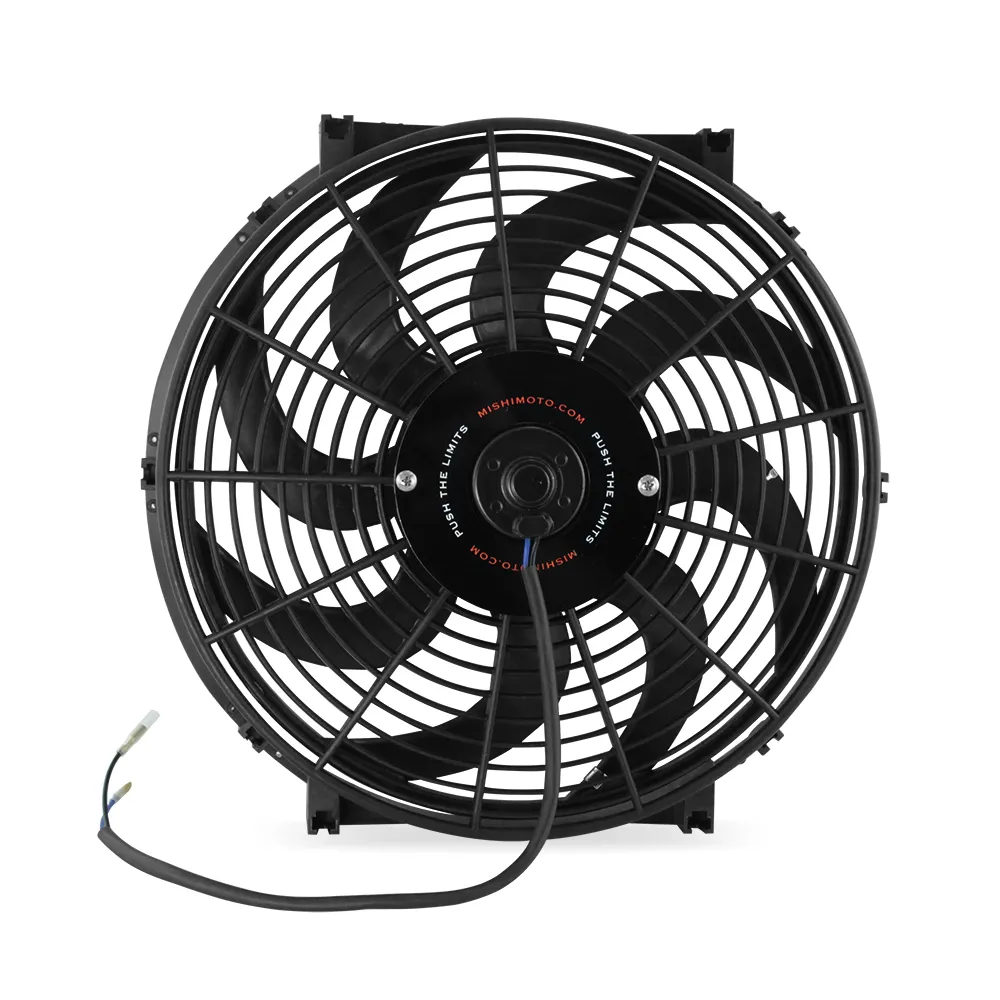

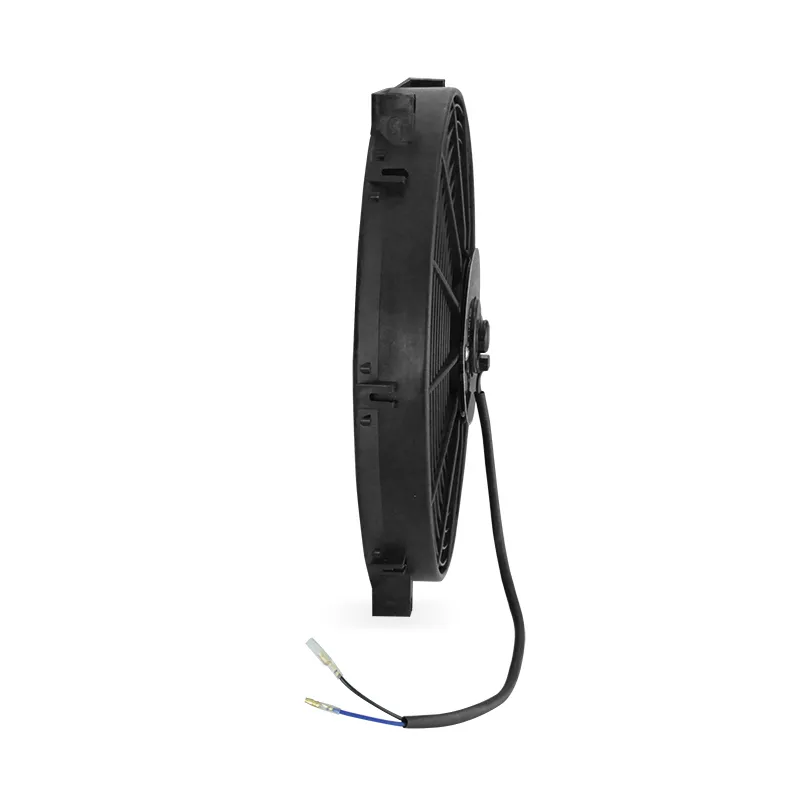

This curved blade fan can be used as an upgrade to the OEM fan for more efficient cooling or fitment issues with aftermarket products.With its slim design, the fan can easily be installed flush against a radiator.For universal installation, use Mishimoto universal fan mount kit.(P/N: MMFAN-MOUNT)

Product Features

  • High-flow curved blade fan provides 1300 CFM of airflow
  • Universal fitment
  • Compact design with a diameter of 355.6mm and an overall thickness of only 67.3mm provides increased engine bay space
  • Mishimoto Lifetime Warranty

Specifications

  • Type of Ends: Female Snap-Plug Terminal
  • Material: Plastic
  • Air Temp While Tested: 72°F (22°C)
  • Normal Current (amps): 7.8
  • Volts: 12
  • Housing Diameter: 374.65mm
  • Overall Thickness: 60mm
  • Reverse: True
  • Blade Style: Curved
  • Inrush Current (Amps): 15.1
  • # of Blades: 8
  • Fan RPM: 2200
  • Fan Diameter: 355.6mm
  • Overall Depth: 67.5mm
  • CFM: 1300

What's Included

  • (1) Mishimoto Fan
  • Mishimoto Lifetime Warranty

Compatibility

  • Universal Part

This curved blade fan can be used as an upgrade to the OEM fan for more efficient cooling or fitment issues with aftermarket products.With its slim design, the fan can easily be installed flush against a radiator.For universal installation, use Mishimoto universal fan mount kit.(P/N: MMFAN-MOUNT)

Product Features

  • High-flow curved blade fan provides 1300 CFM of airflow
  • Universal fitment
  • Compact design with a diameter of 355.6mm and an overall thickness of only 67.3mm provides increased engine bay space
  • Mishimoto Lifetime Warranty
  • Type of Ends: Female Snap-Plug Terminal
  • Material: Plastic
  • Air Temp While Tested: 72°F (22°C)
  • Normal Current (amps): 7.8
  • Volts: 12
  • Housing Diameter: 374.65mm
  • Overall Thickness: 60mm
  • Reverse: True
  • Blade Style: Curved
  • Inrush Current (Amps): 15.1
  • # of Blades: 8
  • Fan RPM: 2200
  • Fan Diameter: 355.6mm
  • Overall Depth: 67.5mm
  • CFM: 1300
  • (1) Mishimoto Fan
  • Mishimoto Lifetime Warranty
  • Universal Part
