Description

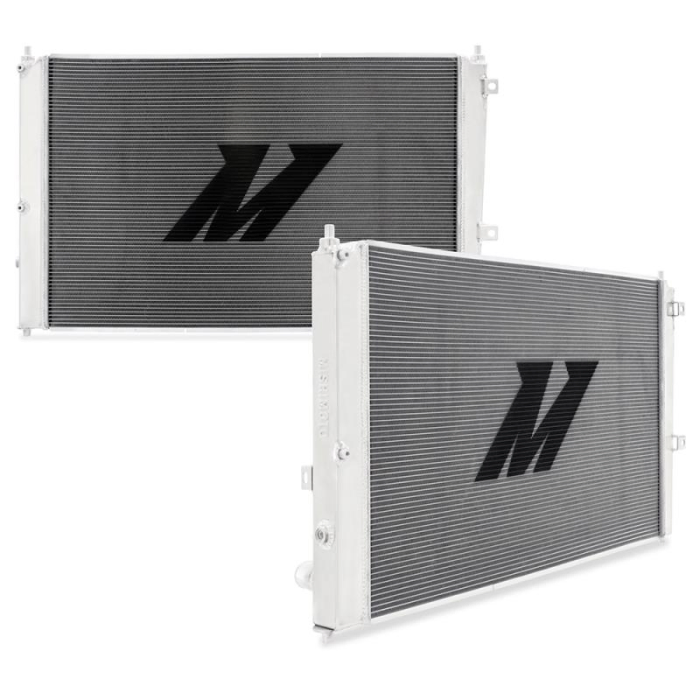

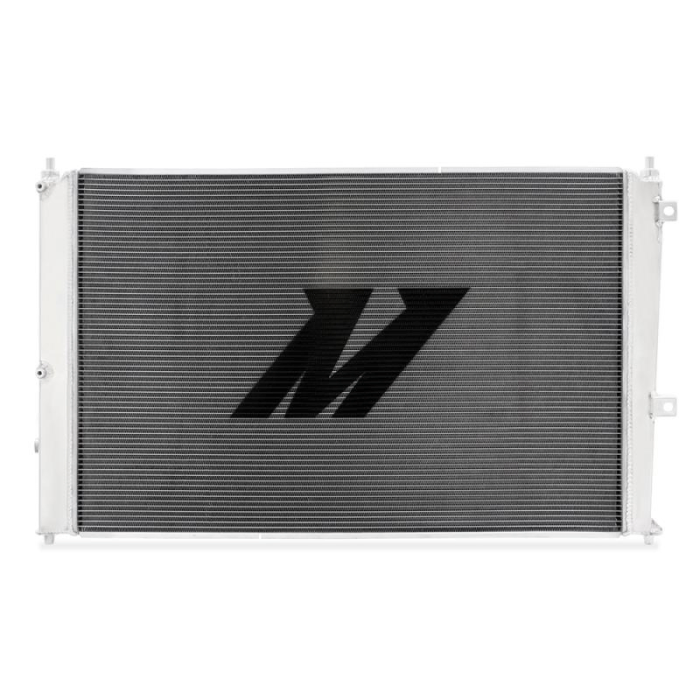

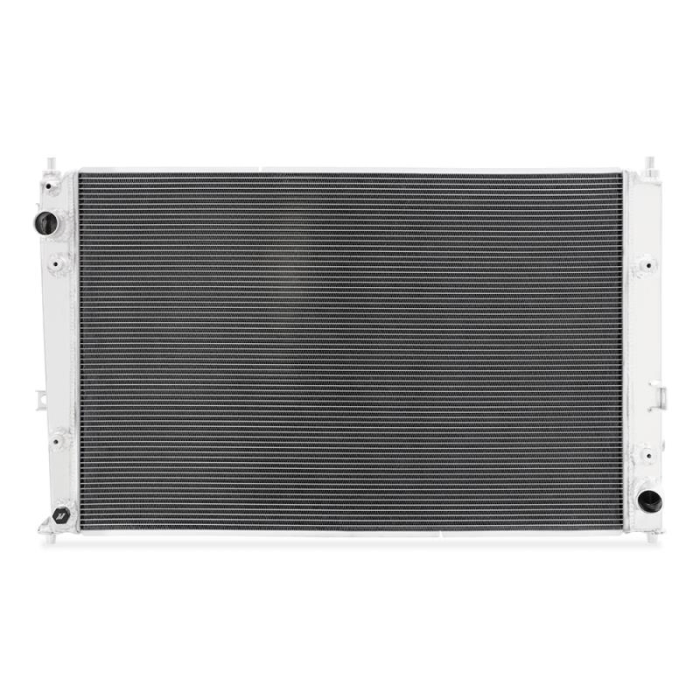

Keep engine temperatures under control on your 10th-gen 1.5T Honda Civic with the Mishimoto Performance Aluminium Radiator. The 10th-gen Civic is an incredible platform for a daily driver, weekend autocross machine, or full track build. However, pushing the stock cooling system reveals it's one greatest flaw: an underperforming cooling system. To help solve this issue and keep your Civic pushing the limits longer, we've designed an extremely precise all-aluminium radiator that provides both enhanced durability and cooling efficiency.

The foundation of the Mishimoto Performance Aluminium Radiator is the 36mm-thick two-row core. Our engineers performed extensive testing to create a fin composition that would produce maximum heat transfer. This efficient core is fully TIG-welded to precise aluminium end tanks, which mate perfectly with all factory equipment. Our radiator features a massive 43% increase in fluid capacity over stock for increased cooling capacity and endurance on the track or street. In addition, the Mishimoto core design provides a 36% increase in external fin surface area to help transfer the heat out of your coolant and into the air. The results are lower coolant temperatures and quicker coolant temperature recovery, making this the ideal upgrade for your 2016-2021 10th-gen Honda Civic 1.5T. This radiator includes a magnetic drain plug to help keep debris from clogging your cooling system, and as with all our products, this radiator includes the signature Mishimoto Lifetime Warranty for a lifetime of performance.

  • Direct fit for the 2016-2021 Honda Civic 1.5T
  • 36mm-thick two-row core features strategically designed fins for optimal heat dissipation
  • 31% increase in core volume for improved cooling capacity

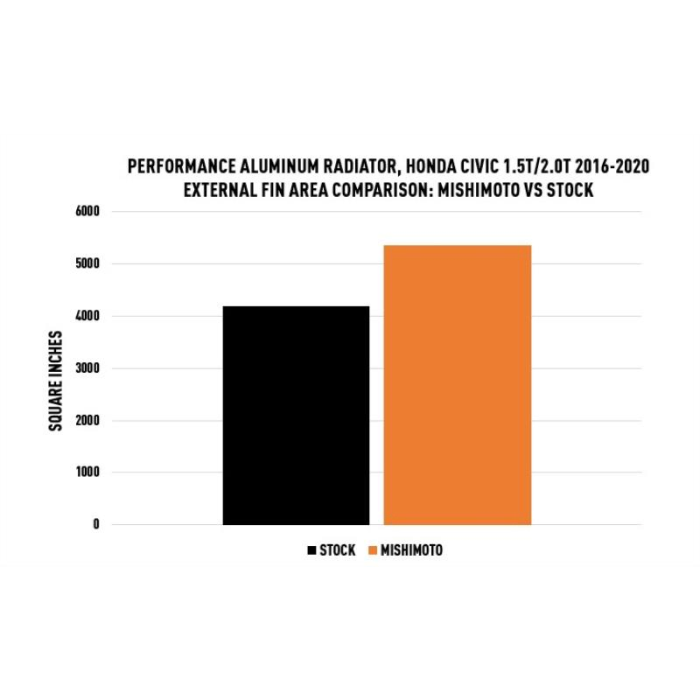

  • 36% increase in external fin surface area effectively transfers heat out of coolant

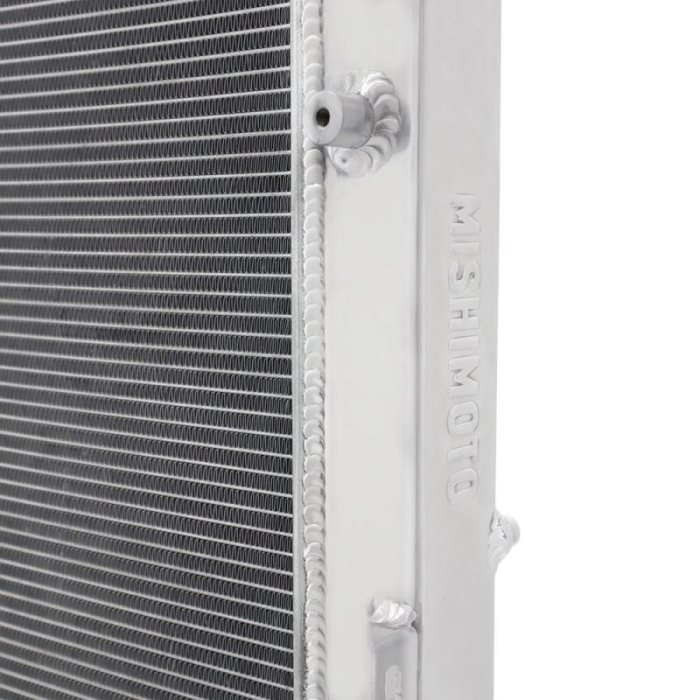

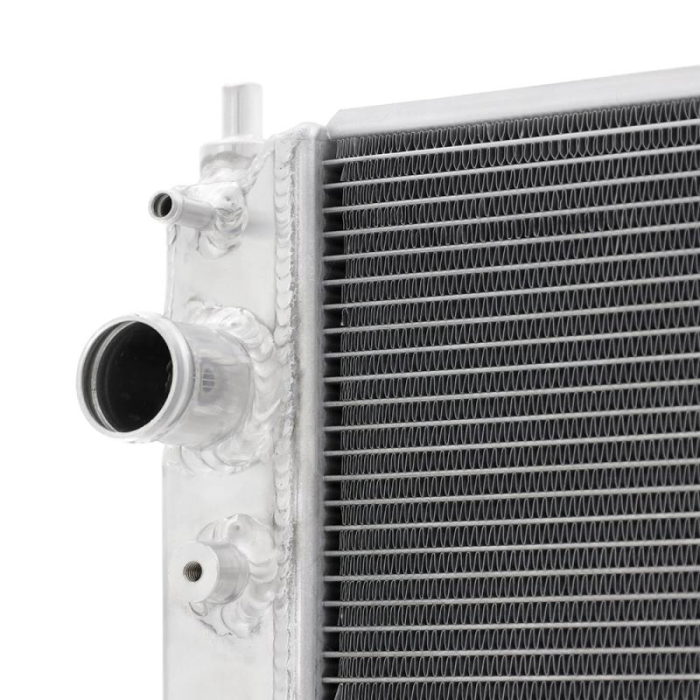

  • All-aluminium design with precision TIG-welded end tanks
  • Includes Mishimoto Magnetic Drain Plug to capture metallic debris within the cooling system
  • Pair with Mishimoto Silicone Coolant Hose Kit for further cooling system protection

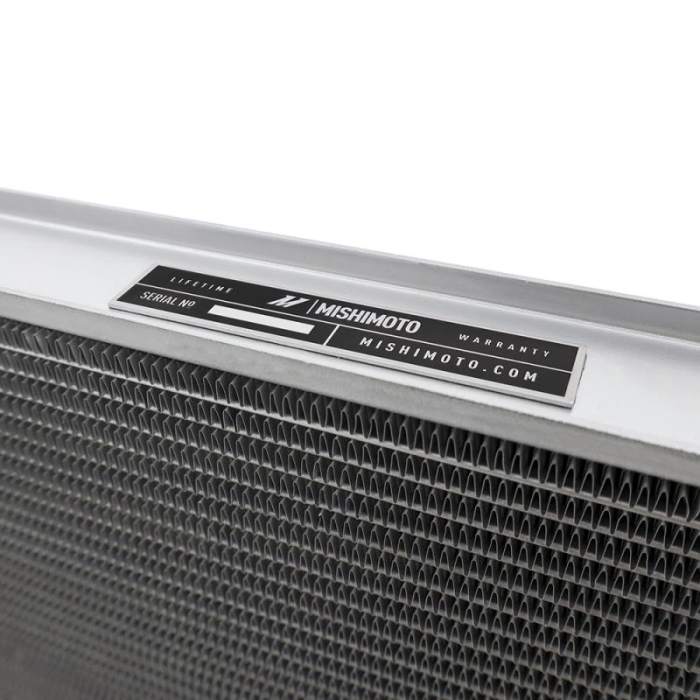

  • Mishimoto Lifetime Warranty

Specifications

MATERIAL Aluminum
OVERALL HEIGHT 460mm
OVERALL LENGTH 793mm
TANK WALL THICKNESS 2mm
OUTLET 29mm
ROWS 2
INLET 29mm
OVERALL WIDTH 91.10mm
CORE LENGTH 677mm
CORE HEIGHT 447mm
CORE THICKNESS 36mm

What's Included

  • 1x Mishimoto Aluminium Radiator
  • 1x Mishimoto Magnetic Drain Plug
  • Mounting Hardware
  • Mishimoto Lifetime Warranty

Compatibility

  • 2016-21 Honday Civic

Keep engine temperatures under control on your 10th-gen 1.5T Honda Civic with the Mishimoto Performance Aluminium Radiator. The 10th-gen Civic is an incredible platform for a daily driver, weekend autocross machine, or full track build. However, pushing the stock cooling system reveals it's one greatest flaw: an underperforming cooling system. To help solve this issue and keep your Civic pushing the limits longer, we've designed an extremely precise all-aluminium radiator that provides both enhanced durability and cooling efficiency.

The foundation of the Mishimoto Performance Aluminium Radiator is the 36mm-thick two-row core. Our engineers performed extensive testing to create a fin composition that would produce maximum heat transfer. This efficient core is fully TIG-welded to precise aluminium end tanks, which mate perfectly with all factory equipment. Our radiator features a massive 43% increase in fluid capacity over stock for increased cooling capacity and endurance on the track or street. In addition, the Mishimoto core design provides a 36% increase in external fin surface area to help transfer the heat out of your coolant and into the air. The results are lower coolant temperatures and quicker coolant temperature recovery, making this the ideal upgrade for your 2016-2021 10th-gen Honda Civic 1.5T. This radiator includes a magnetic drain plug to help keep debris from clogging your cooling system, and as with all our products, this radiator includes the signature Mishimoto Lifetime Warranty for a lifetime of performance.

  • Direct fit for the 2016-2021 Honda Civic 1.5T
  • 36mm-thick two-row core features strategically designed fins for optimal heat dissipation
  • 31% increase in core volume for improved cooling capacity
  • 36% increase in external fin surface area effectively transfers heat out of coolant
  • All-aluminium design with precision TIG-welded end tanks
  • Includes Mishimoto Magnetic Drain Plug to capture metallic debris within the cooling system
  • Pair with Mishimoto Silicone Coolant Hose Kit for further cooling system protection
  • Mishimoto Lifetime Warranty
MATERIAL Aluminum
OVERALL HEIGHT 460mm
OVERALL LENGTH 793mm
TANK WALL THICKNESS 2mm
OUTLET 29mm
ROWS 2
INLET 29mm
OVERALL WIDTH 91.10mm
CORE LENGTH 677mm
CORE HEIGHT 447mm
CORE THICKNESS 36mm
  • 1x Mishimoto Aluminium Radiator
  • 1x Mishimoto Magnetic Drain Plug
  • Mounting Hardware
  • Mishimoto Lifetime Warranty
  • 2016-21 Honday Civic
