Description

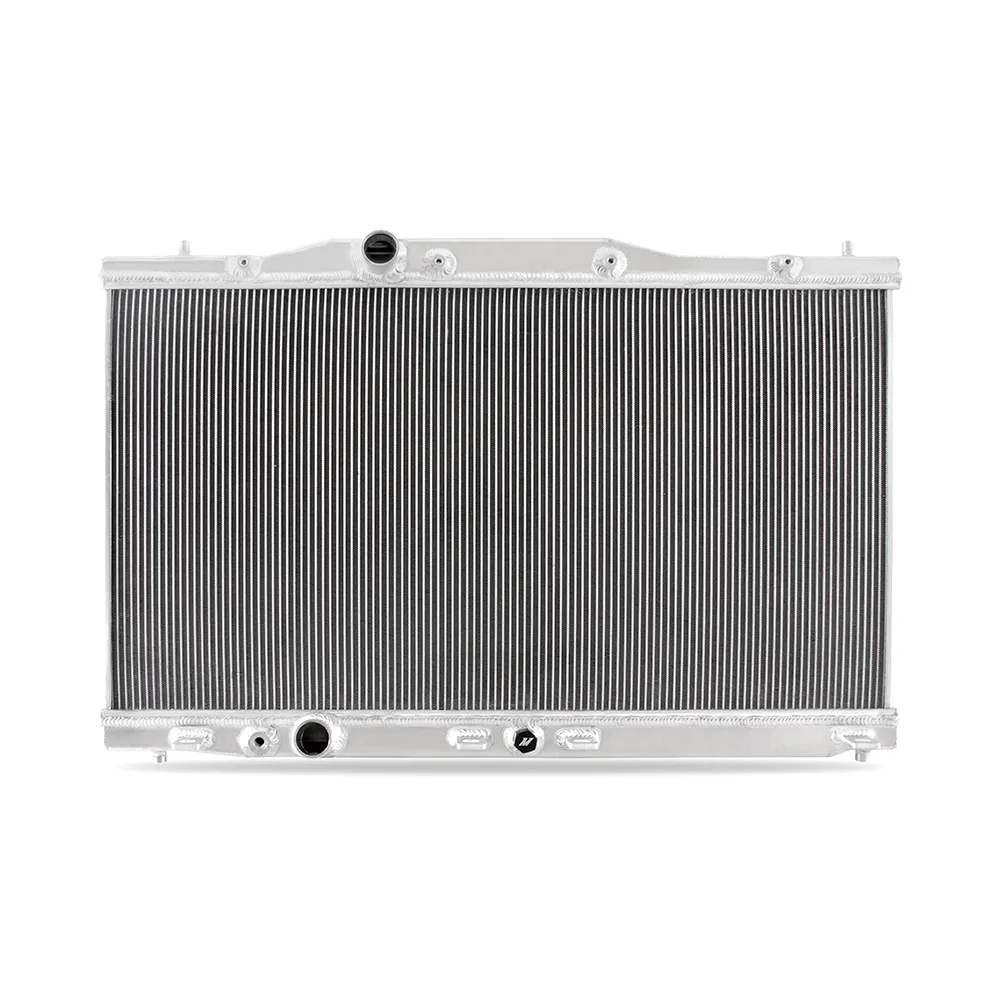

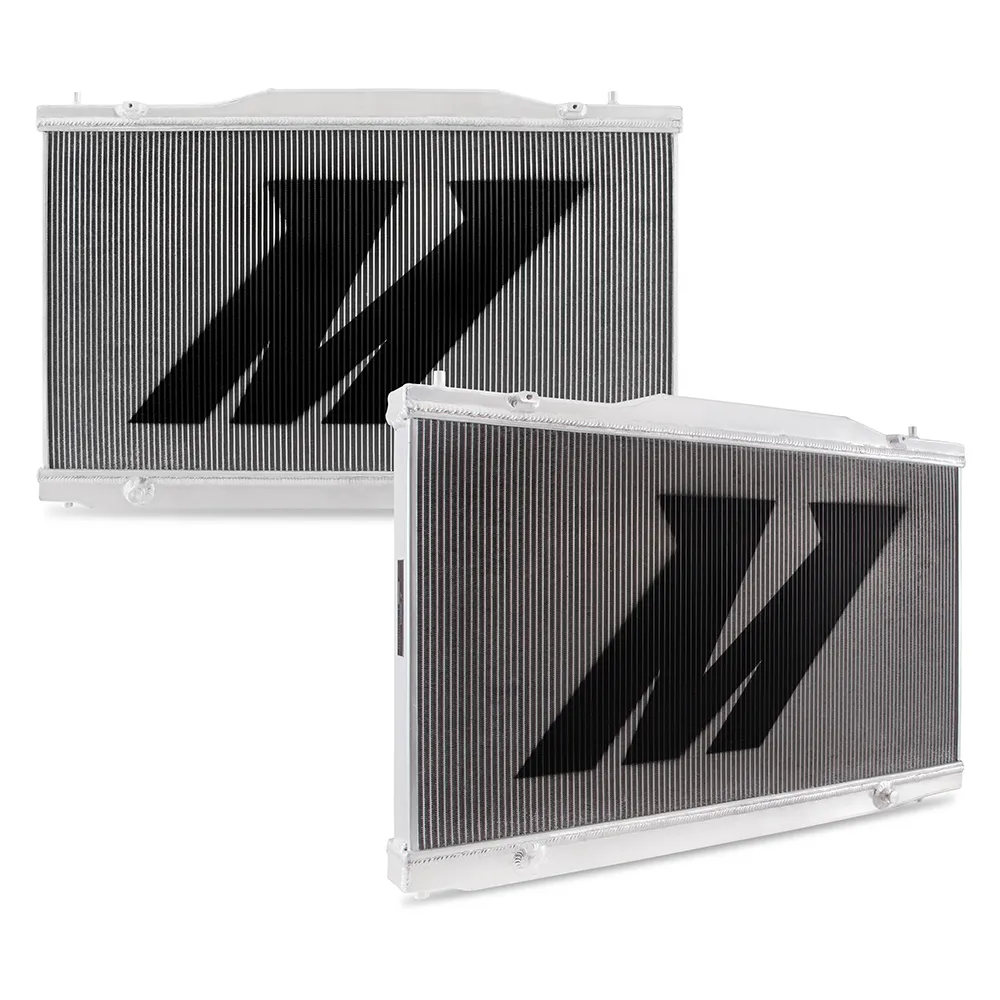

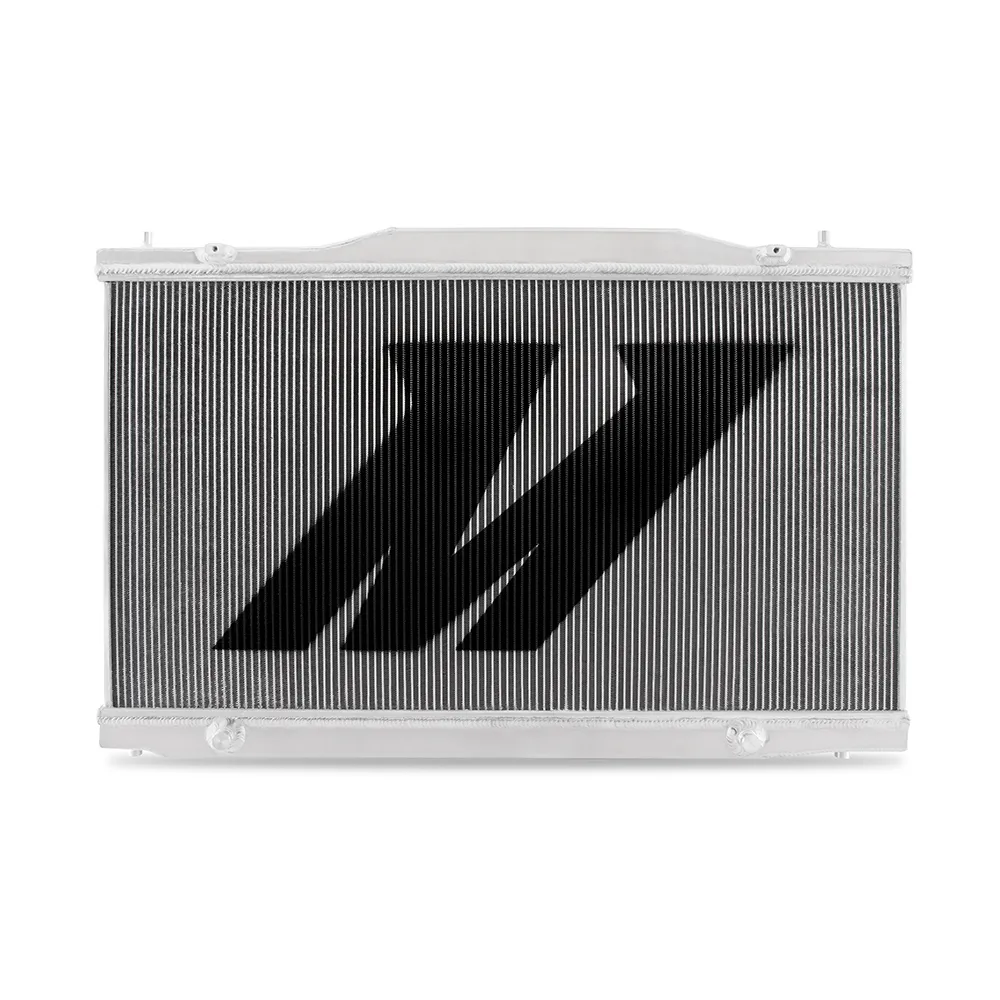

Give your CTR the cooling power it desperately needs with the Mishimoto 2017+ Honda Civic Type R Performance Aluminum Radiator. Honda's top-rung Civic took the hot-hatchback world by storm, but there's still one thing that's holding it back heat. The K20C1 is quite the powerhouse in the Civic, but the stock cooling system just can't keep up.

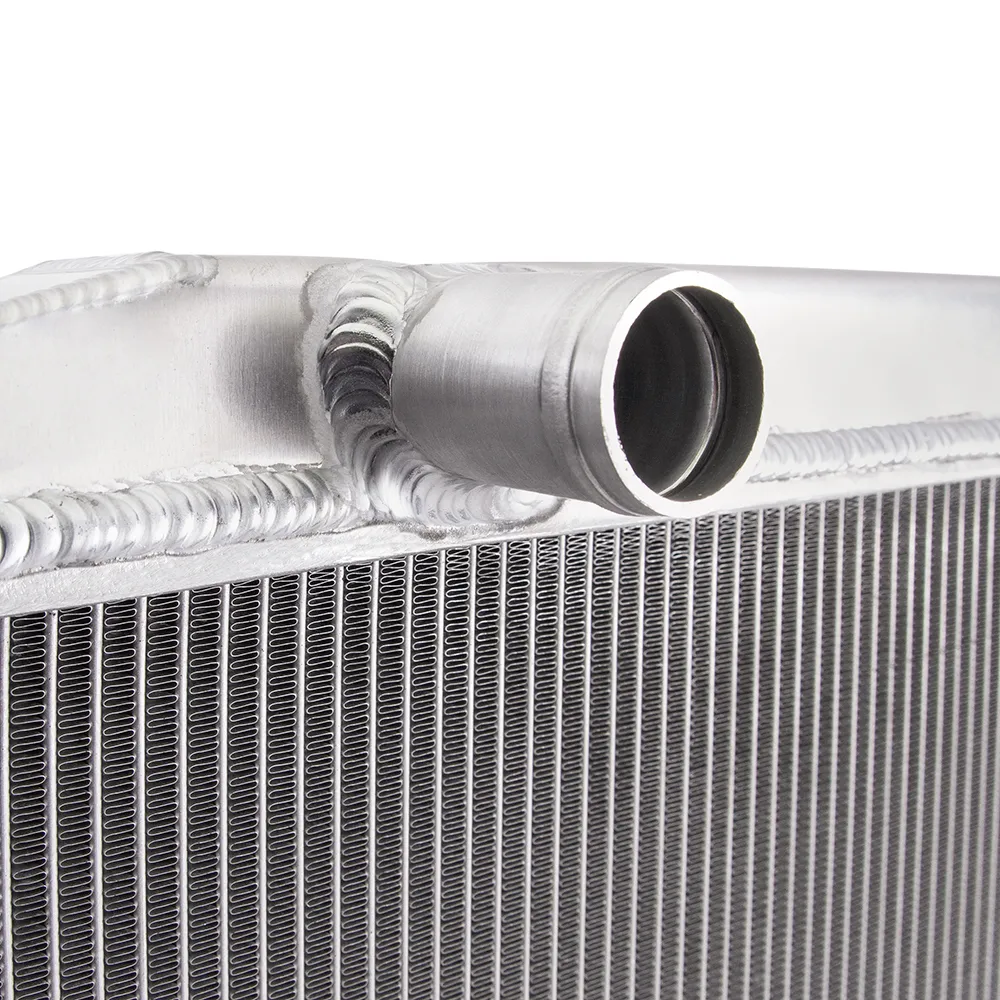

Mishimoto is here with a more durable and efficient cooling solution for your FK8. For starters, we ditched the skinny core and plastic end tanks for a full aluminum, TIG-welded construction, sure to stand up to abuse on the street, track or drag strip. Our design also features a 1.57" thick core, increasing core volume by 48% and external fin surface area by 102% for maximum heat dissipation properties. Our core also incorporates strutted tubes for maximum durability.

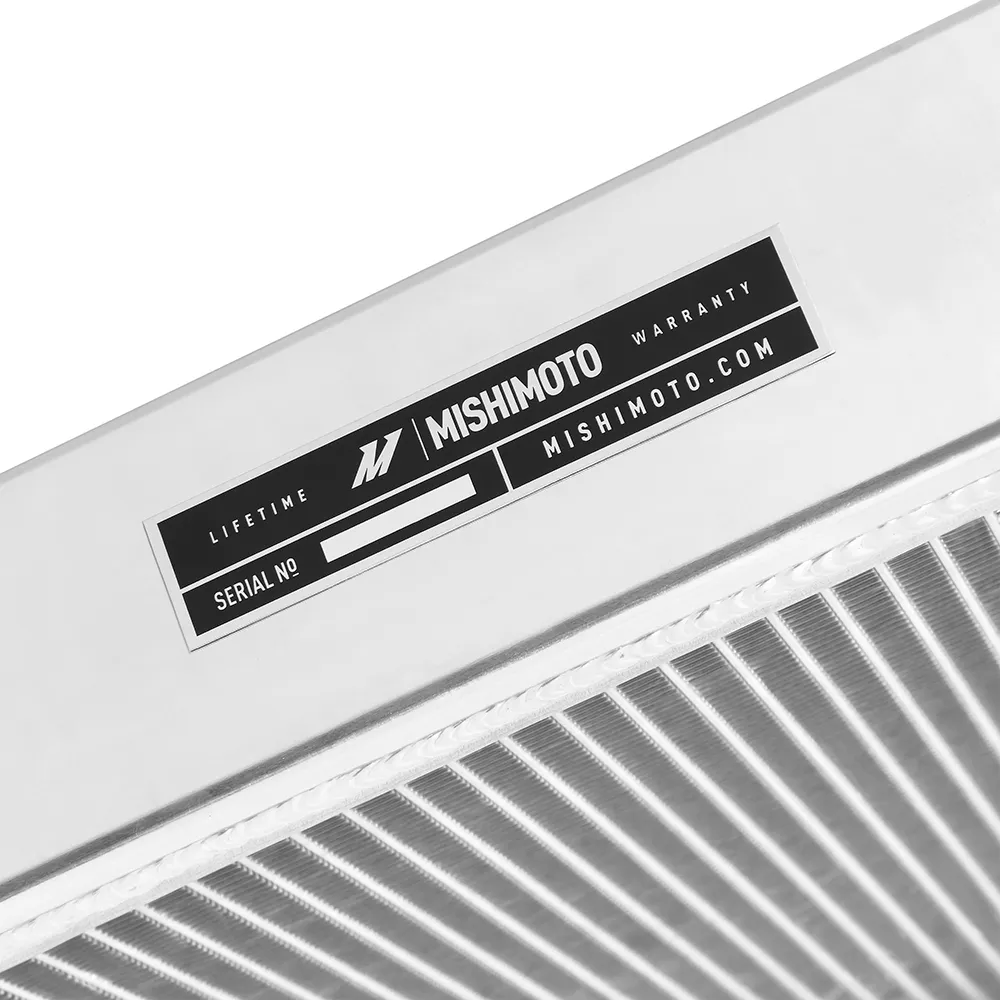

The 2017+ Honda Civic Type R Performance Aluminum Radiator is available in a polished finish, and includes our magnetic drain plug to collect any metallic debris in your cooling system, This radiator is covered under the Mishimoto Lifetime Warranty for a worry-free installation.

Product Features

  • Direct fit for the 2017+ Honda Civic Type R
  • Full aluminum construction including durable, TIG-welded end tanks
  • Features a two-row, 1.57" thick, efficiently brazed aluminum core
  • 48% in core volume and 102% increase in external fin surface area
  • Mishimoto Lifetime Warranty

Specifications

  • Material: Aluminium
  • Overall Height: 461mm
  • Drain Plug Thread Size: (M12) x 1.5
  • Overall Length: 710mm
  • Rows: 1
  • Dual Pass: FALSE
  • Overall Width: 102.5mm
  • Core Length: 697.5mm
  • Core Height: 375mm

What's Included

  • (1) Aluminium Radiator
  • (1) Magnetic Drain Plug
  • Mishimoto Lifetime Warranty

Compatibility

  • 2017+ Honda Civic Type R

Give your CTR the cooling power it desperately needs with the Mishimoto 2017+ Honda Civic Type R Performance Aluminum Radiator. Honda's top-rung Civic took the hot-hatchback world by storm, but there's still one thing that's holding it back heat. The K20C1 is quite the powerhouse in the Civic, but the stock cooling system just can't keep up.

Mishimoto is here with a more durable and efficient cooling solution for your FK8. For starters, we ditched the skinny core and plastic end tanks for a full aluminum, TIG-welded construction, sure to stand up to abuse on the street, track or drag strip. Our design also features a 1.57" thick core, increasing core volume by 48% and external fin surface area by 102% for maximum heat dissipation properties. Our core also incorporates strutted tubes for maximum durability.

The 2017+ Honda Civic Type R Performance Aluminum Radiator is available in a polished finish, and includes our magnetic drain plug to collect any metallic debris in your cooling system, This radiator is covered under the Mishimoto Lifetime Warranty for a worry-free installation.

Product Features

  • Direct fit for the 2017+ Honda Civic Type R
  • Full aluminum construction including durable, TIG-welded end tanks
  • Features a two-row, 1.57" thick, efficiently brazed aluminum core
  • 48% in core volume and 102% increase in external fin surface area
  • Mishimoto Lifetime Warranty
  • Material: Aluminium
  • Overall Height: 461mm
  • Drain Plug Thread Size: (M12) x 1.5
  • Overall Length: 710mm
  • Rows: 1
  • Dual Pass: FALSE
  • Overall Width: 102.5mm
  • Core Length: 697.5mm
  • Core Height: 375mm
  • (1) Aluminium Radiator
  • (1) Magnetic Drain Plug
  • Mishimoto Lifetime Warranty
  • 2017+ Honda Civic Type R
