Description

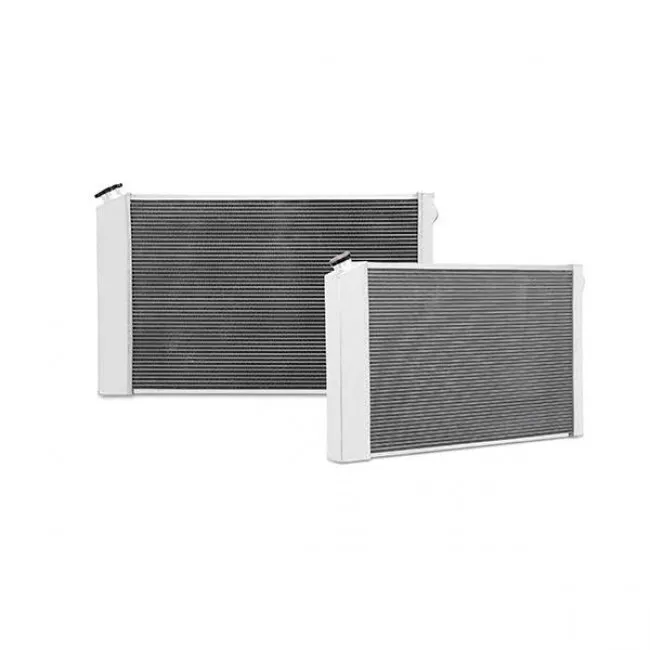

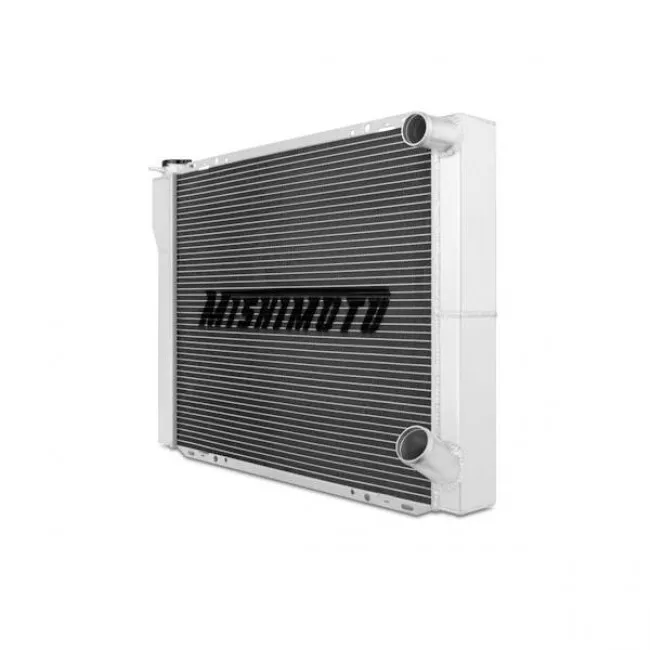

Every Mishimoto race aluminum radiator is designed and engineered to maximize cooling efficiency, boost engine functions, and most importantly, protect your car from overheating on and off the track. Lightweight, made from 100-percent brazed aluminum, and cast end tanks TIG-welded for increased durability, Mishimoto race radiators will enhance the overall performance of your engine. Like every Mishimoto radiator, this extremely efficient aluminum radiator comes with the incredible Mishimoto Lifetime Warranty.

  • Universal fitment for projects requiring exceptional fluid cooling
  • Unique dual pass design is precision engineered to provide substantial heat transfer
  • Full aluminum construction with brazed core for optimal durability and pressure tolerance
  • 1.3 Bar High-Pressure Radiator Cap raises the coolant boiling point, providing a safer and more efficient system
  • Efficient, two-row core measuring 55mm thick, provides substantial fluid capacity and superior fluid temperature reduction
  • Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
  • Mishimoto Lifetime Warranty

Specifications

  • Material - Aluminum
  • Overall Height - 27"
  • Overall Length - 19"
  • Tank Wall Thickness - 0.08"
  • Outlet - 1.77"
  • Rows - 2
  • Inlet - 1.5"
  • Dual Pass - Yes
  • Overall Width - 3"
  • Core Length - 22.24"
  • Core Height - 18.43"
  • Core Size - 22.24" x 18.43"
  • Core Thickness - 2.2"
  • Fill Neck - 1.22"



  • Note - This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.

What's Included

  • Mishimoto Radiator
  • Mishimoto Radiator Cap
  • Magnetic Drain Plug
  • Mishimoto Lifetime Warranty

Compatibility

  • Universal Part

Every Mishimoto race aluminum radiator is designed and engineered to maximize cooling efficiency, boost engine functions, and most importantly, protect your car from overheating on and off the track. Lightweight, made from 100-percent brazed aluminum, and cast end tanks TIG-welded for increased durability, Mishimoto race radiators will enhance the overall performance of your engine. Like every Mishimoto radiator, this extremely efficient aluminum radiator comes with the incredible Mishimoto Lifetime Warranty.

  • Universal fitment for projects requiring exceptional fluid cooling
  • Unique dual pass design is precision engineered to provide substantial heat transfer
  • Full aluminum construction with brazed core for optimal durability and pressure tolerance
  • 1.3 Bar High-Pressure Radiator Cap raises the coolant boiling point, providing a safer and more efficient system
  • Efficient, two-row core measuring 55mm thick, provides substantial fluid capacity and superior fluid temperature reduction
  • Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
  • Mishimoto Lifetime Warranty
  • Material - Aluminum
  • Overall Height - 27"
  • Overall Length - 19"
  • Tank Wall Thickness - 0.08"
  • Outlet - 1.77"
  • Rows - 2
  • Inlet - 1.5"
  • Dual Pass - Yes
  • Overall Width - 3"
  • Core Length - 22.24"
  • Core Height - 18.43"
  • Core Size - 22.24" x 18.43"
  • Core Thickness - 2.2"
  • Fill Neck - 1.22"



  • Note - This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
  • Mishimoto Radiator
  • Mishimoto Radiator Cap
  • Magnetic Drain Plug
  • Mishimoto Lifetime Warranty
  • Universal Part
