Mishimoto MMRAD-FXT-04 Performance Aluminium Radiator (Forester XT 04-08)

Parts Experts
Fast Shipping
Aussie Owned
Best Prices

Choose Your Car

Your Car

Find Your Part Clear Vehicle

Filter Search Results

Filter by Categories

Filter by Brand

Filter by Price

Description

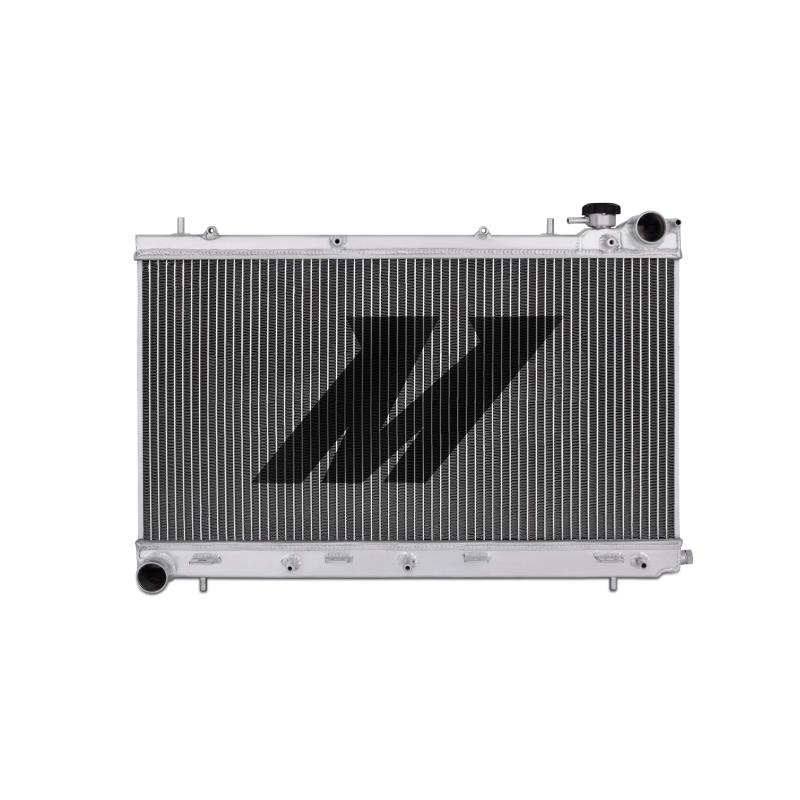

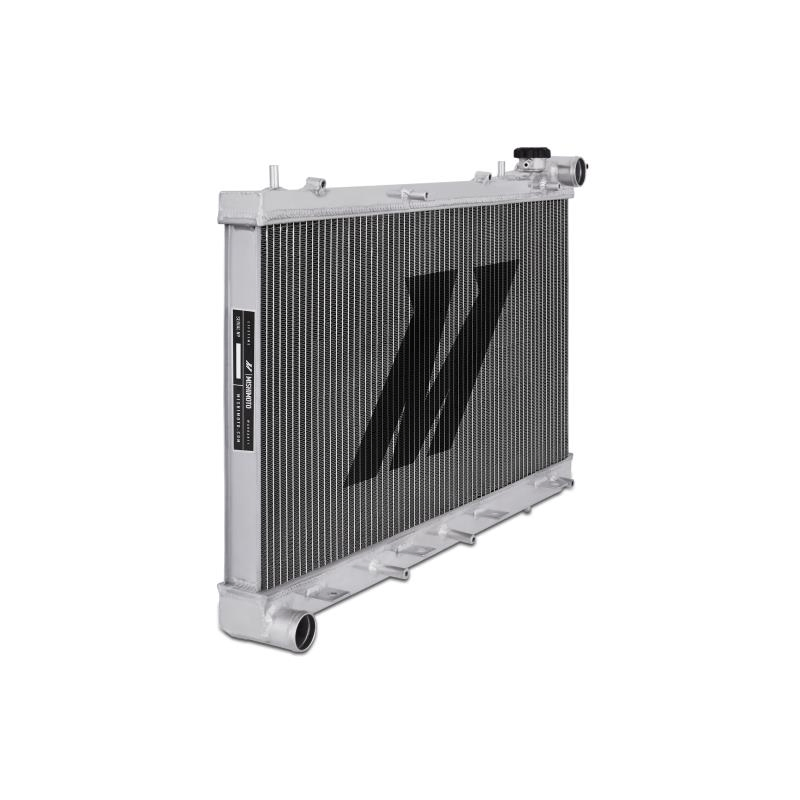

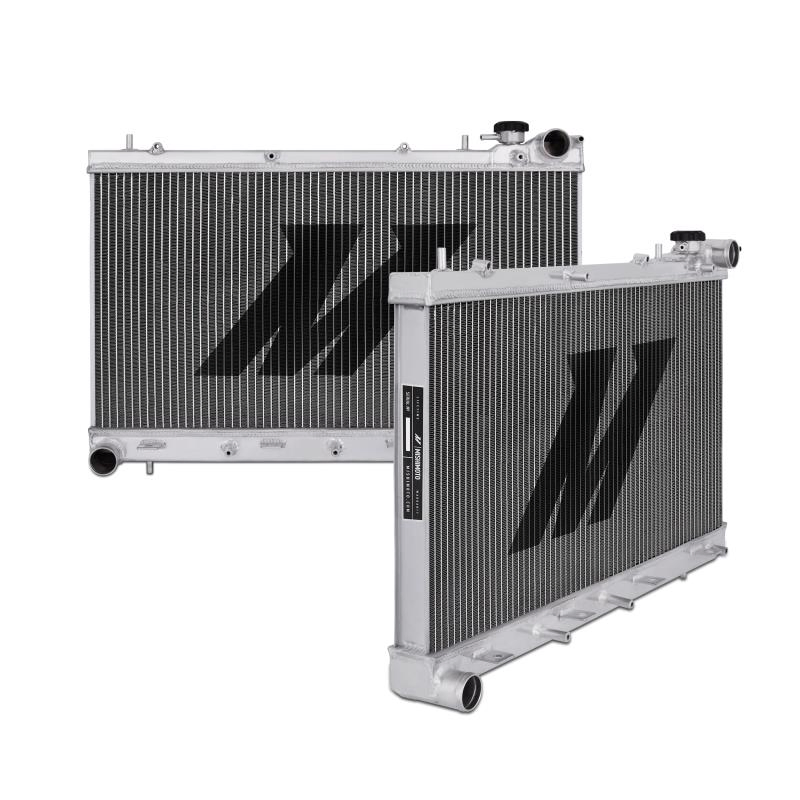

By replacing your current Forester XT radiator with a Mishimoto performance aluminum radiator, you will notice a cooler more efficient running engine. The Mishimoto radiator for the Subaru Forester XT Turbo is made with a lightweight two row core made of 100% brazed aluminum and polished aluminum tank end tanks. Installing a direct OEM fit Mishimoto radiator is effortless with no cutting or additional modifications required.

Specifications

Material - Aluminum
Chassis Codes - SG5
Engine Codes - EJ255
Overall Height - 27.7"
DPI - 2812
Drain Plug Length - 0.47"
Drain Plug Thread Size - (M16) .06
Overall Length - 17.4"
Tank Wall Thickness - 0.08"
Outlet - 1.57"
Rows - 2
Inlet - 1.57"
Coolant Capacity - 2.21
Dual Pass - No
Overall Width - 2.2"
Core Length - 14.1"
Core Height - 27"
Core Size - 14.1" x 27.0"
Core Thickness - 1.65"
Fill Neck - 1.22"

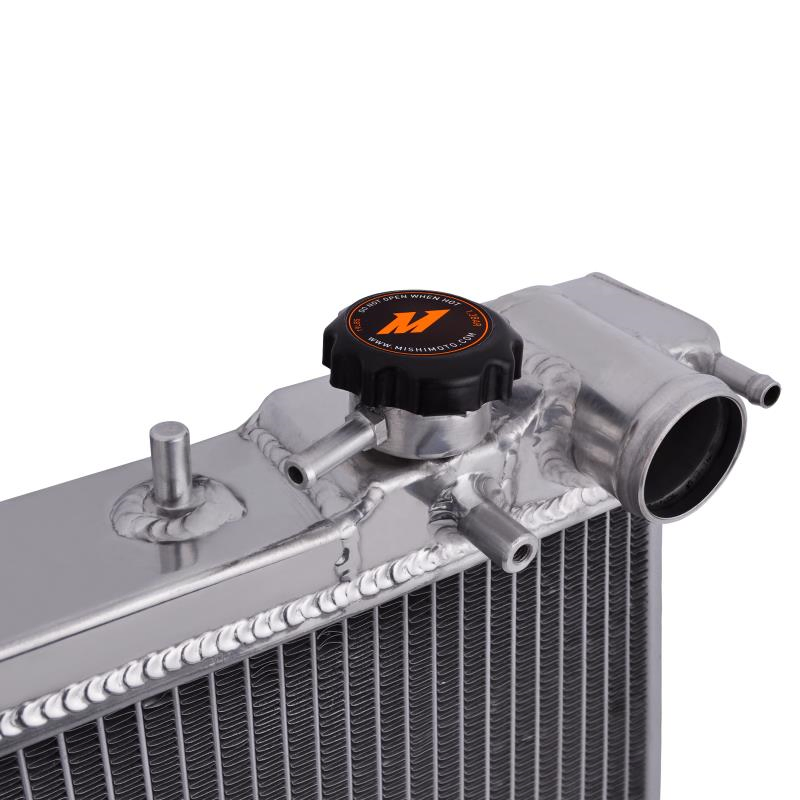

Full aluminum construction with durable, TIG-welded end tanks
Features a two-row, 1.65" thick efficient brazed aluminum core, providing ideal fluid temperature reduction
Increased fluid capacity and superior heat dissipation
Perfect upgrade to the failure prone stock plastic end tank radiator
Ideal for use on the street, track, or rallycross course
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty

What's Included

Mishimoto Radiator
Mishimoto Radiator Cap
Magnetic Drain Plug
1/16" NPT Overflow Plug
Mishimoto Lifetime Warranty

Compatibility

2004-2008 Subaru Forester XT

Description
Specifications

Material - Aluminum
Chassis Codes - SG5
Engine Codes - EJ255
Overall Height - 27.7"
DPI - 2812
Drain Plug Length - 0.47"
Drain Plug Thread Size - (M16) .06
Overall Length - 17.4"
Tank Wall Thickness - 0.08"
Outlet - 1.57"
Rows - 2
Inlet - 1.57"
Coolant Capacity - 2.21
Dual Pass - No
Overall Width - 2.2"
Core Length - 14.1"
Core Height - 27"
Core Size - 14.1" x 27.0"
Core Thickness - 1.65"
Fill Neck - 1.22"
Full aluminum construction with durable, TIG-welded end tanks
Features a two-row, 1.65" thick efficient brazed aluminum core, providing ideal fluid temperature reduction
Increased fluid capacity and superior heat dissipation
Perfect upgrade to the failure prone stock plastic end tank radiator
Ideal for use on the street, track, or rallycross course
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty

Mishimoto Radiator
Mishimoto Radiator Cap
Magnetic Drain Plug
1/16" NPT Overflow Plug
Mishimoto Lifetime Warranty

2004-2008 Subaru Forester XT
