Description

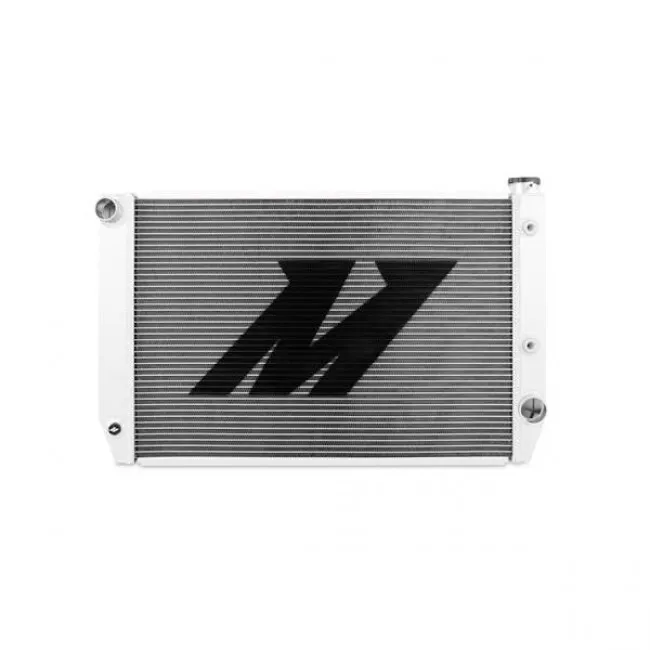

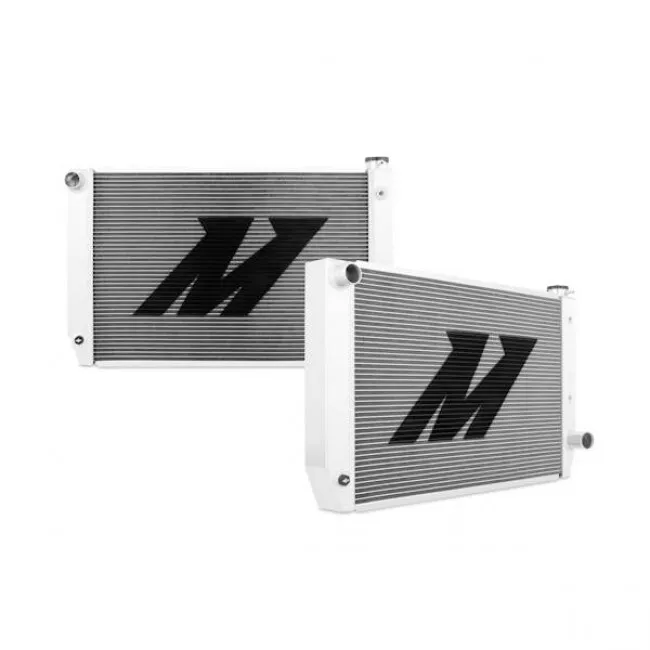

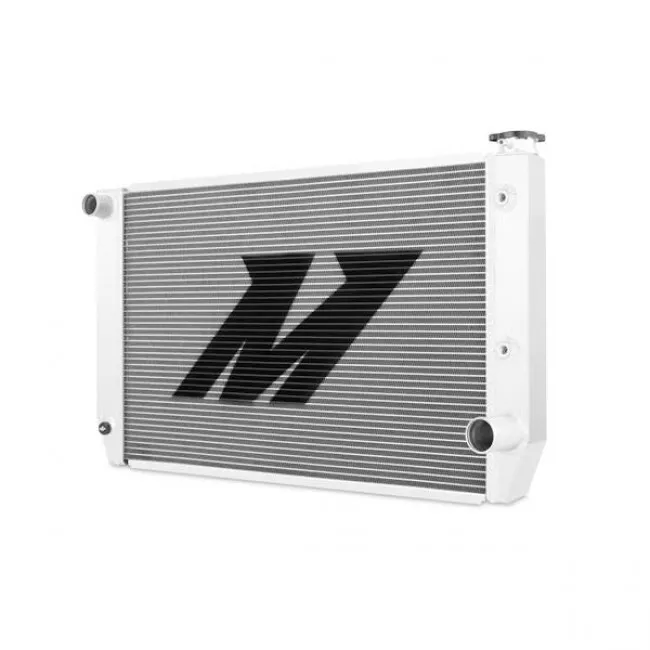

If you demand the absolute most from your cooling system, look no further than the Mishimoto Race Ready Aluminum Performance Radiator. This race radiator is perfect for your custom build. It features a two-row dual-pass design and our strongest tubes, developed to withstand more than 100 psi of pressure. Designed with flexibility in mind, this aluminum radiator features a female threaded inlet and outlet for use with our interchangeable -16AN, -20AN, 1.25”, and 1.5” fittings. This radiator is constructed from aircraft-quality TIG-welded aluminum and includes the Mishimoto lifetime warranty.

  • Applicable for use in 4 cylinder or V8 circle track vehicles
  • Full aluminum construction with brazed core for optimal durability and pressure tolerance
  • Efficient, two-row core measuring 2.24" thick, provides substantial fluid capacity and superior fluid temperature reduction
  • Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
  • Includes Magnetic Drain
  • Plug to capture any metallic debris/fragments in your cooling system

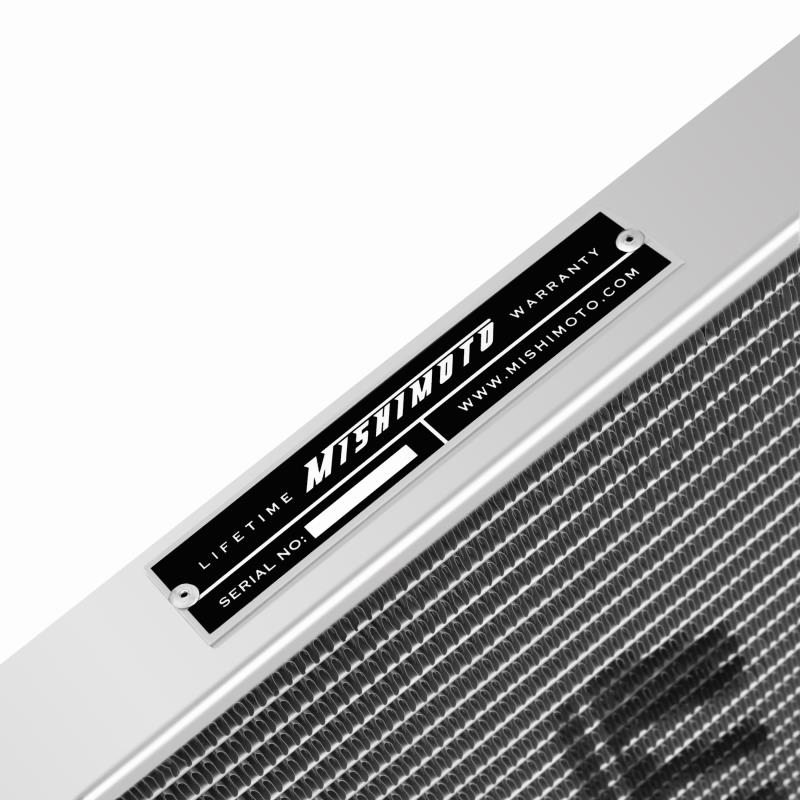

  • Mishimoto Lifetime Warranty



TECH INFO:

  • Material - Aluminum
  • Overall Height - 31.9"
  • Drain Plug Thread Size - (M12) x 1.5
  • Overall Length - 19.5"
  • Fill Neck Thickness - 0.12"
  • Tank Wall Thickness - 0.08"
  • Outlet - 1.77"
  • Rows - 2
  • Inlet - 1.5"
  • Dual Pass - No
  • Overall Width - 5.6"
  • Core Length - 25.98"
  • Core Height - 19.21"
  • Core Size - 25.98" x 19.21"
  • Core Thickness - 2.24"
  • Fill Neck - 1.22"

Specifications

Compatibility

  • Universal Part

If you demand the absolute most from your cooling system, look no further than the Mishimoto Race Ready Aluminum Performance Radiator. This race radiator is perfect for your custom build. It features a two-row dual-pass design and our strongest tubes, developed to withstand more than 100 psi of pressure. Designed with flexibility in mind, this aluminum radiator features a female threaded inlet and outlet for use with our interchangeable -16AN, -20AN, 1.25”, and 1.5” fittings. This radiator is constructed from aircraft-quality TIG-welded aluminum and includes the Mishimoto lifetime warranty.

  • Applicable for use in 4 cylinder or V8 circle track vehicles
  • Full aluminum construction with brazed core for optimal durability and pressure tolerance
  • Efficient, two-row core measuring 2.24" thick, provides substantial fluid capacity and superior fluid temperature reduction
  • Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
  • Includes Magnetic Drain
  • Plug to capture any metallic debris/fragments in your cooling system
  • Mishimoto Lifetime Warranty



TECH INFO:

  • Material - Aluminum
  • Overall Height - 31.9"
  • Drain Plug Thread Size - (M12) x 1.5
  • Overall Length - 19.5"
  • Fill Neck Thickness - 0.12"
  • Tank Wall Thickness - 0.08"
  • Outlet - 1.77"
  • Rows - 2
  • Inlet - 1.5"
  • Dual Pass - No
  • Overall Width - 5.6"
  • Core Length - 25.98"
  • Core Height - 19.21"
  • Core Size - 25.98" x 19.21"
  • Core Thickness - 2.24"
  • Fill Neck - 1.22"
  • Universal Part
