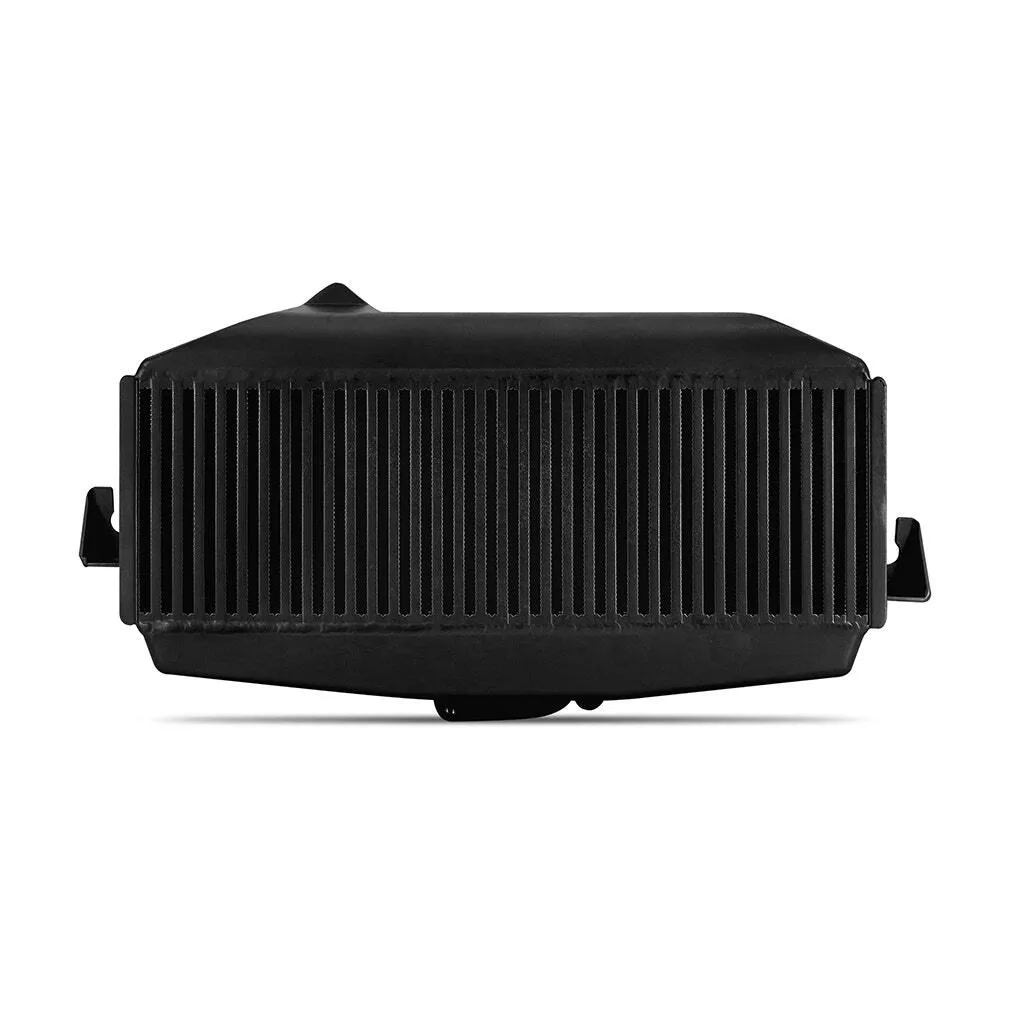

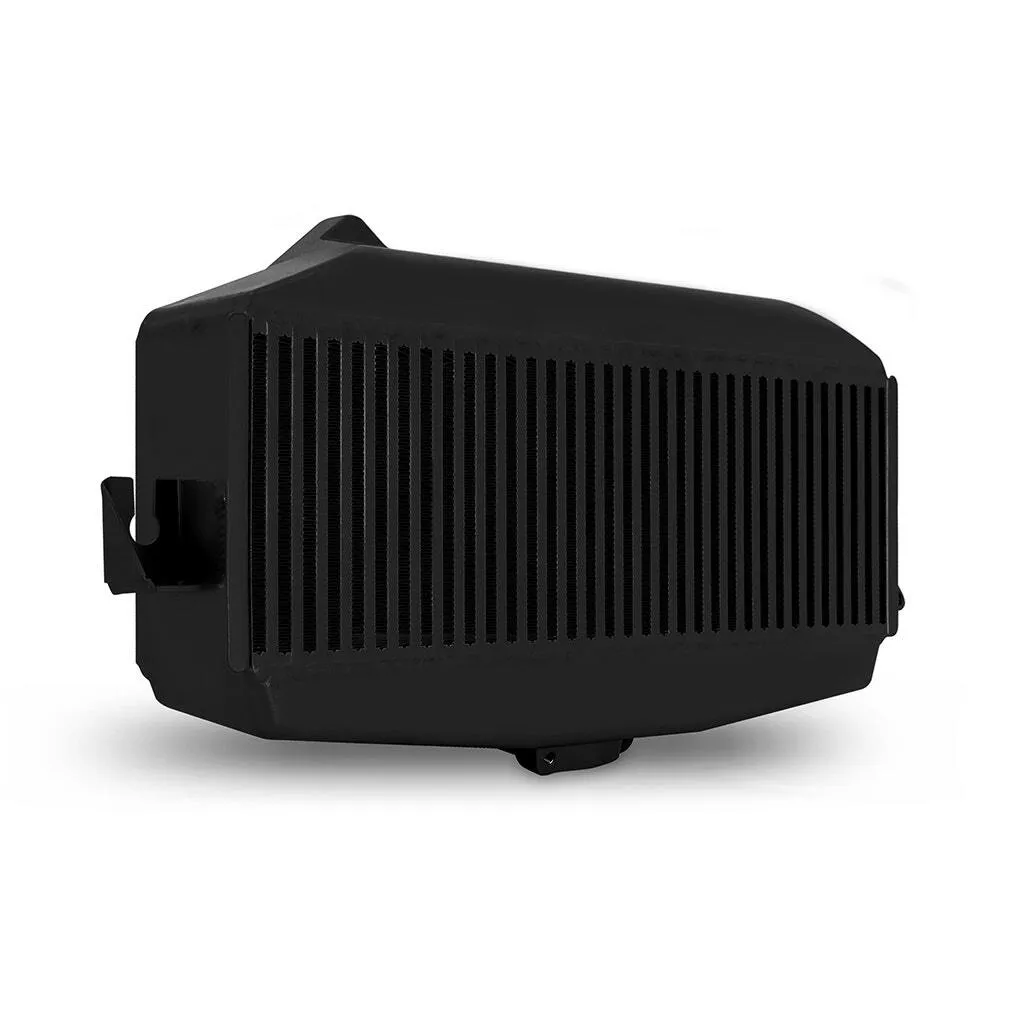

Mishimoto MMTMIC-ASNT-19BK Top-Mount Intercooler

Parts Experts
Fast Shipping
Aussie Owned
Best Prices

Choose Your Car

Your Car

Find Your Part Clear Vehicle

Filter Search Results

Filter by Categories

Filter by Brand

Filter by Price

Description

The Subaru Ascent, Outback XT, and Legacy XT are the definition of what a fun daily driver should be. Comfy and spacious on the inside, with the heart of a rally legend under the hood. From the family hauling capability of the Ascent to the off-road poise of the Outback, and the on-road comfort of the Legacy, each has an individual style. But they all share one strength: the powerful, 2.4L turbocharger FA24 under their hood that's just begging for upgrades. One upgrade that's sure to bring your 2019+ Ascent or 2020+ Legacy XT/Outback XT to the next level is the Mishimoto performance top-mount intercooler. This top mount intercooler lets your FA24 breathe all the cool boost it could ever want.

We've completely revamped the stock plastic end tank intercooler and replaced it with cast-aluminum end tanks and a high-flow core that's 88 percent larger than stock. The larger core volume allows our intercooler to flow over 40 percent better than stock, taking the strain off your turbo and allowing it to shove more cold air into your engine. We've also added 76 percent more fin surface area to the core, allowing it to transfer heat more effectively and keep outlet temps within 10 degrees of ambient. A pre-drilled, tapped, and plugged 1/8-NPT port allows you to easily add temp or boost pressure sensors.

This kit includes everything needed for installation and the black powder-coat finish matches any color scheme. With our Mishimoto Lifetime Warranty, you can go anywhere and do anything knowing your Subaru and Mishimoto have your back.

Specifications

Direct fit for 2019+ Subaru Ascent/2020+ Legacy XT and Outback XT

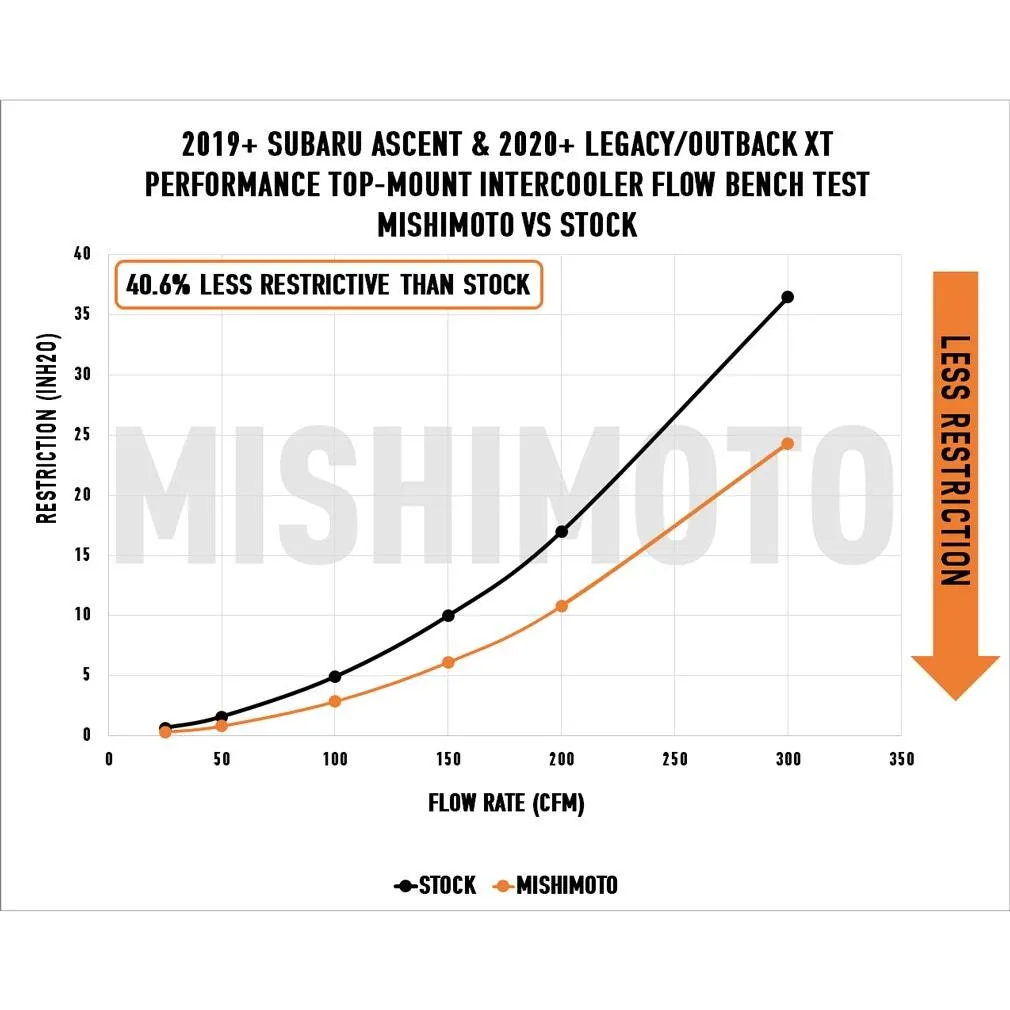

Bar-and-plate core reduces restriction by 40.6 percent for improved efficiency

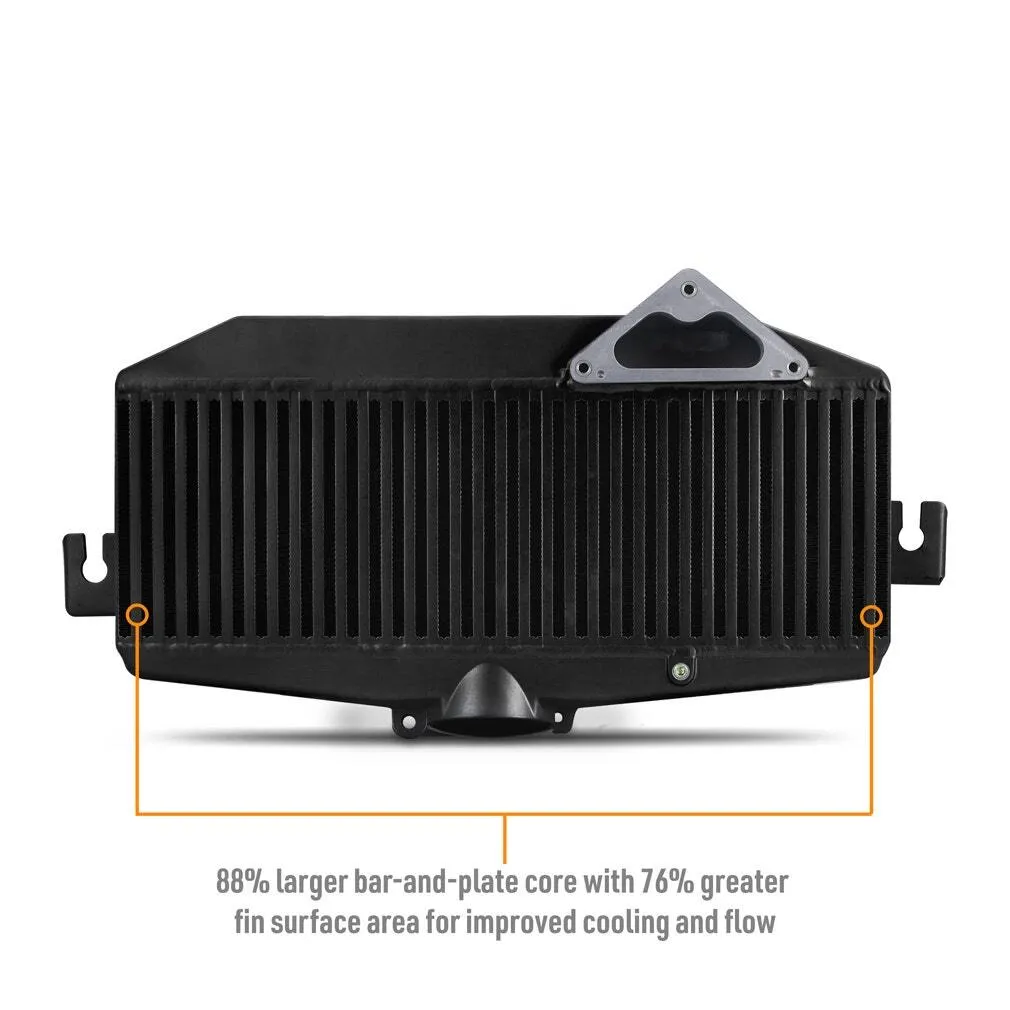

88 percent increase in core volume for improved cooling efficiency

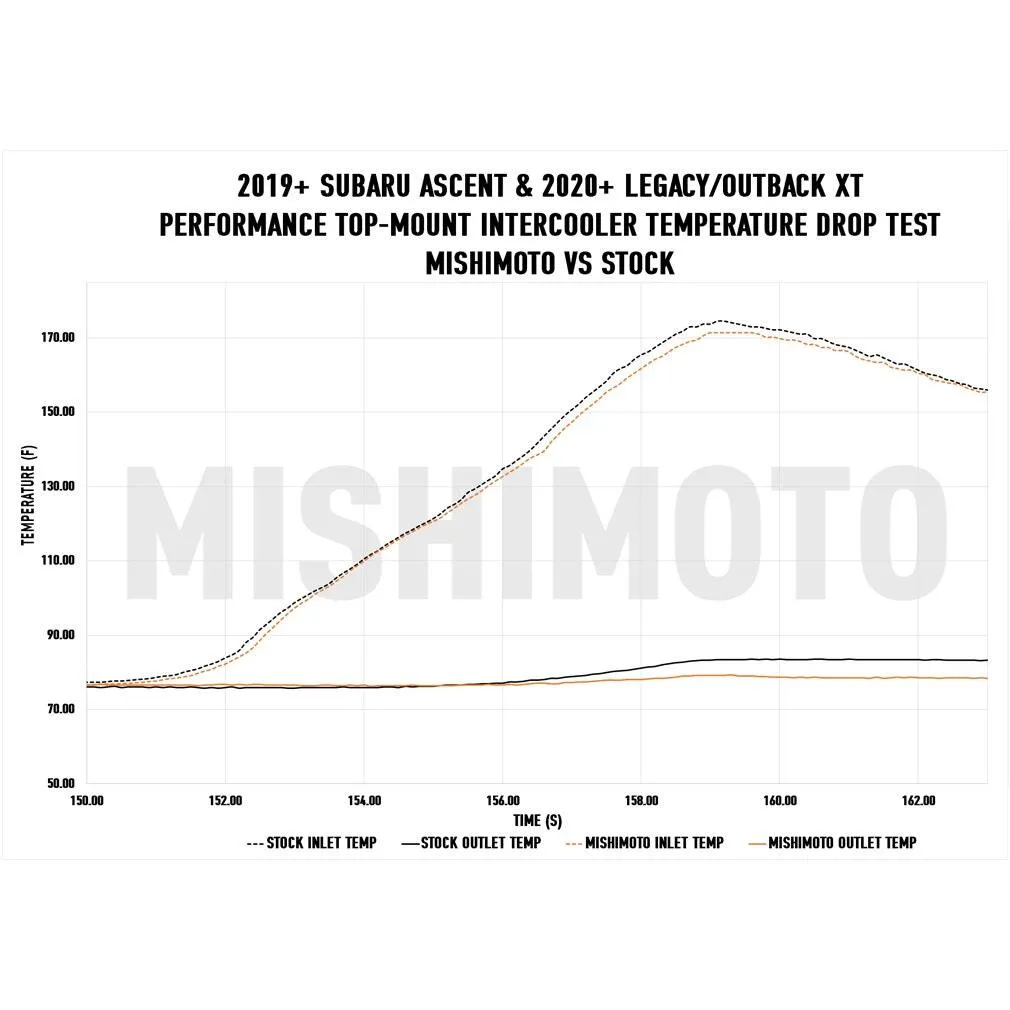

Lowers outlet temps to less than 10 degrees over ambient for safe performance

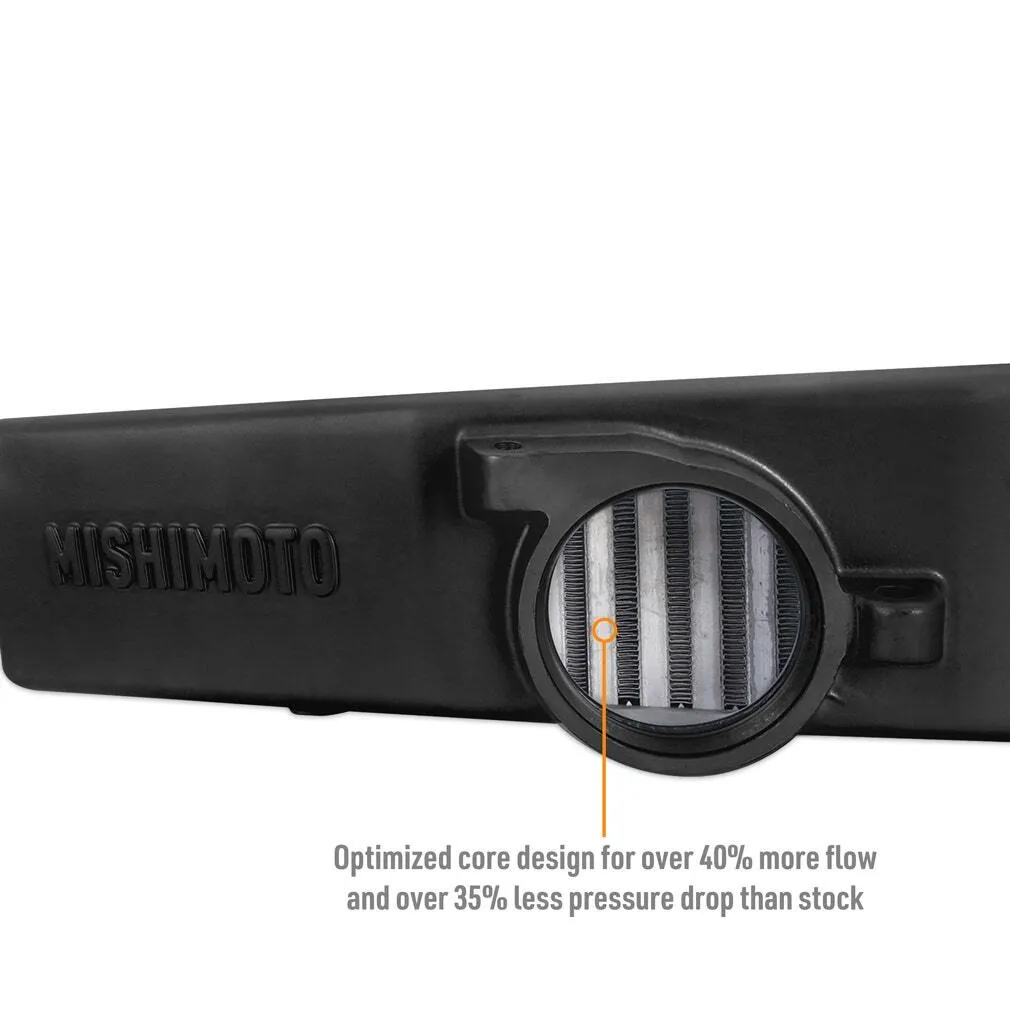

35.7 percent less pressure drop than stock means more boost makes it into the engine
76 percent increase in fin surface area for superior heat transfer

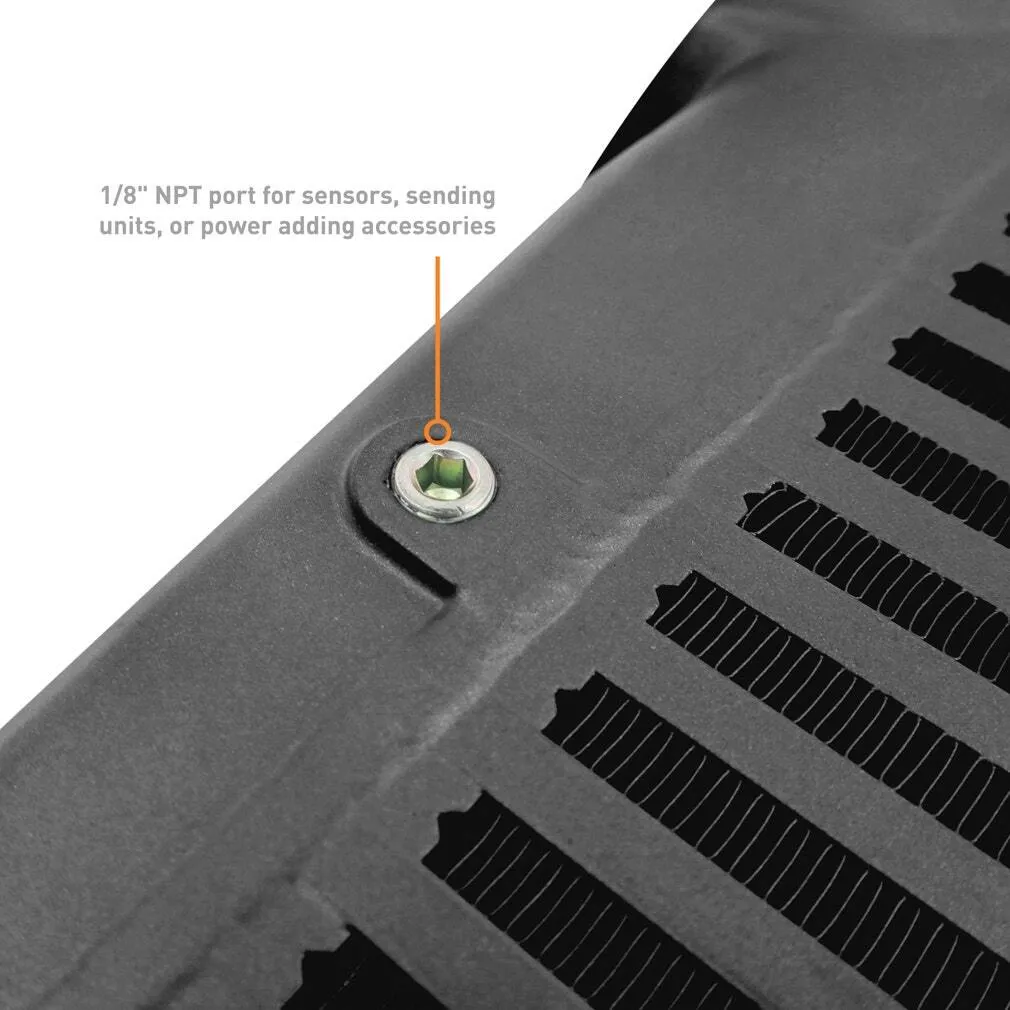

Cold-side tank include 1/8-NPT port for boost or temp sensors
Cast aluminum end tanks reduce failure points for high boost applications
Includes everything needed for installation
Black powder-coat finish matches any color scheme
Mishimoto Lifetime Warranty

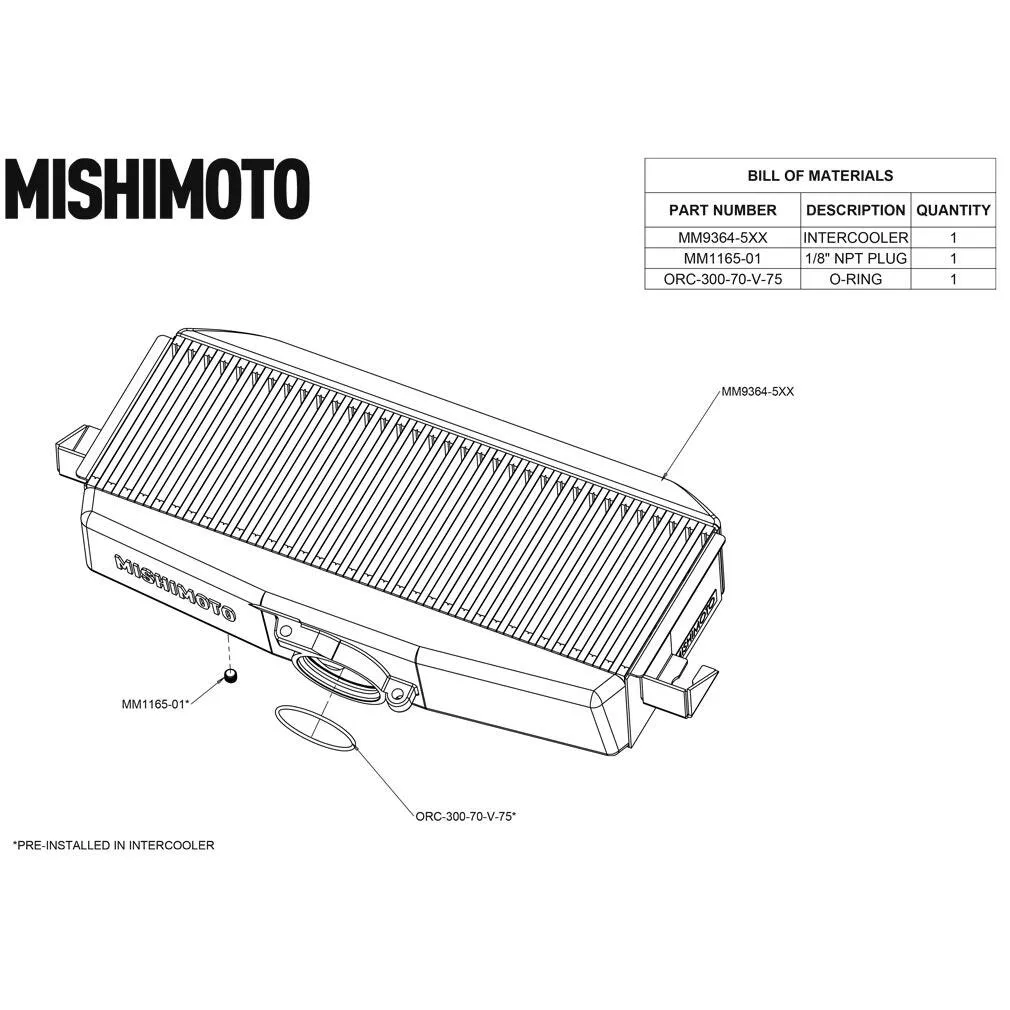

What's Included

(1) Performance Performance Intercooler
Mishimoto Lifetime Warranty

Compatibility

Subaru Ascent 2019+

Description
Specifications

Direct fit for 2019+ Subaru Ascent/2020+ Legacy XT and Outback XT
Bar-and-plate core reduces restriction by 40.6 percent for improved efficiency
88 percent increase in core volume for improved cooling efficiency
Lowers outlet temps to less than 10 degrees over ambient for safe performance
35.7 percent less pressure drop than stock means more boost makes it into the engine
76 percent increase in fin surface area for superior heat transfer
Cold-side tank include 1/8-NPT port for boost or temp sensors
Cast aluminum end tanks reduce failure points for high boost applications
Includes everything needed for installation
Black powder-coat finish matches any color scheme
Mishimoto Lifetime Warranty

(1) Performance Performance Intercooler
Mishimoto Lifetime Warranty

Subaru Ascent 2019+
