Description

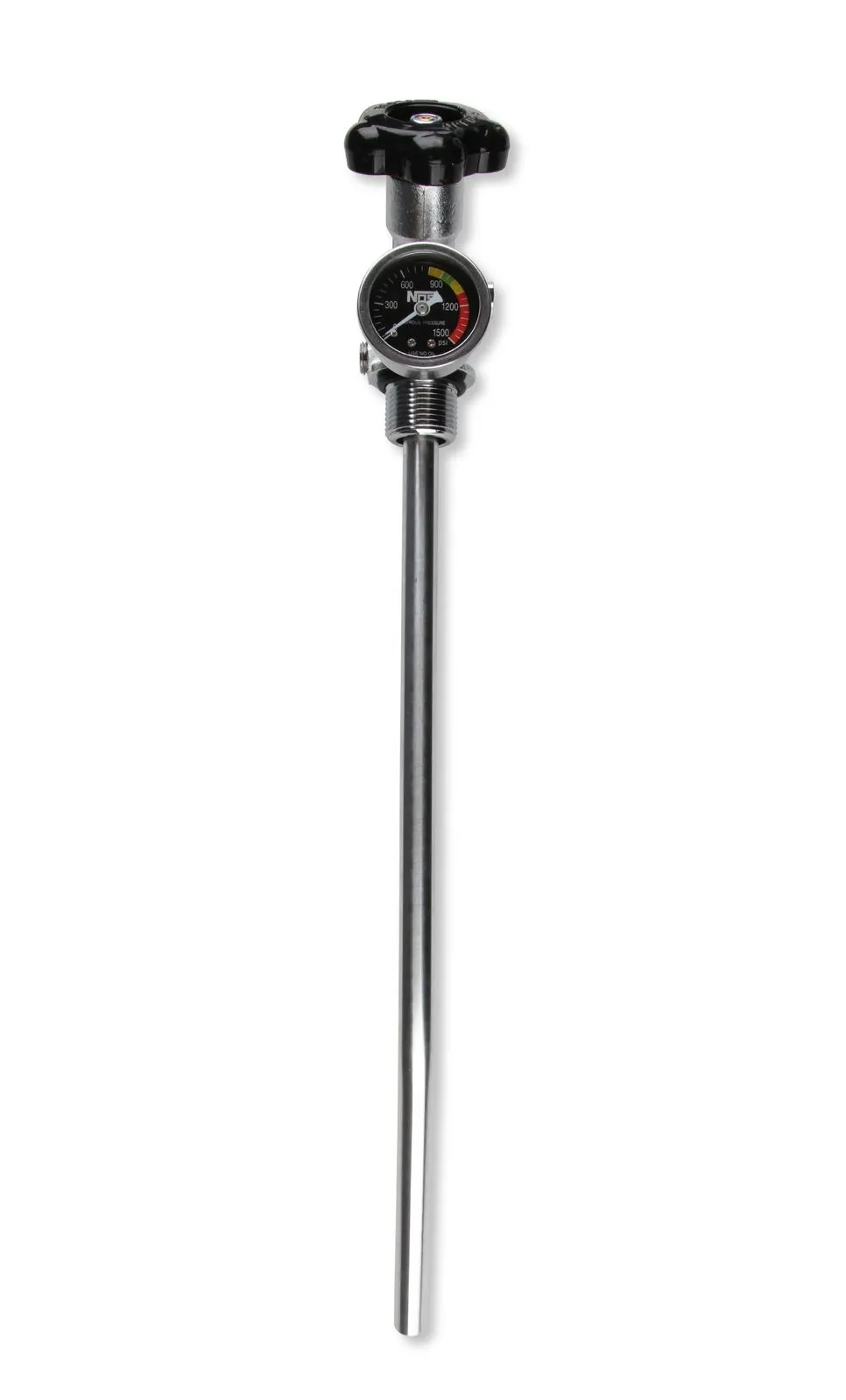

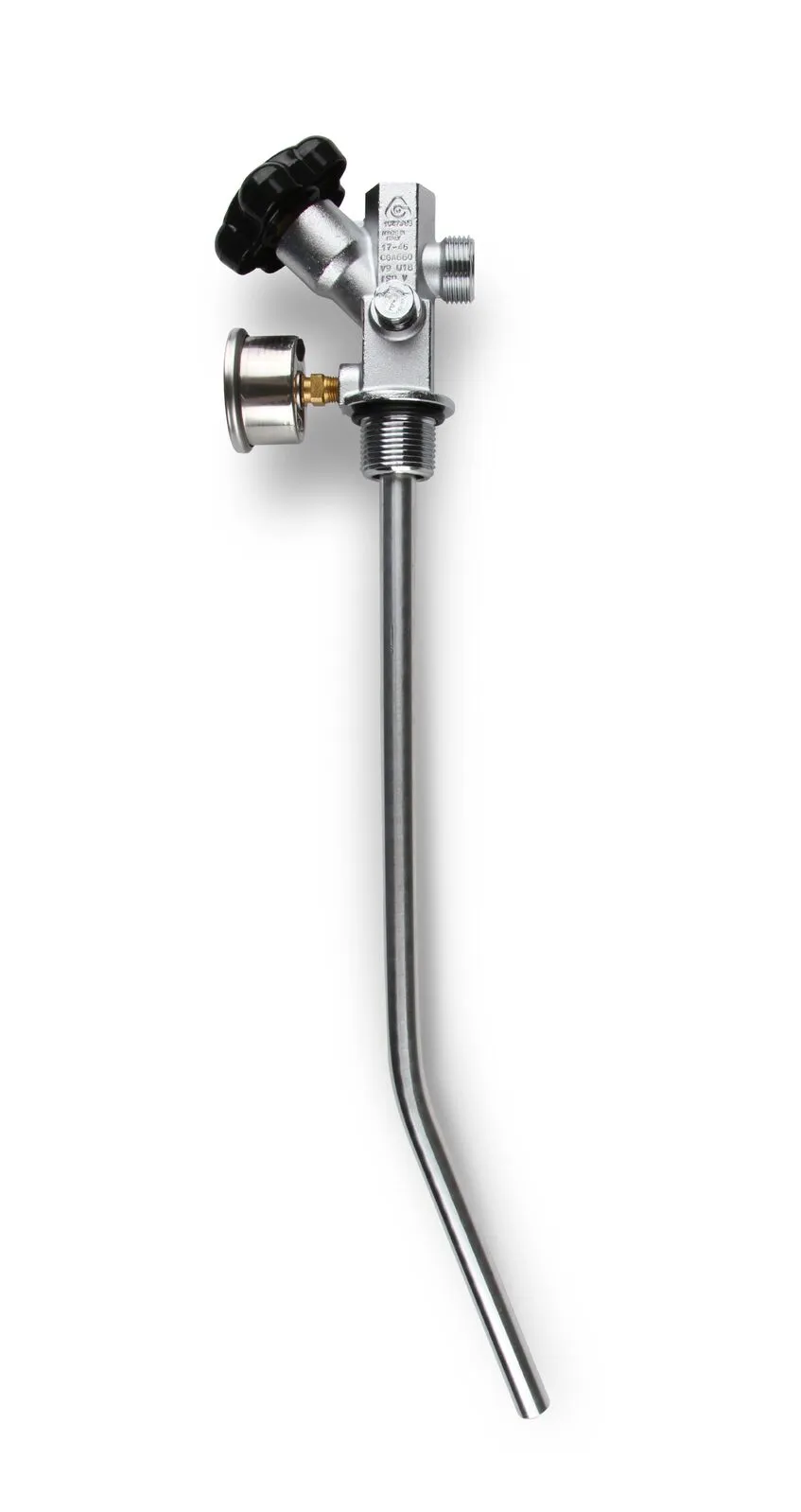

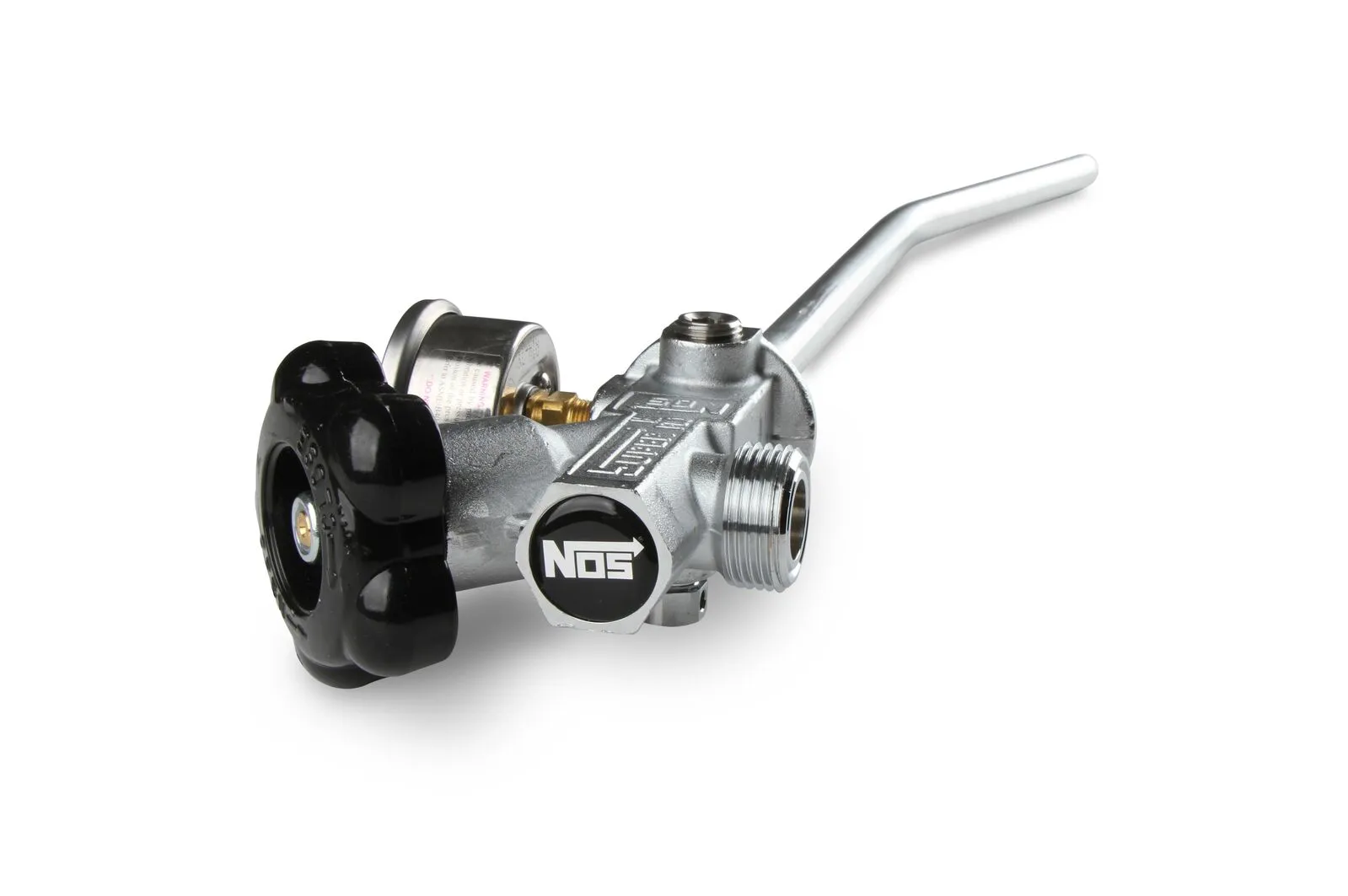

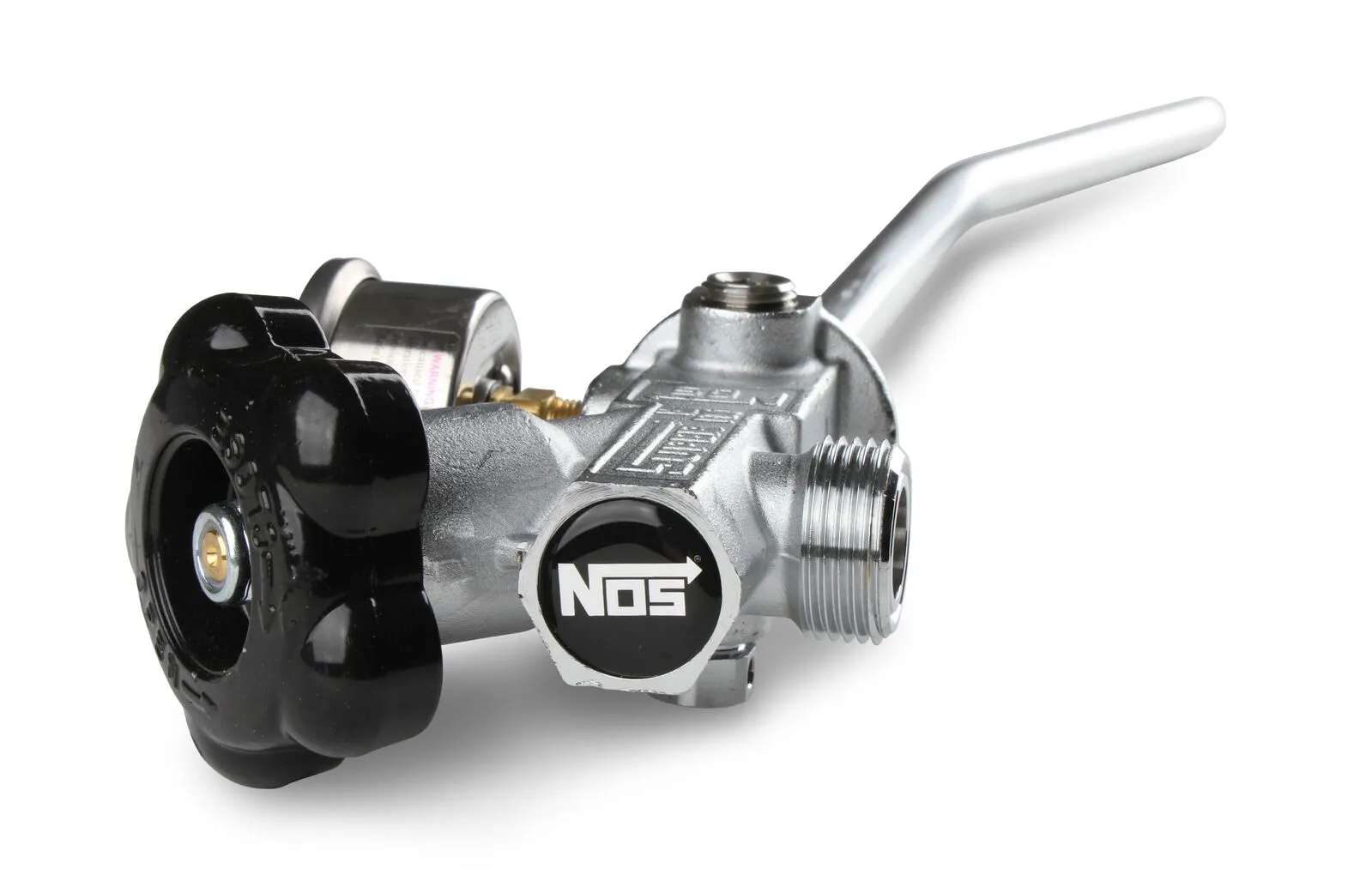

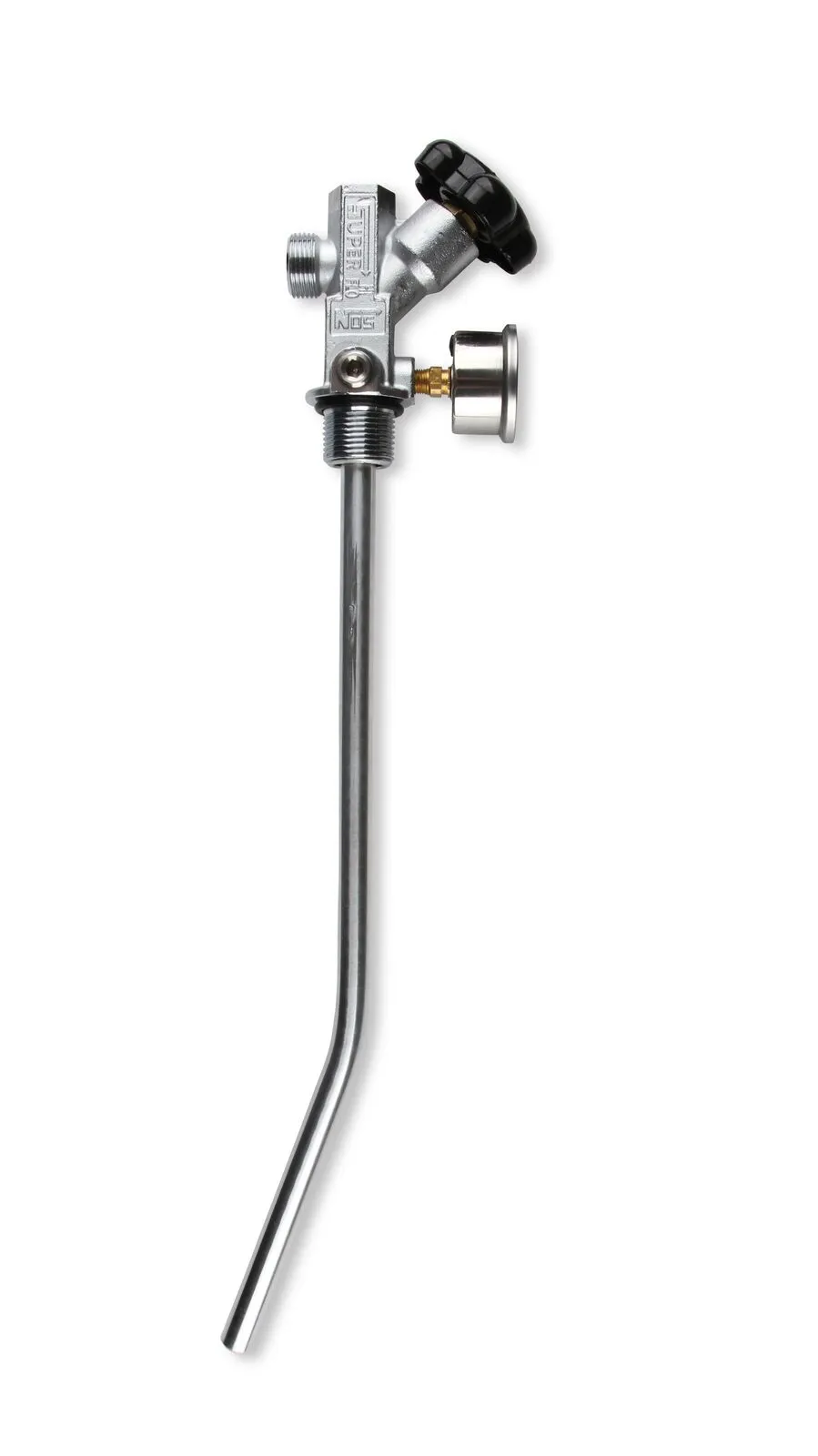

NOS now offers Super Hi-Flo bottle valve assemblies with siphon tube and nitrous pressure gauge already installed. This gives you a great way to upgrade to the highest flowing valve and tube NOS has to offer. Key bottle valve features include a 1/8"NPT gauge port, 1/4"NPT accessory port, large internal and outlet ports, along with an O-ring seal. Our 3/8" id screw-on siphon tube is made from 6061 aluminum can be used as an upgrade for an older style compression fitting tube. Lastly, included with our assemblies is either blue or black face 1-1/2" nitrous gauge with easy-to-see color graduations and a white pointer. These gauges have a stainless steel case with brass internals.

Features

  • Super Hi-Flow assembly features siphon tube and nitrous pressure gauge already installed
  • Great way to update a bottle to the best flowing valve NOS offers

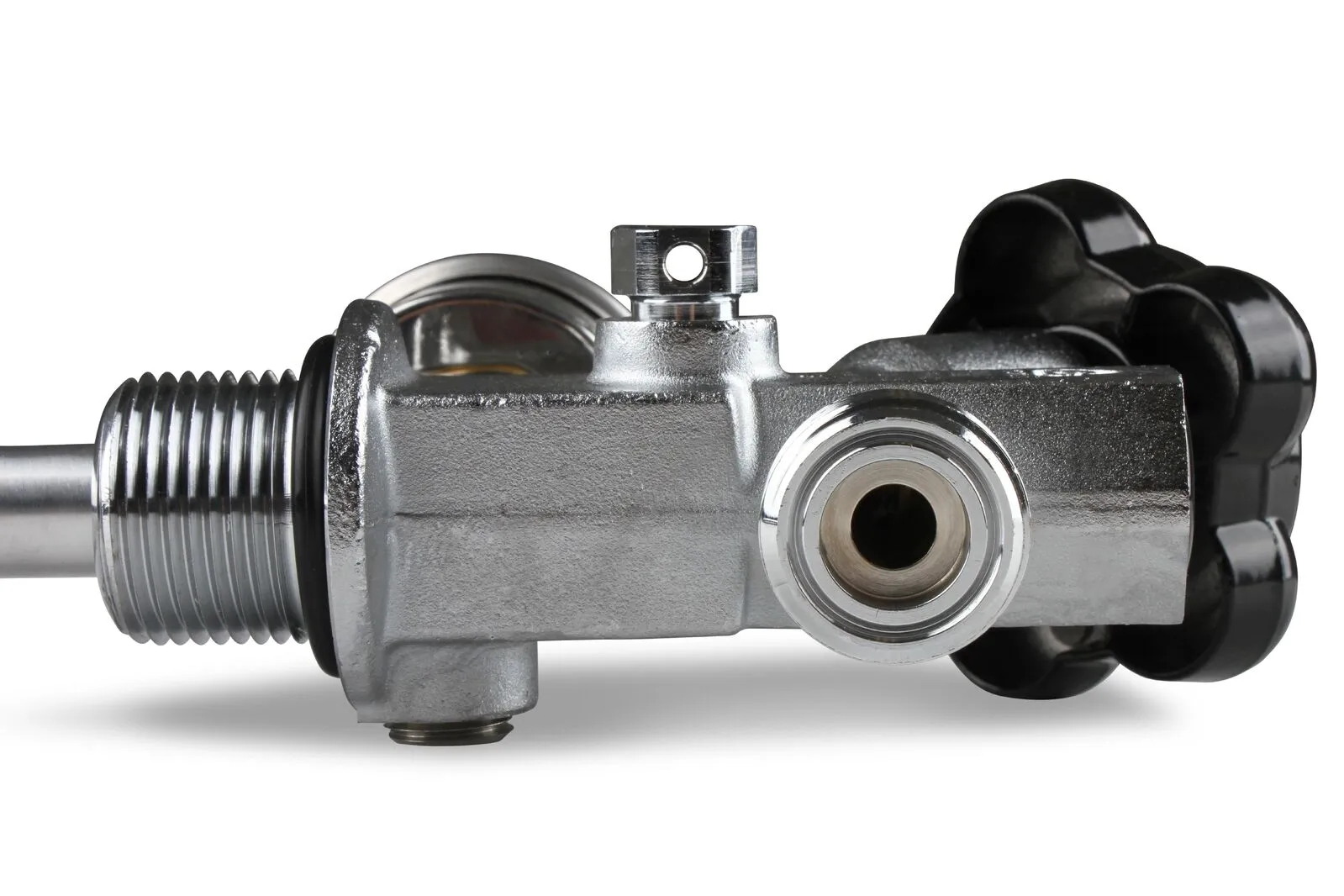

  • Valve has large internal ports for superior flow and an O-ring bottle seal
  • Siphon tube is made from 6061 aluminum and 3/8” I.D. for maximum flow

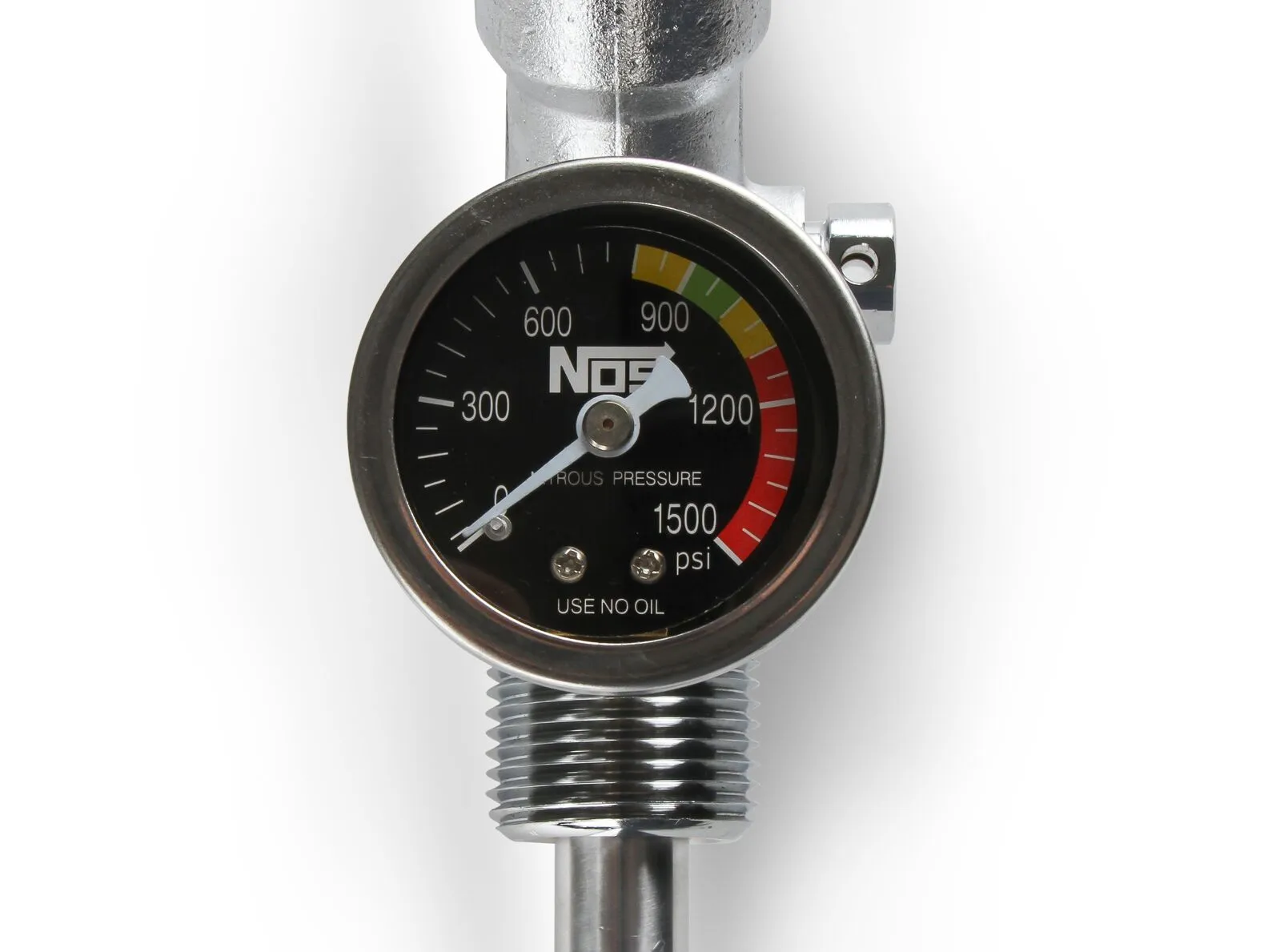

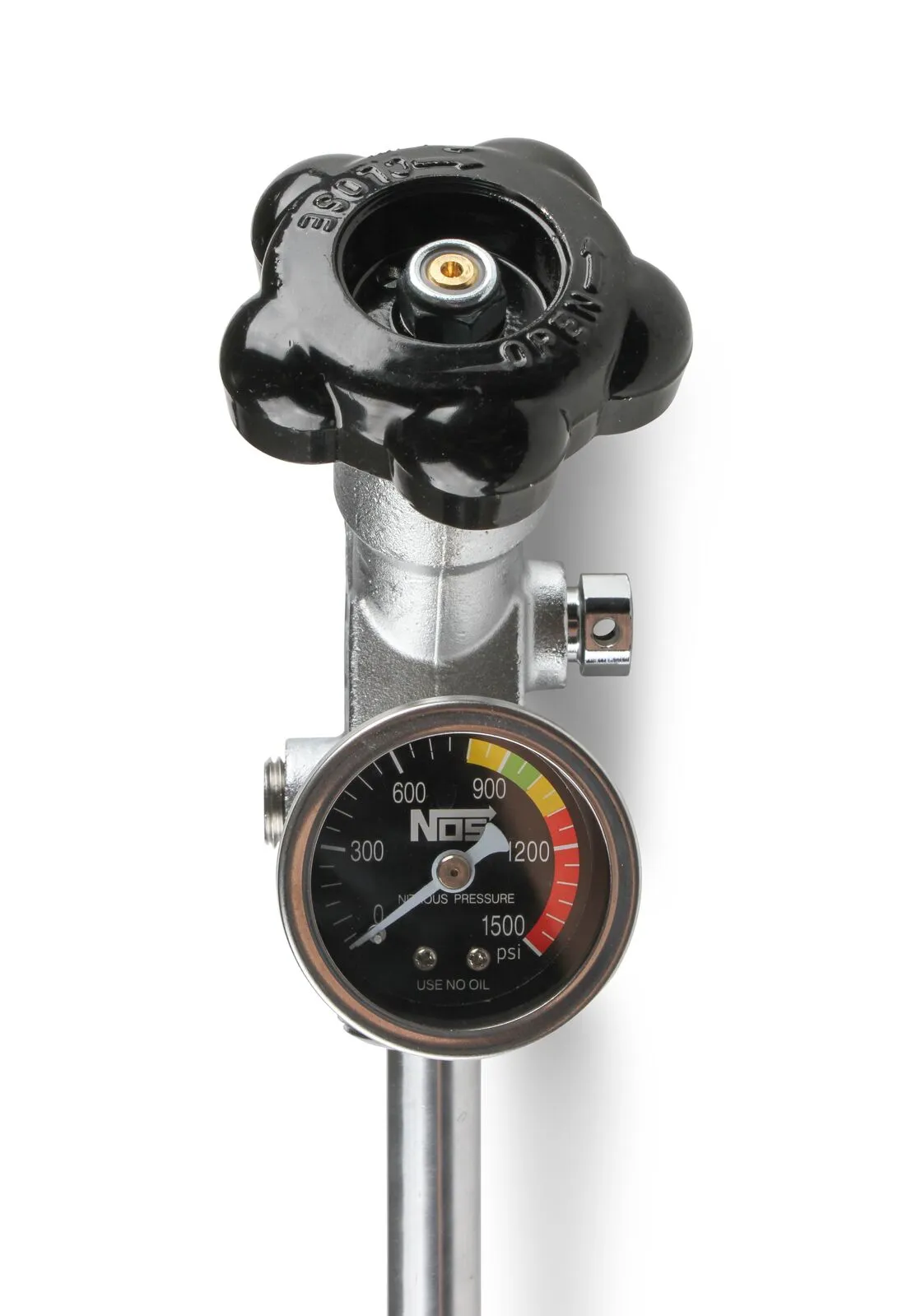

  • 1-1/2” diameter nitrous pressure gauge features stainless steel and brass construction providing accurate pressure measurement
  • Assembly is designed to Support 500+ Horsepower

Specifications

Bottle Size10 lb
Bottle ValveSuper Hi-Flo
BrandNOS
Diameter3/8 inch
Emission Code4
Gauge IncludedYes
Gauge TypeNitrous Pressure
Outlet ThreadCGA #660
Product TypeBottle Valve Assembly
Siphon Tube IncludedYes
Supported Horsepower500+
Torque Value100 ft-lb
Tube Length15-1/8 inch
Tube MaterialAluminum

Compatibility

  • Universal Part

NOS now offers Super Hi-Flo bottle valve assemblies with siphon tube and nitrous pressure gauge already installed. This gives you a great way to upgrade to the highest flowing valve and tube NOS has to offer. Key bottle valve features include a 1/8"NPT gauge port, 1/4"NPT accessory port, large internal and outlet ports, along with an O-ring seal. Our 3/8" id screw-on siphon tube is made from 6061 aluminum can be used as an upgrade for an older style compression fitting tube. Lastly, included with our assemblies is either blue or black face 1-1/2" nitrous gauge with easy-to-see color graduations and a white pointer. These gauges have a stainless steel case with brass internals.

Features

  • Super Hi-Flow assembly features siphon tube and nitrous pressure gauge already installed
  • Great way to update a bottle to the best flowing valve NOS offers
  • Valve has large internal ports for superior flow and an O-ring bottle seal
  • Siphon tube is made from 6061 aluminum and 3/8” I.D. for maximum flow
  • 1-1/2” diameter nitrous pressure gauge features stainless steel and brass construction providing accurate pressure measurement
  • Assembly is designed to Support 500+ Horsepower
Bottle Size10 lb
Bottle ValveSuper Hi-Flo
BrandNOS
Diameter3/8 inch
Emission Code4
Gauge IncludedYes
Gauge TypeNitrous Pressure
Outlet ThreadCGA #660
Product TypeBottle Valve Assembly
Siphon Tube IncludedYes
Supported Horsepower500+
Torque Value100 ft-lb
Tube Length15-1/8 inch
Tube MaterialAluminum
  • Universal Part
