Description

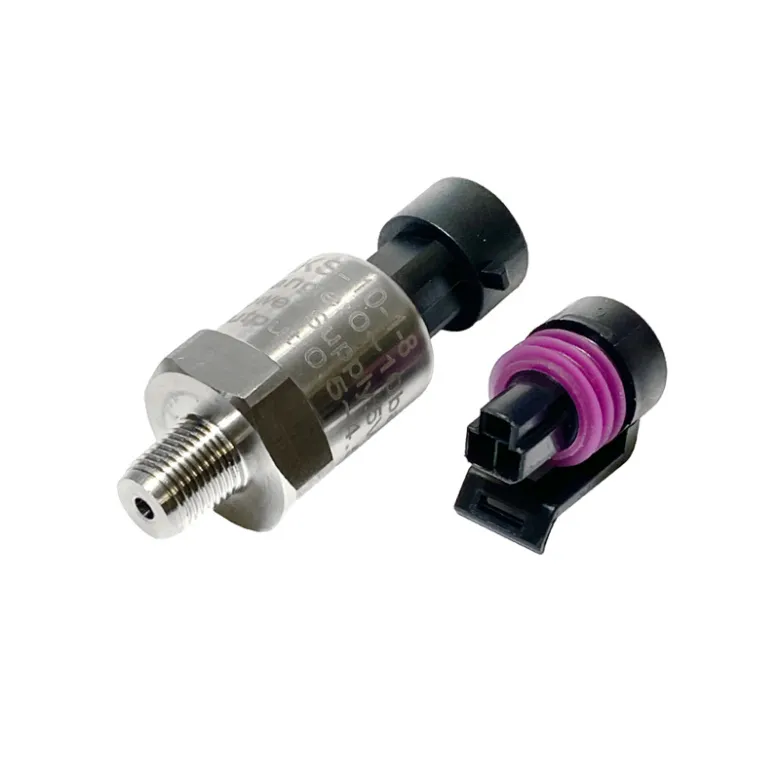

A pressure sensor that can be fitted to the Nuke Performance FPR100 series fuel pressure regulators.

Affordable and durable fuel and oil pressure sensor that fits straight into the 1/8 NPT thread of the Nuke Performance fuel pressure regulators, the FPR100s AN-6, FPR100m AN-8, and FPR100x AN-10.

Stainless steel (billet) body
For measuring fuel and oil pressure
Compatible with motor oils, fuel, E85, and Bio Ethanol (RE85)
1/8 NPT male thread

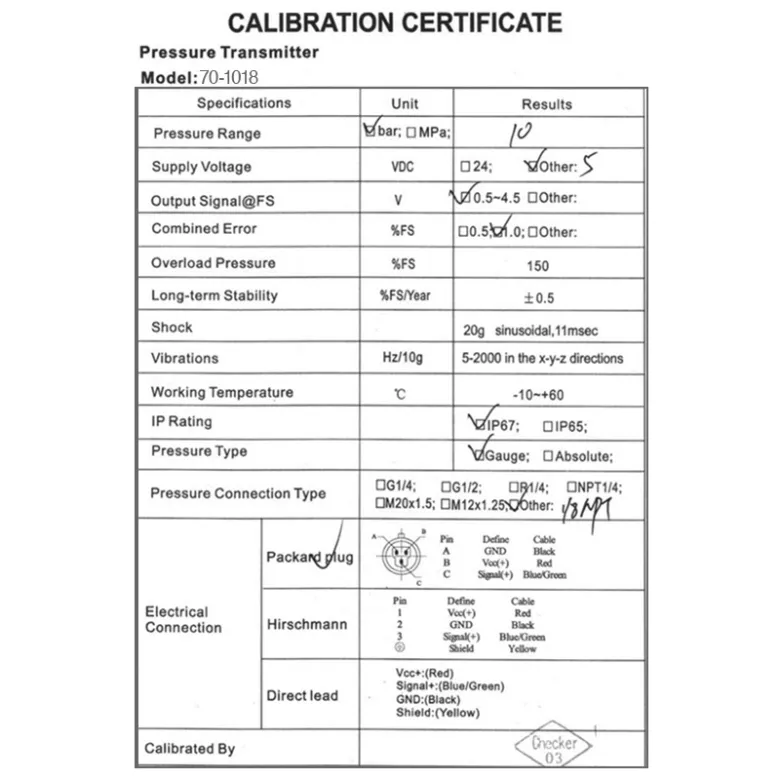

Input 5V, Output 0.5 - 4.5V
3 pole Packard type connector with terminals including

Pin 1 : VCC(+) / Red
Pin 2 :
GND / Black
Pin 3 :
Signal(+) / Blue/Green
Shield :
Shield / Yellow

Can be fitted to either a fuel pressure regulator with a 1/8 NPT female threaded port or adapters such as the Nuke Performance fuel pressure gauge adapter (available here).

Also available: With shielded cable Part # : 70-1018C

Disclaimer: This is not a Nuke Performance official product, this is only available as an accessory to our product range.

Quantity: 1pc

Specifications

Compatibility

  • Universal Part

A pressure sensor that can be fitted to the Nuke Performance FPR100 series fuel pressure regulators.

Affordable and durable fuel and oil pressure sensor that fits straight into the 1/8 NPT thread of the Nuke Performance fuel pressure regulators, the FPR100s AN-6, FPR100m AN-8, and FPR100x AN-10.

Stainless steel (billet) body
For measuring fuel and oil pressure
Compatible with motor oils, fuel, E85, and Bio Ethanol (RE85)
1/8 NPT male thread
Input 5V, Output 0.5 - 4.5V
3 pole Packard type connector with terminals including

Pin 1 : VCC(+) / Red
Pin 2 :
GND / Black
Pin 3 :
Signal(+) / Blue/Green
Shield :
Shield / Yellow

Can be fitted to either a fuel pressure regulator with a 1/8 NPT female threaded port or adapters such as the Nuke Performance fuel pressure gauge adapter (available here).

Also available: With shielded cable Part # : 70-1018C

Disclaimer: This is not a Nuke Performance official product, this is only available as an accessory to our product range.

Quantity: 1pc

  • Universal Part
