Description

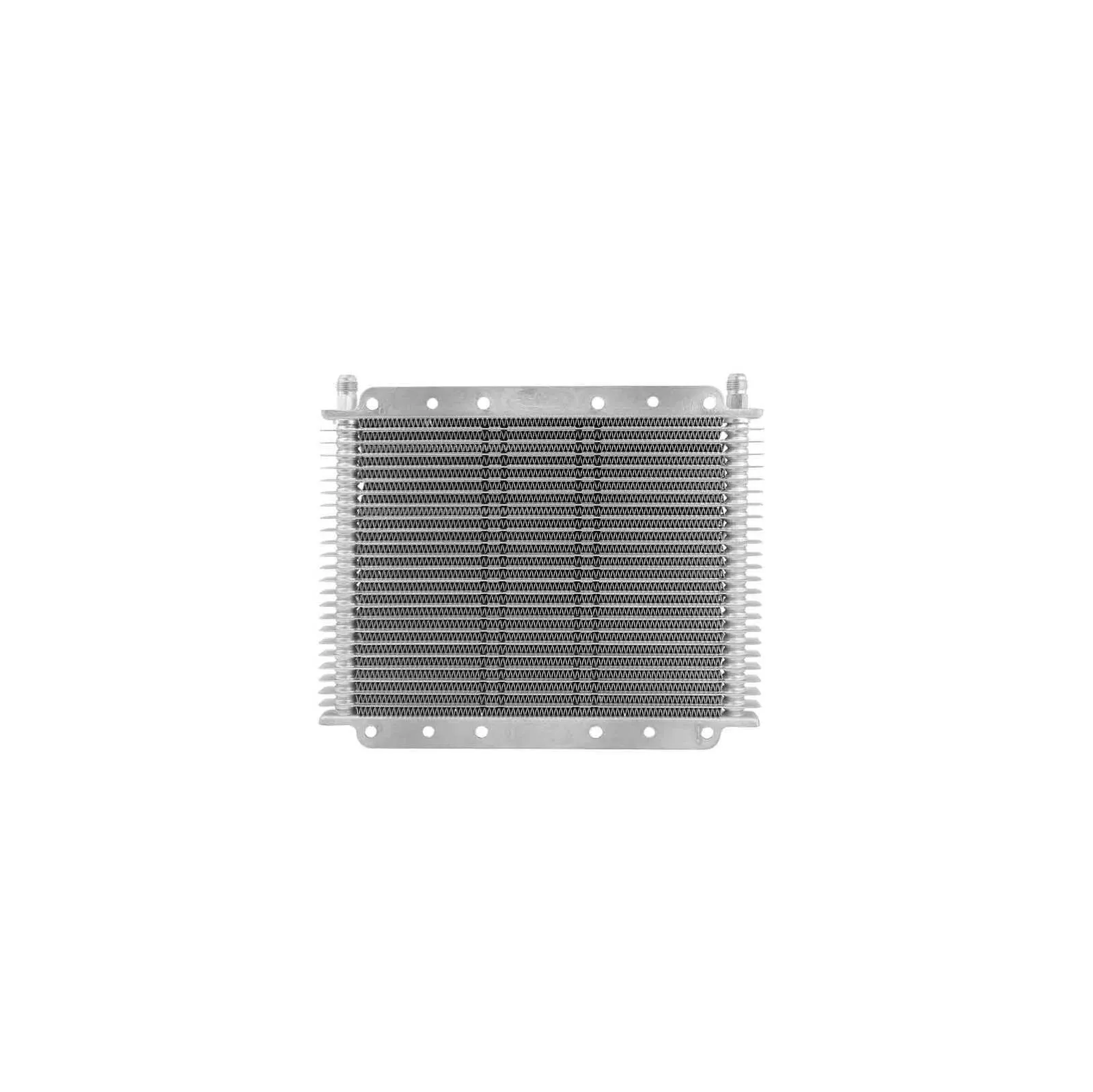

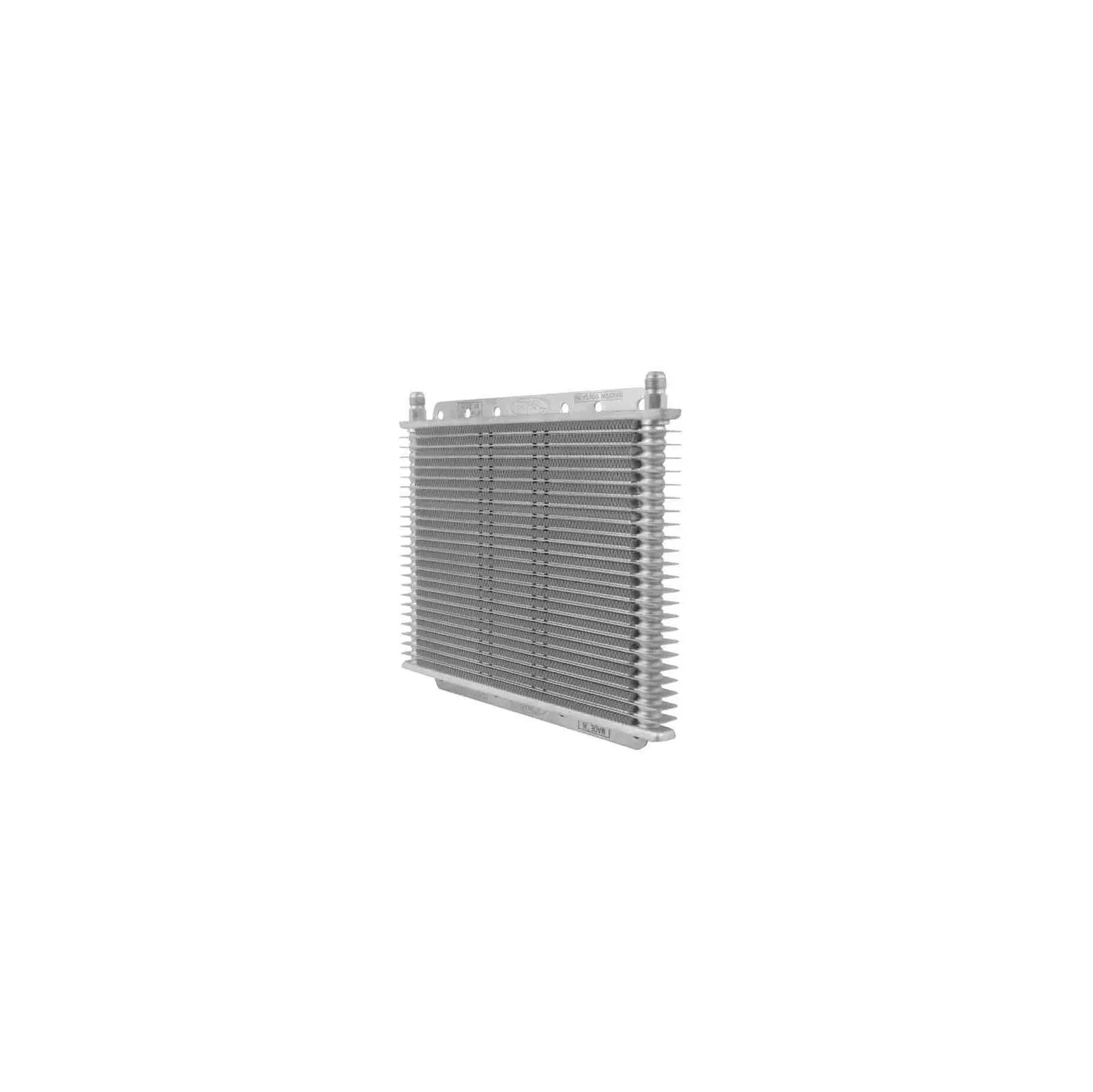

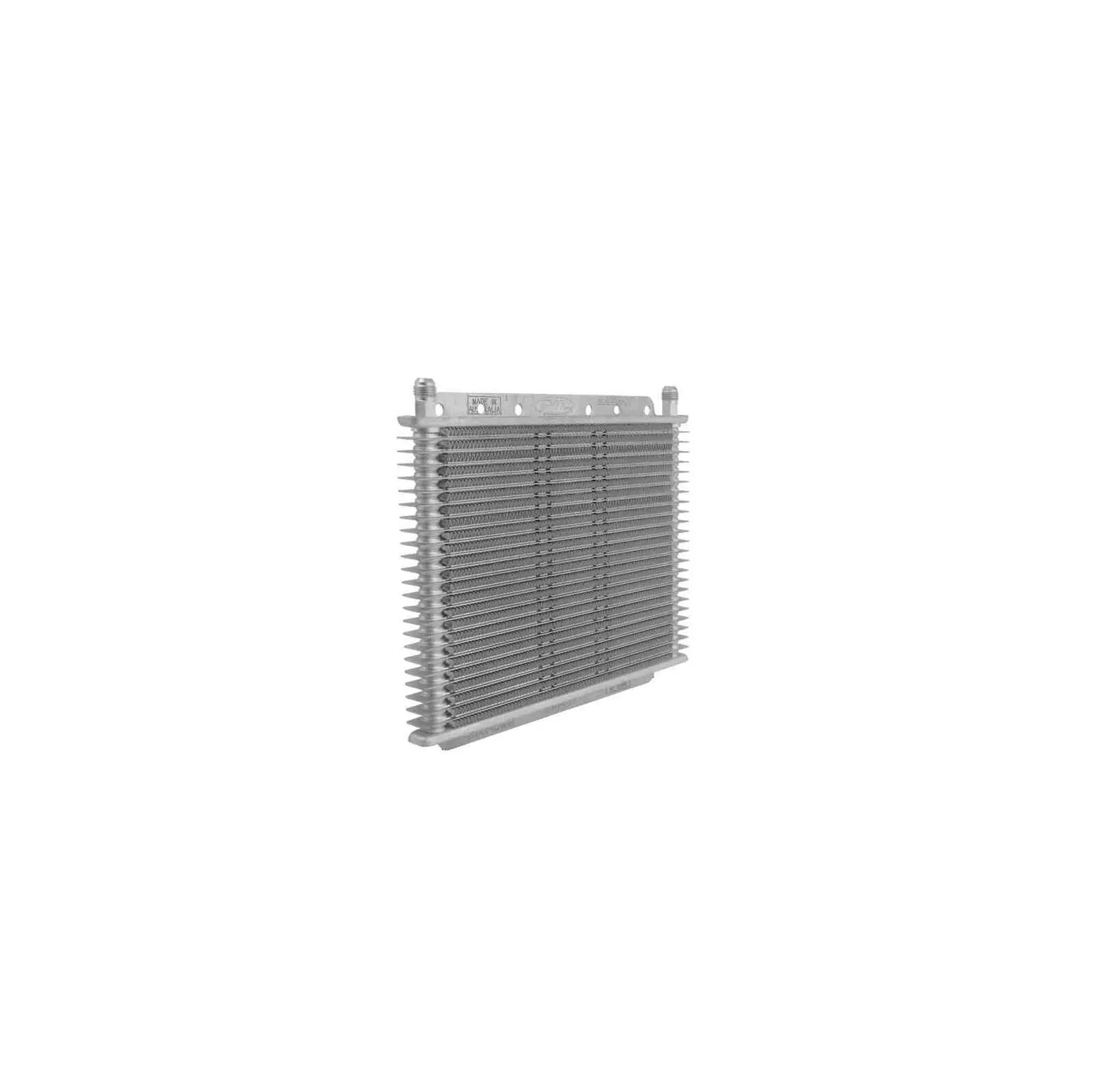

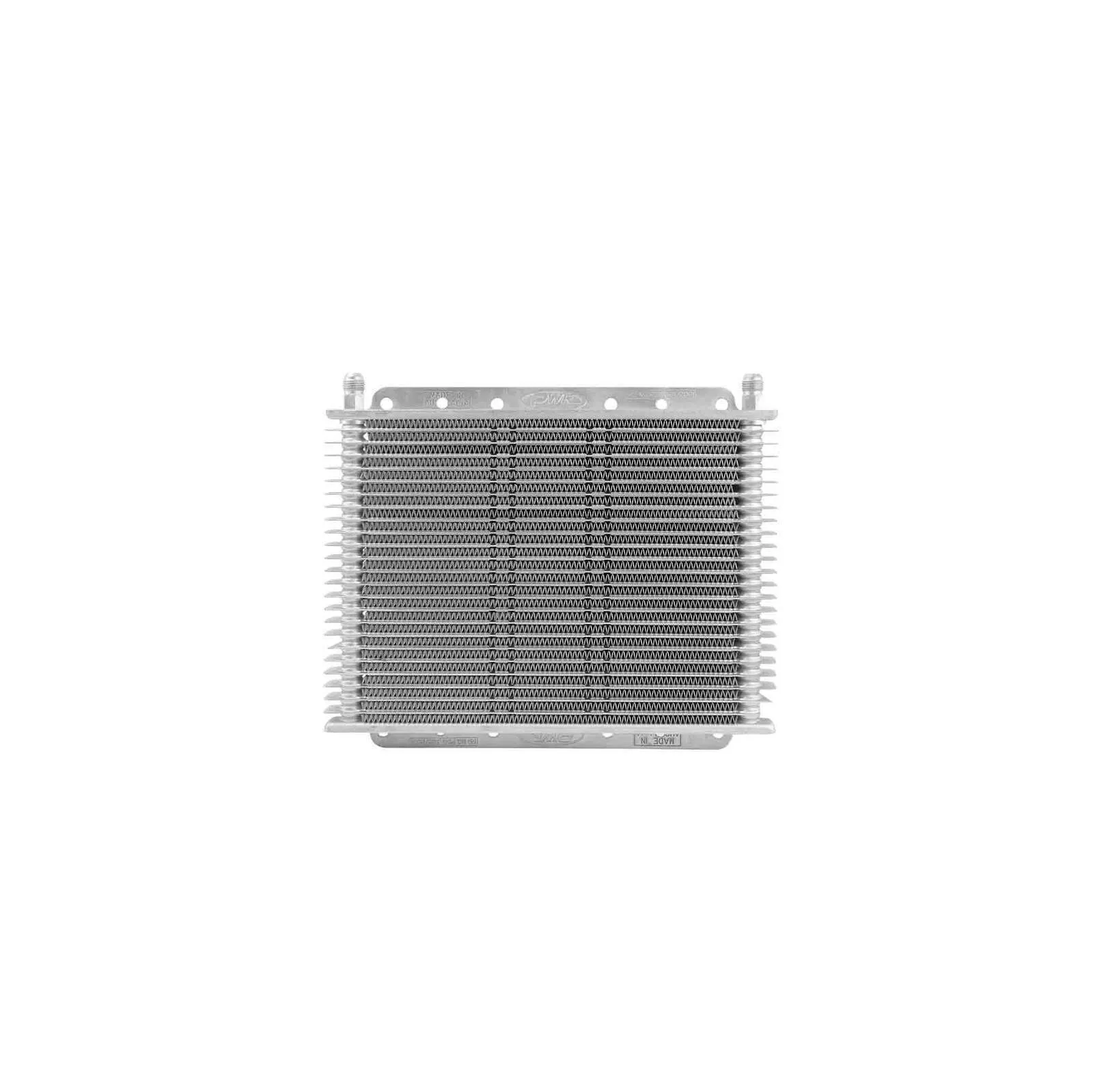

PWR’s patented plate and fin transmission oil coolers are made from 100% aluminium construction which allows the cooler to be made strong, lightweight and compact while offering high heat transfer and corrosion resistance. The plate design turbulates the oil flow and in conjunction with the unique louvered fin design provides highly efficient cooling with low-pressure drop. Manufactured with a 19mm core, these coolers are perfect for automatic transmissions, power steering and differential cooling for race and road applications. Offered with 5/16?, 3/8” or 1/2" push-on hose barbs or Dash -6 AN male threaded fittings. 5/16” and 3/8” can be ordered in kits containing hose, hose clamps and mounting hardware. Custom fittings for specific applications such as thermo switch bosses for thermo fan operation can be special ordered.

  • Universal fitment for easy installation
  • Kits contain necessary mounting hardware
  • High heat transfer
  • Low pressure drop
  • Suitable for up to 10 tonne gross vehicle weight and towing ratings up to 4.5 tonne
  • Start of the art controlled atmosphere brazing process
  • Pressure tested and guaranteed (200psi burst rating)
  • 1 Year manufactured warranty
  • 100% Australian made

Specifications

  • Aluminium
  • Bare

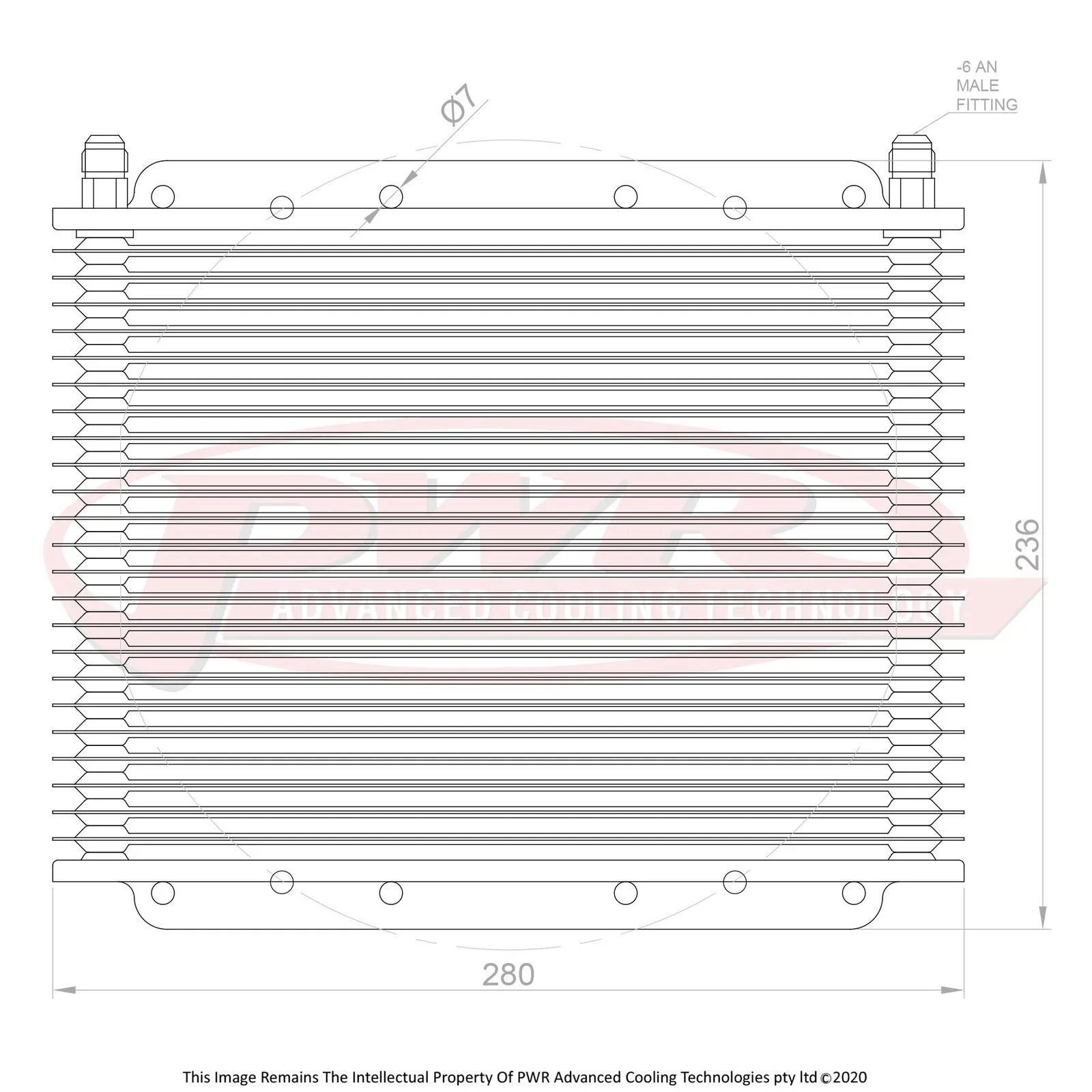

  • 280 x 200 x 19mm
  • Plate and Fin
  • -6AN Fittings

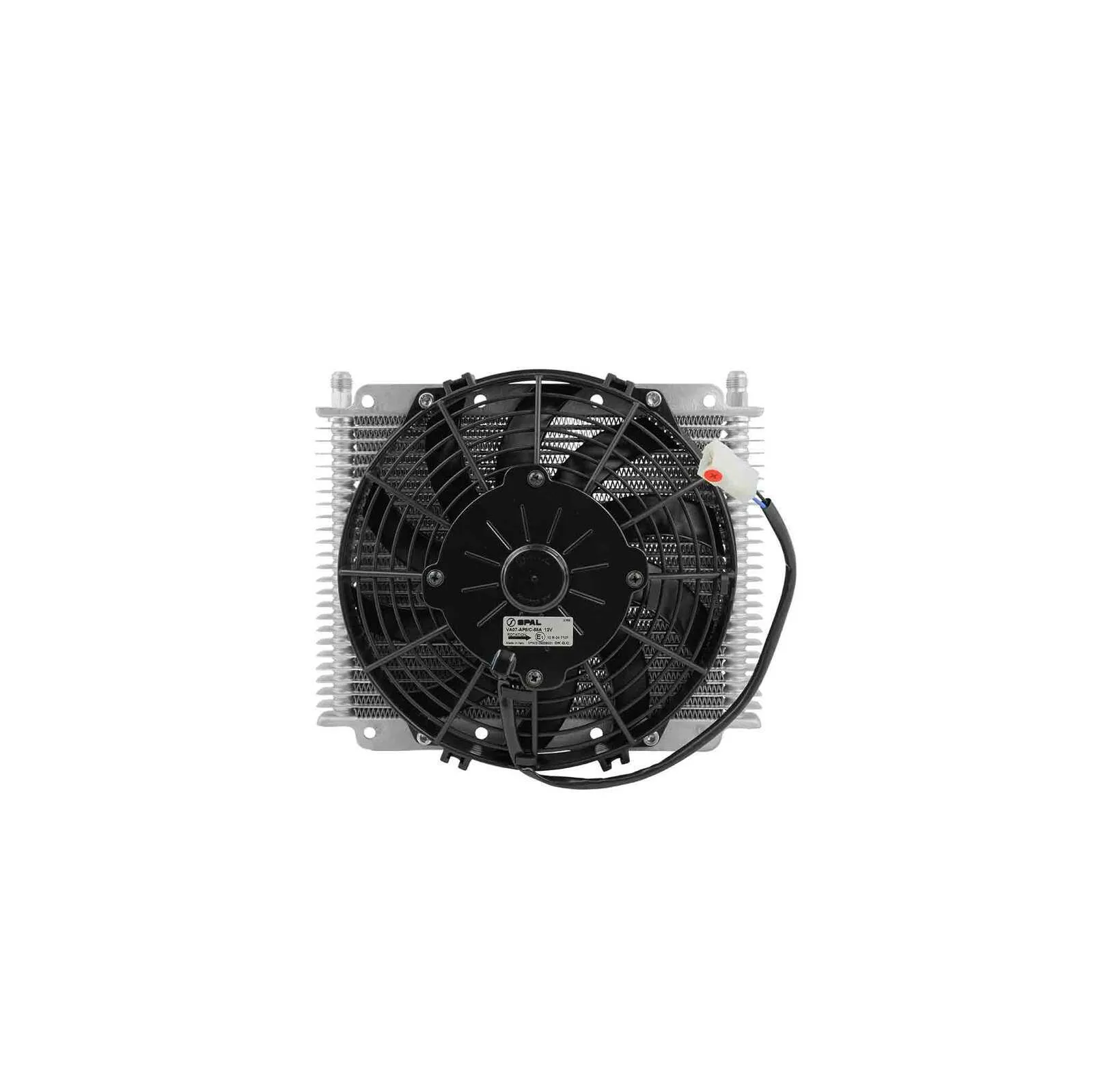

  • 9” SPAL Fan Mounts
  • Fan Sold Separately

What's Included

  • 1 x Transmission Cooler

Compatibility

  • Universal Part

PWR’s patented plate and fin transmission oil coolers are made from 100% aluminium construction which allows the cooler to be made strong, lightweight and compact while offering high heat transfer and corrosion resistance. The plate design turbulates the oil flow and in conjunction with the unique louvered fin design provides highly efficient cooling with low-pressure drop. Manufactured with a 19mm core, these coolers are perfect for automatic transmissions, power steering and differential cooling for race and road applications. Offered with 5/16?, 3/8” or 1/2" push-on hose barbs or Dash -6 AN male threaded fittings. 5/16” and 3/8” can be ordered in kits containing hose, hose clamps and mounting hardware. Custom fittings for specific applications such as thermo switch bosses for thermo fan operation can be special ordered.

  • Universal fitment for easy installation
  • Kits contain necessary mounting hardware
  • High heat transfer
  • Low pressure drop
  • Suitable for up to 10 tonne gross vehicle weight and towing ratings up to 4.5 tonne
  • Start of the art controlled atmosphere brazing process
  • Pressure tested and guaranteed (200psi burst rating)
  • 1 Year manufactured warranty
  • 100% Australian made
  • Aluminium
  • Bare
  • 280 x 200 x 19mm
  • Plate and Fin
  • -6AN Fittings
  • 9” SPAL Fan Mounts
  • Fan Sold Separately
  • 1 x Transmission Cooler
  • Universal Part
