Description

CA18 SPECIFIC KNOCK SENSOR CONVERSION KIT

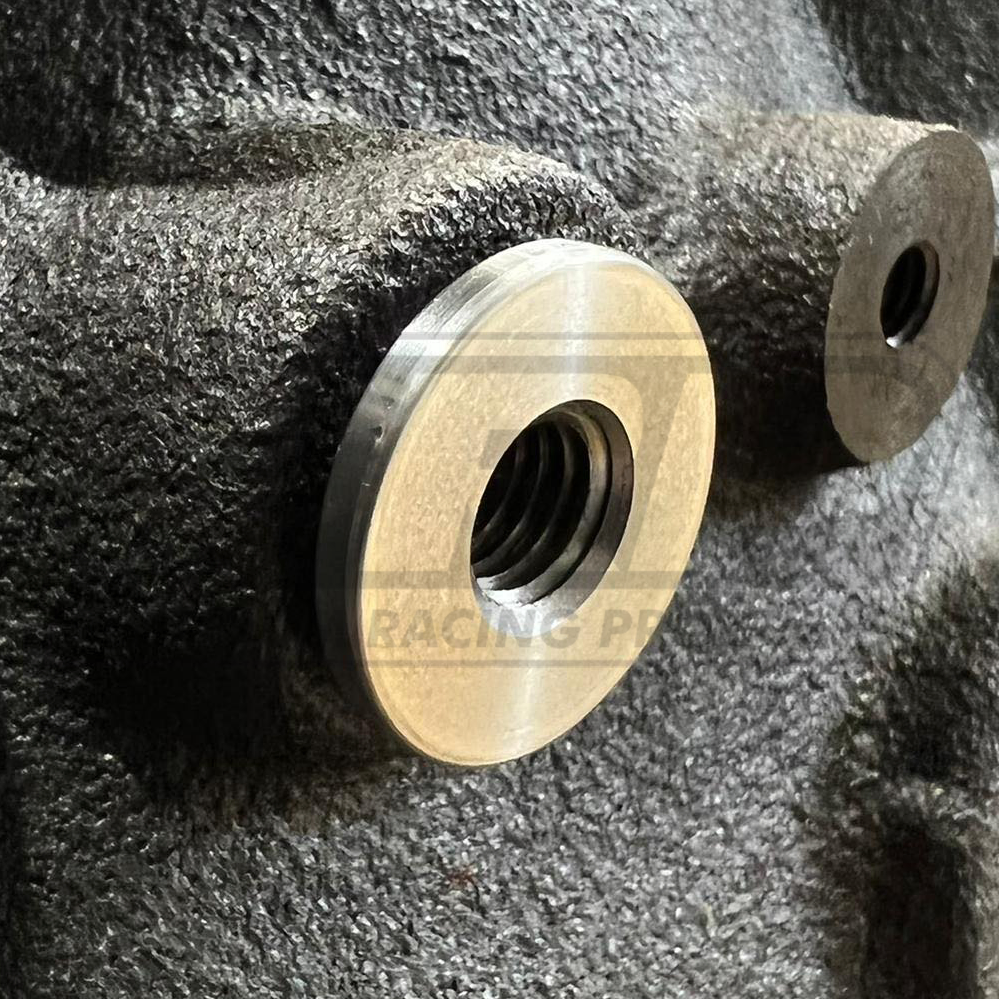

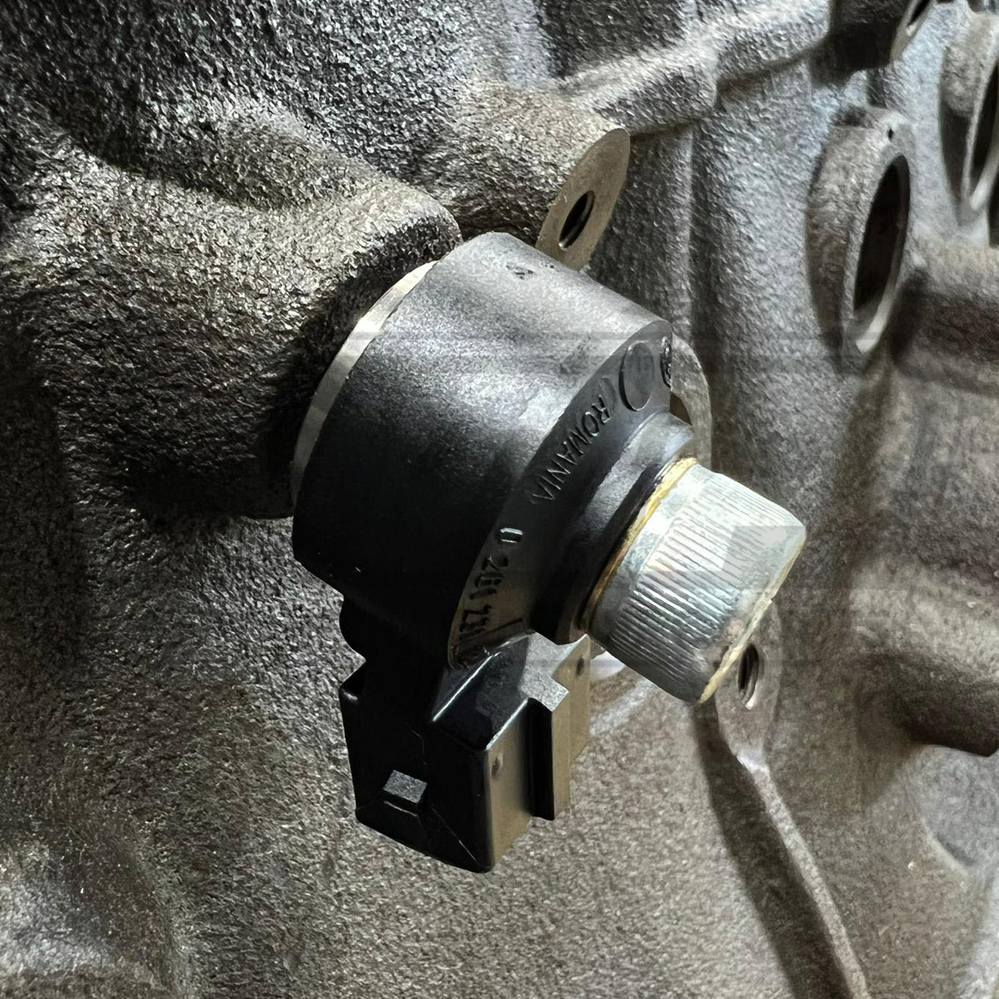

For the CA18 blocks that do not have the correct landing pad for the conventional (RB26 Style) Bosch knock sensor. We've developed a stainless fitting that converts the block to take it properly, this small well designed fitting has the required tapered thread that's easily installed with an allen key as a set and forget conversion for your conventional knock sensor to bolt up to. We have an optional extra with a stainless stud and titanium nut available. Along with the new features it still includes everything you're used to such as a high quality connector kit including a high temperature rated 90 degree silicone boot.

Type: Engine Vibration Measurement
Measurement Range: 3 to 25 kHz
Sensitivity (@5kHz): 26 ± 8mV/g
Impedance: >1MOhm
Capacitance field: 1150 ± 200 pF

Mounting Hole Diameter: 8.3mm
Supporting Sleeve: Brass
Connector Type: EV1 2Pin Jetronic
Installation Torque: 20±5Nm

Specifications

Yes - Titanium Hardware / 1x Sensor Kit

Compatibility

  • Nissan CA18

CA18 SPECIFIC KNOCK SENSOR CONVERSION KIT

For the CA18 blocks that do not have the correct landing pad for the conventional (RB26 Style) Bosch knock sensor. We've developed a stainless fitting that converts the block to take it properly, this small well designed fitting has the required tapered thread that's easily installed with an allen key as a set and forget conversion for your conventional knock sensor to bolt up to. We have an optional extra with a stainless stud and titanium nut available. Along with the new features it still includes everything you're used to such as a high quality connector kit including a high temperature rated 90 degree silicone boot.

Type: Engine Vibration Measurement
Measurement Range: 3 to 25 kHz
Sensitivity (@5kHz): 26 ± 8mV/g
Impedance: >1MOhm
Capacitance field: 1150 ± 200 pF

Mounting Hole Diameter: 8.3mm
Supporting Sleeve: Brass
Connector Type: EV1 2Pin Jetronic
Installation Torque: 20±5Nm

Yes - Titanium Hardware / 1x Sensor Kit

  • Nissan CA18
