Description

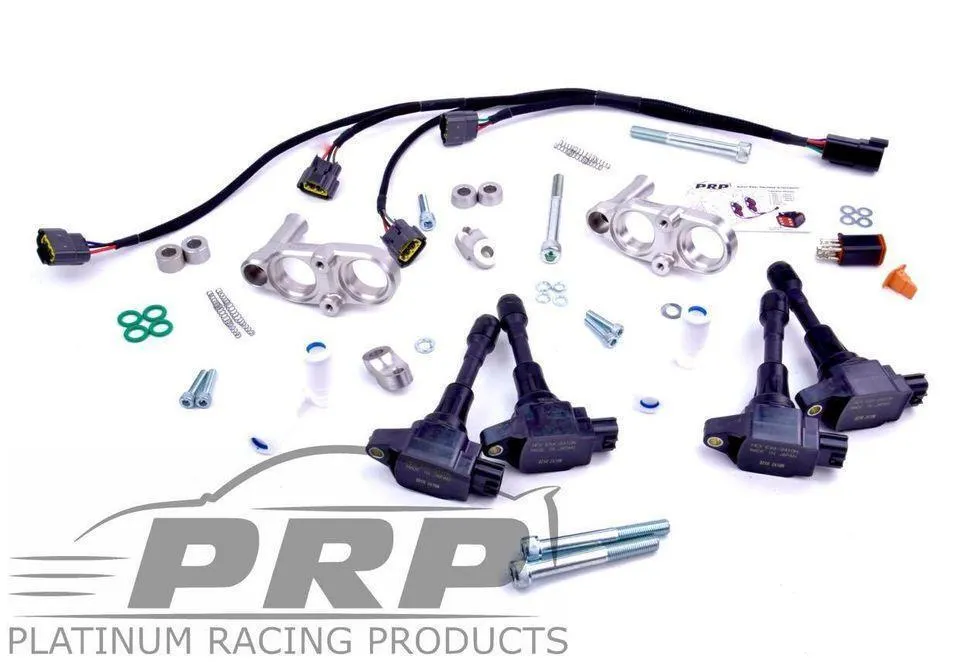

This new generation coil kit has been specifically designed as an upgraded direct drop-in replacement for the Mazda 13b and 20b rotary engines.

The coil kit incorporates Genuine Hitachi-Astemo R35 GTR VR38 Ignition coils, which have a much higher power output over OEM or conventional dizzy backed single-coils. This coil kit can be used as a direct wire in for all aftermarket ECU’s and to maximize performance we recommend you use the dwell data that can be found HERE.

Key Features:

  • Billet Alloy anodized brackets engineered to fit all ignition coils in a way that allows user-friendly access to all the coil plugs and spark plugs in a non-invasive manner.
  • Kit includes custom height CNC Machined Teflon composite short stalks that bring the coil head as close to the spark plug as possible (round 5mm off the tip)
  • Custom made springs already fitted inside the stalks make for extremely fast installation as well as no trimming of springs required.
  • Bench tested, club motorsport grade branded harness, high temp Tefzel wire and crimp joins used with OEM connectors and glue lined heat-shrink.
  • Genuine Hitachi-Astemo R35 GTR VR38 Ignition coils are rated to 1400hp and come with a 1-year warranty.
  • Bolt kit included caters for the 4 ignition coils and billet brackets to the engine.
  • Knock sensor provisions and double length spark plug spacer options also included.
  • Lifetime warranty on all PRP products.

Please note:

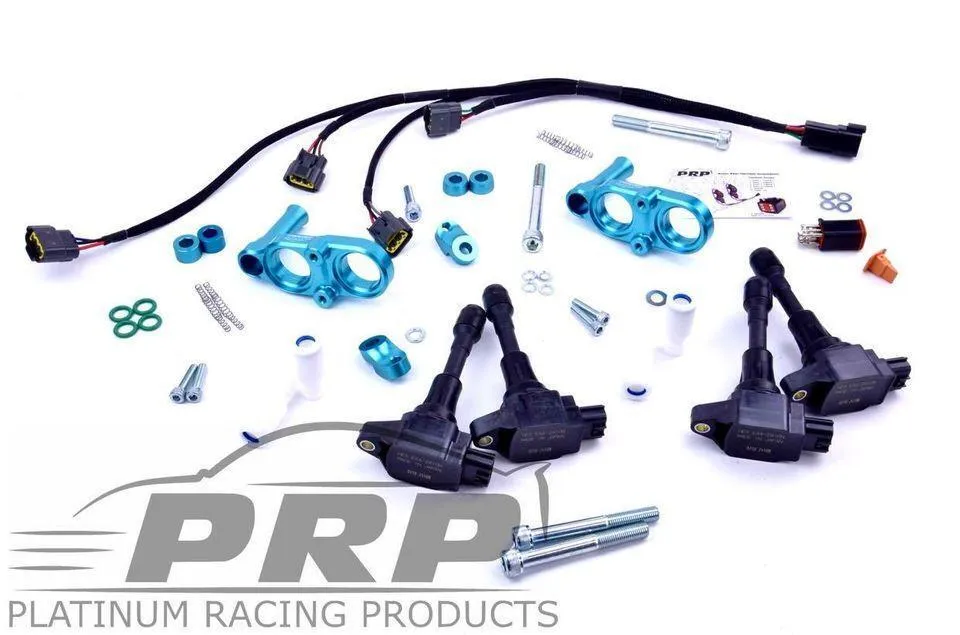

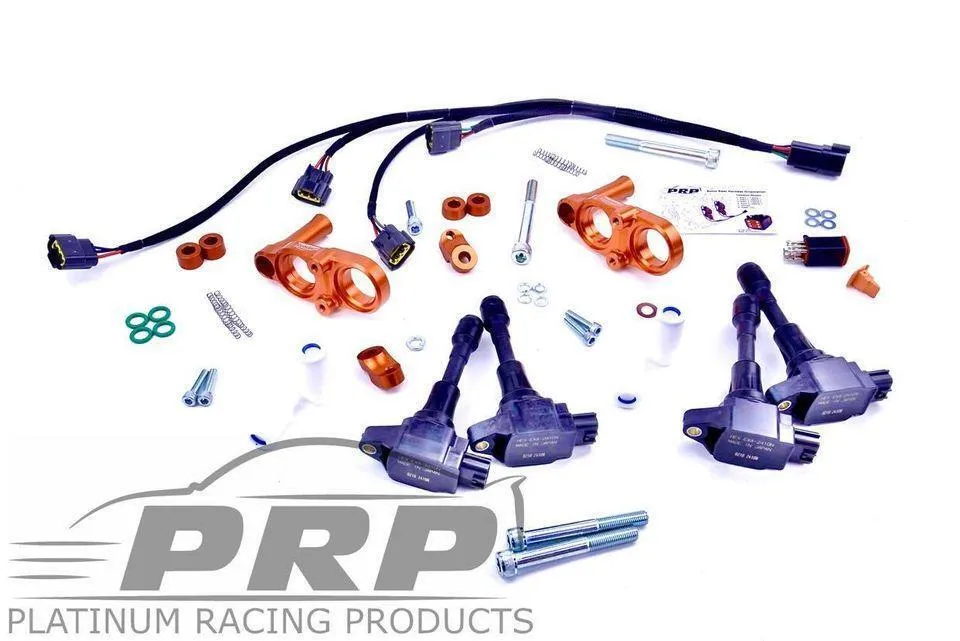

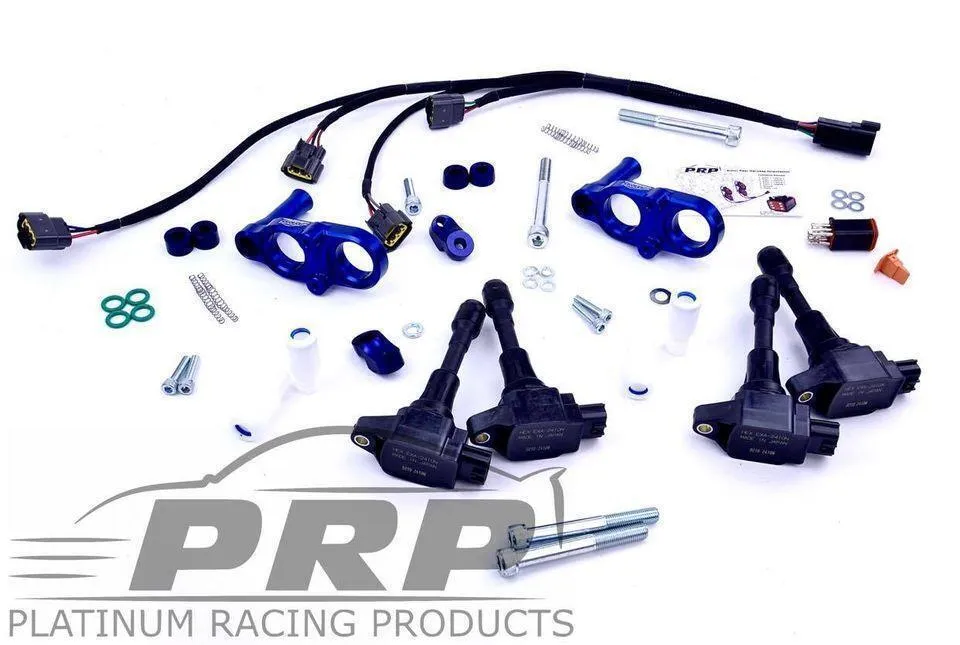

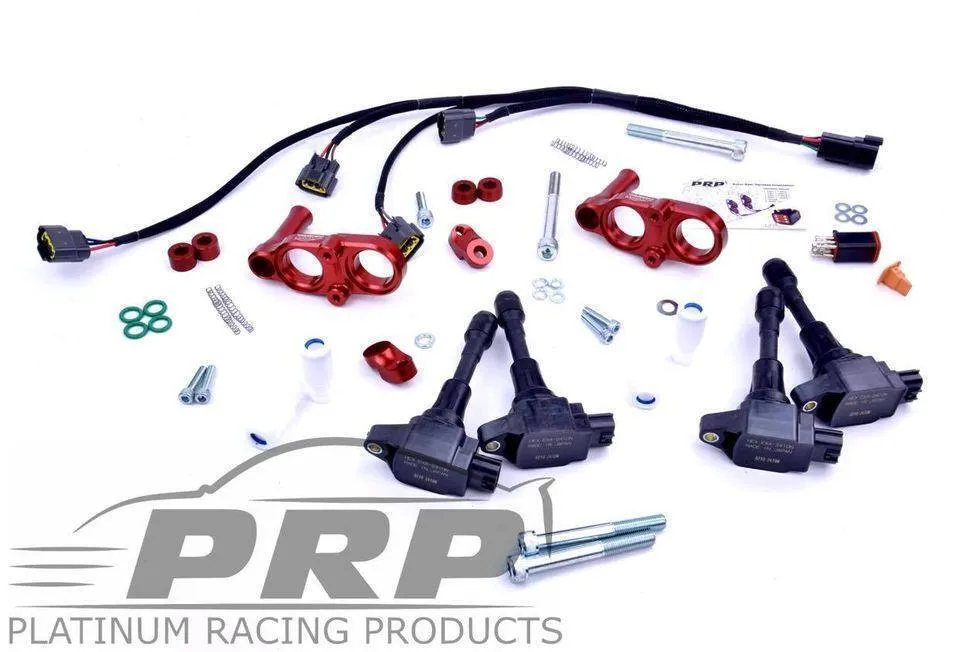

  • if you would like Optional Colours - Green, Orange, Teal, Bronze or Grey, please let us know in the CART area.

Suits 13b and 20b Rotor engines.



Specifications

  • Billet Alloy anodized brackets engineered to fit all ignition coils in a way that allows user-friendly access to all the coil plugs and spark plugs in a non-invasive manner.
  • Kit includes custom height CNC Machined Teflon composite short stalks that bring the coil head as close to the spark plug as possible (round 5mm off the tip)
  • Custom made springs already fitted inside the stalks make for extremely fast installation as well as no trimming of springs required.
  • Bench tested, club motorsport grade branded harness, high temp Tefzel wire and crimp joins used with OEM connectors and glue lined heat-shrink.
  • Genuine Hitachi-Astemo R35 GTR VR38 Ignition coils are rated to 1400hp and come with a 1-year warranty.
  • Bolt kit included caters for the 4 ignition coils and billet brackets to the engine.
  • Knock sensor provisions and double length spark plug spacer options also included.
  • Lifetime warranty on all PRP products.

Compatibility

  • 2003 - 2012 Mazda RX-8
  • 1989 - 1991 Mazda RX-7 S5
  • 1986 - 1988 Mazda RX-7 S4
  • 1992 - 2002 Mazda RX-7 FD (Series 6)
  • 1979 - 1985 Mazda RX 7
  • 1975 - 1979 Mazda RX 5
  • 1974 - 1978 Mazda RX 4

This new generation coil kit has been specifically designed as an upgraded direct drop-in replacement for the Mazda 13b and 20b rotary engines.

The coil kit incorporates Genuine Hitachi-Astemo R35 GTR VR38 Ignition coils, which have a much higher power output over OEM or conventional dizzy backed single-coils. This coil kit can be used as a direct wire in for all aftermarket ECU’s and to maximize performance we recommend you use the dwell data that can be found HERE.

Key Features:

  • Billet Alloy anodized brackets engineered to fit all ignition coils in a way that allows user-friendly access to all the coil plugs and spark plugs in a non-invasive manner.
  • Kit includes custom height CNC Machined Teflon composite short stalks that bring the coil head as close to the spark plug as possible (round 5mm off the tip)
  • Custom made springs already fitted inside the stalks make for extremely fast installation as well as no trimming of springs required.
  • Bench tested, club motorsport grade branded harness, high temp Tefzel wire and crimp joins used with OEM connectors and glue lined heat-shrink.
  • Genuine Hitachi-Astemo R35 GTR VR38 Ignition coils are rated to 1400hp and come with a 1-year warranty.
  • Bolt kit included caters for the 4 ignition coils and billet brackets to the engine.
  • Knock sensor provisions and double length spark plug spacer options also included.
  • Lifetime warranty on all PRP products.

Please note:

  • if you would like Optional Colours - Green, Orange, Teal, Bronze or Grey, please let us know in the CART area.

Suits 13b and 20b Rotor engines.



  • 2003 - 2012 Mazda RX-8
  • 1989 - 1991 Mazda RX-7 S5
  • 1986 - 1988 Mazda RX-7 S4
  • 1992 - 2002 Mazda RX-7 FD (Series 6)
  • 1979 - 1985 Mazda RX 7
  • 1975 - 1979 Mazda RX 5
  • 1974 - 1978 Mazda RX 4
