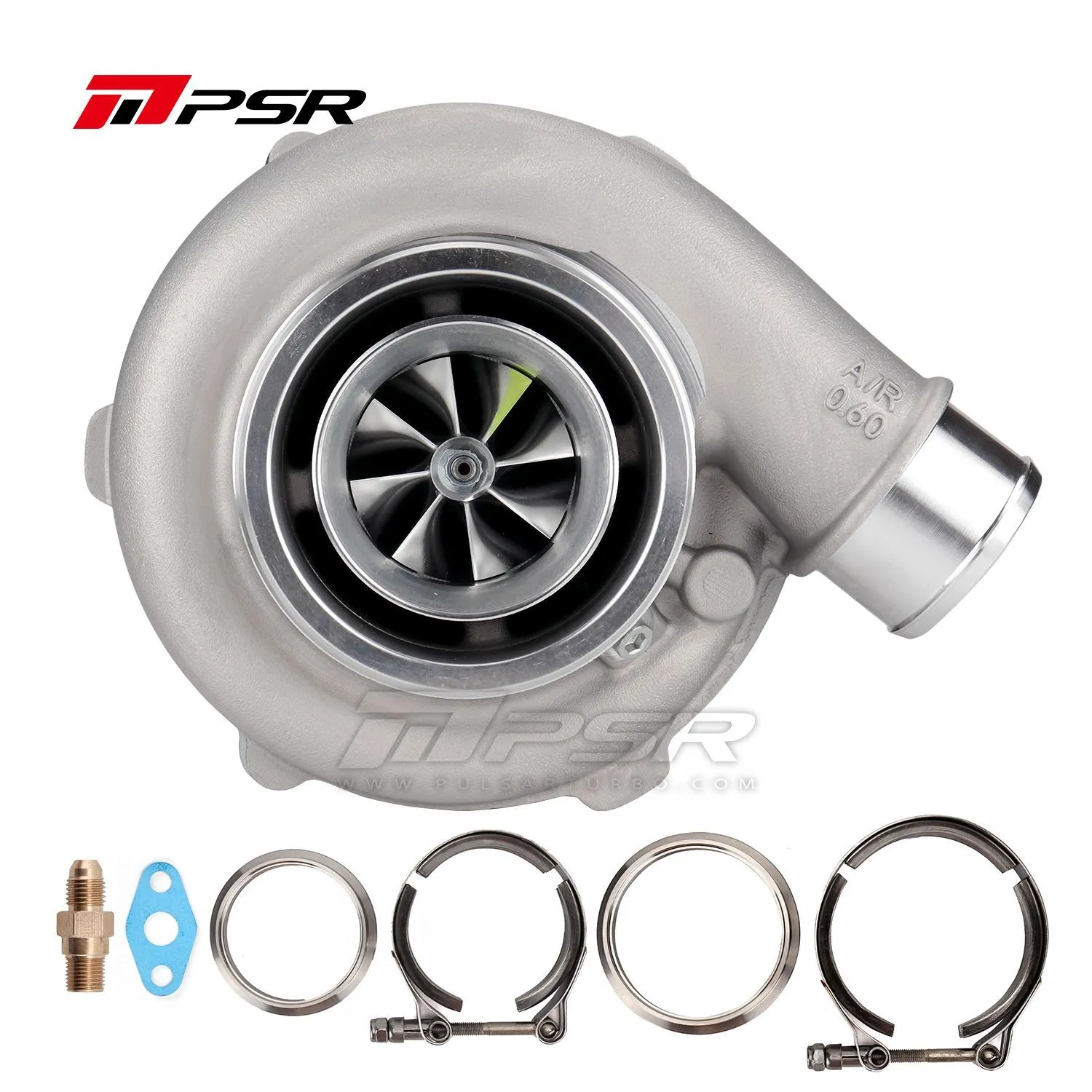

Description

  • Dual Ceramic Ball Bearing System
  • 8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
  • Inconel 713c 10 Blade Turbine Wheel
  • Gen2 Cover Integrated with the Speed Sensor Port
  • 0.83 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet turbine housing In option
  • V-Band Flange kit(s) for the exhaust housing included
  • Max Air Flow rate: ~60 lb/min, rated @ 650 FWHP
  • Compressor Wheel: 54*71mm
  • Turbine Wheel: 60*55mm
  • Compressor Inlet: 4? Hose
  • Compressor Outlet: 2? Hose
  • Turbine Inlet: T3, T4 or 2?? V-Band
  • Turbine Outlet: 3?? V-Band(3.55?OD)
  • Oil Feed: -4 AN connect to the Oil Restrictor
  • Oil Drain: Std T3 Flange
  • Water In/Outlet: M14*1.5

We highly recommended running water cooling for better durability.

Specifications

Compatibility

  • Universal Part
  • Dual Ceramic Ball Bearing System
  • 8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
  • Inconel 713c 10 Blade Turbine Wheel
  • Gen2 Cover Integrated with the Speed Sensor Port
  • 0.83 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet turbine housing In option
  • V-Band Flange kit(s) for the exhaust housing included
  • Max Air Flow rate: ~60 lb/min, rated @ 650 FWHP
  • Compressor Wheel: 54*71mm
  • Turbine Wheel: 60*55mm
  • Compressor Inlet: 4? Hose
  • Compressor Outlet: 2? Hose
  • Turbine Inlet: T3, T4 or 2?? V-Band
  • Turbine Outlet: 3?? V-Band(3.55?OD)
  • Oil Feed: -4 AN connect to the Oil Restrictor
  • Oil Drain: Std T3 Flange
  • Water In/Outlet: M14*1.5

We highly recommended running water cooling for better durability.

  • Universal Part
