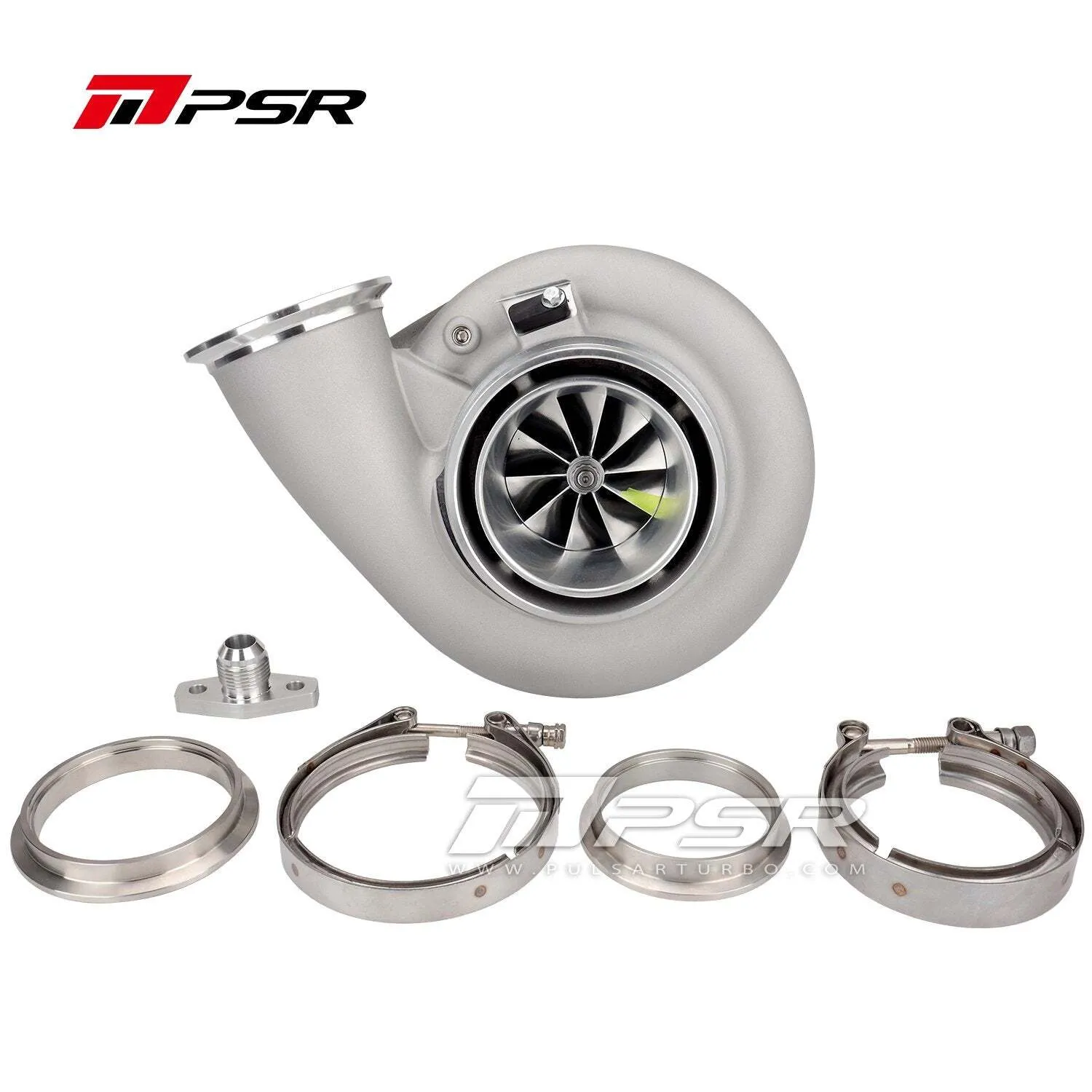

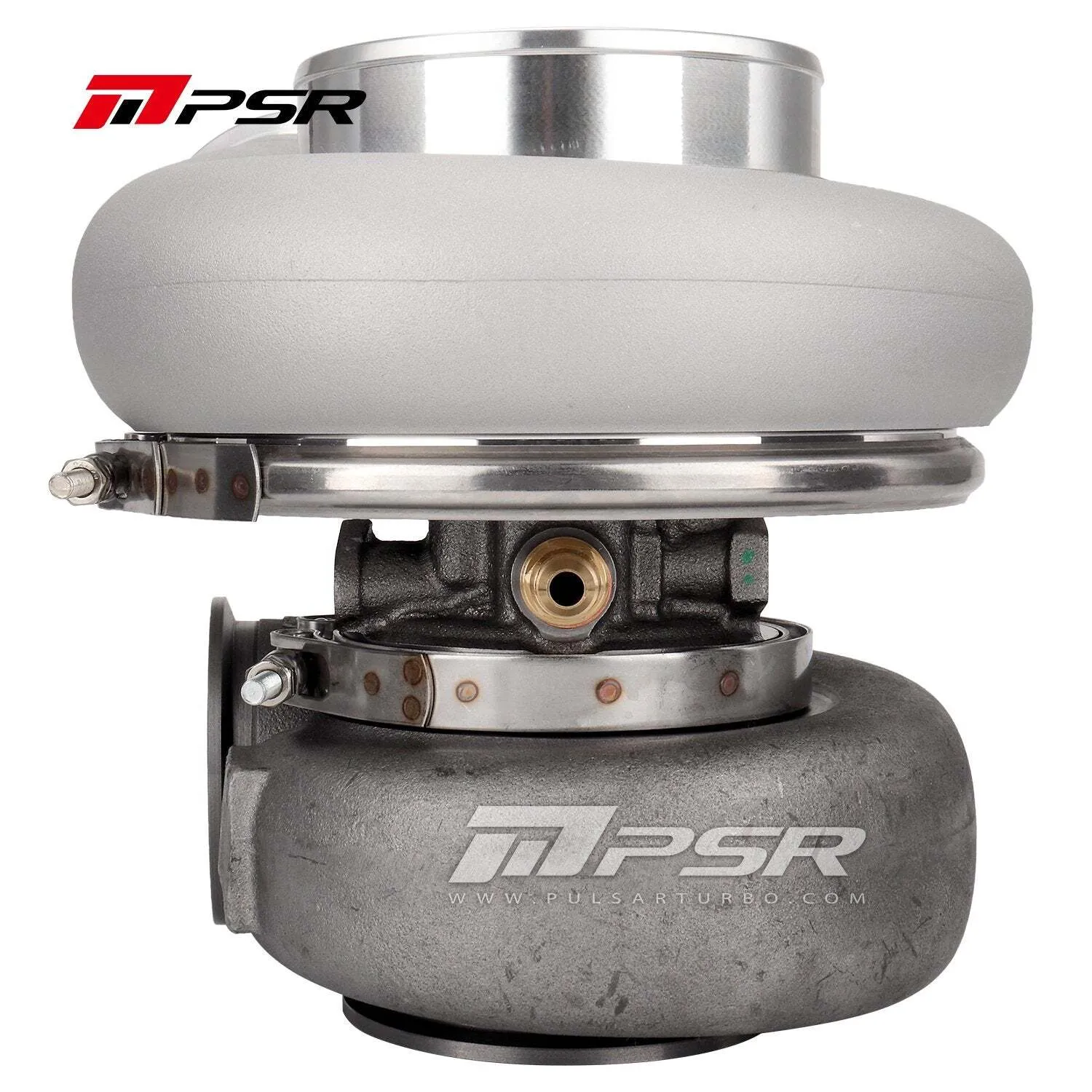

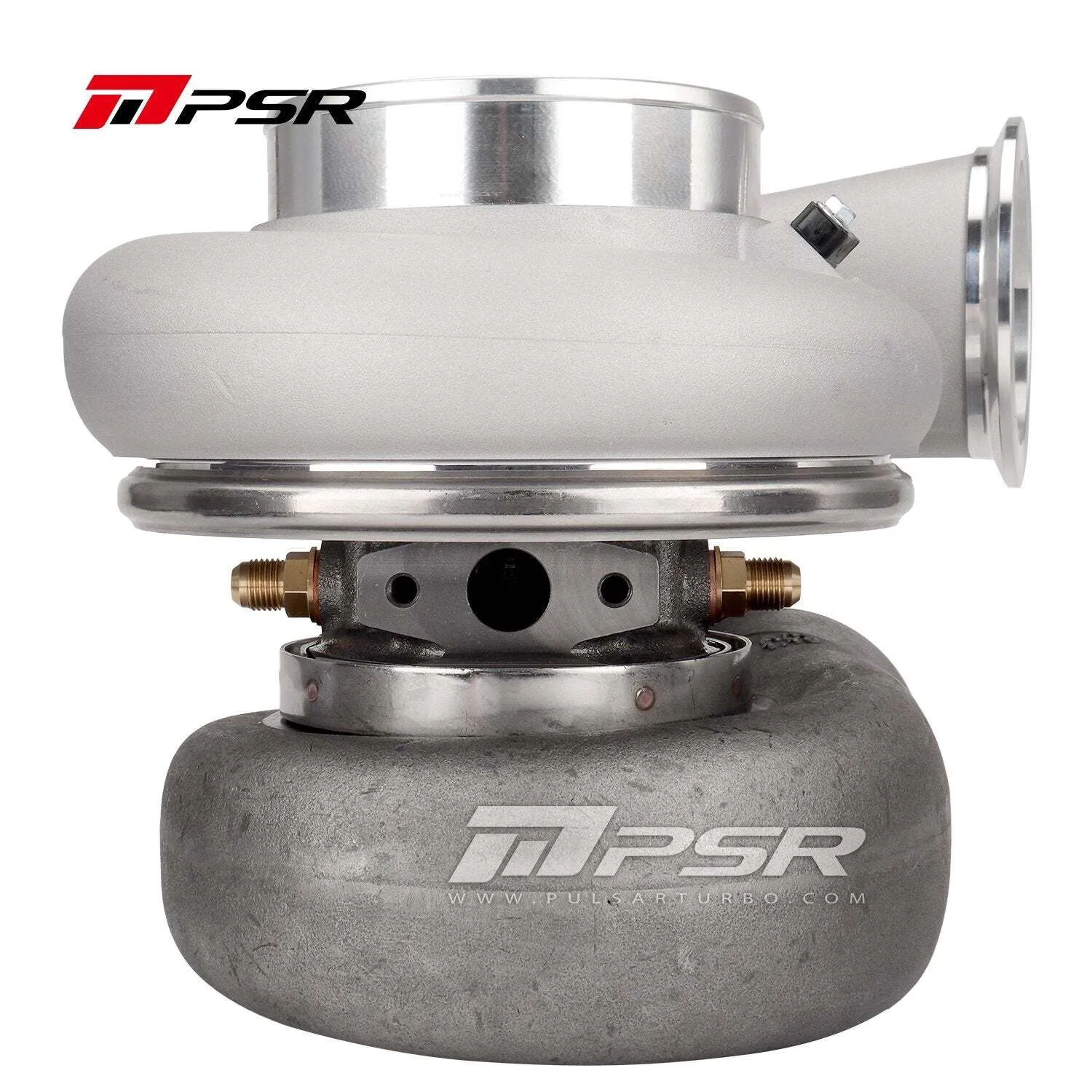

Description

  • Dual ceramic ball bearing system provides optimal turbo response &
    better durability by reducing the shaft-motion
  • 9 Blade PTG-Aero billet compressor wheel with extended tapered tip technology
  • 9 Blade PTG-Aero Inconel 713c turbine wheel
  • Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
    • Compressor Wheel: 73*91mm
    • Turbine Wheel: 82*75mm
    • Compressor Inlet: 5? Hose
    • Compressor Outlet: 3? V-Band
    • Turbine Inlet: 3? V-Band
    • Turbine Outlet: 3.5? V-Band
    • Water Ports: -6AN
    • Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange Restricted)

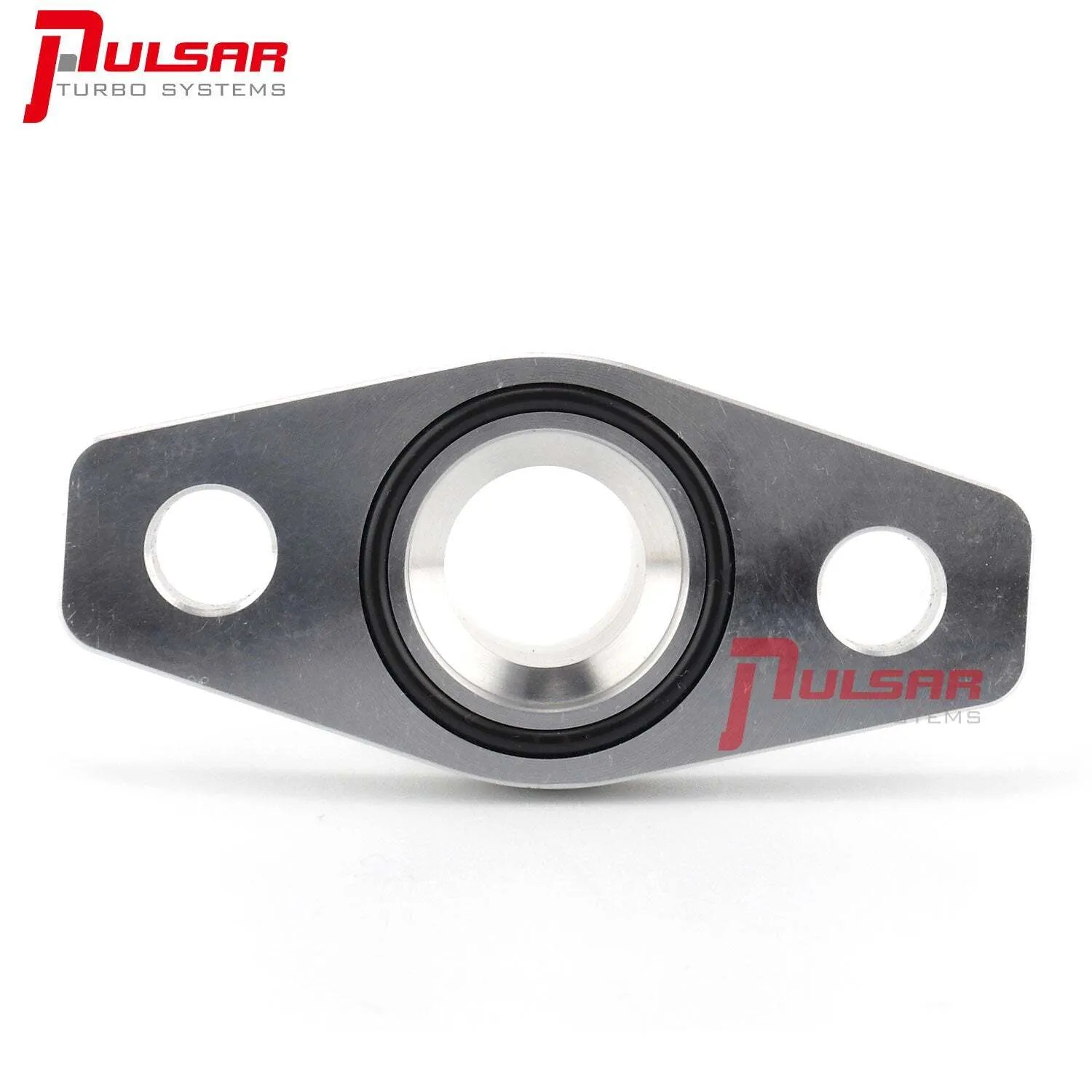

    • Oil Drain: -12AN(O-Ring sealed Flange Kit InclÂ’)

  • Turbine housing option:

    1. T4(Open) inlet, Vband outlet, 1.15 A/R
    2. T4(Divided) inlet, Vband outlet, 1.15 A/R
    3. T4(Divided) inlet, Vband outlet, 1.28 A/R
    4. Vband inlet and Vband outlet, 1.01 A/R
    5. Vband inlet and Vband outlet, 1.15 A/R
    6. Vband inlet and Vband outlet, 1.28 A/R

T4 1.15 A/R housing is with an open style inlet, T4 1.28 A/R housing is with a twin-scroll inlet.

Specifications

Compatibility

  • Universal Part
  • Dual ceramic ball bearing system provides optimal turbo response &
    better durability by reducing the shaft-motion
  • 9 Blade PTG-Aero billet compressor wheel with extended tapered tip technology
  • 9 Blade PTG-Aero Inconel 713c turbine wheel
  • Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
    • Compressor Wheel: 73*91mm
    • Turbine Wheel: 82*75mm
    • Compressor Inlet: 5? Hose
    • Compressor Outlet: 3? V-Band
    • Turbine Inlet: 3? V-Band
    • Turbine Outlet: 3.5? V-Band
    • Water Ports: -6AN
    • Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange Restricted)
    • Oil Drain: -12AN(O-Ring sealed Flange Kit InclÂ’)

  • Turbine housing option:

    1. T4(Open) inlet, Vband outlet, 1.15 A/R
    2. T4(Divided) inlet, Vband outlet, 1.15 A/R
    3. T4(Divided) inlet, Vband outlet, 1.28 A/R
    4. Vband inlet and Vband outlet, 1.01 A/R
    5. Vband inlet and Vband outlet, 1.15 A/R
    6. Vband inlet and Vband outlet, 1.28 A/R

T4 1.15 A/R housing is with an open style inlet, T4 1.28 A/R housing is with a twin-scroll inlet.

  • Universal Part
