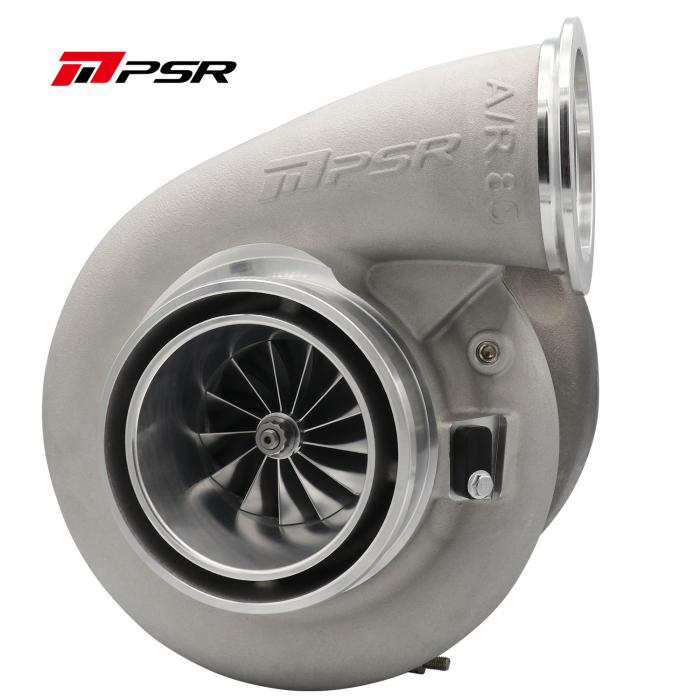

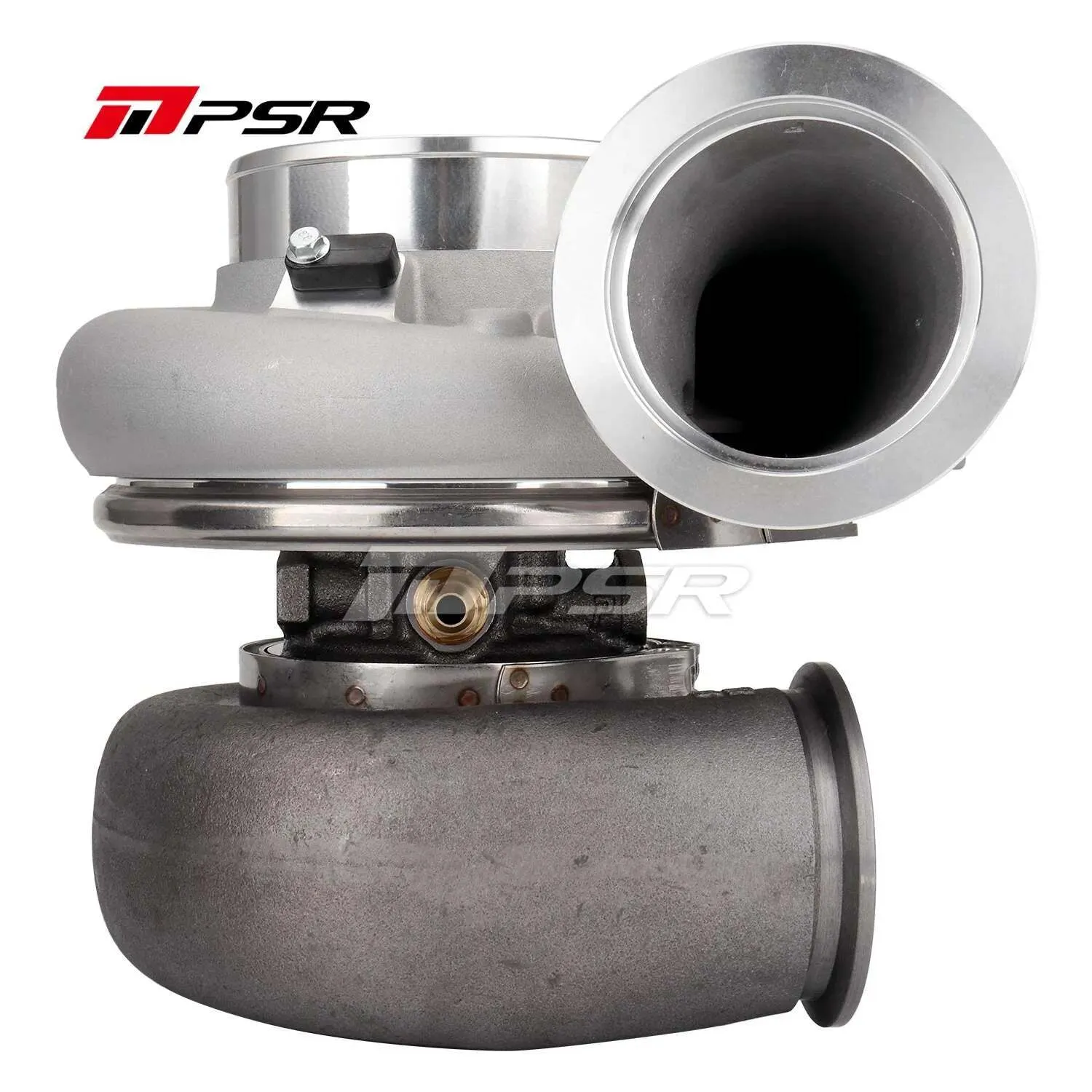

Description

  • Dual ceramic ball bearing system provides optimal turbo response &
    better durability by reducing the shaft-motion
  • 13 Blade PTG-Aero billet compressor wheel with extended tapered tip technology
  • 9 Blade PTG-Aero Inconel 713c turbine wheel
  • Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor and pressure ports
  • Water fittings included with super core
  • 8 Options in Turbine Housing
  • Compressor Wheel: 76.6*109.2mm
  • Turbine Wheel: 89*81.6mm
  • Compressor Inlet: 5? Hose
  • Compressor Outlet: 3? V-Band
  • Turbine Inlet: 3? V-Band/T4 open/ T4 divided
  • Turbine Outlet: 3.5? V-Band
  • Water Ports: -6AN
  • Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange Restricted)
  • Oil Drain: -12AN(O-Ring sealed Flange Kit InclÂ’)
  • 8 Options in Turbine Housing: T4(Open) 1.15 A/R; T4(Divided) 1.01 A/R, 1.15 A/R, 1.28 A/R, 1.44 A/R; Dual v-band 1.01 A/R, 1.15 A/R and 1.28 A/R

Specifications

Compatibility

  • Universal Part
  • Dual ceramic ball bearing system provides optimal turbo response &
    better durability by reducing the shaft-motion
  • 13 Blade PTG-Aero billet compressor wheel with extended tapered tip technology
  • 9 Blade PTG-Aero Inconel 713c turbine wheel
  • Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor and pressure ports
  • Water fittings included with super core
  • 8 Options in Turbine Housing
  • Compressor Wheel: 76.6*109.2mm
  • Turbine Wheel: 89*81.6mm
  • Compressor Inlet: 5? Hose
  • Compressor Outlet: 3? V-Band
  • Turbine Inlet: 3? V-Band/T4 open/ T4 divided
  • Turbine Outlet: 3.5? V-Band
  • Water Ports: -6AN
  • Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange Restricted)
  • Oil Drain: -12AN(O-Ring sealed Flange Kit InclÂ’)
  • 8 Options in Turbine Housing: T4(Open) 1.15 A/R; T4(Divided) 1.01 A/R, 1.15 A/R, 1.28 A/R, 1.44 A/R; Dual v-band 1.01 A/R, 1.15 A/R and 1.28 A/R
  • Universal Part
