Description

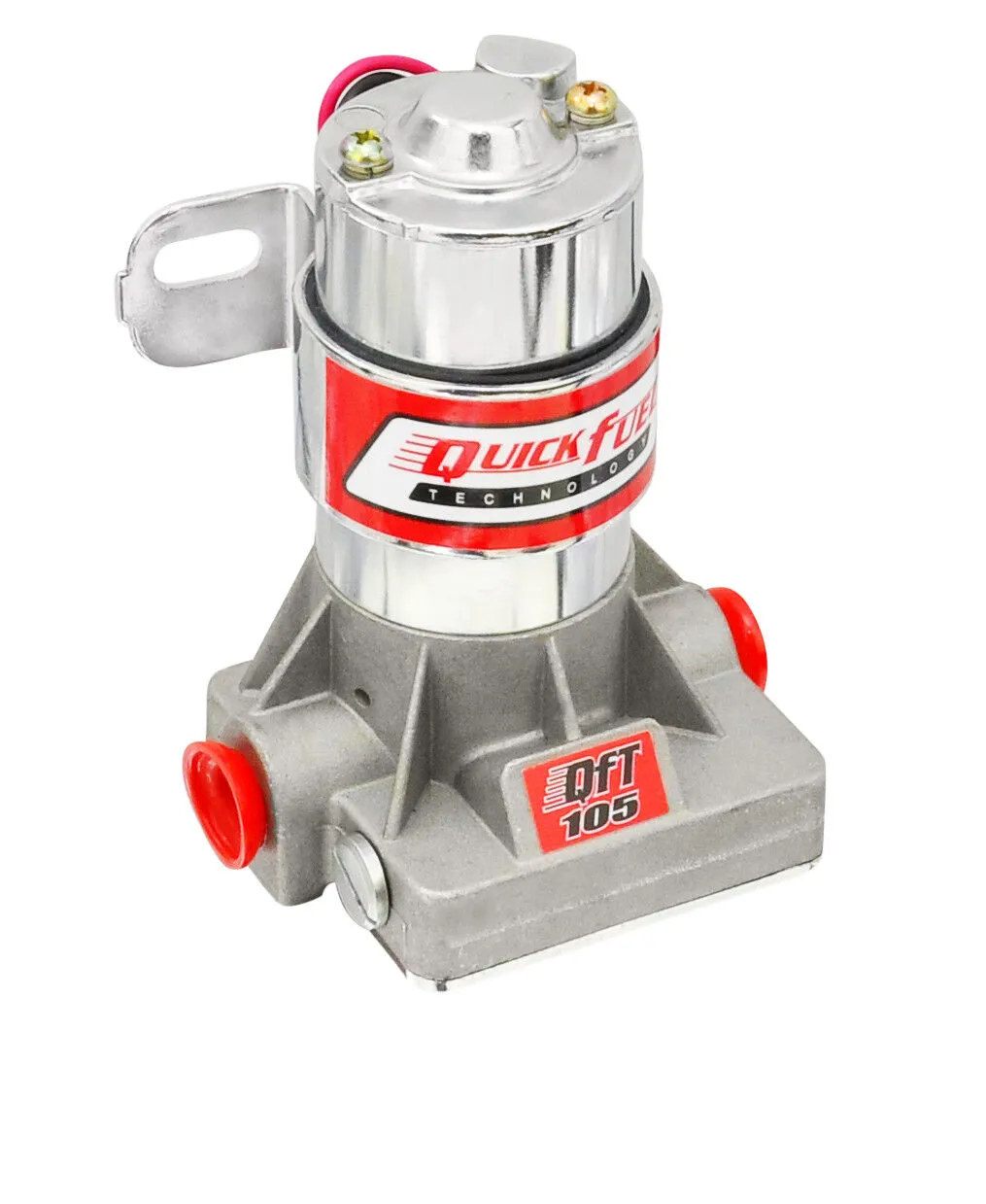

Designed for street/strip applications, the QFT 105 electric fuel pump will provide consistent performance and fuel control. This pump will flow more than enough fuel to support up to 350 HP engines. This pump draws four amps of current and is capable of producing 7 psi of maximum pressure. All mounting hardware and brackets are included.

Features

  • 105 GPH Flow Rate
  • Constructed of Lightweight Steel and Aluminum
  • 7 PSI Maximum Pressure
  • Features 3/8" NPT Inlets and Outlets
  • Externally Accessible Pressure Relief Valve
  • Draws 4 Amps or Less at Full Load
  • Designed for Carbureted Applications Only
  • Not compatible for Methanol or E85 Fuels

Specifications

Average Flow Rating105
BrandQuick Fuel
Emission Code5
Free Flow GPH105
Fuel Delivery TypeCarburetor
Fuel Sending Unit IncludedNo
Fuel TypeGasoline
Grade TypePerformance
Inlet Thread Diameter3/8
Inlet TypeNPT
Internal Or ExternalExternal
Maximum Amperage Draw4
Maximum Pressure7
Mounting Bracket IncludedYes
Negative GroundYes
Outlet Quantity1
Outlet Thread Diameter3/8
Outlet TypeNPT
Product TypeFuel Pump
Regulator IncludedNo
Sale CategoryAir and Fuel Delivery
Strainer IncludedNo
Universal Or Specific FitUniversal
WarrantyLimited 90 Day

Compatibility

  • Universal Part

Designed for street/strip applications, the QFT 105 electric fuel pump will provide consistent performance and fuel control. This pump will flow more than enough fuel to support up to 350 HP engines. This pump draws four amps of current and is capable of producing 7 psi of maximum pressure. All mounting hardware and brackets are included.

Features

  • 105 GPH Flow Rate
  • Constructed of Lightweight Steel and Aluminum
  • 7 PSI Maximum Pressure
  • Features 3/8" NPT Inlets and Outlets
  • Externally Accessible Pressure Relief Valve
  • Draws 4 Amps or Less at Full Load
  • Designed for Carbureted Applications Only
  • Not compatible for Methanol or E85 Fuels
Average Flow Rating105
BrandQuick Fuel
Emission Code5
Free Flow GPH105
Fuel Delivery TypeCarburetor
Fuel Sending Unit IncludedNo
Fuel TypeGasoline
Grade TypePerformance
Inlet Thread Diameter3/8
Inlet TypeNPT
Internal Or ExternalExternal
Maximum Amperage Draw4
Maximum Pressure7
Mounting Bracket IncludedYes
Negative GroundYes
Outlet Quantity1
Outlet Thread Diameter3/8
Outlet TypeNPT
Product TypeFuel Pump
Regulator IncludedNo
Sale CategoryAir and Fuel Delivery
Strainer IncludedNo
Universal Or Specific FitUniversal
WarrantyLimited 90 Day
  • Universal Part
