Description

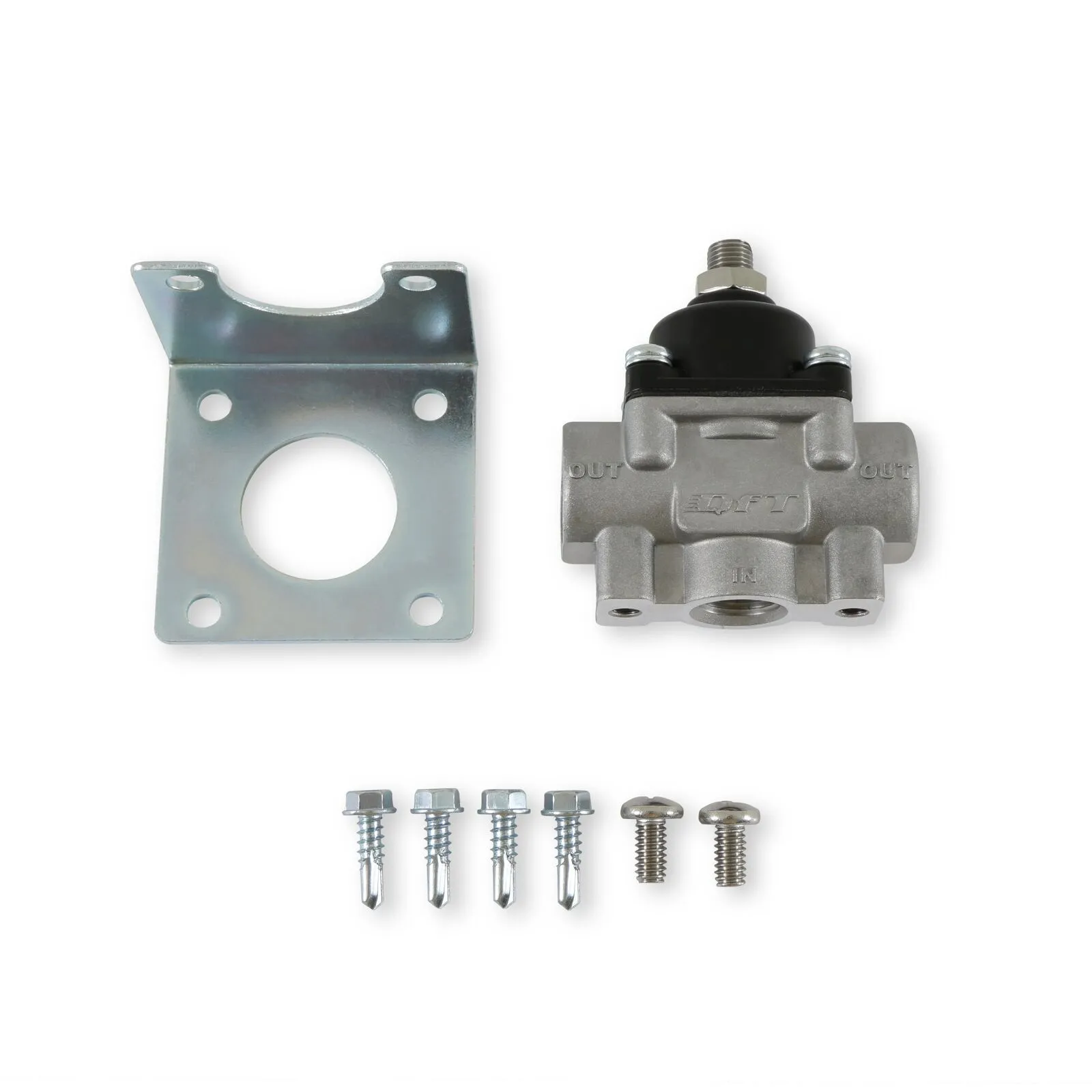

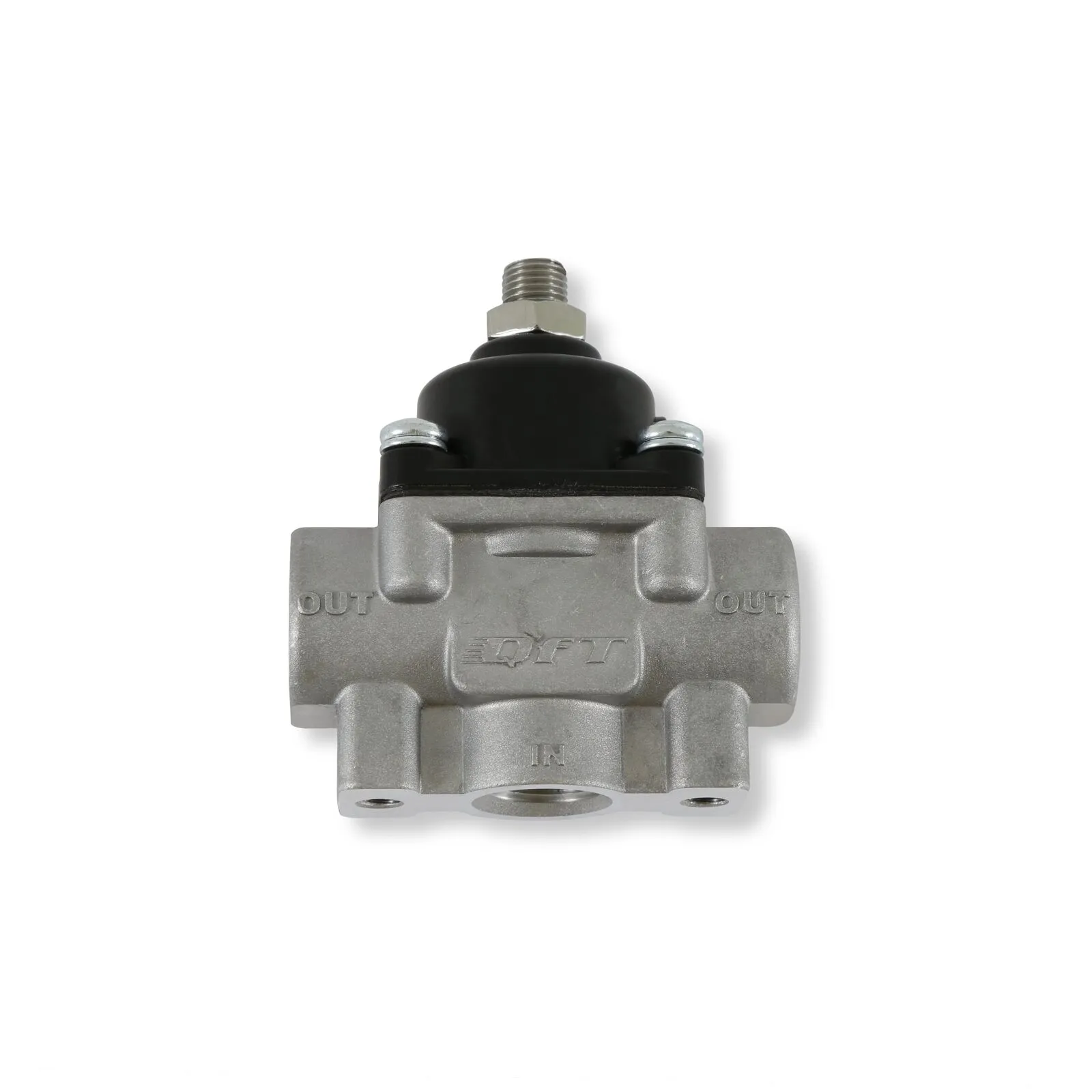

Pressure Regulator - Cast body with powder coated black top. Features 30cc diaphragm and mounting bracket with hardware. 3/8" NPT ports (single inlet, dual outlet).

Features

  • •Supports 4-barrel gas engines up to 600 HP
  • •Designed to operate within 4.5 - 9 PSI range; Preset at 7 PSI
  • •.250" (1/4") restriction

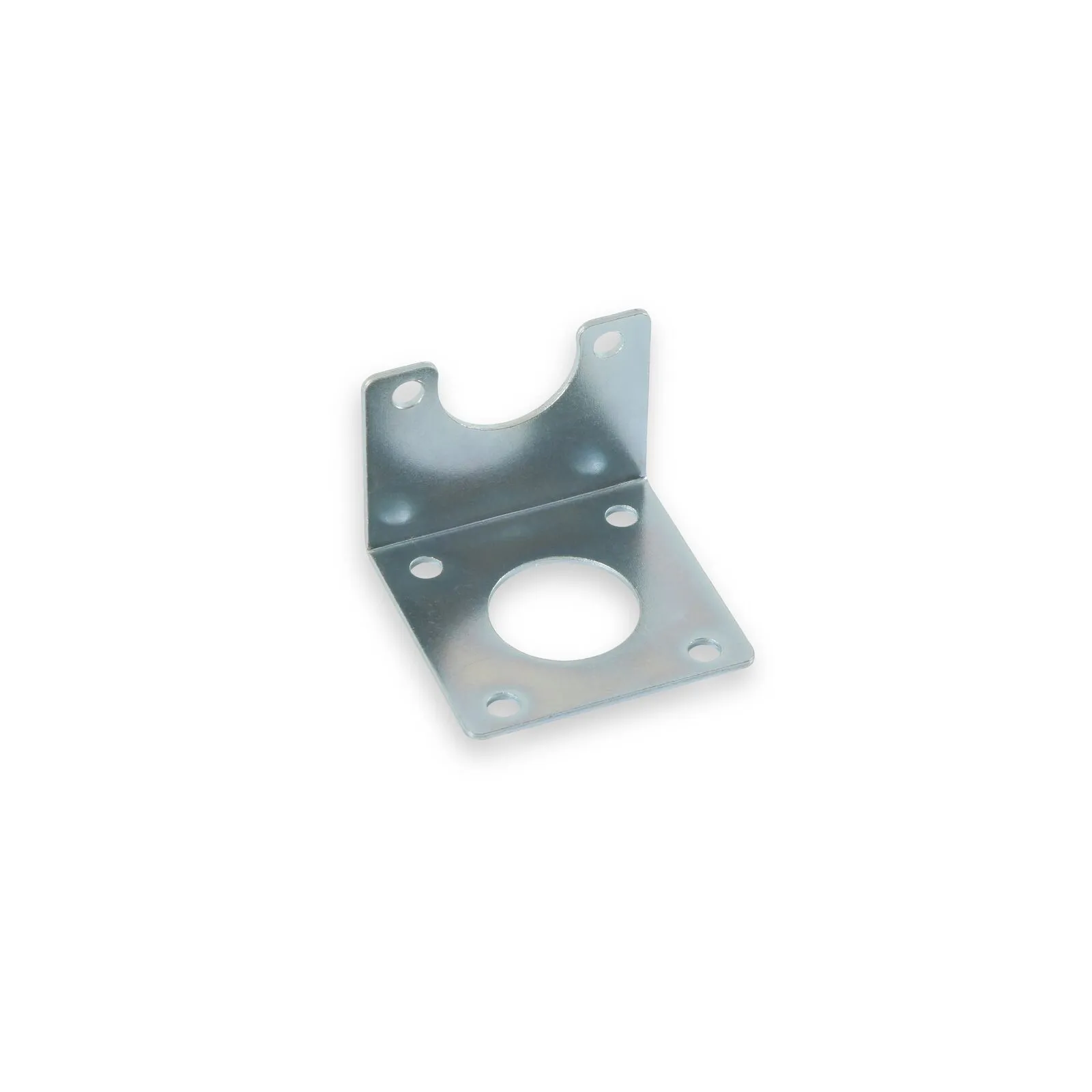

  • •Includes mounting bracket
  • •Includes an 1/8" NPT port for manifold reference
  • Boost Reference 1-1

Specifications

AdjustableYes
BrandQuick Fuel
ColourBlack
Emission Code5
Fuel TypeGasoline
Gauge IncludedNo
Grade TypePerformance
Inlet GenderFemale
Inlet Port Diameter3/8
Inlet Port Quantity1
Inlet TypeNPT
MaterialAluminum
Maximum Pressure9
Minimum Pressure4.5
Mounting Bracket IncludedYes
Outlet GenderFemale
Outlet Port Diameter3/8
Outlet Port Quantity2
Outlet TypeNPT
Product TypeFuel Pressure Regulator
Sale CategoryAir and Fuel Delivery
StyleCarbureted
WarrantyLimited 90 Day

Compatibility

  • Universal Part

Pressure Regulator - Cast body with powder coated black top. Features 30cc diaphragm and mounting bracket with hardware. 3/8" NPT ports (single inlet, dual outlet).

Features

  • •Supports 4-barrel gas engines up to 600 HP
  • •Designed to operate within 4.5 - 9 PSI range; Preset at 7 PSI
  • •.250" (1/4") restriction
  • •Includes mounting bracket
  • •Includes an 1/8" NPT port for manifold reference
  • Boost Reference 1-1
AdjustableYes
BrandQuick Fuel
ColourBlack
Emission Code5
Fuel TypeGasoline
Gauge IncludedNo
Grade TypePerformance
Inlet GenderFemale
Inlet Port Diameter3/8
Inlet Port Quantity1
Inlet TypeNPT
MaterialAluminum
Maximum Pressure9
Minimum Pressure4.5
Mounting Bracket IncludedYes
Outlet GenderFemale
Outlet Port Diameter3/8
Outlet Port Quantity2
Outlet TypeNPT
Product TypeFuel Pressure Regulator
Sale CategoryAir and Fuel Delivery
StyleCarbureted
WarrantyLimited 90 Day
  • Universal Part
