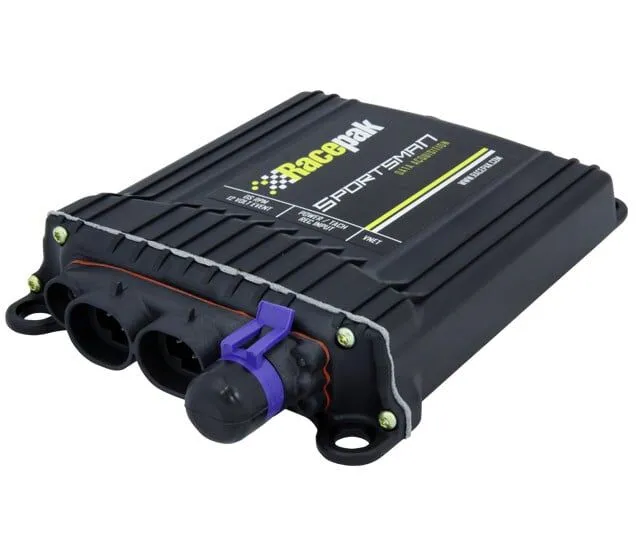

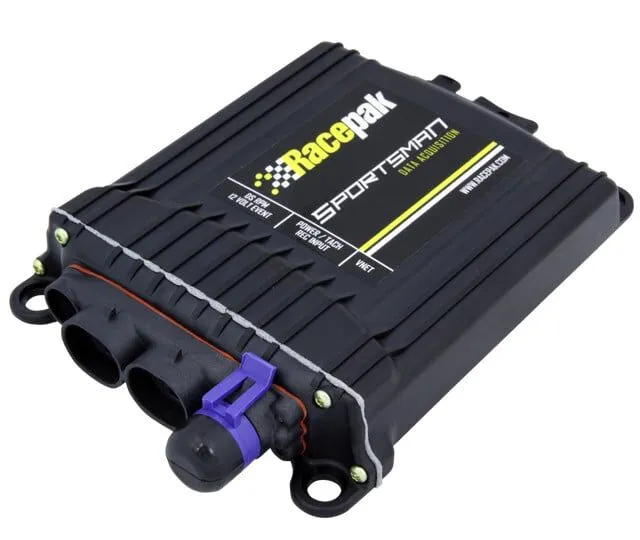

Containing the same hardware and software utilized by our professional series data recorders, the Sportsman Drag Race Data Logger package offers an economical solution for the sportsman drag racer. Utilizing Racepak's exclusive V-Net sensor input compatibility with our full V-Net product line, while the 25 total sensor inputs (internal and external) provide the ideal balance of cost and features, allowing the sportsman racer to monitor information such as EGT, oil pressure, water temperature, transmission pressure, 12v events, air/fuel ratio, and more. The use of an SD memory card ensures hours of recording time and the ability to store multiple run files, before downloading. Installation is simplified by the use of a factory terminated wiring harness and pre-programmed software._x000D_ _x000D_ Out-of-the-Box, this system will data log:_x000D_ _x000D_ Engine RPM_x000D_ _x000D_ Drive Shaft RPM (Requires Driveshaft Collar Sold Separately)_x000D_ _x000D_ Accelerometer G-Meter_x000D_ _x000D_ Lateral G-Meter_x000D_ _x000D_ Battery Voltage_x000D_ _x000D_ 12 volt event_x000D_ _x000D_ Record Button_x000D_ _x000D_ Channel Upgrades:_x000D_ _x000D_ This system comes with 6 V-Net Channels if you are looking to add more V-Net channels you can upgrade by adding 2 or 4 at a time up to 12 additional channels with the following upgrade part numbers for a total of up to 18 V-Net channels:_x000D_ _x000D_ 2 Channel Upgrade - 610-UG-SPRT2_x000D_ _x000D_ 4 Channel Upgrade - 610-UG-SPRT4

Out-of-the-Box, this system will data log:

Engine RPM

Drive Shaft RPM (Requires Driveshaft Collar Sold Separately)

Accelerometer G-Meter

Lateral G-Meter

Battery Voltage

12 volt event

Record Button

Channel Upgrades:

This system comes with 6 V-Net Channels if you are looking to add more V-Net channels you can upgrade by adding 2 or 4 at a time up to 12 additional channels with the following upgrade part numbers for a total of up to 18 V-Net channels:

2 Channel Upgrade - 610-UG-SPRT2

4 Channel Upgrade - 610-UG-SPRT4

Features

• Channels: 25 Total - 7 Internal - 8 EGT channels (Sensors sold separate), and 4 shock channels (Sensors sold separate). 6 V-Net (Expandable)
• Sample Rate: up to 100 frames per second, to capture every channel for in-depth analysis.
• Memory: included SD Card, for quick and easy file transfer to a computer.
• Internal Sensors: Engine RPM, Driveshaft RPM, Battery Voltage, Start Record Button, 2 Axis G Meter, 12 Volt Event
• Weight: .65 lbs
