Description

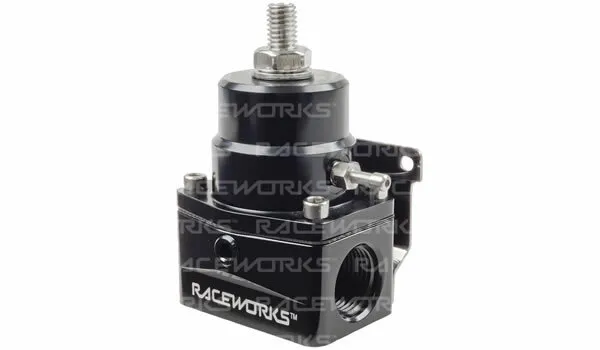

Raceworks Fuel Pressure Regulators are machined from high grade 6061-T6 Billet aluminium. These regulators are an ideal upgrade to your fuel system whether it be a flow through or dead head system and will support up to 800hp. All regulators come with 1/8" NPT gauge reference ports, compatible with all known fuels and are fully adjustable with a rising rate of 1:1. Brackets and screws supplied.





Specifications

  • 2 x AN-10 Inlets and AN-10 Return
  • 1/8″ NPT Gauge Port
  • Base Pressure Range of 40-75PSI (2.75-5.2Bar)
  • Boost Referenced (1:1 Ratio)
  • Boost Reference Port is 1/16″ NPT
  • Dimensions are 101mm high, 62mm wide and 60mm deep with no fittings
  • E85 and PUMP Fuel Safe

Compatibility

  • Universal Part

Raceworks Fuel Pressure Regulators are machined from high grade 6061-T6 Billet aluminium. These regulators are an ideal upgrade to your fuel system whether it be a flow through or dead head system and will support up to 800hp. All regulators come with 1/8" NPT gauge reference ports, compatible with all known fuels and are fully adjustable with a rising rate of 1:1. Brackets and screws supplied.





  • 2 x AN-10 Inlets and AN-10 Return
  • 1/8″ NPT Gauge Port
  • Base Pressure Range of 40-75PSI (2.75-5.2Bar)
  • Boost Referenced (1:1 Ratio)
  • Boost Reference Port is 1/16″ NPT
  • Dimensions are 101mm high, 62mm wide and 60mm deep with no fittings
  • E85 and PUMP Fuel Safe
  • Universal Part
