Description

Raceworks have spent years developing a comprehensive range of performance injectors, building on the foundation of OE Quality brands such as Bosch, Denso and Siemens VDO. Raceworks Fuel Injectors now set the industry standard for quality and reliability, with a variety of flow rates, physical sizes, and fuel compatibility ranging from pump fuel to E85 and Methanol. A full range of connector plug adapters and extensions are also available, enabling a quick and simple upgrade to almost any application.

Specifications

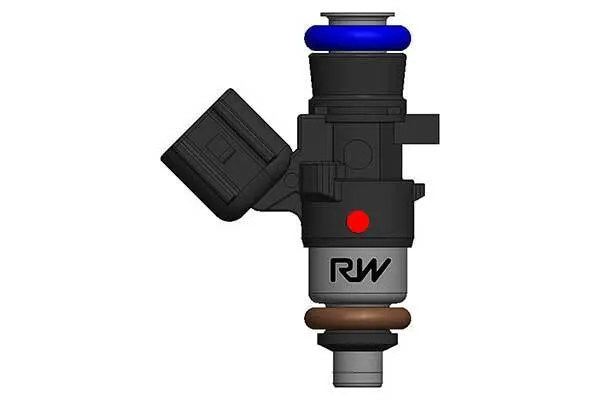

  • Modified/High Flowed Bosch Injector
  • Size: 1100cc ( 105 Lb/hr) @ 3bar and 1300cc (124 Lb/hr) @ 4bar.
  • Impedance: High (12 Ohms)
  • Plug: USCAR. Top O-Ring: 14mm. Bottom O-Ring: 15mm.
  • Ethanol & Methanol Safe
  • Spray Pattern – Narrow Cone
  • Spray Direction – Straight
  • Flow variance is +/- 1.5% (3% Total)

Compatibility

  • Holden Commodore VZ 6.0L V8
  • Holden Commodore VE L76/L77/L98/LS3
  • Holden Commodore VE LS7
  • Holden Commodore VF V8

Raceworks have spent years developing a comprehensive range of performance injectors, building on the foundation of OE Quality brands such as Bosch, Denso and Siemens VDO. Raceworks Fuel Injectors now set the industry standard for quality and reliability, with a variety of flow rates, physical sizes, and fuel compatibility ranging from pump fuel to E85 and Methanol. A full range of connector plug adapters and extensions are also available, enabling a quick and simple upgrade to almost any application.

  • Modified/High Flowed Bosch Injector
  • Size: 1100cc ( 105 Lb/hr) @ 3bar and 1300cc (124 Lb/hr) @ 4bar.
  • Impedance: High (12 Ohms)
  • Plug: USCAR. Top O-Ring: 14mm. Bottom O-Ring: 15mm.
  • Ethanol & Methanol Safe
  • Spray Pattern – Narrow Cone
  • Spray Direction – Straight
  • Flow variance is +/- 1.5% (3% Total)
  • Holden Commodore VZ 6.0L V8
  • Holden Commodore VE L76/L77/L98/LS3
  • Holden Commodore VE LS7
  • Holden Commodore VF V8
