Description

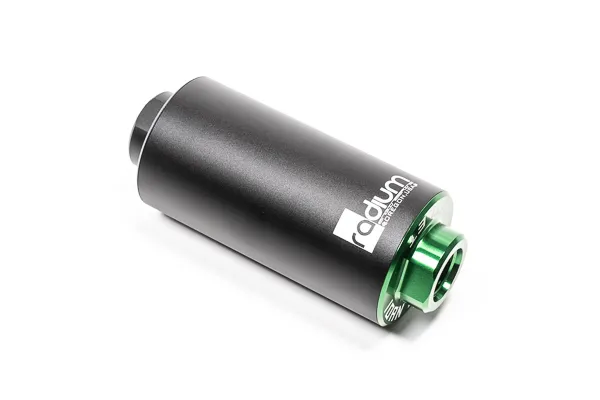

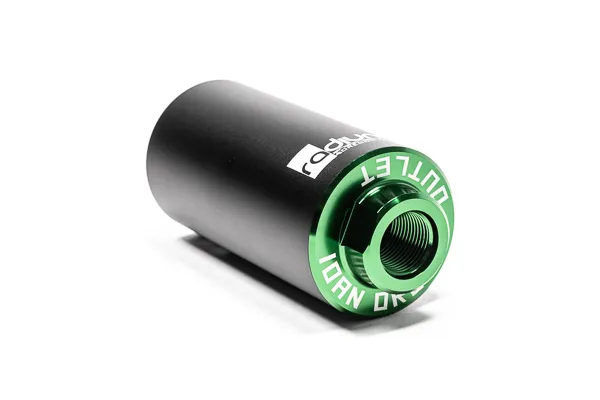

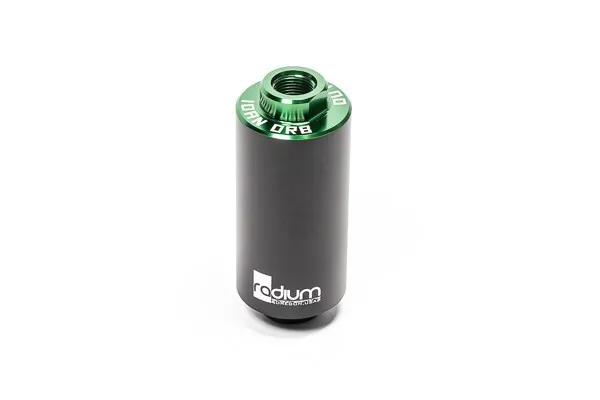

The Radium Engineering high flow fuel filter has a 3 piece body that is CNC machined from 6061 aluminum and Type-II anodized for maximum corrosion resistance. Both removable end caps feature large -10AN ORB female threaded ports for high flow plumbing.

The fuel filter comes preassembled with Viton O-ring seals for all fuel types including gasoline, diesel, methanol, ethanol, and alcohol blends such as E85. High fuel pressures < 150psi can safely be used with negligible pressure drop.

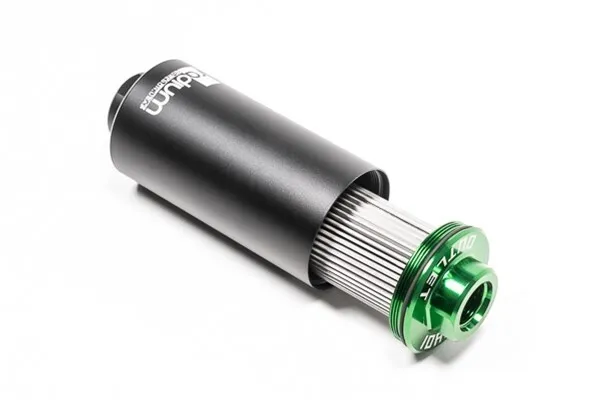

The filter features a large 4.2"x1.75" element maximizing flow without sacrificing filtration. The large elements also hold a lot of contaminants without becoming a restriction, resulting in a very long service life.

Specifications

  • 3-piece body featuring CNC-machined 6061 aluminum construction
  • Type-II anodized coated for maximum corrosion resistance
  • The end caps are sealed to the body with FKM O-rings
  • Burst pressure rated at 750 psi

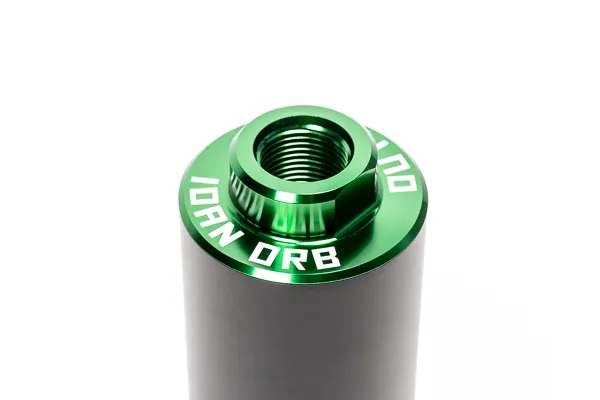

  • Both removable end caps feature large -10AN ORB female threaded ports for high-flow plumbing
  • Micro glass 6-micron filter element type
  • The filter element has an extensive amount of surface area in order to extend the service life
  • The filter will come pre-assembled
  • Compatible with all fuel types including gasoline, diesel, methanol, ethanol, and alcohol blends such as E-85
  • 150+psi high fuel pressures can safely be used with negligible pressure drop
  • The filter elements feature a stainless internal core to prevent collapsing at high flows

Compatibility

  • Universal Parts

The Radium Engineering high flow fuel filter has a 3 piece body that is CNC machined from 6061 aluminum and Type-II anodized for maximum corrosion resistance. Both removable end caps feature large -10AN ORB female threaded ports for high flow plumbing.

The fuel filter comes preassembled with Viton O-ring seals for all fuel types including gasoline, diesel, methanol, ethanol, and alcohol blends such as E85. High fuel pressures < 150psi can safely be used with negligible pressure drop.

The filter features a large 4.2"x1.75" element maximizing flow without sacrificing filtration. The large elements also hold a lot of contaminants without becoming a restriction, resulting in a very long service life.

  • 3-piece body featuring CNC-machined 6061 aluminum construction
  • Type-II anodized coated for maximum corrosion resistance
  • The end caps are sealed to the body with FKM O-rings
  • Burst pressure rated at 750 psi
  • Both removable end caps feature large -10AN ORB female threaded ports for high-flow plumbing
  • Micro glass 6-micron filter element type
  • The filter element has an extensive amount of surface area in order to extend the service life
  • The filter will come pre-assembled
  • Compatible with all fuel types including gasoline, diesel, methanol, ethanol, and alcohol blends such as E-85
  • 150+psi high fuel pressures can safely be used with negligible pressure drop
  • The filter elements feature a stainless internal core to prevent collapsing at high flows
  • Universal Parts
