Description

This fuel level sensor uses the standard SAE 5-bolt mounting pattern, extensively used with the Radium Fuel Cell Surge Tank. It features Full stainless steel sealed construction with magnetic float and is suitable for use with gasoline, diesel, water, and all alcohol-based fuels including methanol, ethanol, E85, etc.

NOTES:

  • All level senders are 0 ohms empty to 90 ohms full (common with many aftermarket gauges.)
  • Radium does not sell fuel level gauges
  • To test the sender, measure the resistance between the two wires while tipping the sender to allow the float to move.
  • If the output of this sender is not compatible with your OEM fuel gauge, consider a resistance signal converter. (Radium Engineering does not have experience with this product, contact Classic Instruments for more information)

Specifications

  • PROBE MATERIAL: 304 Stainless Steel
  • FLOAT MATERIAL: Plastic Buna-N
  • MOUNTING FLANGE: 5-Bolt SAE
  • MOUNTING GASKET: FKM
  • RESISTANCE: 0 (Empty)-90 (Full) Ohms
  • PVC WIRES: 18" (460mm) with PA Cover
  • CONNECTORS: Deutsch DT, 2P
  • OPERATING TEMP: -40F to +185F

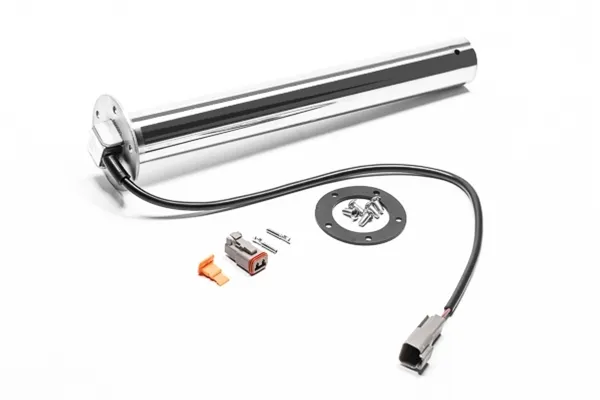

What's Included

  • Level Sensing Probe
  • SAE 5-Bolt Gasket
  • Stainless Bolts 10-32 (x5)
  • Deutsch DT 2P Connector
  • Deutsch DT Sockets (x2)

Compatibility

This fuel level sensor uses the standard SAE 5-bolt mounting pattern, extensively used with the Radium Fuel Cell Surge Tank. It features Full stainless steel sealed construction with magnetic float and is suitable for use with gasoline, diesel, water, and all alcohol-based fuels including methanol, ethanol, E85, etc.

NOTES:

  • All level senders are 0 ohms empty to 90 ohms full (common with many aftermarket gauges.)
  • Radium does not sell fuel level gauges
  • To test the sender, measure the resistance between the two wires while tipping the sender to allow the float to move.
  • If the output of this sender is not compatible with your OEM fuel gauge, consider a resistance signal converter. (Radium Engineering does not have experience with this product, contact Classic Instruments for more information)

  • PROBE MATERIAL: 304 Stainless Steel
  • FLOAT MATERIAL: Plastic Buna-N
  • MOUNTING FLANGE: 5-Bolt SAE
  • MOUNTING GASKET: FKM
  • RESISTANCE: 0 (Empty)-90 (Full) Ohms
  • PVC WIRES: 18" (460mm) with PA Cover
  • CONNECTORS: Deutsch DT, 2P
  • OPERATING TEMP: -40F to +185F
  • Level Sensing Probe
  • SAE 5-Bolt Gasket
  • Stainless Bolts 10-32 (x5)
  • Deutsch DT 2P Connector
  • Deutsch DT Sockets (x2)
