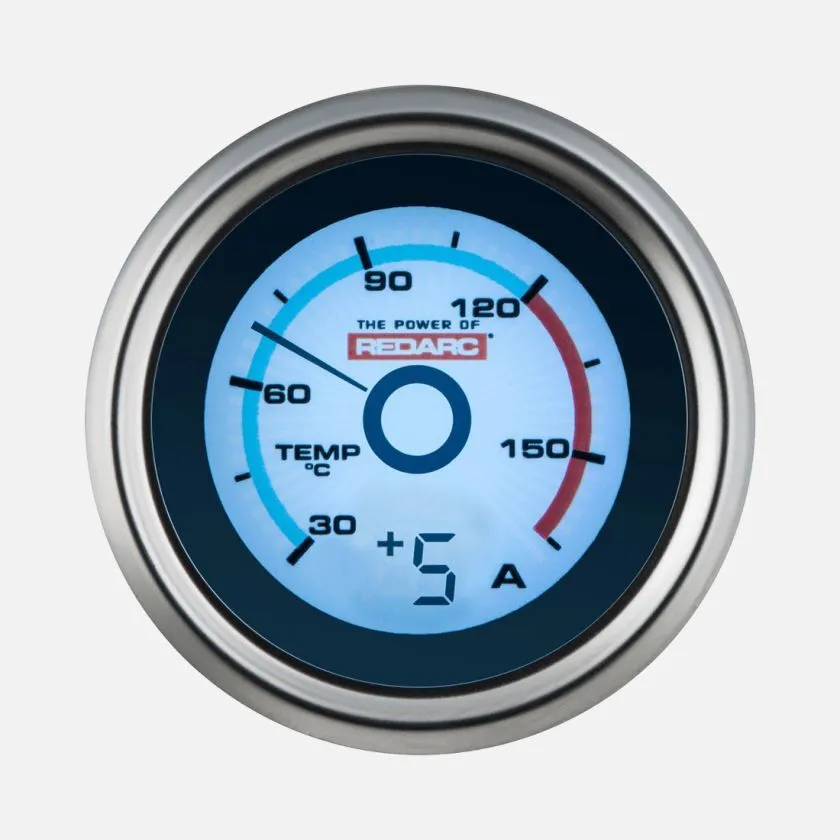

SINGLE TEMPERATURE 52MM GAUGE

The REDARC 52mm single temperature gauge is ideal for monitoring your engines oil or water (coolant) temperature.

The G52-TA gauge is supplied with one REDARC 1/4 NPT thread temperature sender that measure from -30 to +160°C.

Oil subjected to excessive temperatures can lose its lubrication properties that keep metal parts from touching. If the oil temperature rises above the desired limit, you can reduce the load placed on the engine or transmission to reduce the temperature and prevent engine failure. Similarly, monitoring the water (coolant) temperature of your engine ensures that it does not over heat, resulting in major engine damage.

CURRENT DISPLAY*

The G52-TA gauge is also equipped with an optional 100A rated current display that monitors the amount of current to or from a battery. This device can be fitted around the earth connection of either the main or auxiliary battery. You will need to purchase the REDARC Hall effect current sensor (GS-AMPS) to equip the gauge with this function.

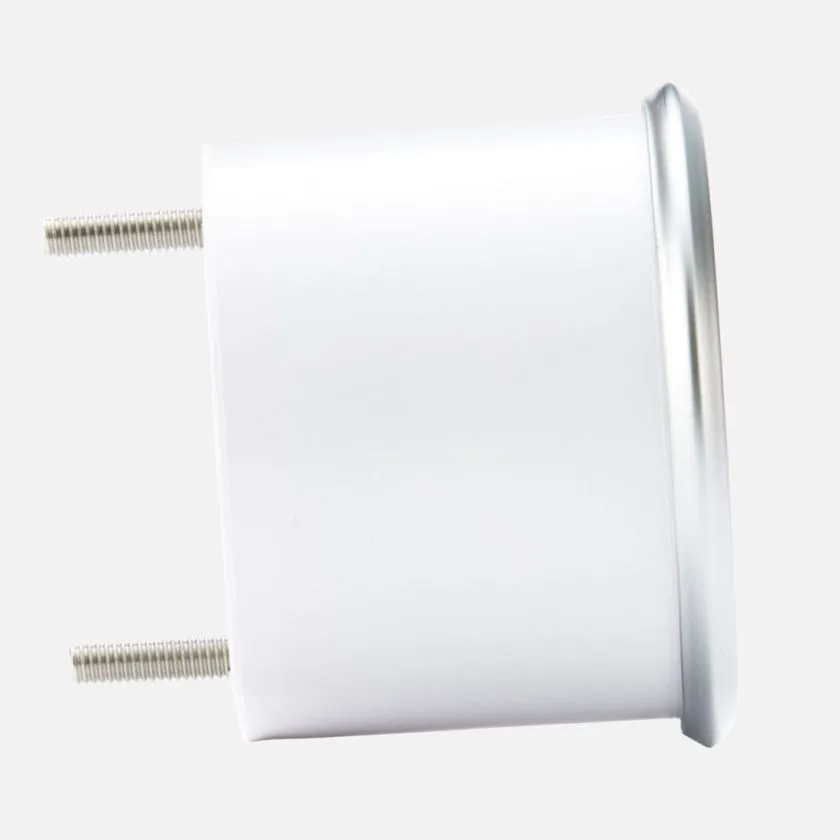

The G52-TA gauge diameter requires a 52mm hole for mounting. REDARC offer a range of mounting solutions including a 2” black plastic mounting cup (GH-CUP) and one (GH-MP1), two (GH-MP2) and three (GH-MP3) hole gauge mounting panels. Radio inserts are also available for the Toyota Hilux (GH-RI05).

The REDARC 24 to the 12-volt adaptor (GA-2412V) can be used to connect this gauge to a vehicle with a 24-volt ignition and lighting supply, however only a 12-volt battery can be monitored.

ENHANCED LIGHTING CONTROLLER*

REDARC recommends the purchase of an Enhanced Lighting Controller (GA-ELC) with this gauge. The GA-ELC is designed to enhance the lighting of your REDARC gauges as only one required for a set. It is to be used when you do not have a dimming circuit to connect your gauge to or the dimming circuit in your vehicle does not dim the REDARC gauge to your liking.

The GA-ELC also allows you to program nighttime brightness and colour of your REDARC gauges, including dimming if connected to a dash dimmer. Once programmed your gauges will change colour when turning on your park lights and back to a daylight colour when you turn them off. The GA-ELC is also 24 volt capable.

* = Optional accessory, not included with standard purchase
