Description

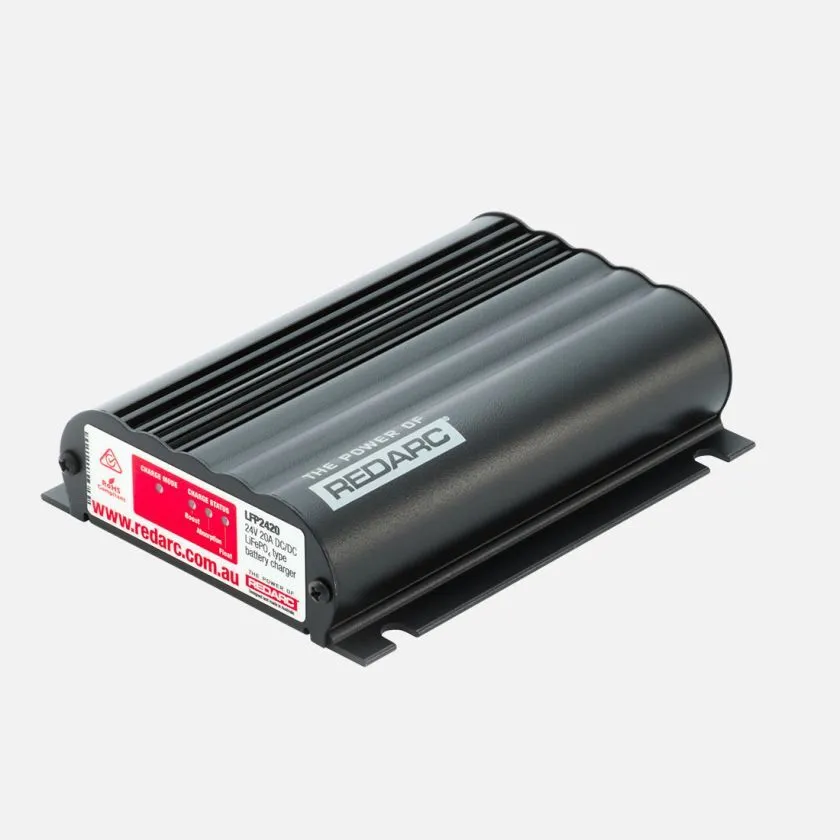

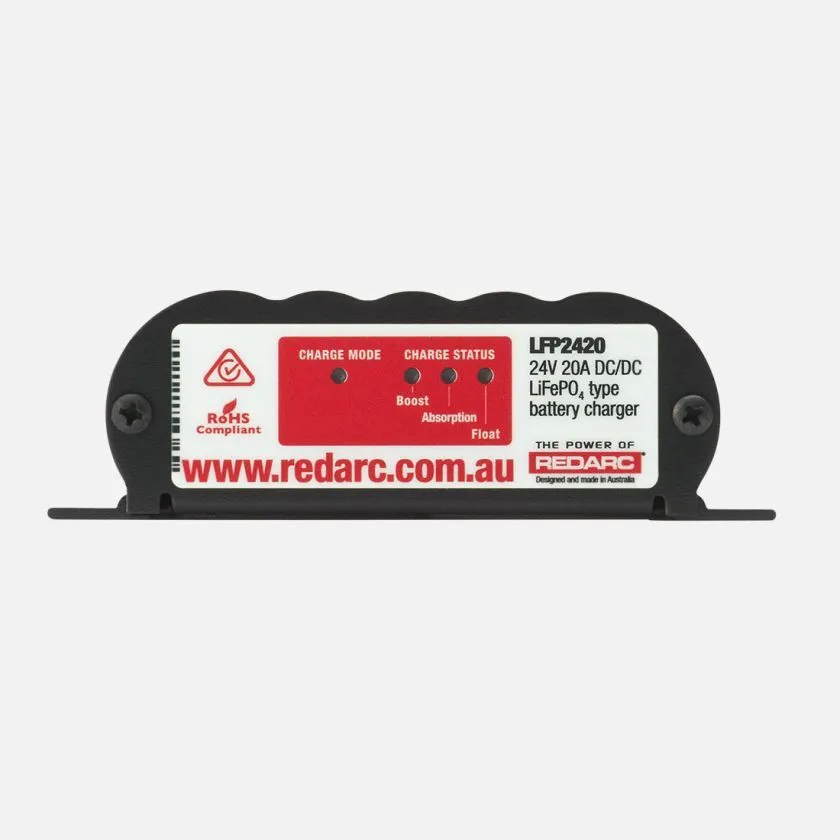

The REDARC LFP2420 In-vehicle battery charger is a 24 Volt 20 Amp, three stage DC DC charger that operates from a vehicle input between 9 and 32 Volts DC. It is designed to charge Lithium Iron Phosphate (LiFeP04) batteries to their optimal level with chemistry specific battery charging algorithms.

The LFP2420 features a three stage charging algorithm, with a 24V charging output the DC to DC charger is perfectly suited to trucking applications such as charging battery banks for tailgate lifters and side curtains.

The LFP2420 features a MPPT Solar Regulator, which means 12V solar panels can be used to charge your 24V auxiliary batteries. The MPPT Solar charging algorithm extracts the maximum available power from your solar panels at any given time.

To find out the best dual battery setup for your needs use the free REDARC Dual Battery Selector here.

Specifications

  • Three Stage DC to DC Battery Charger
  • MPPT Solar Regulator
  • Start Battery Isolator
  • Fully sealed
  • No fan for super quiet operation
  • Charges Lithium Iron Phosphate (LiFeP04) batteries
  • gtin_barcode : 9338628004638
  • brand : REDARC
  • Battery Chemistry : Lithium
  • Continuous Rating : 20A
  • Power Type - AC DC : DC TO DC
  • Solar Input Voltage : 9 - 32V
  • Operating Temperature : -10°C to 80°C

Compatibility

  • Universal Part

The REDARC LFP2420 In-vehicle battery charger is a 24 Volt 20 Amp, three stage DC DC charger that operates from a vehicle input between 9 and 32 Volts DC. It is designed to charge Lithium Iron Phosphate (LiFeP04) batteries to their optimal level with chemistry specific battery charging algorithms.

The LFP2420 features a three stage charging algorithm, with a 24V charging output the DC to DC charger is perfectly suited to trucking applications such as charging battery banks for tailgate lifters and side curtains.

The LFP2420 features a MPPT Solar Regulator, which means 12V solar panels can be used to charge your 24V auxiliary batteries. The MPPT Solar charging algorithm extracts the maximum available power from your solar panels at any given time.

To find out the best dual battery setup for your needs use the free REDARC Dual Battery Selector here.

  • Three Stage DC to DC Battery Charger
  • MPPT Solar Regulator
  • Start Battery Isolator
  • Fully sealed
  • No fan for super quiet operation
  • Charges Lithium Iron Phosphate (LiFeP04) batteries
  • gtin_barcode : 9338628004638
  • brand : REDARC
  • Battery Chemistry : Lithium
  • Continuous Rating : 20A
  • Power Type - AC DC : DC TO DC
  • Solar Input Voltage : 9 - 32V
  • Operating Temperature : -10°C to 80°C
  • Universal Part
